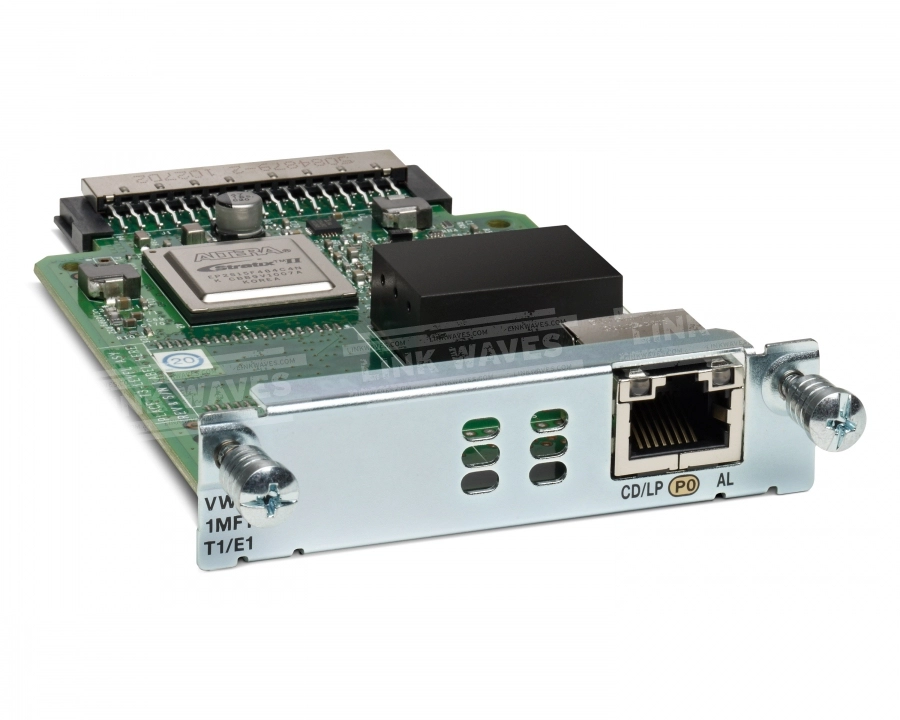

1-port 3RD GEN MULTIFLEX Trunk Voice/WAN INT. CARD - T1/E1


Cisco Systems
Niet op voorraad
€ 1.443,25
€ 1.746,33 incl 21% BTW
Heeft u een vraag over dit product?
These flexible interface cards support multiple integrated data, voice and video applications, facilitating the migration from data only as well as circuit-switched voice/video services to a packet voice/video solution

Introduction

The Cisco® Third-generation 1-, 2-port and 4-port T1/E1 Multiflex Trunk Voice/WAN Interface (MFT VWIC3s) support data and voice applications on the Cisco 1921, 1941 and 1941W (data only), and the Cisco 2901, 2911, 2921, 2951, 3925, 3945, 3925E and 3945E Integrated Services Routers. The Cisco MFT VWIC3 combines WAN-interface-card (WIC) and voice-interface-card (VIC) functions to provide unparalleled flexibility, versatility, and investment protection through its many uses. Customers who choose to integrate data and voice in multiple steps preserve their investment in a T1/E1 WAN interface because the Cisco MFT VWIC3 cards can be reused in packet voice applications. The 2 port T1/E1 MFT VWIC3 is shown below.

The Cisco MFT VWIC3 interface cards add improvements over the Cisco Second-generation 1- and 2-port T1/E1 Multiflex Voice/WAN Interface Cards (MFT VWIC2s). The Cisco 2- and 4-port MFT VWIC3s enable each port to be clocked from an independent clock source for data applications. Voice applications can now be clocked independently from data applications, with all ports for voice applications clocked from a single source. The Cisco MFT VWIC3s use the ECAN on the motherboard PVDM cards with up to 128ms echo-tail length for demanding network conditions. MFT VWIC3 cards support up to 2 channel groups per T1/E1 port for serial data applications. Refer to Table 3 for all configuration options offered with the MFT VWIC3 cards.

The Cisco MFT VWIC3 cards can be inserted into the EHWIC slot on the supported Cisco 1921, 1941, 1941W, 2901, 2911, 2921, 2951, 3925, 3945, 3925E and 3945E integrated services routers. The T1/E1 MFT VWIC3 cards support both T1 and E1, providing additional flexibility in configuring the Cisco MFT VWIC3s for supporting T1, fractional T1, E1, and fractional E1 for both voice and WAN applications. All MFT VWIC3 modules include the drop-and-insert multiplexing capability, which eliminates costly external third-party channel service units/data service units (CSUs/DSUs) and drop-and-insert multiplexers.

The Cisco MFT VWIC3 cards are offered in single-, dual- and quadruple-port versions, which can be used and then redeployed as network requirements change, thereby addressing several applications:

- T1/E1 data: The Cisco 1-, 2- and 4-port T1/E1 MFT VWIC3 versions act as a WIC, supporting T1, fractional T1, E1, (including structured G.703 with G.704 framing), fractional E1, and E1structured G.703 applications. To simplify remote management, these MFT VWIC3 cards integrate a fully managed DSU/CSU for T1 deployments and a fully managed DSU for E1 deployments.

- E1/G.703 data: The Cisco 1- and 2- port G.703 MFT VWIC3 versions act as a WIC, supporting T1, fractional T1, E1 (including structured G.703 with G.704 framing), fractional E1, and unstructured E1 (G.703) applications. To simplify remote management, the G.703 version includes a fully managed DSU. The G.703 versions also support all the capabilities on the T1/E1 versions.

- T1/E1 packet voice: The Cisco 1-, 2- and 4-port T1/E1 MFT VWIC3 (voice and WAN) versions act as a VIC, supporting packet voice applications by providing T1, fractional T1, E1, and fractional E1 connections to private branch exchanges (PBXs) and central offices, thereby enabling new services and reducing voice and fax toll charges.

- Mixed data and packet voice: The Cisco MFT VWIC3 interface cards can simultaneously support both data and voice, reducing the complexity and number of network components and facilitating a graceful migration to bandwidth-efficient packet voice.

- Mixed data and packet voice with drop and insert: The Cisco MFT VWIC3 cards can be deployed as a T1/E1 drop-and-insert multiplexer with integrated DSUs/CSUs, reducing the complexity of the network and the cost of the central-office ports by efficiently combining time-division multiplexing (TDM) voice (PBX), IP voice, and data on the same trunks. Cisco 1900, 2900 and 3900 ISR routers support drop and insert between ports over a single MFT VWIC3 card and two ports over two different MFT VWIC3s

Key Benefits

Reduces Networking Lifecycle Costs
- Enables graceful migration from data-only to multiplexed data and voice to packetized voice applications
- Reduces training, deployment, management, and sparing inventory over single-purpose interfaces
- Maximizes investment protection
- Simplifies network configuration and sparing through the support of both T1 and E1 on the same card
- Offers multifunction support for LAN-to-LAN routing, multiplexed data and voice, and packetized voice
- Offers ability to share modules among Cisco 1900, 2900 and 3900 Series routers
- Increases configuration flexibility and reduces cost for data applications by allowing individual ports to be clocked from independent clock sources (not supported for voice applications, since all voice enabled ports must be clocked from a single clock source)
- Supports E1 configurations for both balanced and unbalanced modes
- Supports (G.703 models) unstructured E1 (G.703) for using the full 2.048 Mbps
- Eliminates costly external third-party CSUs/DSUs and drop-and-insert multiplexers
- Simplifies remote network management by allowing a single management tool such as CiscoView or CiscoWorks to support router, CSU/DSU, or drop-and-insert multiplexer

Maximizes System Resources

- Increases T1/E1 port density on the supported Cisco 2911, 2921, 2951, 3925, 3945, 3925E and 3945E integrated services routers-up to four T1/E1 connections with an integrated CSU/DSU in a single EHWIC slot

- Offers easy migration to bandwidth-efficient packet voice, enabling new services
- Customers can choose to integrate data and voice in stages to preserve their investment in WAN interfaces. For example, the Cisco MFT VWIC3 can support data-only applications as a WAN interface, and then be reused to integrate data and voice with the drop-and-insert multiplexer function or configured to support packetized voice (voice over IP [VoIP] or voice over Frame Relay [VoFR]).

Specificaties

Product
Product id 324041
Merk Cisco Systems
Partnr VWIC3-1MFT-T1/E1=
EAN/UPC code 882658359309
Eisen aan de omgeving
Temperatuur, in bedrijf 0 - 40 °C
Temperatuur bij opslag -25 - 70 °C
Relatieve luchtvochtigheid, in bedrijf 5 - 85 procent
Luchtvochtigheid bij opslag 5 - 95 procent
Gewicht en omvang
Breedte 782 mm
Diepte 1204 mm
Hoogte 191 mm
Gewicht 82 g
Interface Ethernet
Intern Y
Maximale overdrachtssnelheid van gegevens 2048 Mbit/s
Ethernet LAN Y
Connectiviteitstechnologie Wired
Kleur van het product Green, Metallic
Versterking -15 dBi
Aantal Ethernet LAN (RJ-45)-poorten 1
Hostinterface RJ-45
Netwerkstandaard IEEE 802.3
