CAT 6A U-UTP installation cable, 500 MHz Dca (EN 50575), AWG 23/1, 305 m drum, Sx, blue



Digitus
Niet op voorraad
€ 207,42
€ 250,98 incl 21% BTW
Heeft u een vraag over dit product?
CAT 6A U/UTP installation cable, 305 m, simplex, Dca

Future-oriented standards and high-end quality for your network.

- 10GBit Ethernet
- 500 MHz transmission frequency
- PoE Power over Ethernet support
- CPR class Dca

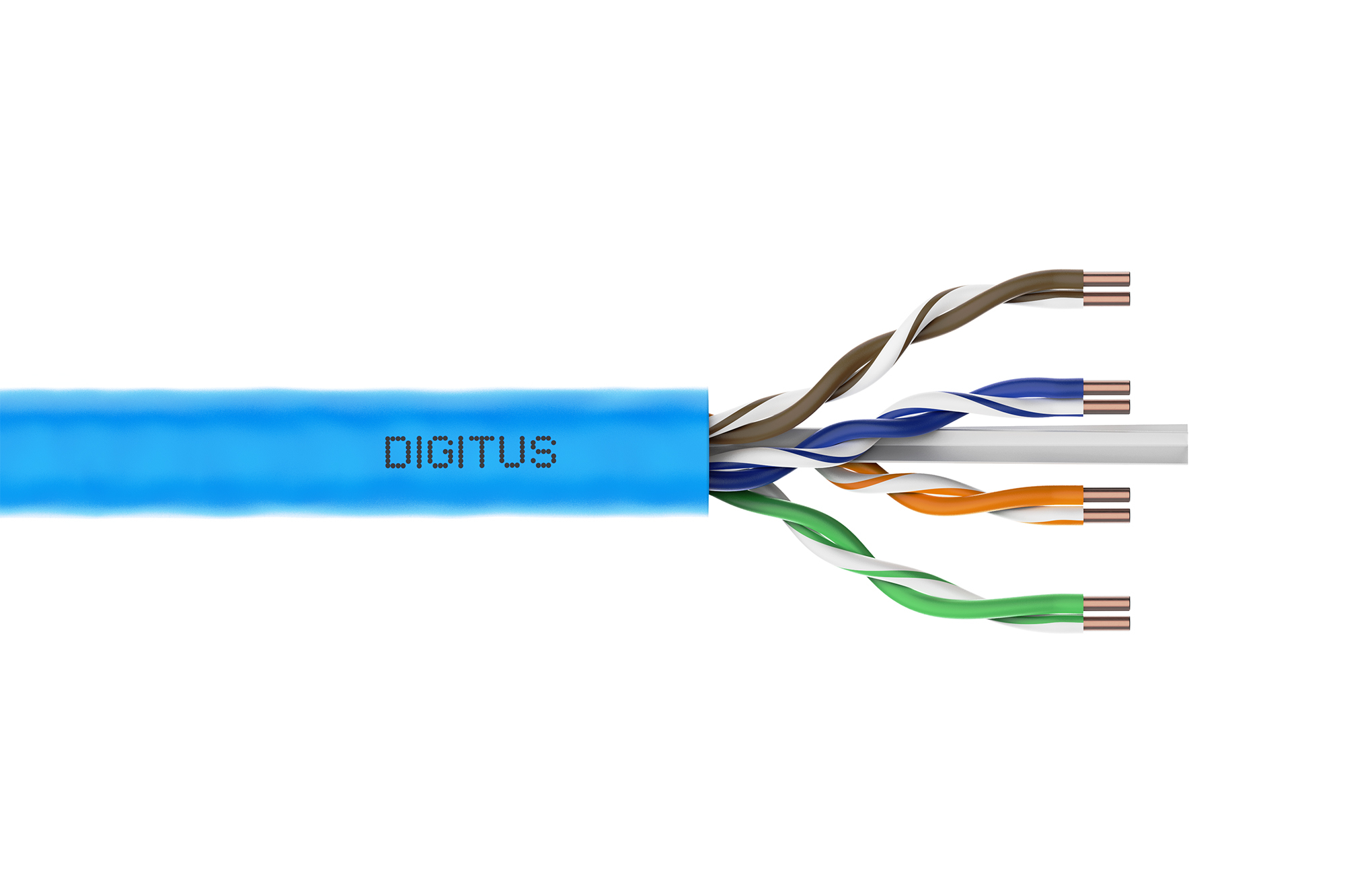

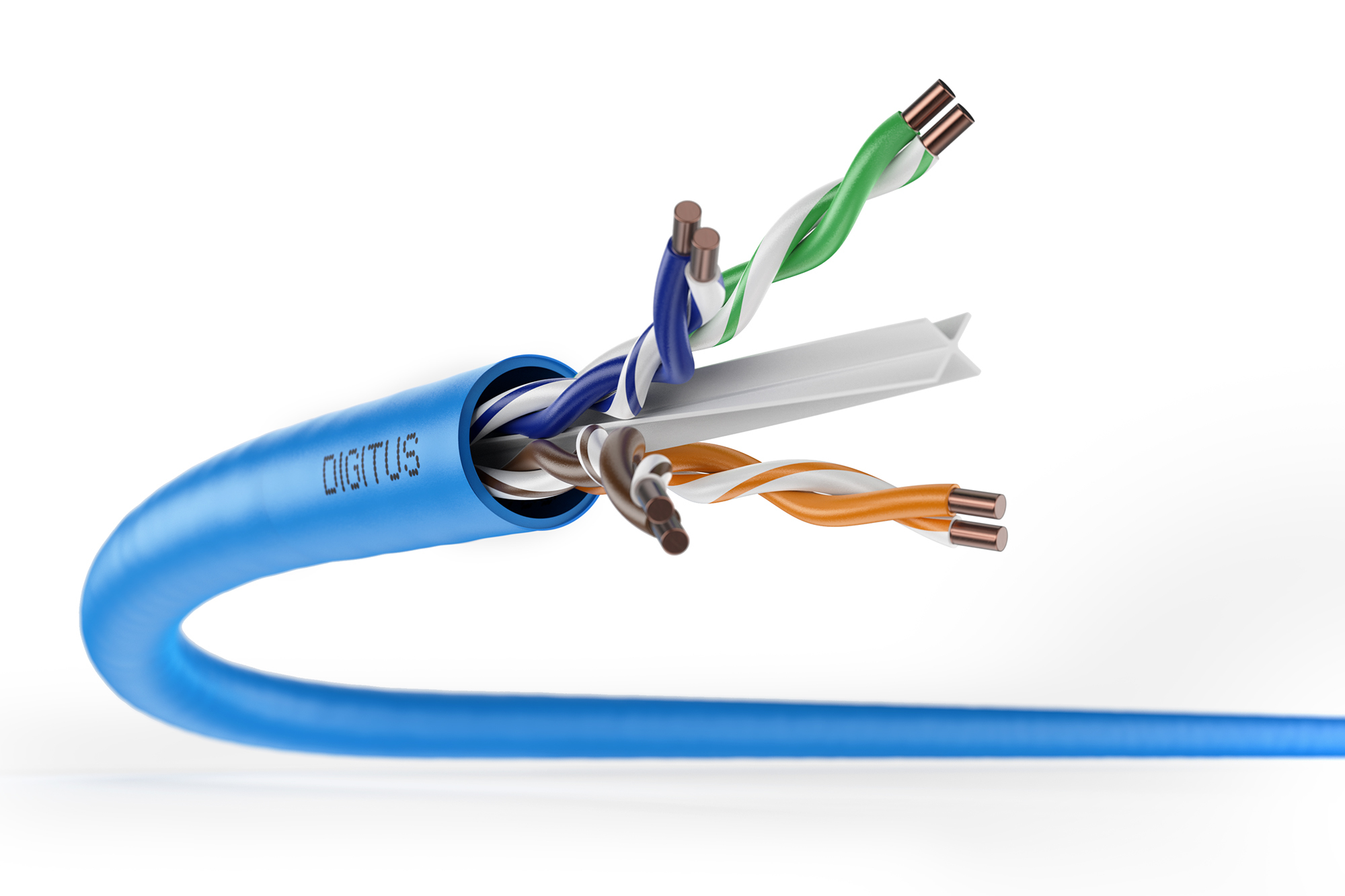

DIGITUS® Category 6A U-UTP installation cables are manufactured and tested to the ISO/IEC 11801, TIA/-586-C.2 and EN 50173 Category 6A specifications. Every cord consists of 8 color coded AWG 23 polyethylene insulated con-ductors. The conductors are twisted together to form 4 pairs with varying lay lengths. Printing details along the outer sheath includes the brand name and item code. The cable is packed in a paper pullout box which makes the installation easy.

[Data Network Technology][Copper Cabling]

Specificaties

Product
Product id 966289
Merk Digitus
Partnr DK-1614-A-VH-305
EAN/UPC code 4016032441878
Product informatie blad(en)
Class Data and communication cable
Cable type U/UTP
Duplex false
Conductor material Copper
Conductor surface Bare
Diameter conductor 0.56 mm
Nominal cross section conductor 0.24 mm²
AWG size 23
Conductor category Class 1 = solid
Number of cores 8
Number of stranding elements 4
Stranding element Pairs
Material core insulation Other
Specification core insulation Polyethylene (PE)
Core identification according to HD 308 S2 false
Core identification Colour
Screen over stranding element None
Stranding Other
Screen over stranding None
Longitudinal water blocking cable false
Radial water blocking cable false
Suitable for underground installation false
Approved type of underground installation Other
Protective sheath Other
Material outer sheath Polyolefin
Specification material outer sheath Polyethylene (PE)
Colour outer sheath Blue
Number of sheath layers 1
Armouring/reinforcement None
Material armouring Other
Cable geometry Round
Flame retardant according to IEC 60332-1-2 false
Flame retardant according to IEC 60332-3-21 (Cat A F/R) false
Flame retardant according to IEC 60332-3-22 (Cat A) false
Flame retardant according to IEC 60332-3-23 (Cat B) false
Flame retardant according to IEC 60332-3-24 (Cat C) false
Flame retardant according to IEC 60332-3-25 (Cat D) false
Low smoke according to EN IEC 61034-2 false
Halogen free according to EN IEC 60754-1 false
Halogen free according to EN IEC 60754-2 false
Halogen free according to EN IEC 60754-3 false
Reaction-to-fire according to EN 13501-6: Class Dca
Reaction-to-fire according to EN 13501-6: Smoke production None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles None
Reaction-to-fire according to EN 13501-6: Acidity None
Circuit integrity according to IEC 60331-23 false
Oil resistant according to EN IEC 60811-404 false
Outer diameter approximate 7.3 mm
Min. permitted bending radius, moving application with forced guidance 8 mm
Min. permitted bending radius, moving application/free movement 4 mm
Min. permitted bending radius, stationary application/permanent installation 4 mm
Permitted cable outer temperature during assembling/handling -20 - 60 °C
Permitted cable outer temperature after assembling without vibration -20 - 75 °C
Category 6A (IEC)
NVP value 70 %
Certified for shipboard application false
Segregation class according to EN 50174-2 C
Suitable as telephone cable false
Suitable as computer data cable false
Suitable as signalling cable false
Suitable for use as security alarm cable false
Drain wire false
With rip cord false
Cable width approximate 370 mm
Cable height approximate 310 mm
Weight 17.23 kg/km
Characteristic impedance 600 Ohm
Max. tensile strength during installation 150 kN
Nominal voltage U 72 V
With rodent protection false
Compatible with Grade2TV according to XP-C 90-483 false
Compatible with Grade3TV according to XP-C 90-483 false
