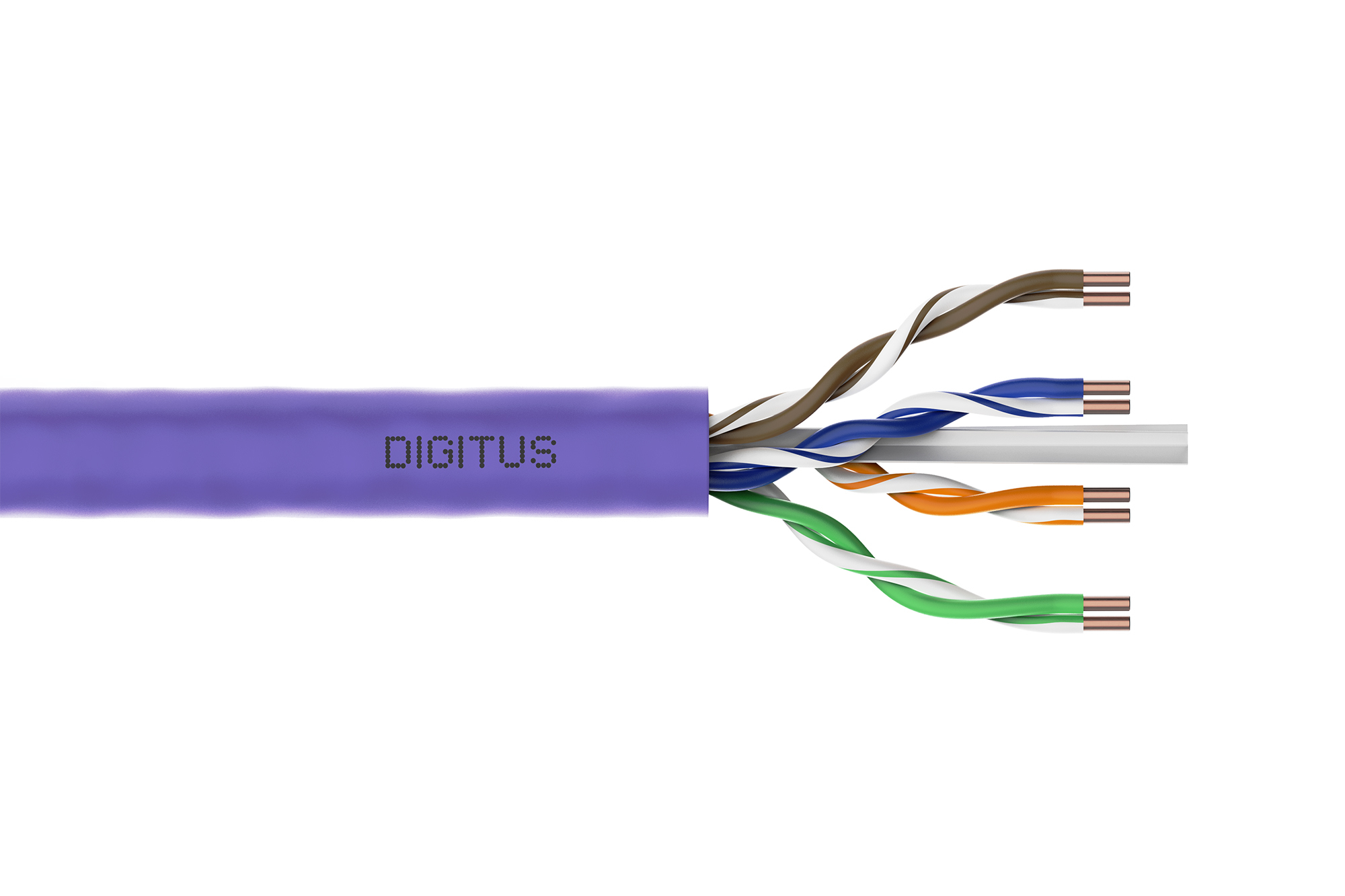

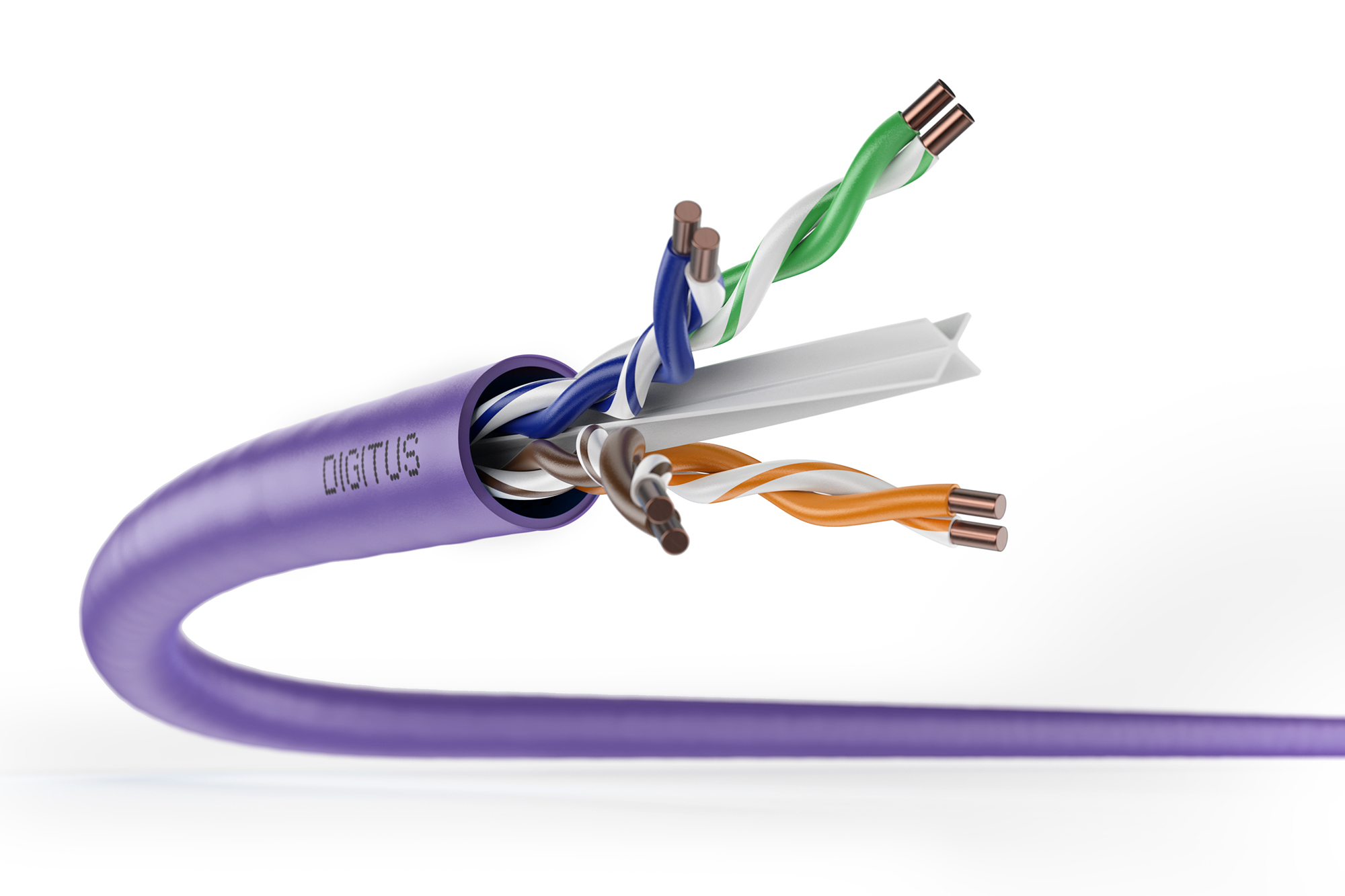

CAT 6 U-UTP installation cable, 250 MHz AWG 23/1, Dca, 305 m, Easy Pull Box, SX, Purple



Digitus
Niet op voorraad
€ 160,92
€ 194,71 incl 21% BTW
Heeft u een vraag over dit product?
CAT 6 U/UTP installation cable, 305 m, simplex, Dca-s2, d2, a1

Future-oriented standards and high-end quality for your network.

- 1GBit Ethernet
- 250 MHz transmission frequency
- PoE Power over Ethernet support
- CPR class Dca-s2, d2, a1

The Digitus Cat 6 U/UTP installation cable is designed for use in the structured data center and the building cabling according to ISO/IEC 11801, DIN EN 50288-6-1, DIN EN 50173, IEC 60332-1. The cable is perfectly suitable for the transmission of both analog and digital data and also supports POE and POE+.

[Data Network Technology][Copper Cabling]

Specificaties

Product
Product id 665496
Merk Digitus
Partnr DK-1614-VH-305
EAN/UPC code 4016032435785
Product informatie blad(en)
Class Data and communication cable
Cable type U/UTP
Duplex false
Conductor material Copper
Conductor surface Bare
Diameter conductor 0.55 mm
Nominal cross section conductor 0.24 mm²
AWG size 23
Conductor category Class 1 = solid
Number of cores 8
Number of stranding elements 4
Stranding element Pairs
Material core insulation Other
Specification core insulation Polyethylene (PE)
Core identification according to HD 308 S2 false
Core identification Colour
Screen over stranding element None
Stranding Other
Screen over stranding None
Longitudinal water blocking cable false
Radial water blocking cable false
Suitable for underground installation false
Approved type of underground installation Other
Protective sheath Other
Material outer sheath Polyolefin
Specification material outer sheath Polyethylene (PE)
Colour outer sheath Purple
Number of sheath layers 1
Armouring/reinforcement None
Material armouring Other
Cable geometry Round
Flame retardant according to IEC 60332-1-2 false
Flame retardant according to IEC 60332-3-21 (Cat A F/R) false
Flame retardant according to IEC 60332-3-22 (Cat A) false
Flame retardant according to IEC 60332-3-23 (Cat B) false
Flame retardant according to IEC 60332-3-24 (Cat C) false
Flame retardant according to IEC 60332-3-25 (Cat D) false
Low smoke according to EN IEC 61034-2 false
Halogen free according to EN IEC 60754-1 false
Halogen free according to EN IEC 60754-2 false
Halogen free according to EN IEC 60754-3 false
Reaction-to-fire according to EN 13501-6: Class Dca
Reaction-to-fire according to EN 13501-6: Smoke production s2
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles d2
Reaction-to-fire according to EN 13501-6: Acidity a1
Circuit integrity according to IEC 60331-23 false
Oil resistant according to EN IEC 60811-404 false
Outer diameter approximate 6.2 mm
Min. permitted bending radius, moving application with forced guidance 8 mm
Min. permitted bending radius, moving application/free movement 4 mm
Min. permitted bending radius, stationary application/permanent installation 4 mm
Permitted cable outer temperature during assembling/handling -20 - 60 °C
Permitted cable outer temperature after assembling without vibration -20 - 75 °C
Category 6
NVP value 69 %
Certified for shipboard application false
Segregation class according to EN 50174-2 B
Suitable as telephone cable false
Suitable as computer data cable false
Suitable as signalling cable false
Suitable for use as security alarm cable false
Drain wire false
With rip cord false
Cable width approximate 445 mm
Cable height approximate 250 mm
Weight 12.3 kg/km
Characteristic impedance 250 Ohm
Max. tensile strength during installation 150 kN
Nominal voltage U 72 V
With rodent protection false
Compatible with Grade2TV according to XP-C 90-483 false
Compatible with Grade3TV according to XP-C 90-483 false
