CAT 7A S-FTP Universal installation cable, 1500 MHz, AWG 22/1, with Rip cord, 100 m ring, SX



Digitus
Niet op voorraad
€ 134,20
€ 162,38 incl 21% BTW
Heeft u een vraag over dit product?

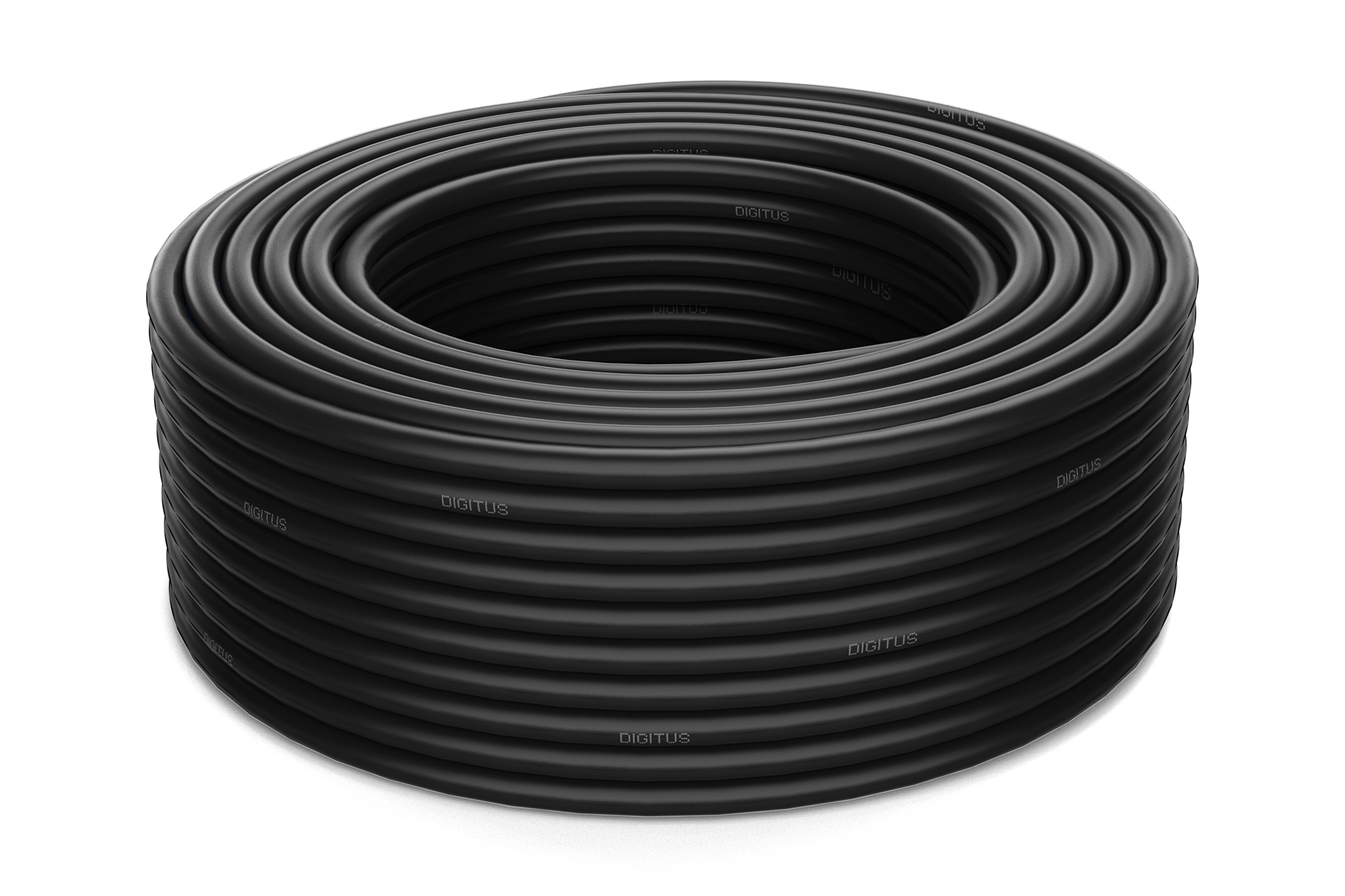

CAT 7A S/FTP data cable - outdoor installation cable, 100 m ring, simplex, PE

Future-oriented standards and high-end quality for your network.

- Double universal cable sheath: PE outer sheath and LSZH Dca inner cable sheath
- PE sheath can be easily removed over several meters using a tear thread
- 10GBit Ethernet
- 1500 MHz transmission frequency
- PoE, PoE+, 4PPoE (IEEE 802.3af;3at;3bt)
- Inner sheath: BauPVO class Dca

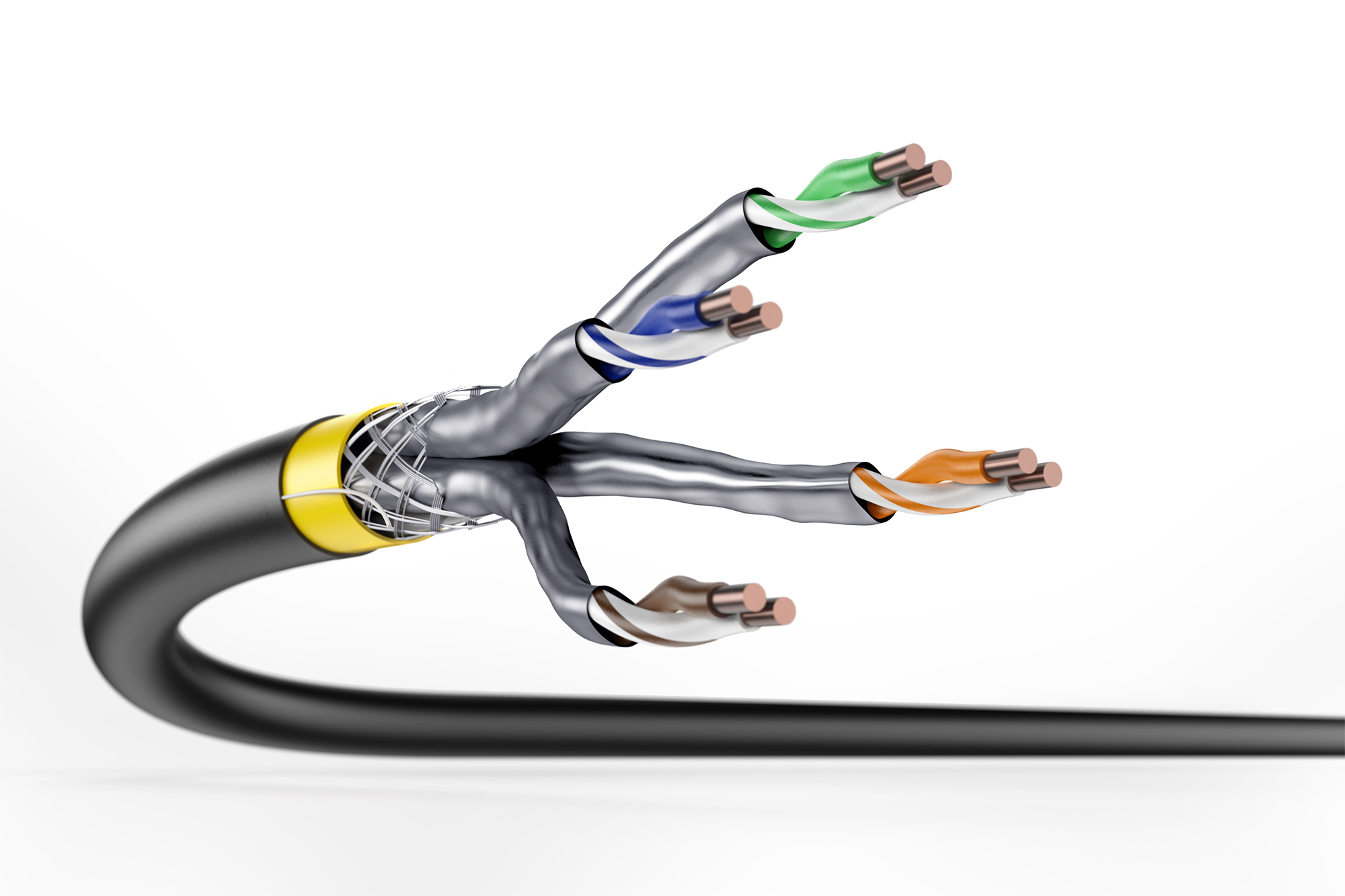

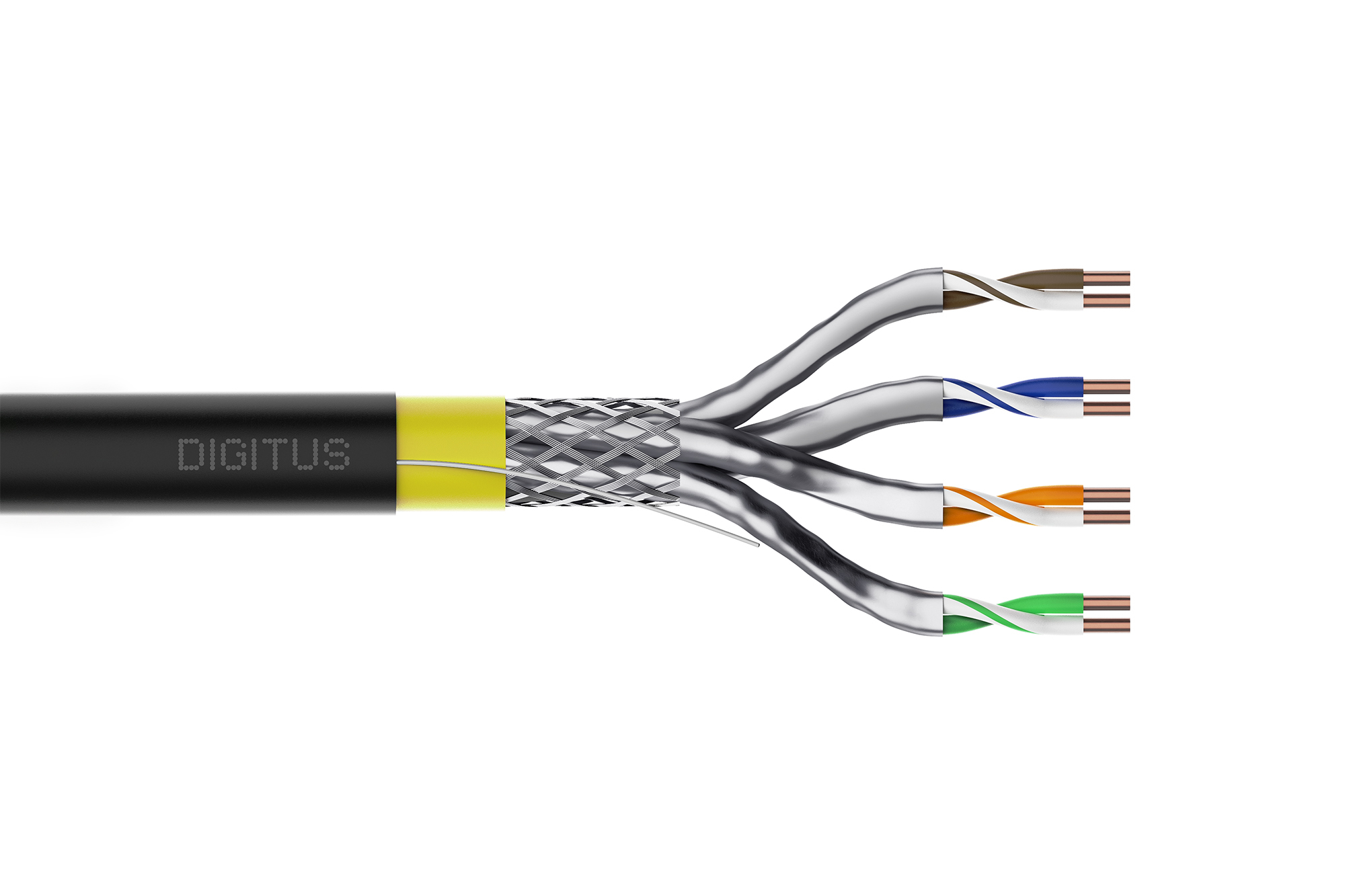

The Digitus® Professional CAT 7A S/FTP outdoor cable is characterized by the following cable structure 4x2x AWG22/1 and achieves a transmission frequency of up to 1500 MHz. The cable has a PE outer sheath and a halogen-free inner sheath and conforms to the IEC 60332-1, FRNC-B, LSZH-1 and BauPVO Euroclass Dca standards. The cable is suitable for installation in dry or damp rooms, outdoors or in the ground. Conforms to the standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-4-1.

[Data Network Technology][Copper Cabling]

Specificaties

Product
Product id 1030529
Merk Digitus
Partnr DK-1743-A-VH-1-OD
EAN/UPC code 4016032508649
Product informatie blad(en)
Class Data and communication cable
Cable type S/FTP
Duplex false
Conductor material Copper
AWG size 22
Number of cores 8
Core identification according to HD 308 S2 false
Core identification Colour
Longitudinal water blocking cable false
Radial water blocking cable false
Suitable for underground installation true
Protective sheath Other
Material outer sheath Polyolefin
Specification material outer sheath Other
Colour outer sheath Black
Armouring/reinforcement None
Cable geometry Round
Flame retardant according to IEC 60332-1-2 false
Flame retardant according to IEC 60332-3-21 (Cat A F/R) false
Flame retardant according to IEC 60332-3-22 (Cat A) false
Flame retardant according to IEC 60332-3-23 (Cat B) false
Flame retardant according to IEC 60332-3-24 (Cat C) false
Flame retardant according to IEC 60332-3-25 (Cat D) false
Low smoke according to EN IEC 61034-2 false
Halogen free according to EN IEC 60754-1 false
Halogen free according to EN IEC 60754-2 false
Halogen free according to EN IEC 60754-3 false
Reaction-to-fire according to EN 13501-6: Class Dca
Circuit integrity according to IEC 60331-23 false
Oil resistant according to EN IEC 60811-404 false
Outer diameter approximate 9 mm
Category 7A (IEC)
Certified for shipboard application false
Suitable as telephone cable false
Suitable as computer data cable false
Suitable as signalling cable false
Suitable for use as security alarm cable false
Drain wire false
With rip cord true
Weight 6.1 kg/km
With rodent protection false
Compatible with Grade2TV according to XP-C 90-483 false
Compatible with Grade3TV according to XP-C 90-483 false
