16U wall mounting cabinet, outdoor, IP55 891x600x450 mm, color grey (RAL 7035)



Digitus
Niet op voorraad
€ 508,15
€ 614,86 incl 21% BTW
Heeft u een vraag over dit product?

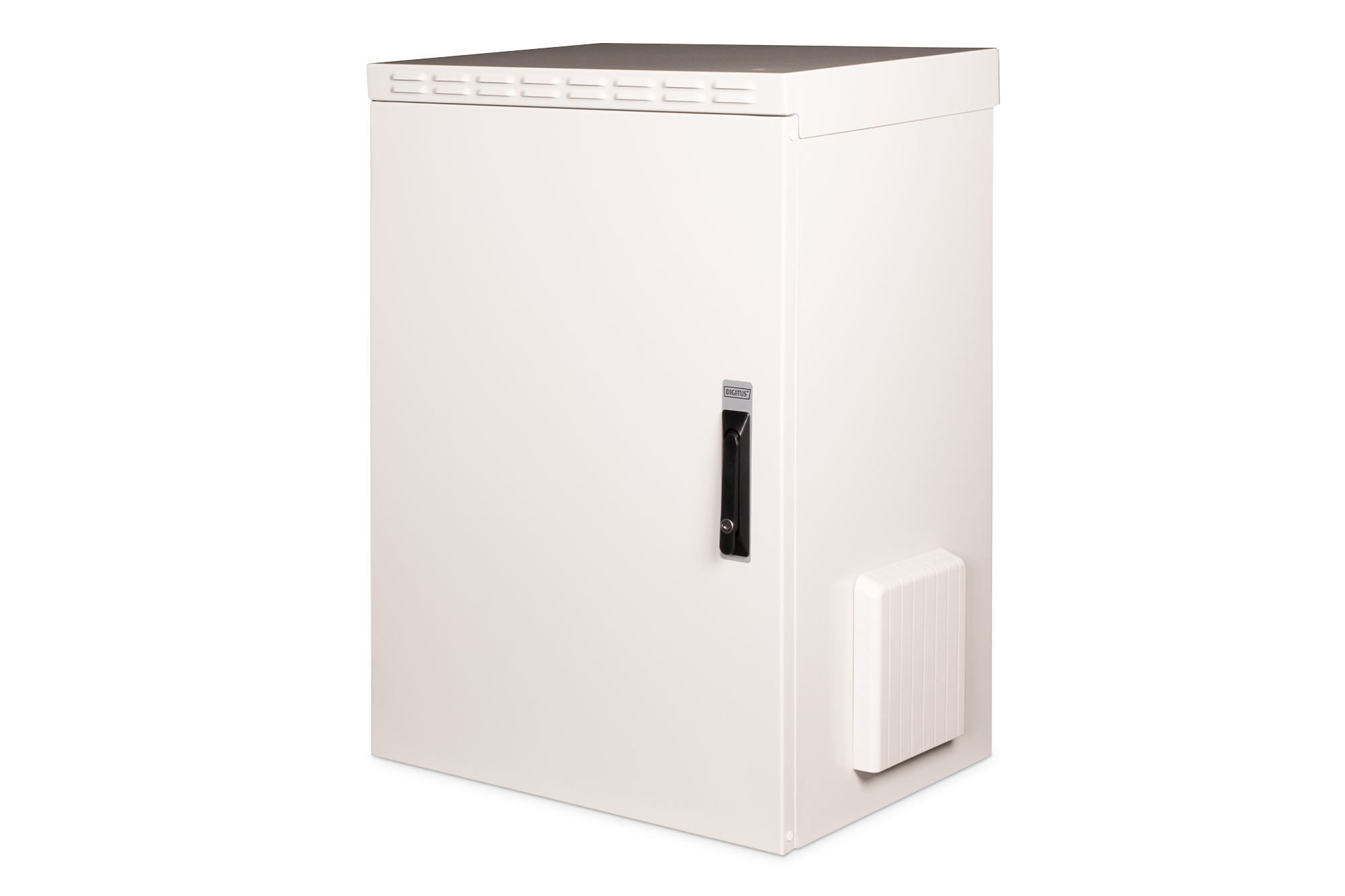

IP55 Wall-Mounted Enclosure - for outdoor use - 600x450 mm (WxD)

The DIGITUS® IP55 outdoor wall-mounted enclosures are designed for industrial applications. They offer protection against water and dust in accordance with protection class IP55.

- Protected against dust in harmful quantities and water jets (IP 55)

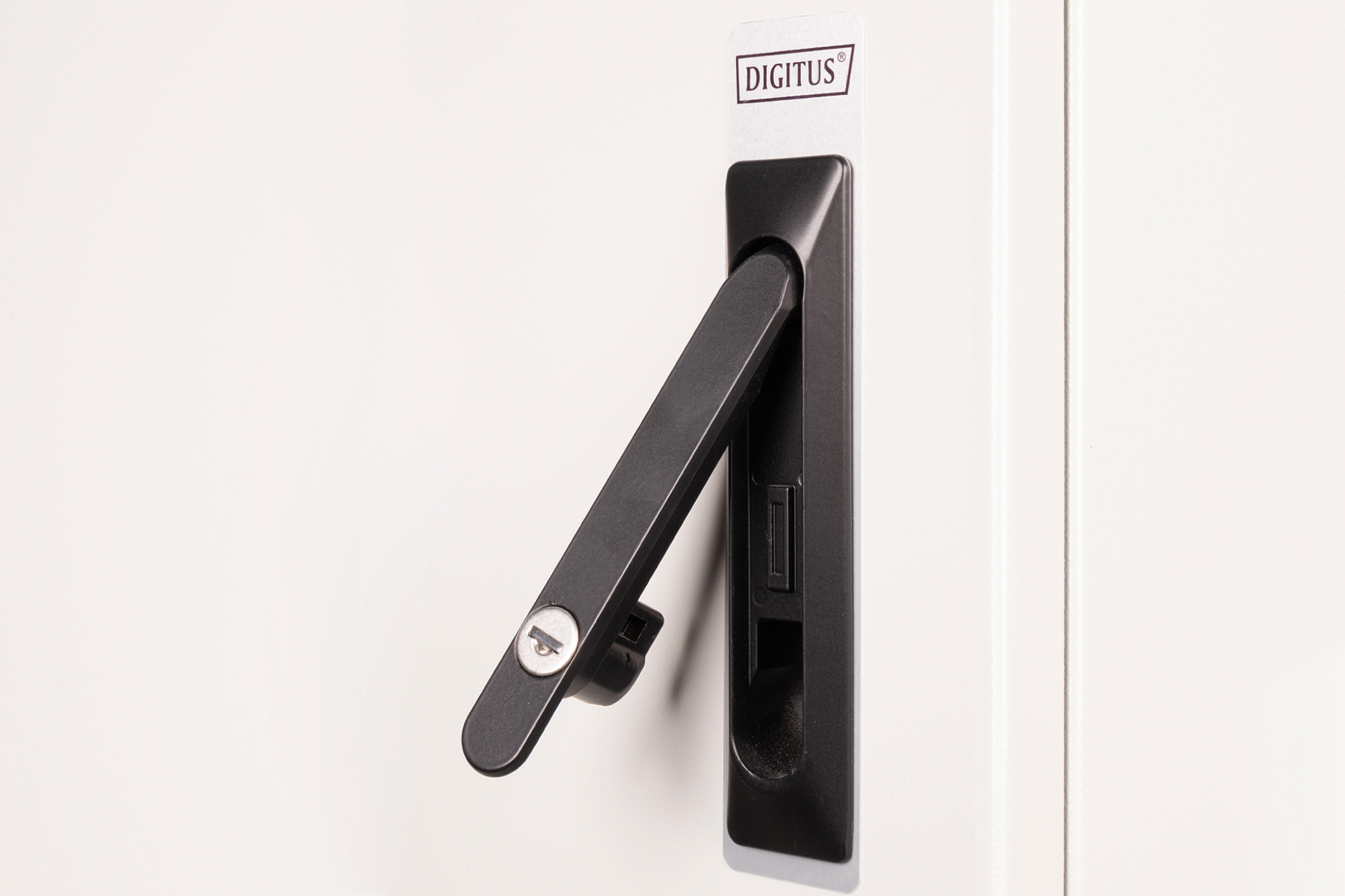

- Steel front door with a lockable swing-lever handle and a 3-point locking system

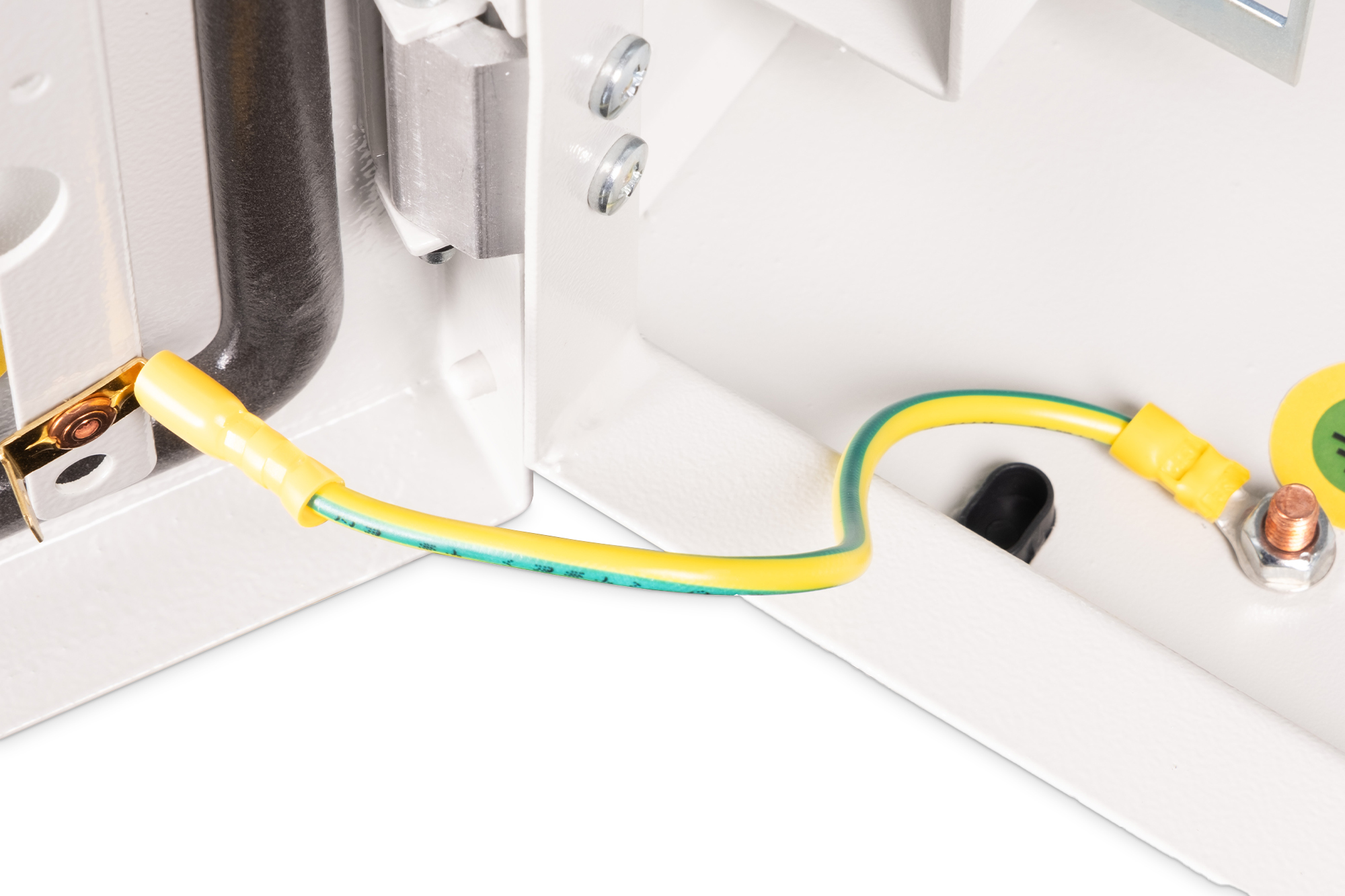

- Front door with grounding and two welded-on, reinforcing U-shaped beams, as well as a gasket
- Can be used as a freestanding unit with a separate base

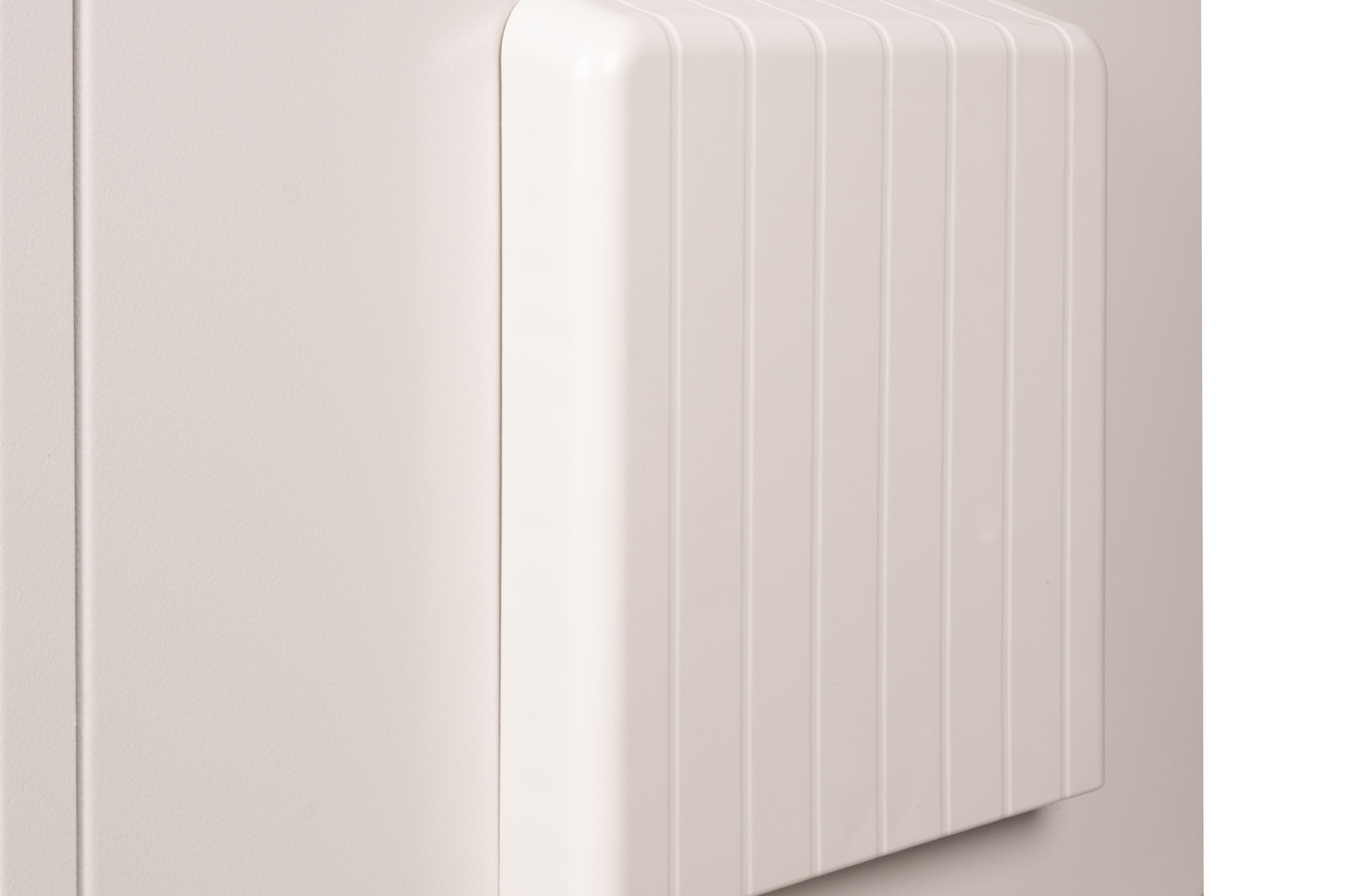

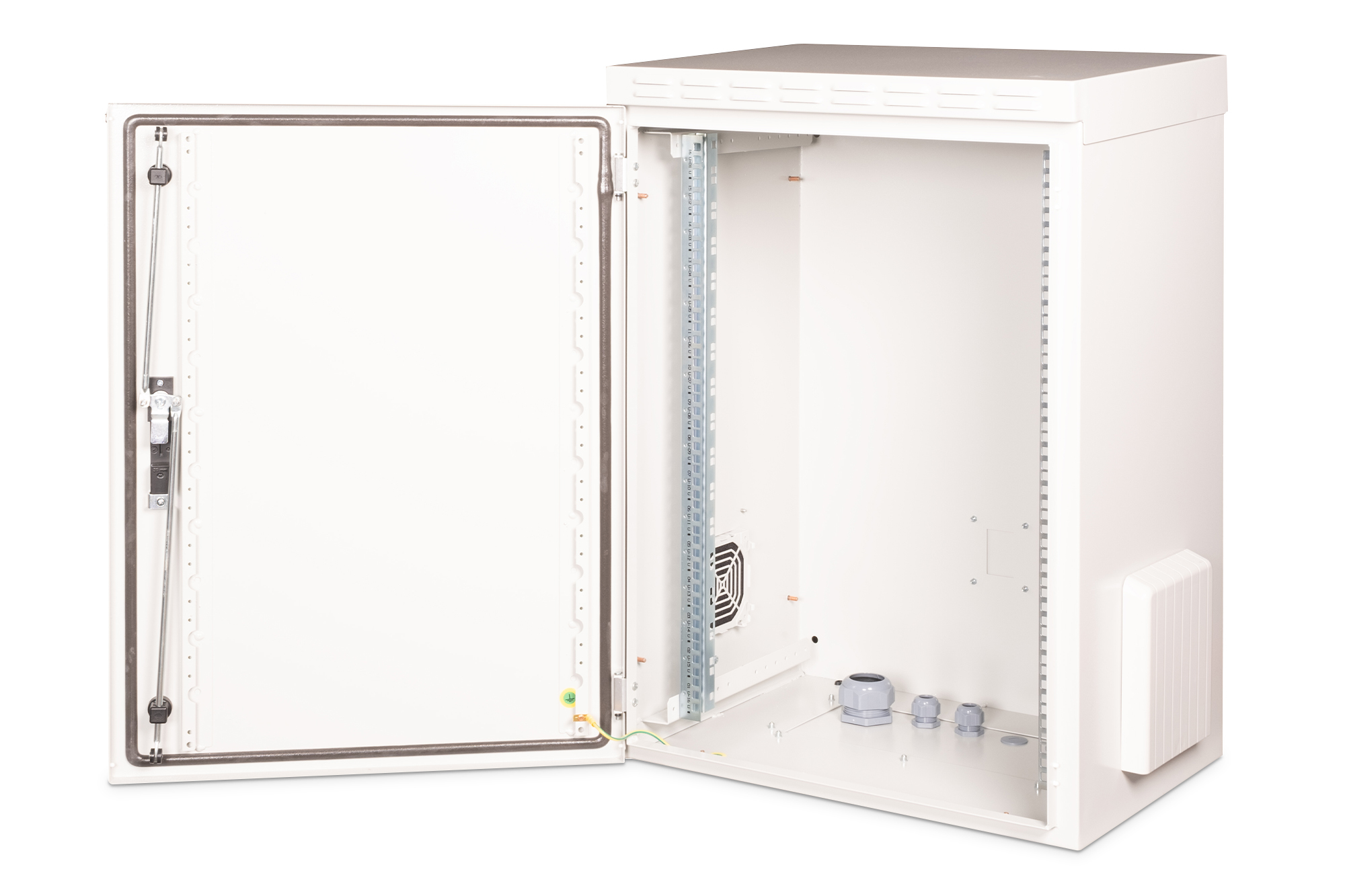

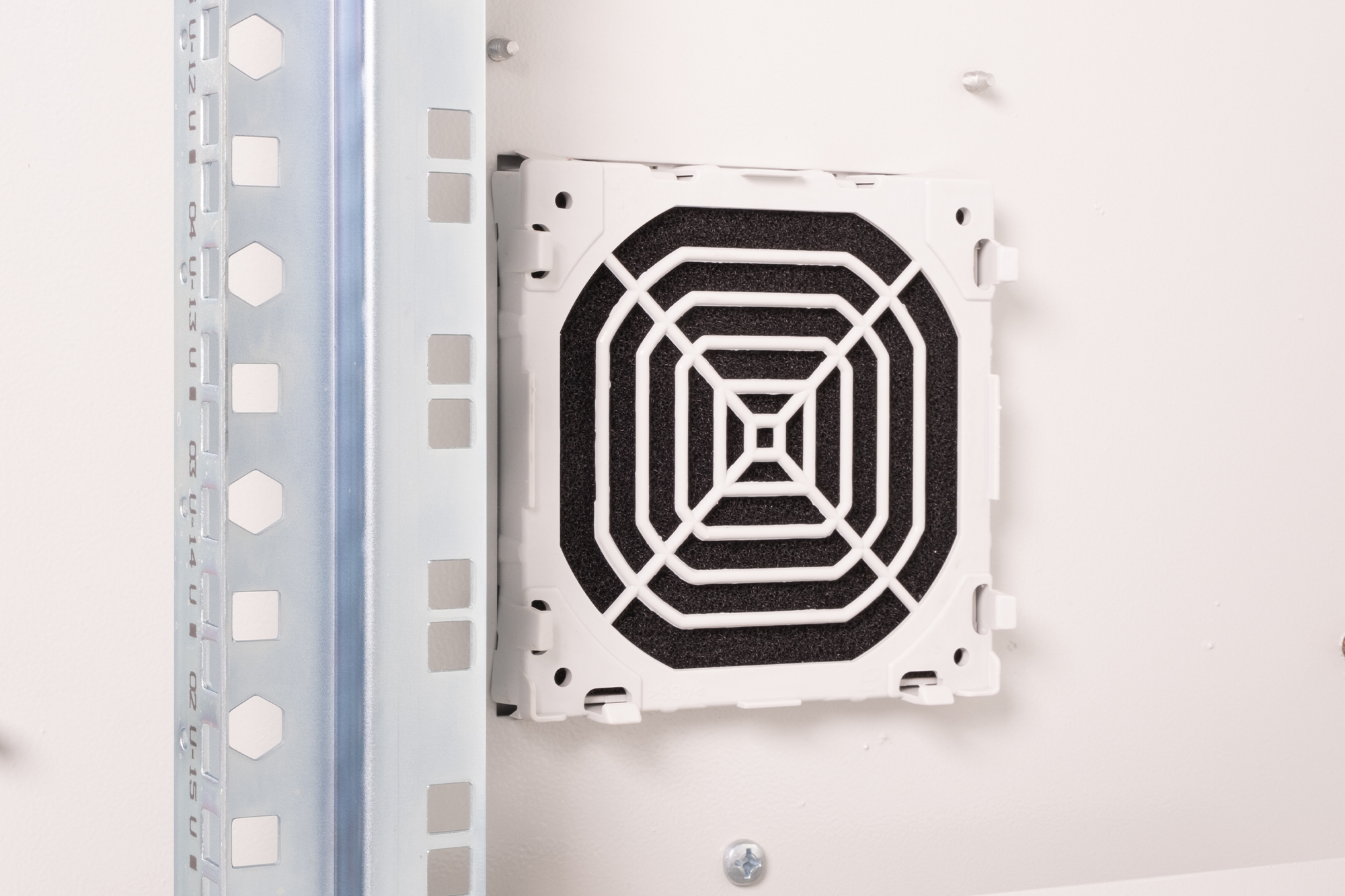

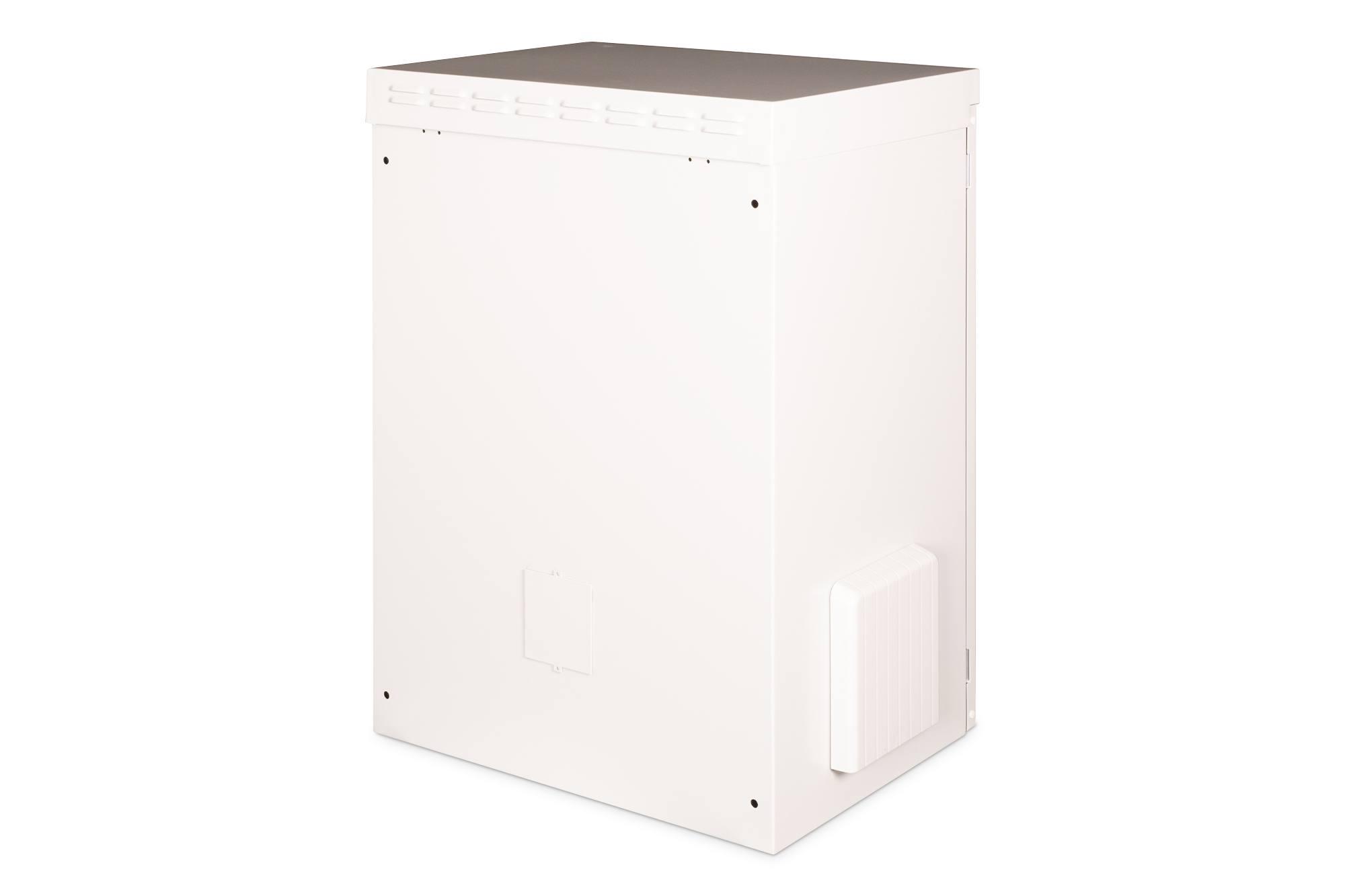

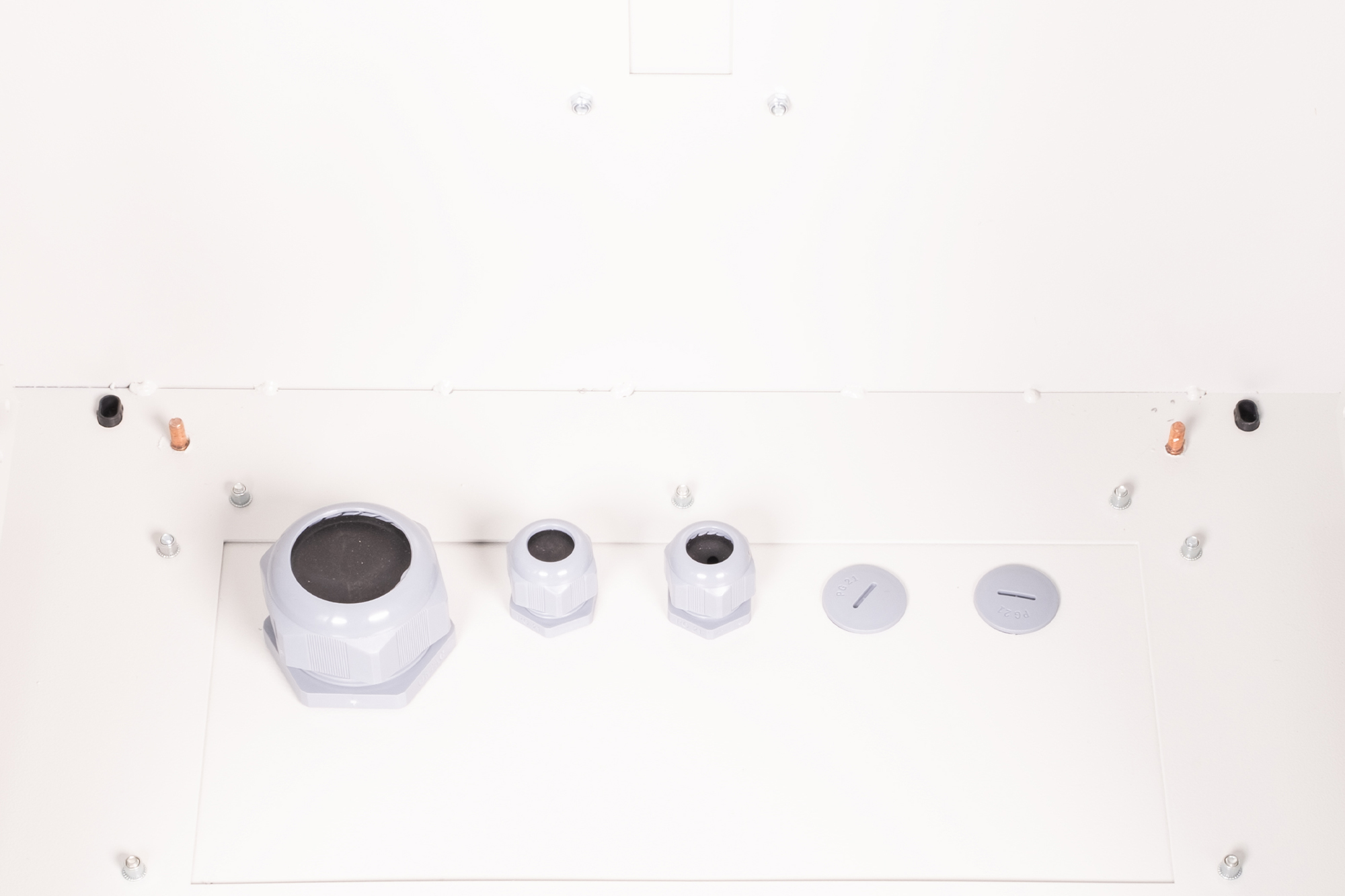

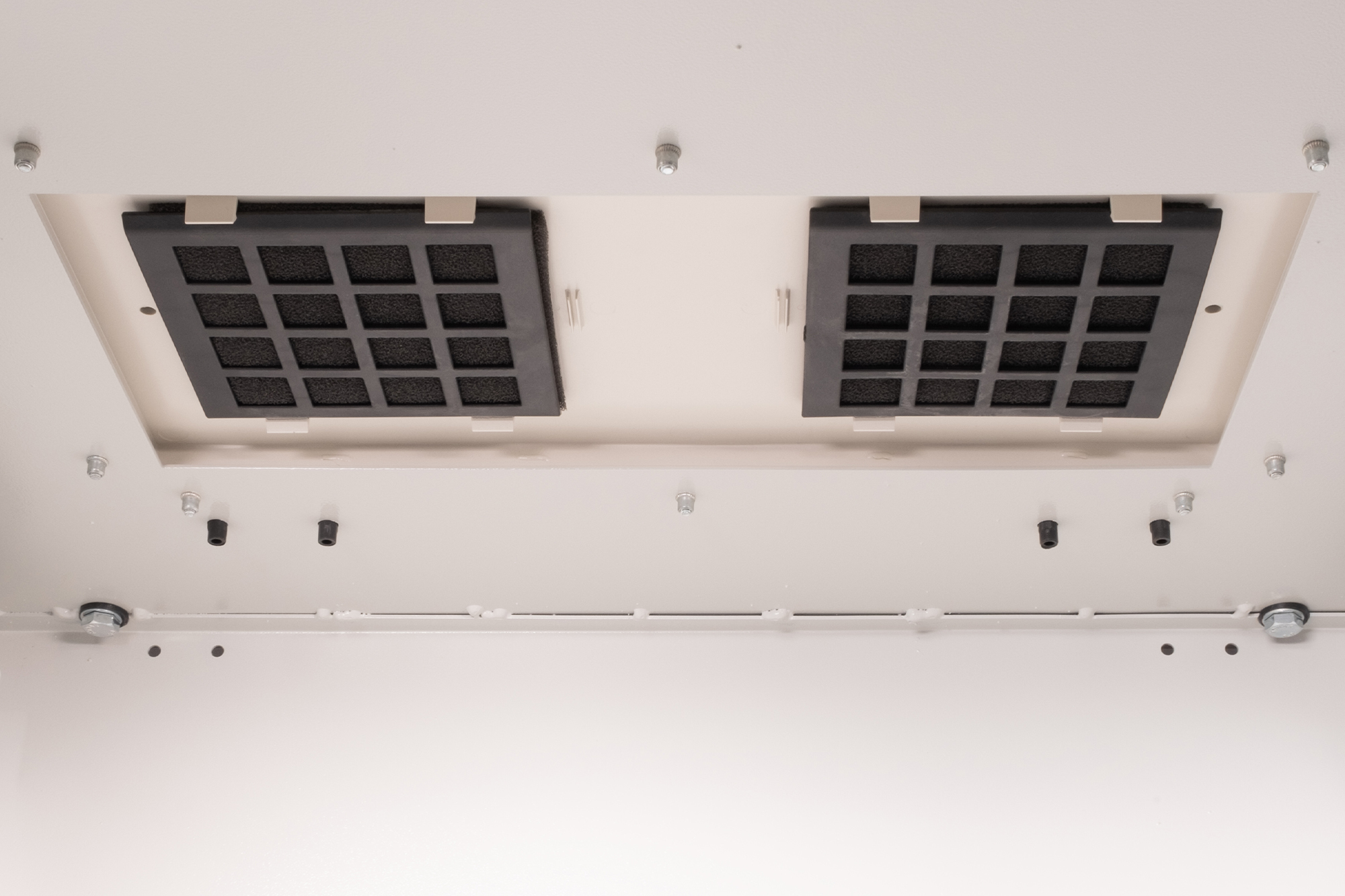

The wall-mounted industrial network cabinets, with an IP55 rating, are specifically designed to meet the needs of harsh environments, particularly outdoor settings. These wall-mounted enclosures deliver top performance thanks to features such as the 3-point locking system with a lockable swivel handle and insulated PG cable glands. Integrated ventilation filter housings ensure a fresh air intake (protection against water and dust ingress per IP54). Applications include, for example, outdoor areas exposed to environmental elements (rain, dust, hail, snow, splashing water). To accommodate a fan module, the roof chassis is also equipped with a filtered compartment. A pair of galvanized 483 mm (19") profile rails, labeled with height units readable in both directions, are installed inside. These can be adjusted in depth. Each cabinet is a robust steel construction made of sheet steel up to 2.0 mm thick. The finish consists of an electrostatic powder coating in the standard color gray (RAL 7035). Wall mounting is accomplished using the included mounting brackets. Optionally, the cabinets can be used as freestanding units with a base or mounted on poles using a mounting kit.

[Network and Server Cabinets][Network Cabinets - Wall Mounting]

Specificaties

Product
Product id 547706
Merk Digitus
Partnr DN-19 16U-I-OD
EAN/UPC code 4016032362128
Product informatie blad(en)
Class Network/server enclosure
Mounting level Front side
Type of profile rail Crank
Number of doors 1
Type of ventilation Passive
Width 600 mm
Height 891 mm
Depth 450 mm
Modular spacing 482.6 mm (19 inch)
Number of height units 16
Max. load capacity 100 kg
With roof plate true
With earthing true
With front door true
Material front door Steel
Front door locking system 3-point
With rear door false
Material rear door Steel
Rear door locking system Other
With glazed door false
With sidewall true
With base false
With vertical cable management false
Material Steel
Surface finishing Powder coating
Colour Grey
Model With permanent frame
RAL-number 7035
Demountable false
Degree of protection (IP) IP55
Degree of protection (NEMA) Other
