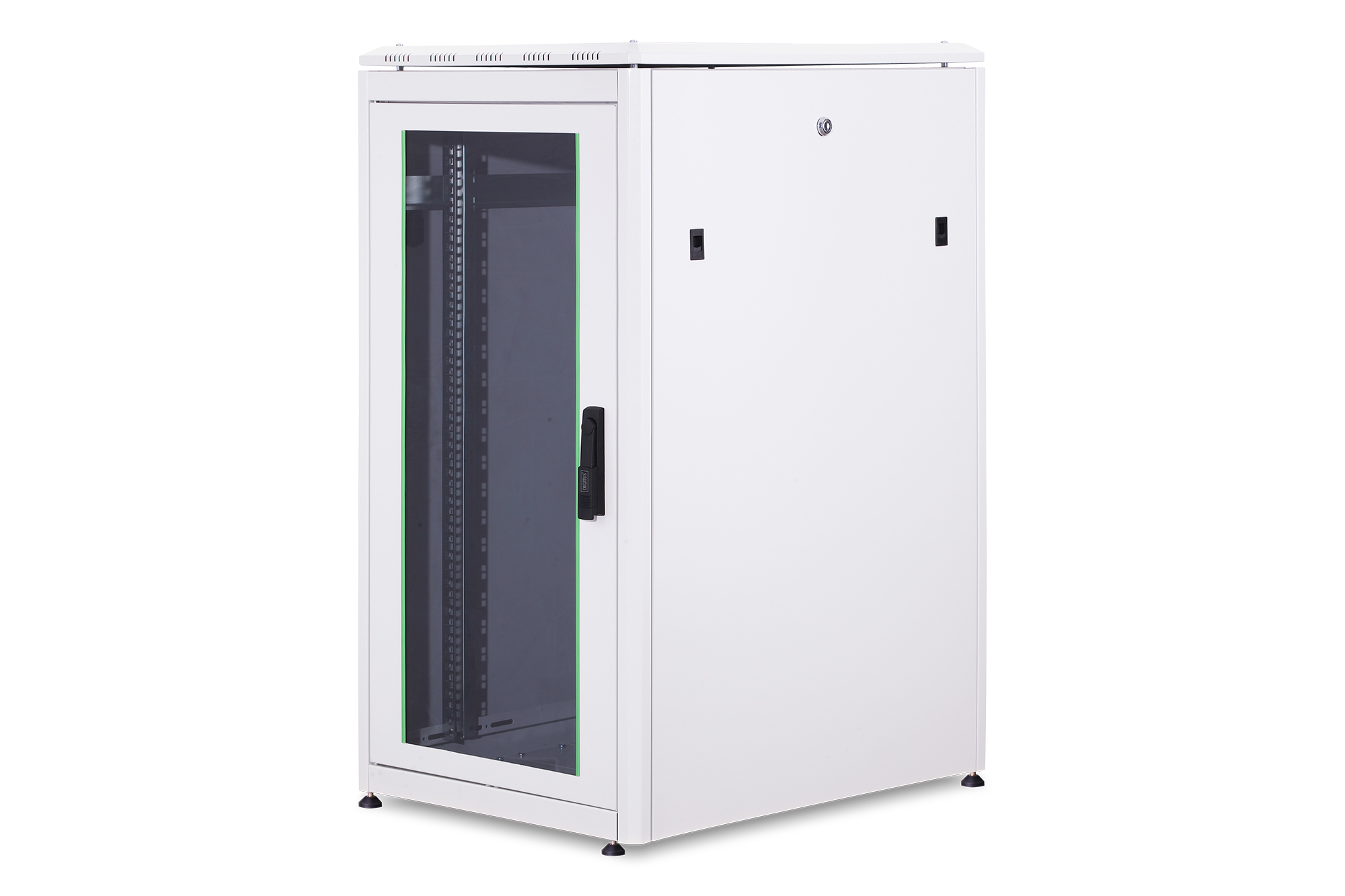

22U network rack, Unique 1164x600x800 mm, color grey (RAL 7035)



Digitus
Niet op voorraad
€ 516,46
€ 624,92 incl 21% BTW
Heeft u een vraag over dit product?
Network cabinet Unique series - 600x800 mm (WxD)

The DIGITUS® network cabinets of the Unique series combine maximum stability with optimum flexibility in cable management, for the high demands of modern IT infrastructure with a wide variety of application scenarios.

- High load capacity of the 483 mm (19") profile rails of up to 1200 kg
- Swivel handle with profile half-cylinder lock incl. type 333 key on the front door
- Modular, openable base chassis with removable 19" blind panels

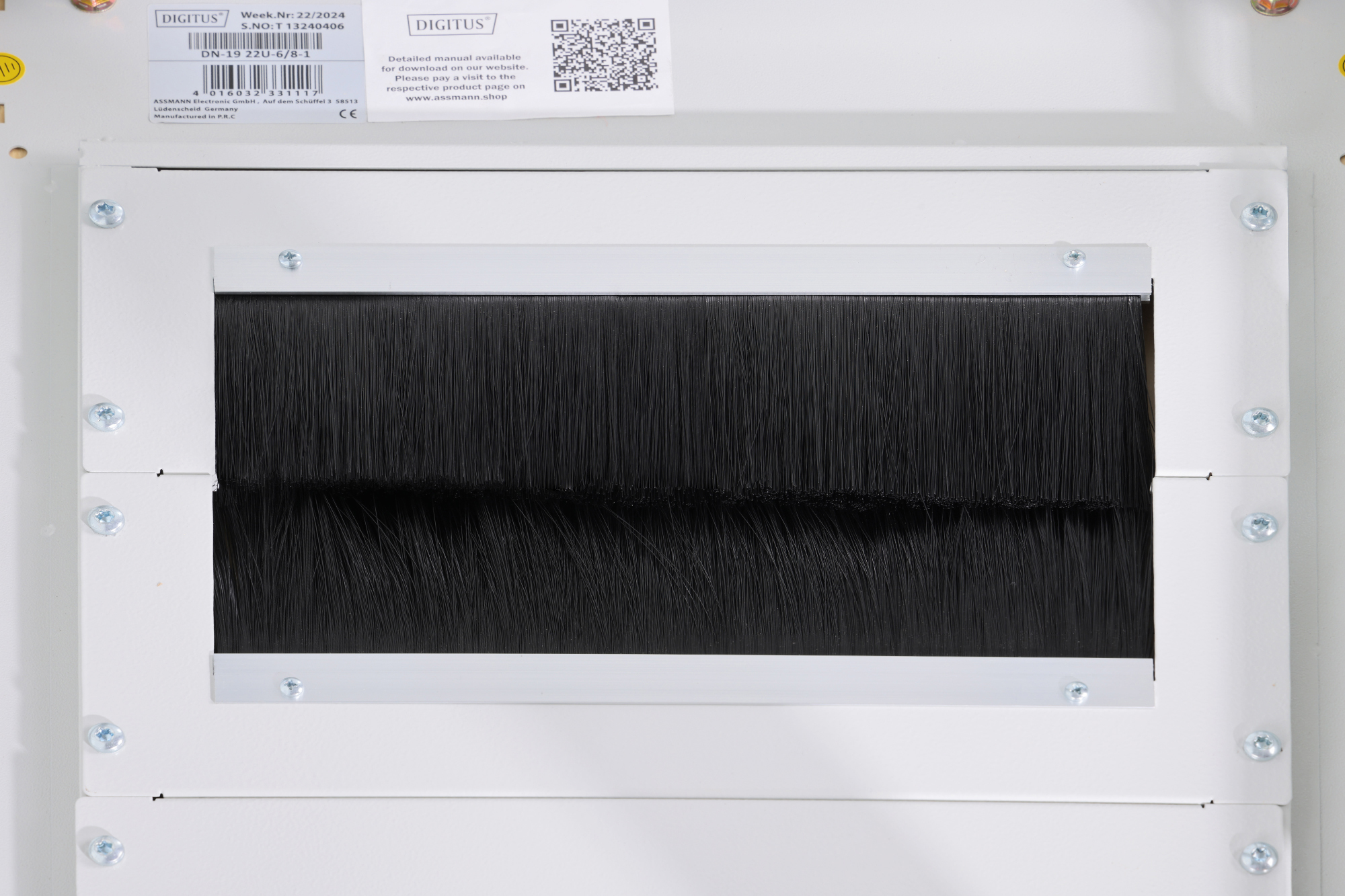

- Flexible cable routing options thanks to generous cable inlets with brushes in the base

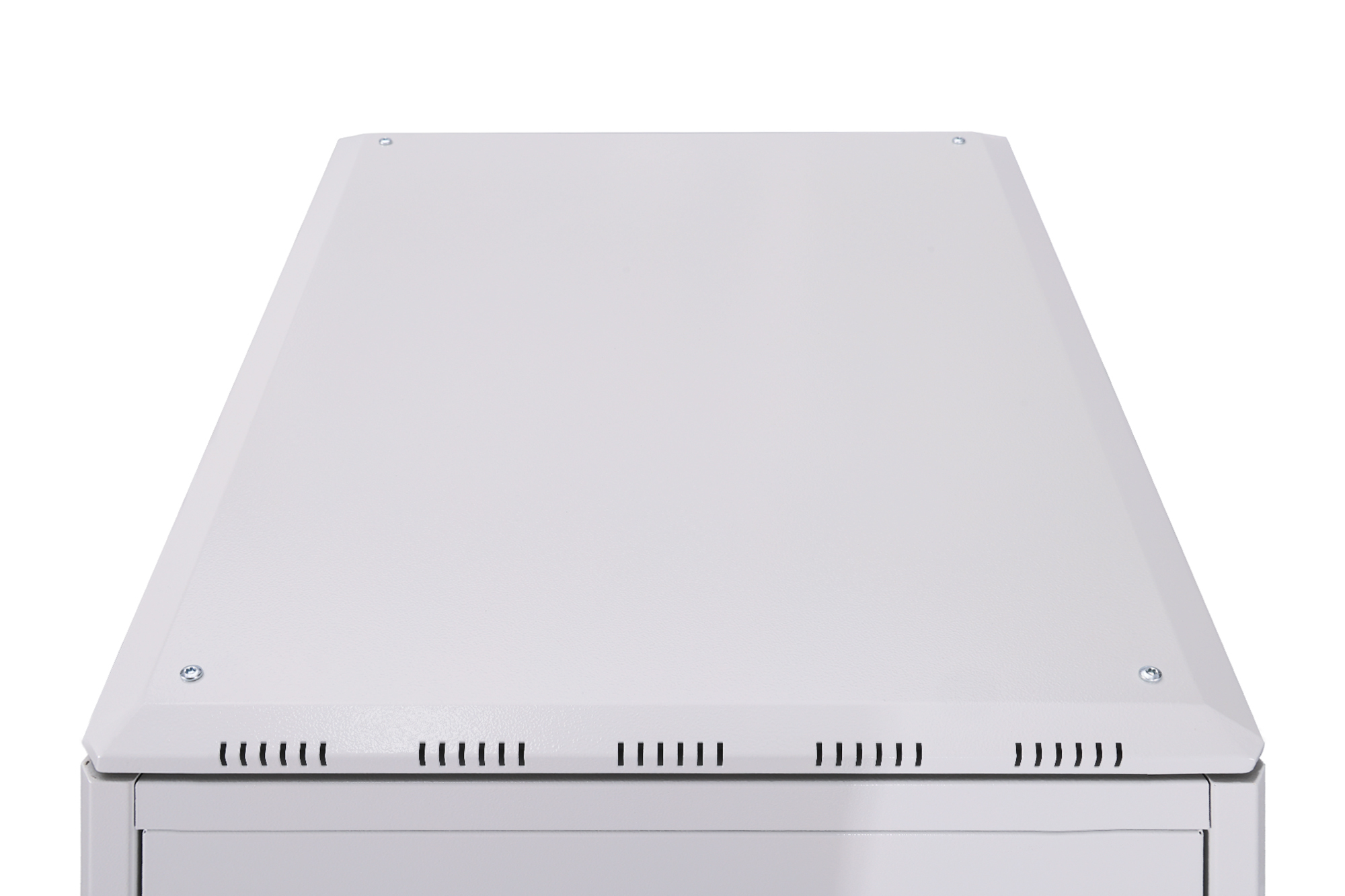

- Roof is prepared to accommodate a fan unit and an attached, removable cover
- Ready for immediate use: Delivery is assembled (cabinet can be completely dismantled if required)

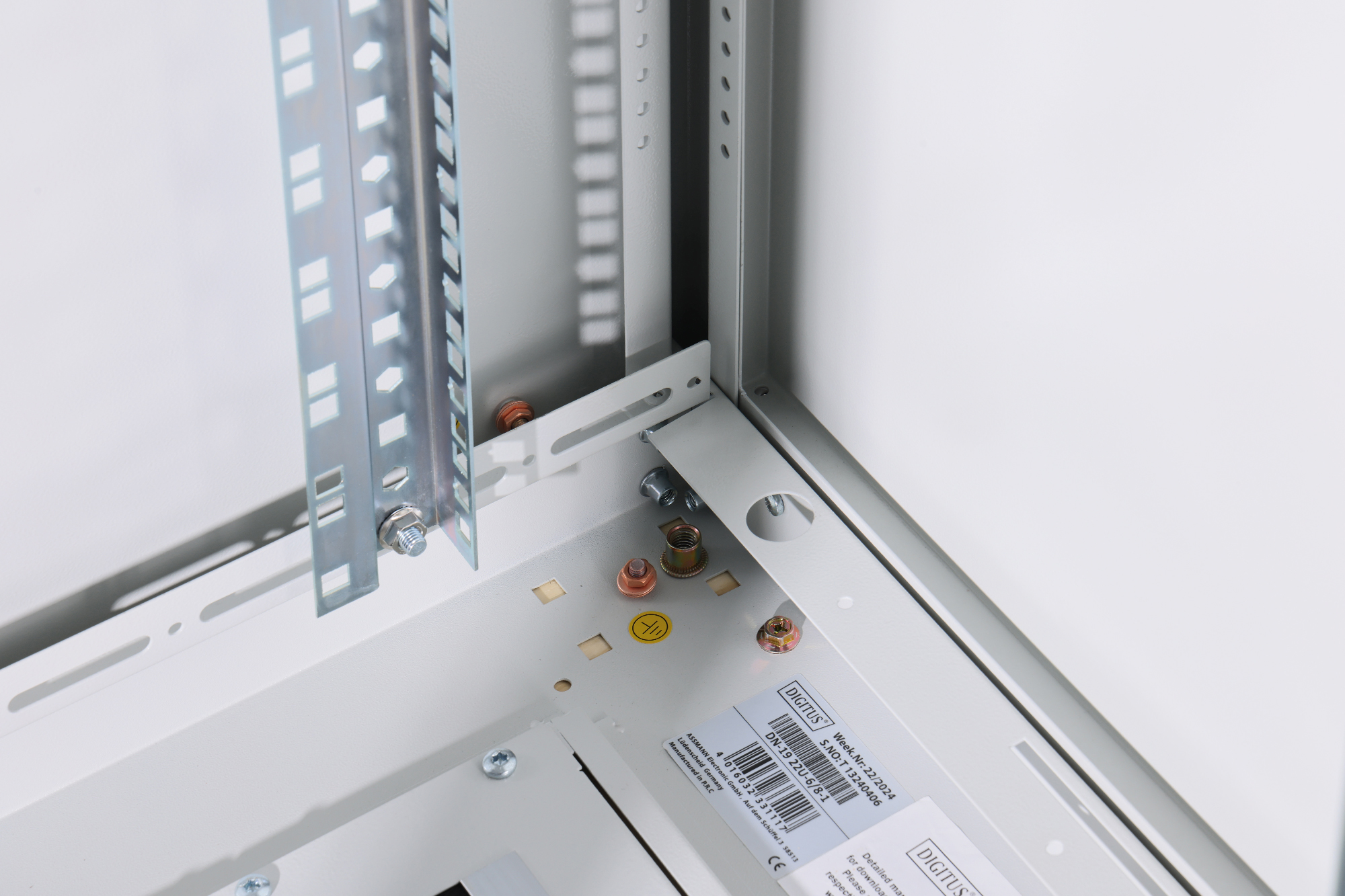

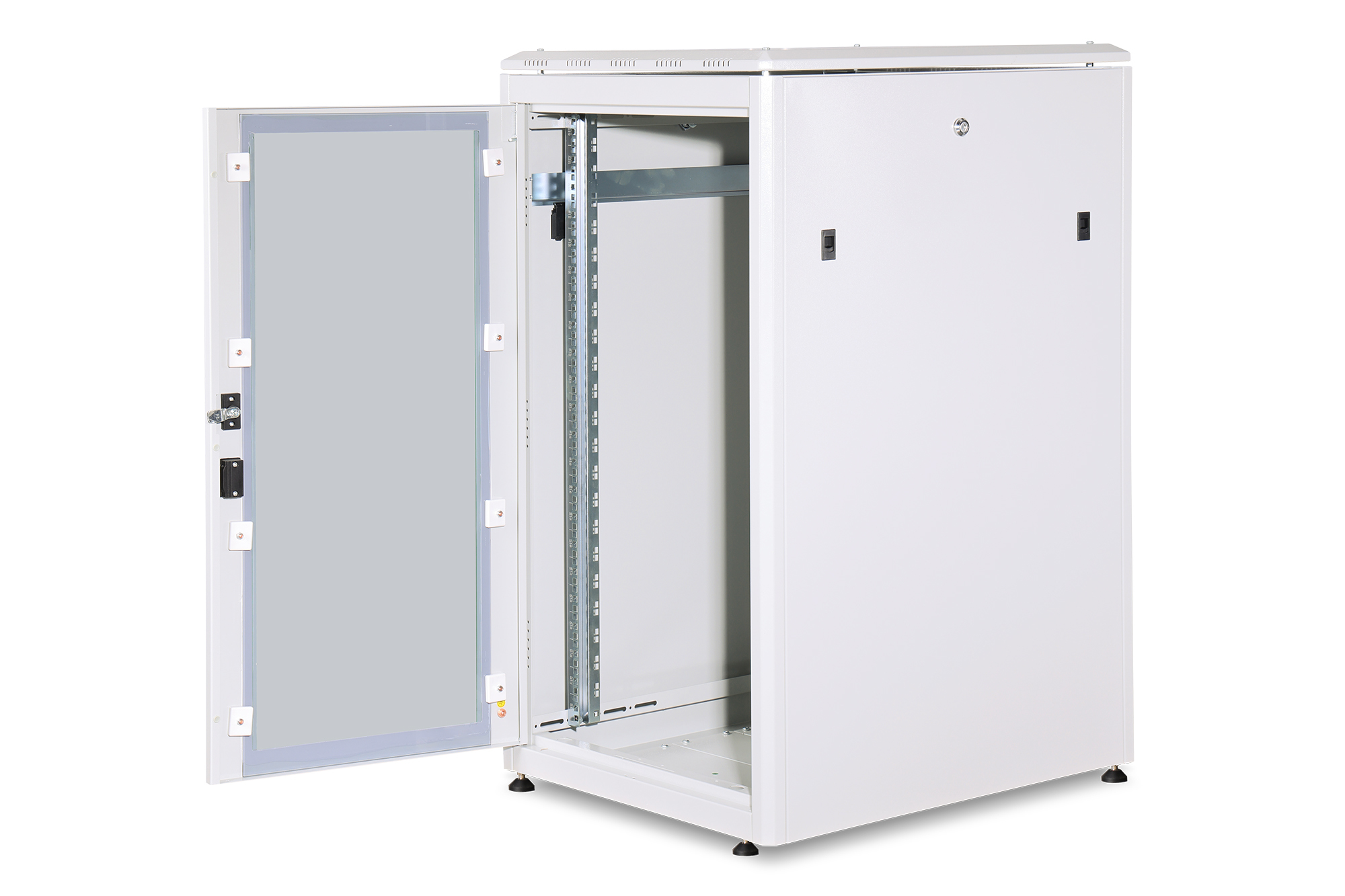

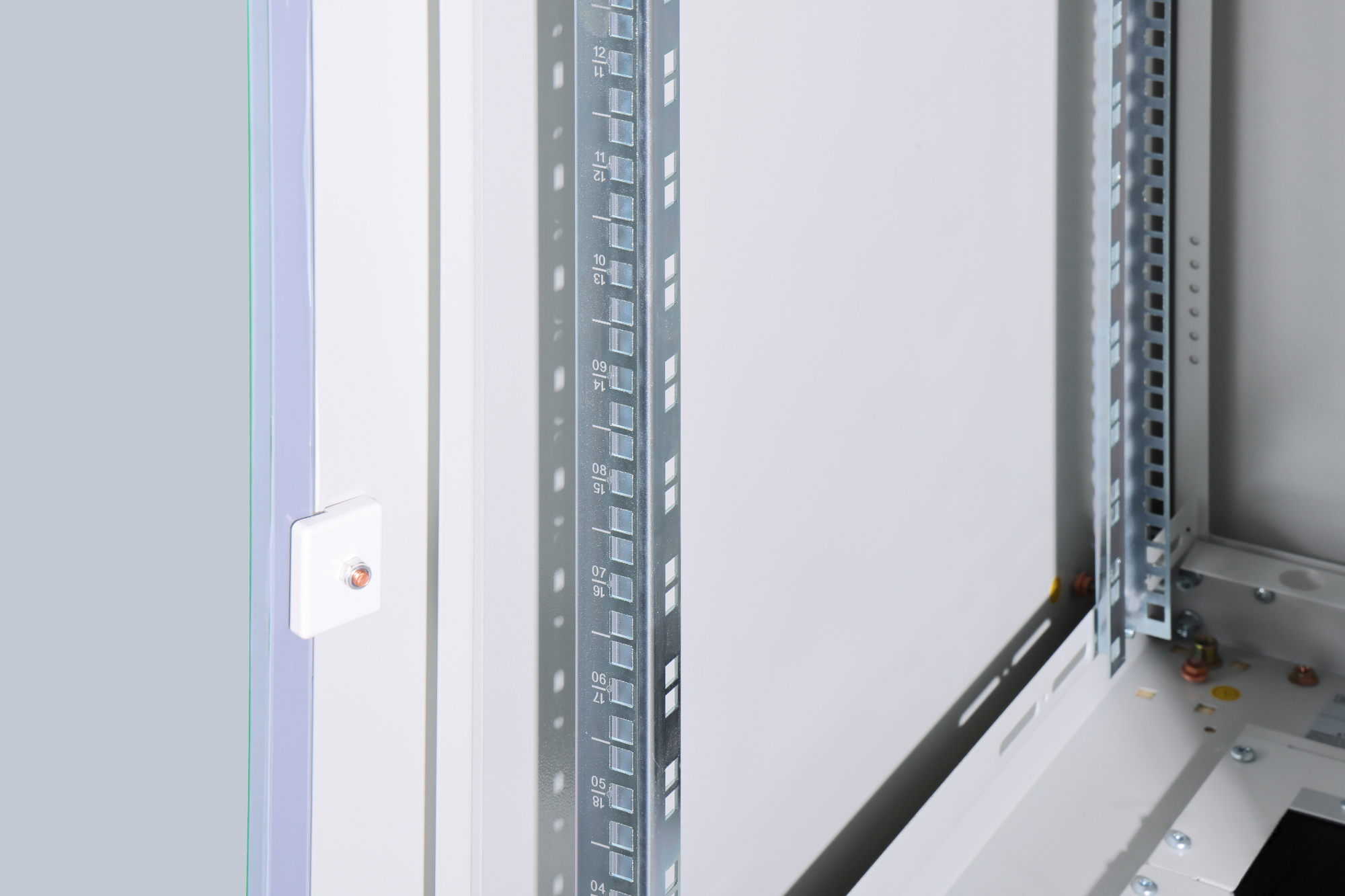

The network cabinets in the Unique series have been designed and produced for particularly convenient and flexible network cabling. Sophisticated optimizations offer market-compliant stability with maximum flexibility. A modular base chassis that can be opened by means of screwed 483 mm (19") blind panels offers sufficient space for cables of all kinds. Rear brush strips above and below the rear door (from 26U) enable use in a wide range of application scenarios. Generous vertical cable ducts with cable routing aids and cover, installed in the front (from 800 mm enclosure width), perfectly round off the versatile features of the network enclosure. Two pairs of cranked and galvanized 483 mm (19") profile rails, labelled with height units that can be read in opposite directions, are installed inside. They are infinitely adjustable and are connected to additional depth struts in the cabinet. Each enclosure is a robust steel construction made from sheet steel up to 1.5 mm thick. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). Modular lockable and removable side panels and doors improve accessibility. Door hinges can be changed. Furthermore, the cabinets can be completely dismantled if required thanks to the demountable design. Depending on the application, all DIGITUS® Unique network cabinets can also be used as server cabinets, taking into account factors such as the weights and heat development of built-in components. The installation of perforated sheet steel doors in such variants ensures improved passive cooling of the installed components. For example, a model defined by DIGITUS® as a server cabinet is supplemented by rear PDU brackets in the standard configuration of the Unique Server-N series.

[Network and Server Cabinets][Network Cabinets - Freestanding]

Specificaties

Product
Product id 547716
Merk Digitus
Partnr DN-19 22U-6/8-1
EAN/UPC code 4016032331117
Product informatie blad(en)
Class Network/server enclosure
Mounting level Front and rear
Type of profile rail Crank
Number of doors 2
Type of ventilation Passive
Width 600 mm
Height 1164 mm
Depth 800 mm
Modular spacing 482.6 mm (19 inch)
Number of height units 22
Max. load capacity 1200 kg
With roof plate true
With earthing false
With front door true
Material front door Glass
Front door locking system 1-point

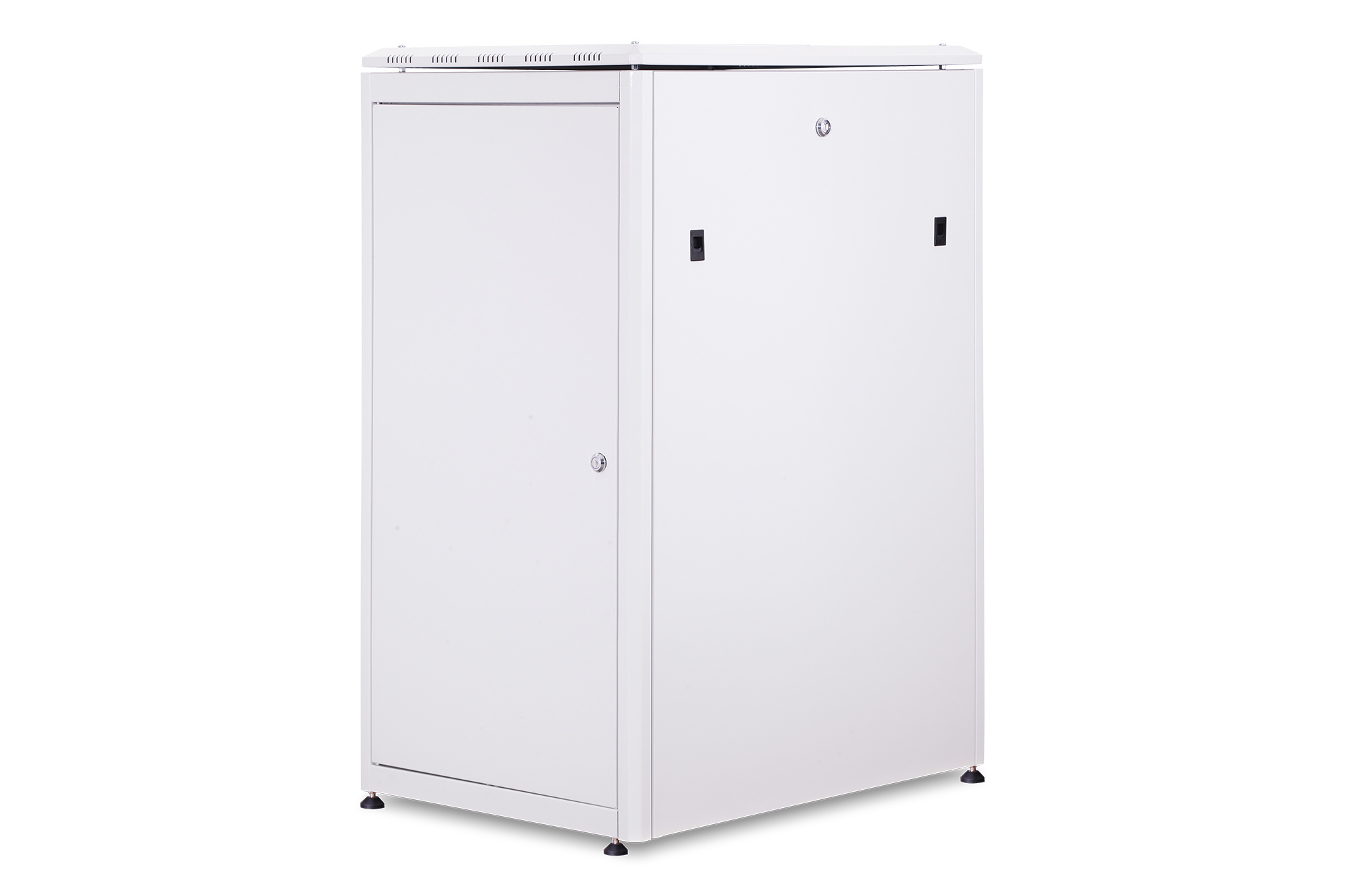

With rear door true
Material rear door Steel
Rear door locking system 1-point
With glazed door false
With sidewall true
With base false
With vertical cable management false
Material Steel
Surface finishing Powder coating
Colour Grey
Model With permanent frame
RAL-number 7035
Demountable true
Degree of protection (IP) IP20
Degree of protection (NEMA) Other
