19" network bundle, 7U cabinet and equipment, gr SOHO Pro version, unmounted



Digitus
Niet op voorraad
€ 206,65
€ 250,05 incl 21% BTW
Heeft u een vraag over dit product?

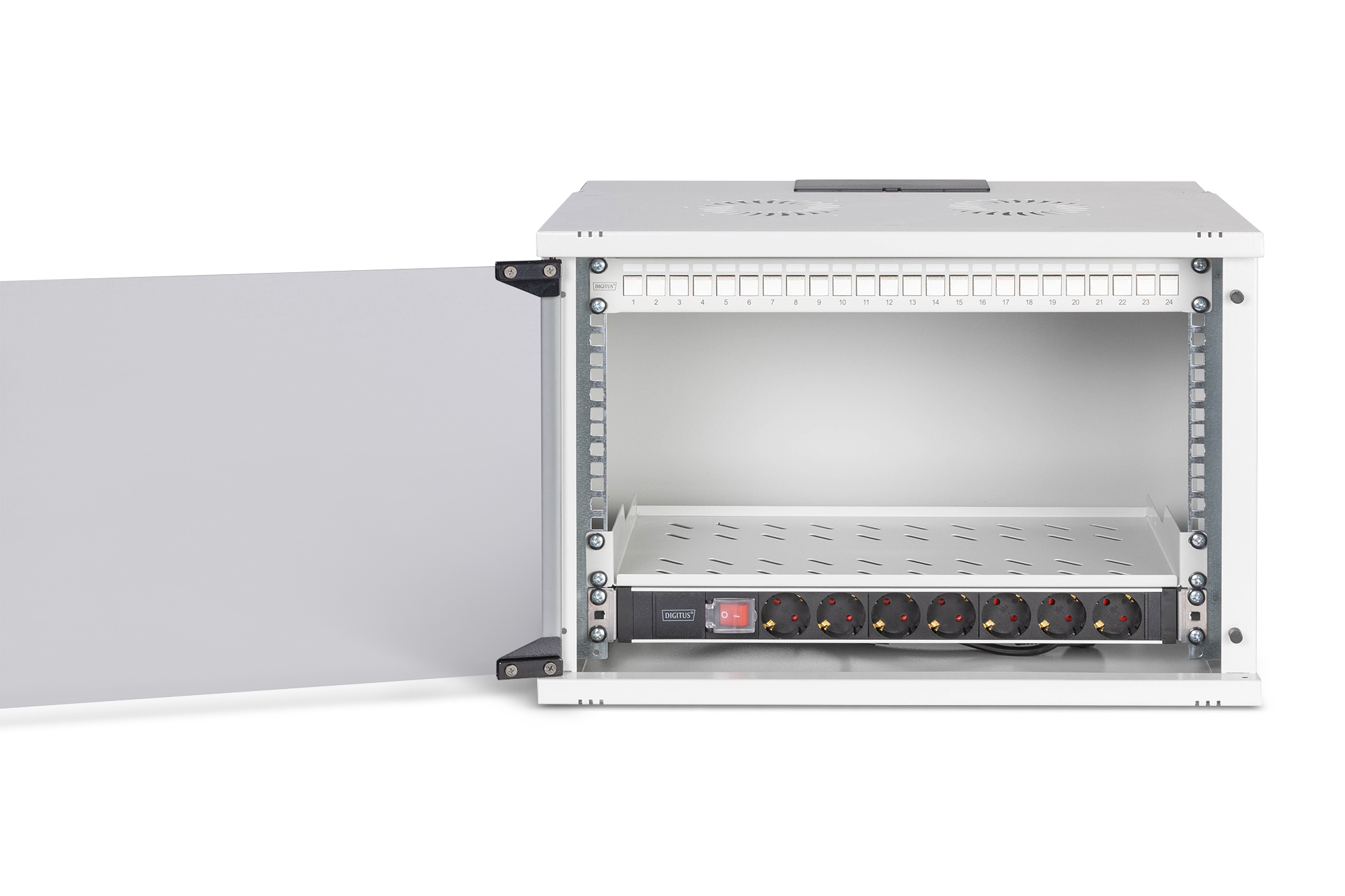

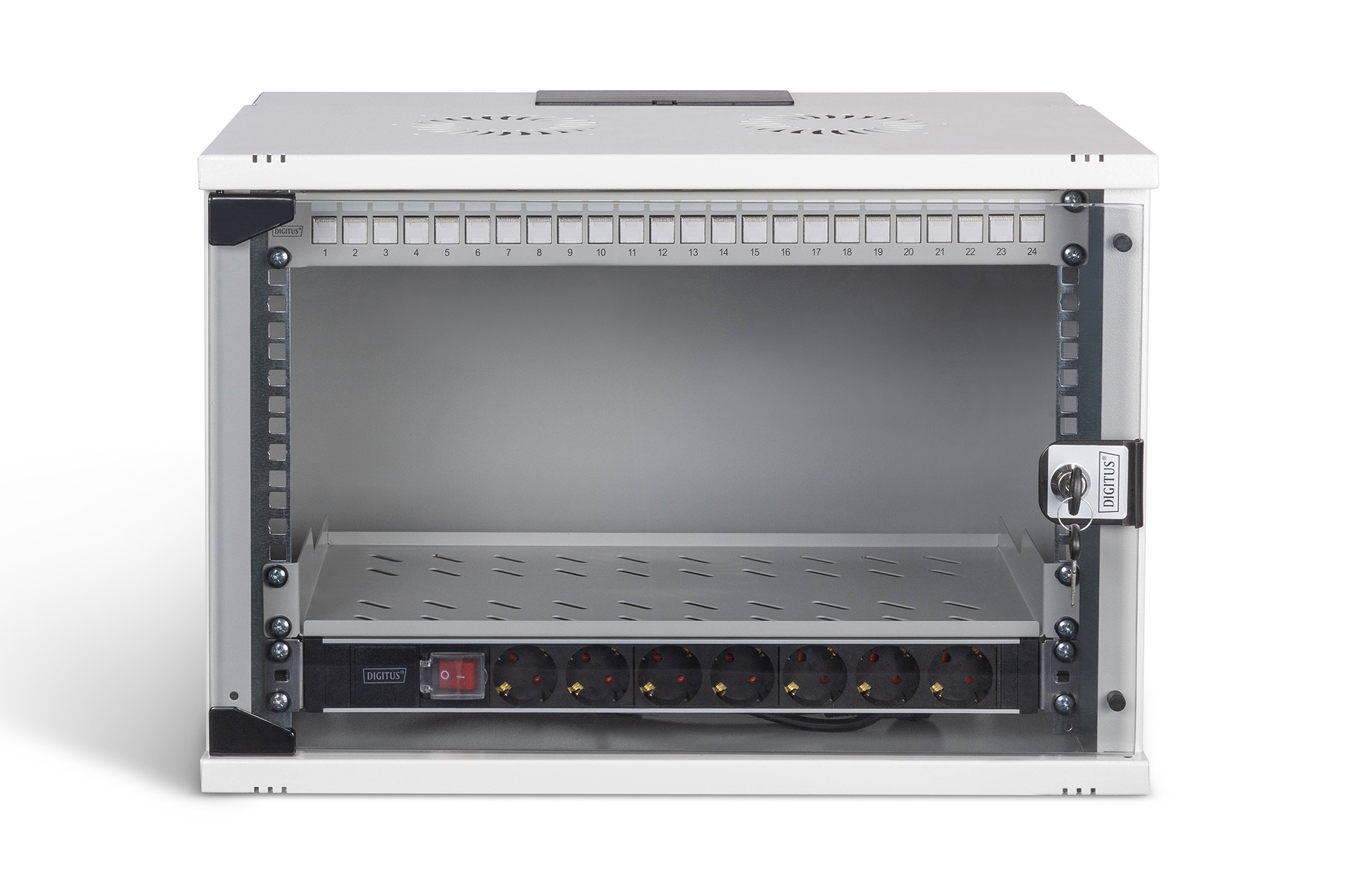

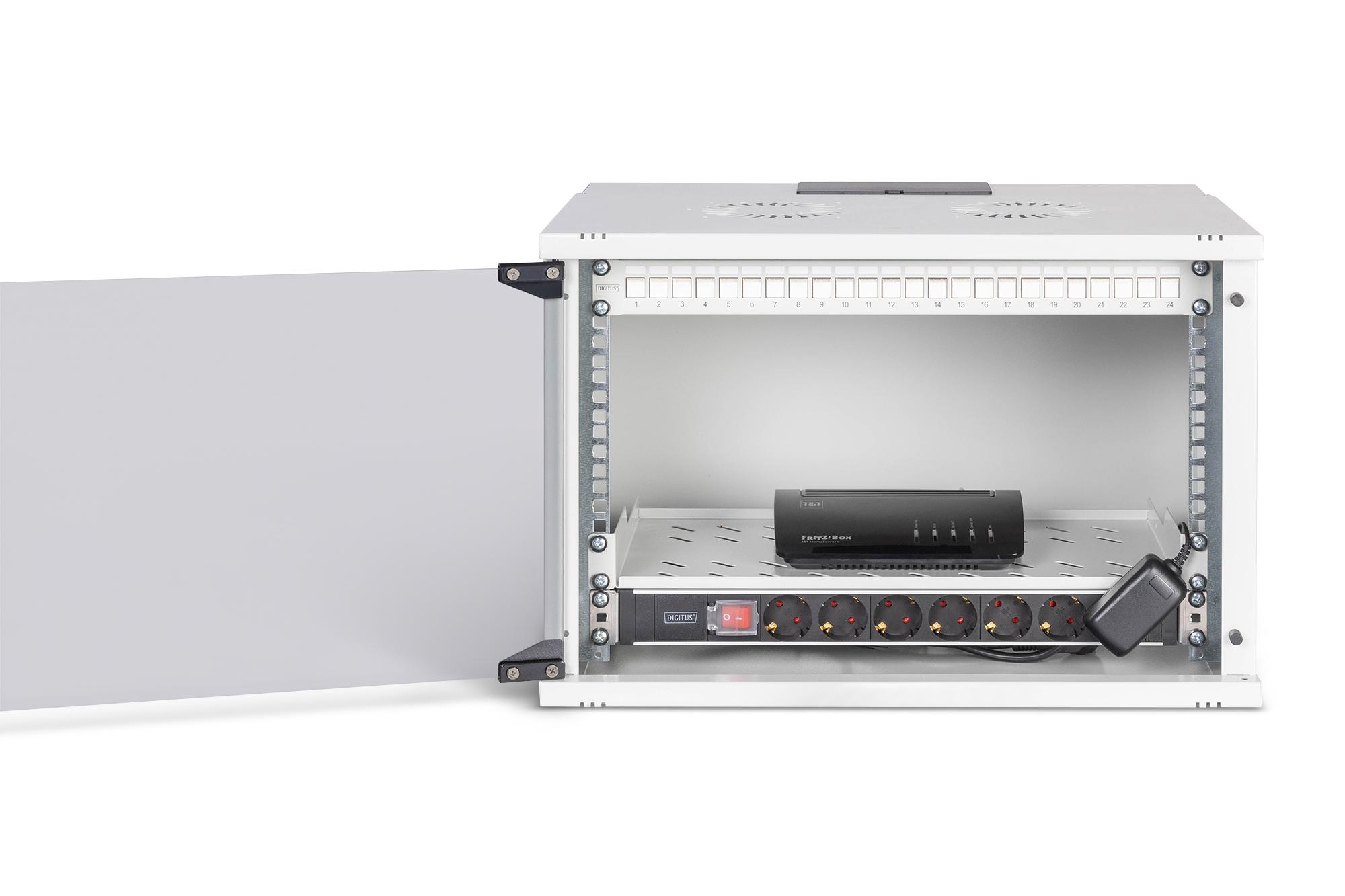

SOHO Pro network set, 483 mm (19") - 7U, 540 x 400 mm (W x D)

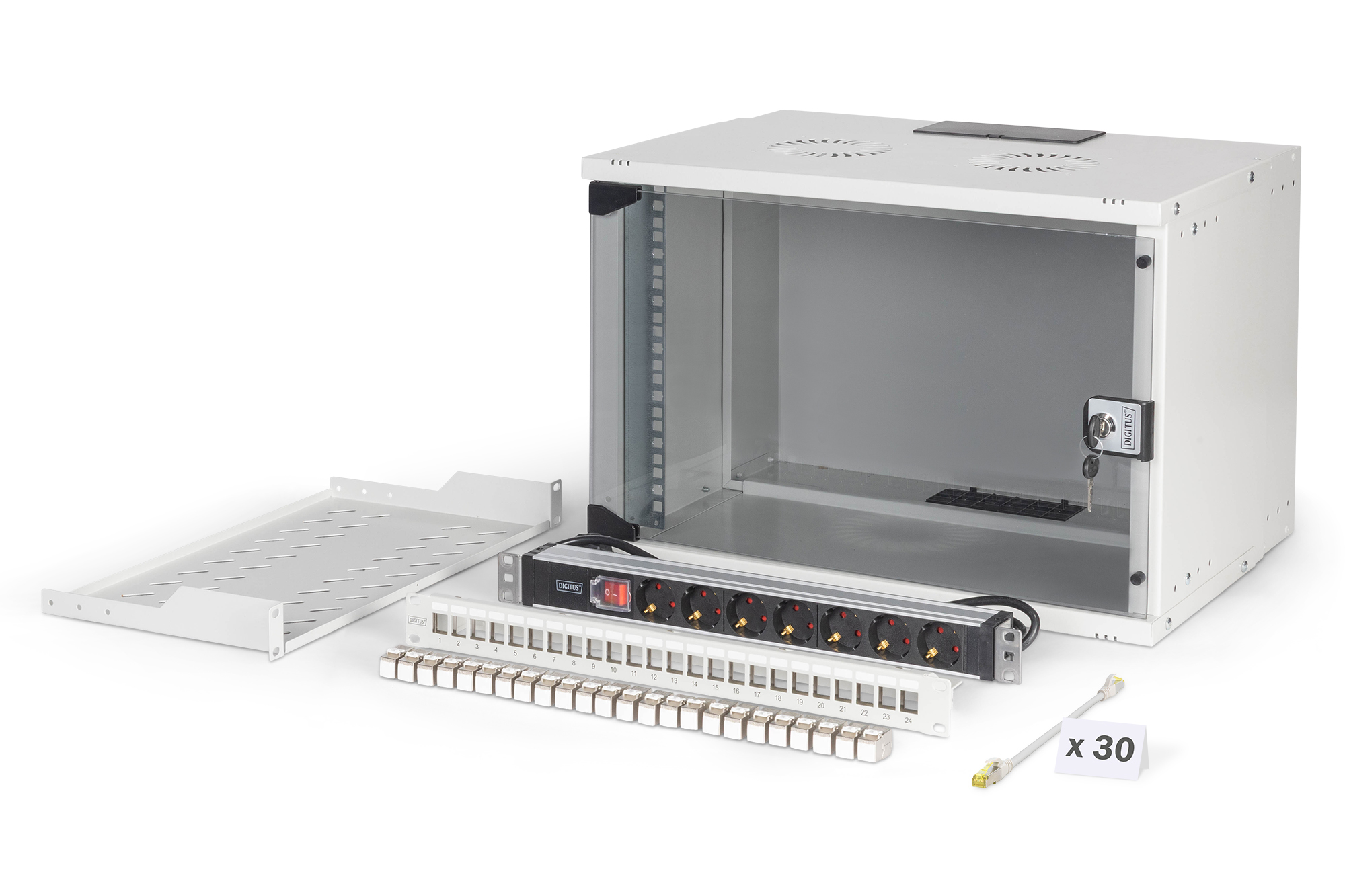

Complete set for setting up a compact 483 mm (19") network, incl. cabinet, shelf, socket strip, patch panel, keystone modules, patch cables.

- Including wall-mounted enclosure SOHO PRO, 7U, 370 x 540 x 400 mm, unassembled (DN-49202)
- Including shelf, 1U (DN-97609)
- Including socket strip, 1U, 7 x earthing contact, with switch (DN-95402)
- Including modular patch panel, 24-port (DN-91410)
- Including 24 x Keystone module, CAT 6A, shielded (DN-93615-24)
- Including 30 x patch cable, CAT 6A, S/FTP, 0.25 m

Whether in the home, office or for sub-distribution boards with limited space: With the compact 483 mm (19") solutions from the SOHO Pro series, you can install your network wherever you want. Installation takes just a few steps and is child's play thanks to the enclosed step-by-step instructions. Available in four height unit versions (4U, 7U, 9U, 12U), these network sets include perfectly matched DIGITUS components to ensure quick and easy IT cabling ready for use. The network cabinet and the respective accessories (e. g. switch, patch panel, socket strip, shelf, cable management panel, patch cable, etc. ) are supplied in a compact cardboard box.

[Network and Server Cabinets][Network Cabinets - Wall Mounting]

Specificaties

Product
Product id 1011053
Merk Digitus
Partnr DN-49202-SET
EAN/UPC code 4016032499596
Product informatie blad(en)
Class Network/server enclosure
Mounting level Front and rear
Type of profile rail L-shape
Number of doors 1
Type of ventilation Passive
Width 540 mm
Height 370 mm
Depth 400 mm
Modular spacing 482.6 mm (19 inch)
Number of height units 7
Max. load capacity 60 kg
With roof plate true
With earthing false
With front door true
Material front door Glass
Front door locking system 1-point
With rear door false
Material rear door Steel
Rear door locking system None
With glazed door true
With sidewall true
With base false
With vertical cable management false
Material Steel
Surface finishing Powder coating
Colour Grey
Model With permanent frame
RAL-number 7035
Demountable true
Degree of protection (IP) IP20
Degree of protection (NEMA) Other
