10 inch 8-Port Gigabit L2+ Managed Switch 8-port, 10 inch



Digitus
Niet op voorraad
€ 130,09
€ 157,41 incl 21% BTW
Heeft u een vraag over dit product?

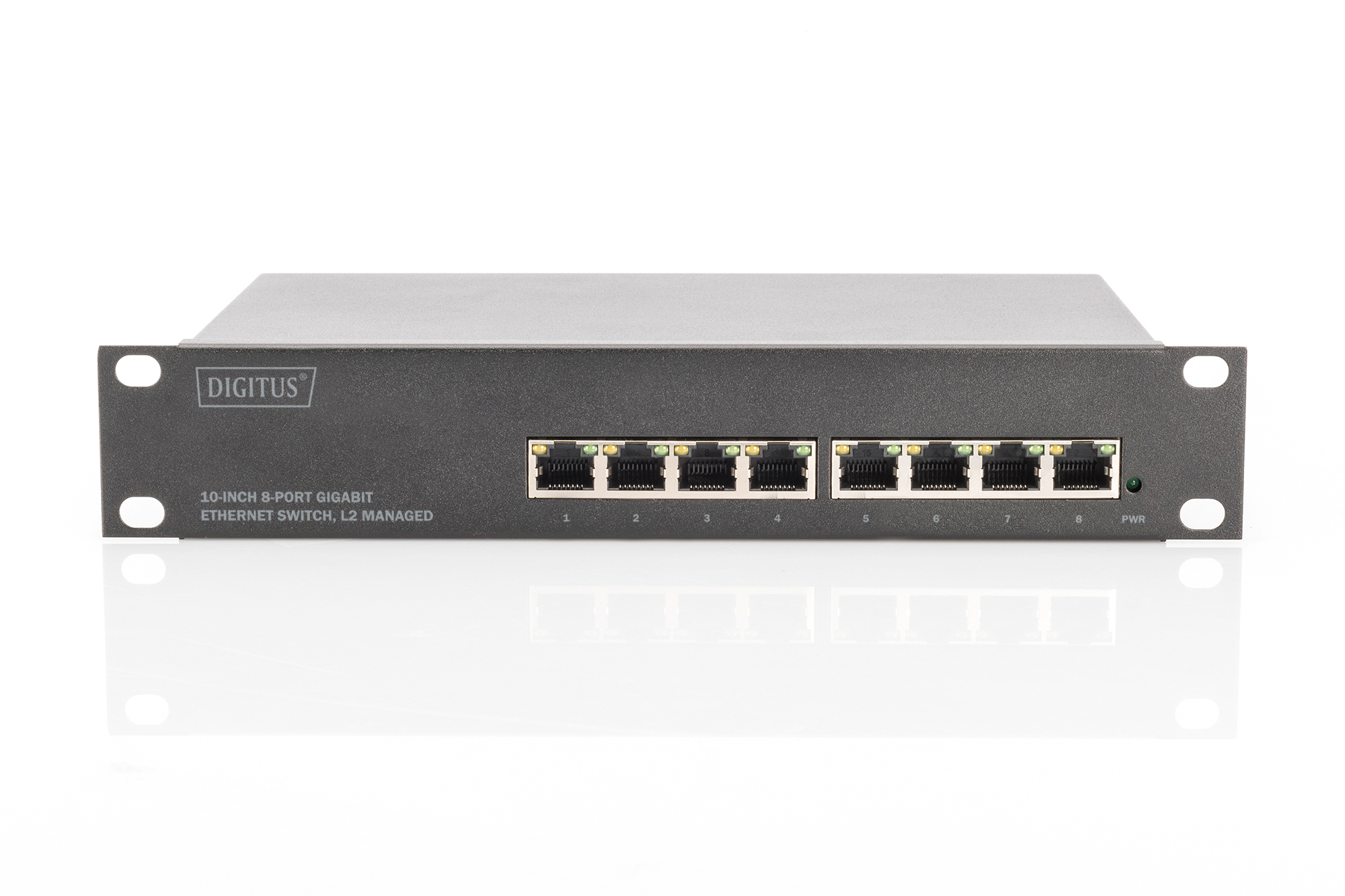

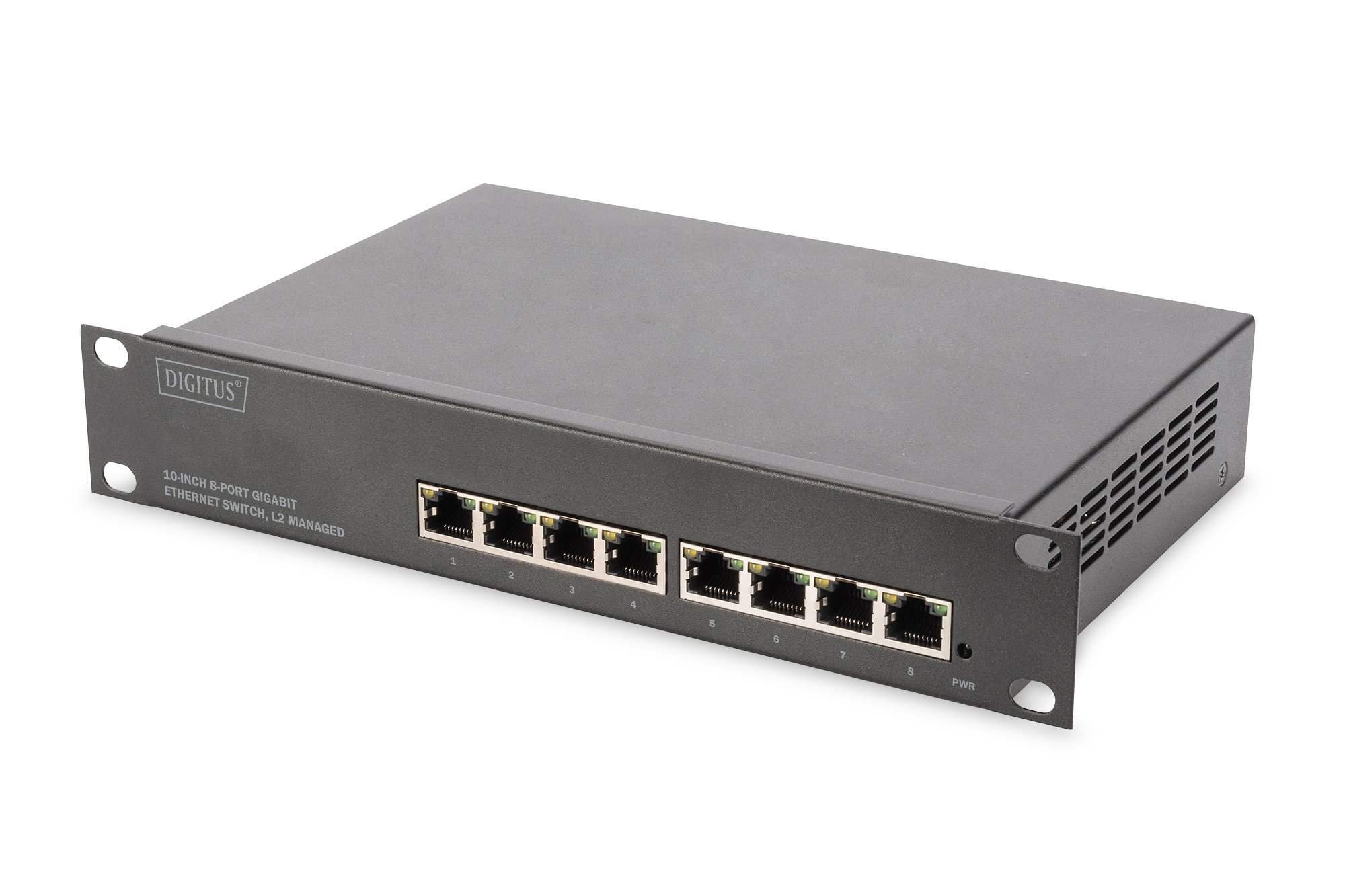

10" Gigabit 8-Port L2+ Managed Switch

Professional network segmentation, prioritization, and security—in a compact 10-inch format.

- L2+ Managed Switch with Extensive Enterprise Features
- VLAN (port-based & 802.1Q tag-based)
- Spanning Tree (STP/RSTP/MSTP) and EAPS Ring for Redundant Architectures
- Static routing and up to 32 VLAN interfaces for inter-VLAN routing
- Link aggregation with up to 8 groups
- QoS with 4 queues per port for prioritized applications
- IGMP/MLD Snooping and Multicast Management for IPTV and CCTV
- Comprehensive ACL support (IP, MAC, ARP)
- Management via the Web, SNMP, CLI, Telnet, SSH, TACACS+, and RMON
- IPv6 Support (ICMPv6, ND, MLD Snooping)
- Fanless metal enclosure for quiet 24/7 operation

The DIGITUS® DN-80117 is a professional 8-port Gigabit L2+ managed switch in a 10-inch form factor designed for small and medium-sized business networks. It combines Gigabit performance with a comprehensive range of Layer 2 and Layer 2+ features: VLAN (port-based & 802.1Q), QoS with four queues per port, link aggregation with up to eight groups, Spanning Tree (STP/RSTP/MSTP), and an EAPS ring for redundant structures, as well as multicast management (IGMP/MLD snooping) for IPTV and CCTV applications. With eight 10/100/1000Base-TX ports, a 16 Gbps backplane, jumbo frames up to 16 KB, and a forwarding capacity of 11.9 Mpps, it is ideally suited for converged networks handling data, voice, and video traffic. Features such as port isolation, loop detection, port mirroring, and rate limiting enable granular control of the infrastructure, while comprehensive ACLs (IP/MAC/ARP) and authentication via RADIUS and TACACS+ enhance security. Using static routing and up to 32 VLAN interfaces, the switch handles inter-VLAN routing directly at the network edge, reducing the load on the firewall. Management is flexible and audit-compliant via Web GUI, SNMP, CLI, Telnet, SSH, TACACS+, or RMON—including IPv6 support. The fanless metal housing ensures quiet and reliable 24/7 operation. This makes the DN-80117 the managed core for professional SMB networks in a space-saving 10-inch form factor.

[Data Network Technology][Active Network Components]

Specificaties

Product
Product id 684042
Merk Digitus
Partnr DN-80117
EAN/UPC code 4016032464358
Product informatie blad(en)
Class Network switch
Ethernet true
Number of ports 10/100/1000 Mbps RJ45 8
Power over Ethernet (PoE) Other
Max. power consumption 15 W
Redundant power supply false
Mounting method 254 mm (10 inch) mounting
Layer 2 true
Layer 3 false
Manageable true
Degree of protection (IP) IP20
Height 44 mm
Width 250 mm
Depth 150 mm
Compatible with Grade2TV according to XP-C 90-483 false
Compatible with Grade3TV according to XP-C 90-483 false
