100G QSFP28to QSFP28 Active Optical Cable MMF 850nm 1m



Digitus
Niet op voorraad
€ 185,05
€ 223,91 incl 21% BTW
Heeft u een vraag over dit product?

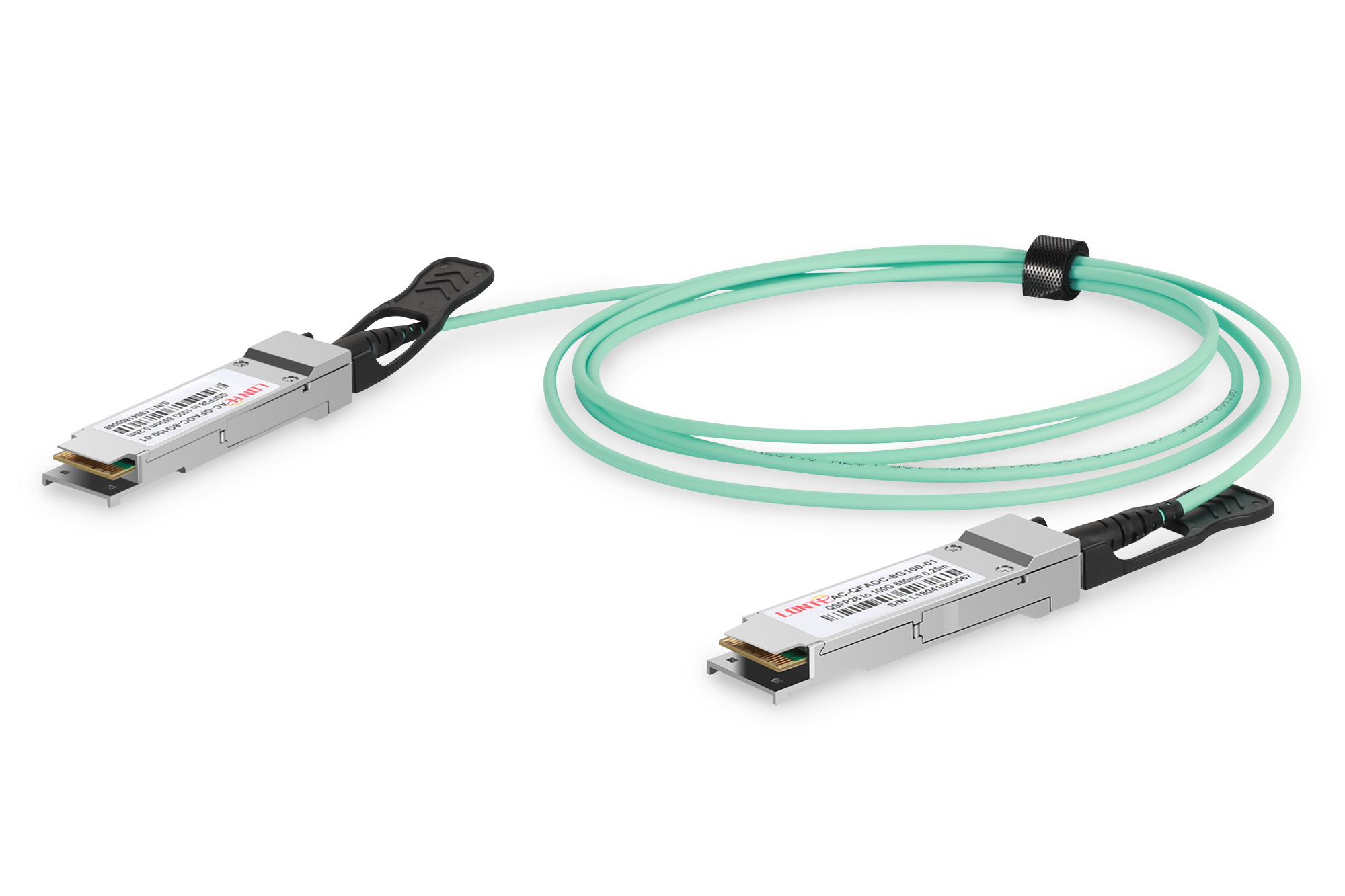

100Gbps QSFP28 Active Optical Cable 1 m

100 Gigabit Ethernet links, Infiniband interconnect, Data center cabling infrastructure. Compatible brands: Allnet, CISCO, 3COM, D-LINK, Dell, Edimax, Etherwan, ENTERASYS, EXTREME, FINISAR, FORCE 10, Fortinet, HUAWEI, IBM, JUNIPER, LINKSYS, NETGEAR, NORTEL, RIVERSTONE, ZTE, ZYXEL

- 4 channels full-duplex transceiver modules
- 4 channels 850nm VCSEL array, 4 channels PIN photo detector array
- Transmission data rate up to 28.05Gbps per channel, 100Gbps total
- Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF
- Hot Pluggable QSFP form factor, Single MPO connector receptacle
- Built-in digital diagnostic functions
- 3.3V power supply voltage; Low power consumption <3.5W
- Operating case temperature 0°C to +70°C
- Compatible brands: Allnet, CISCO, 3COM, D-LINK, Dell, Edimax, Etherwan, ENTERASYS, EXTREME, FINISAR, FORCE 10, Fortinet, HUAWEI, IBM, JUNIPER, LINKSYS, NETGEAR, NORTEL, RIVERSTONE, ZTE, ZYXEL

DIGITUS® 100G QSFP28 AOC active cables are a high-performance, low-power short-range interconnect solution. They are compliant with the SFF-8431 SFP+ Electrical MSA, SFF-8432 SFP+ Mechanical MSA and QSFP28 MSA compliant. 4 full-duplex channels are used, with each channel capable of transferring data at speeds up to 25Gb/s, resulting in an aggregate rate of up to 103.1Gb/s. DIGITUS® 100G QSFP+ AOC active cables offer increased port density and cost savings in the overall system. The specific programming of each QSFP28 cable can safely ensure adaptation to the needs of any IT environment.

[Data Network Technology][Active Network Components]

Specificaties

Product
Product id 966280
Merk Digitus
Partnr DN-81621
EAN/UPC code 4016032480969
Product informatie blad(en)
Class Module for active network component/network unit
Ethernet false
Fast Ethernet false
Gigabit Ethernet false
10 Gigabit Ethernet false
40 Gigabit Ethernet false
Wavelength 850 nm
Construction type Other
Height 11 mm
Width 14 mm
Depth 58 mm
Compatible with Grade2TV according to XP-C 90-483 false
Compatible with Grade3TV according to XP-C 90-483 false
