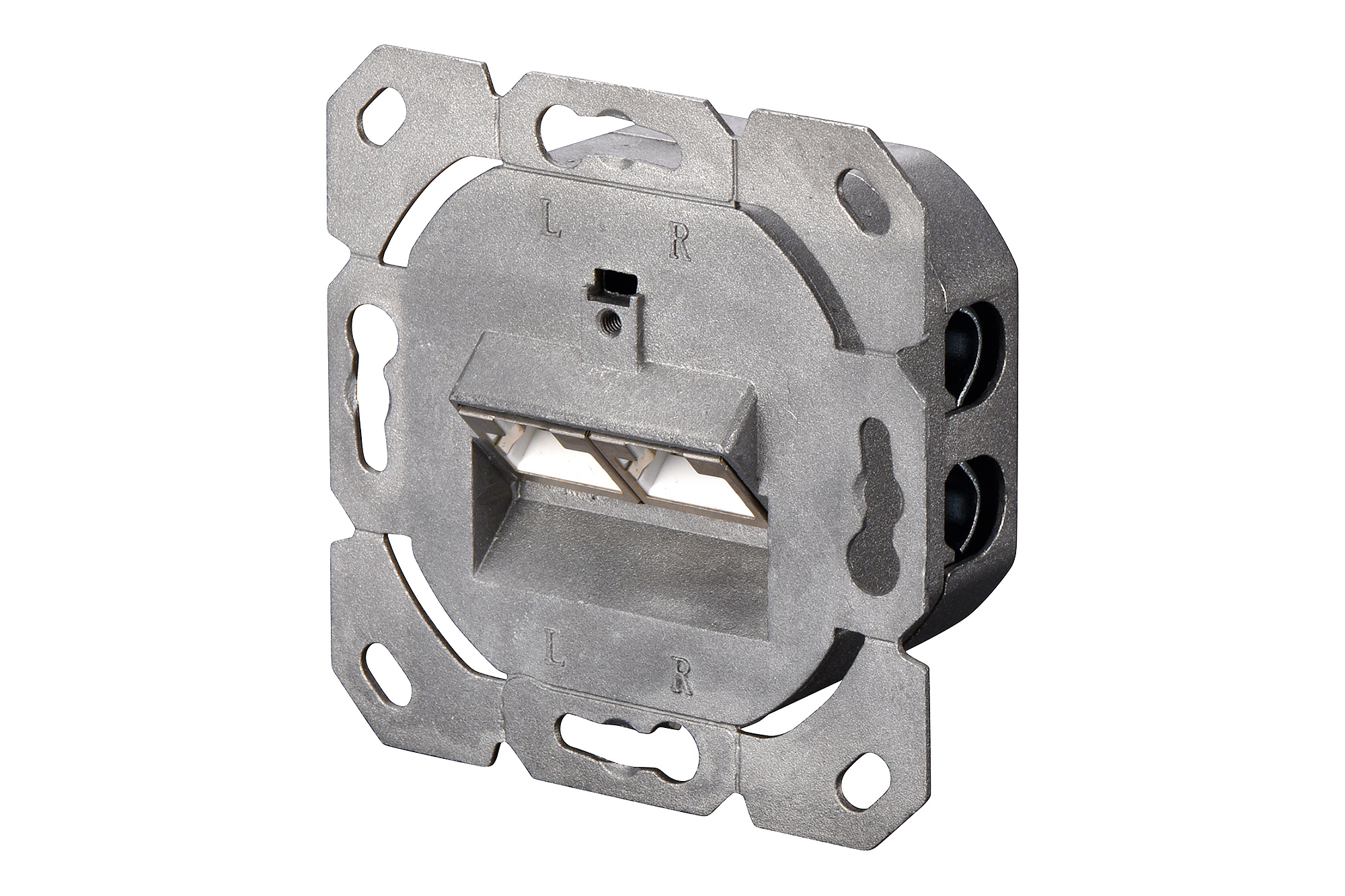

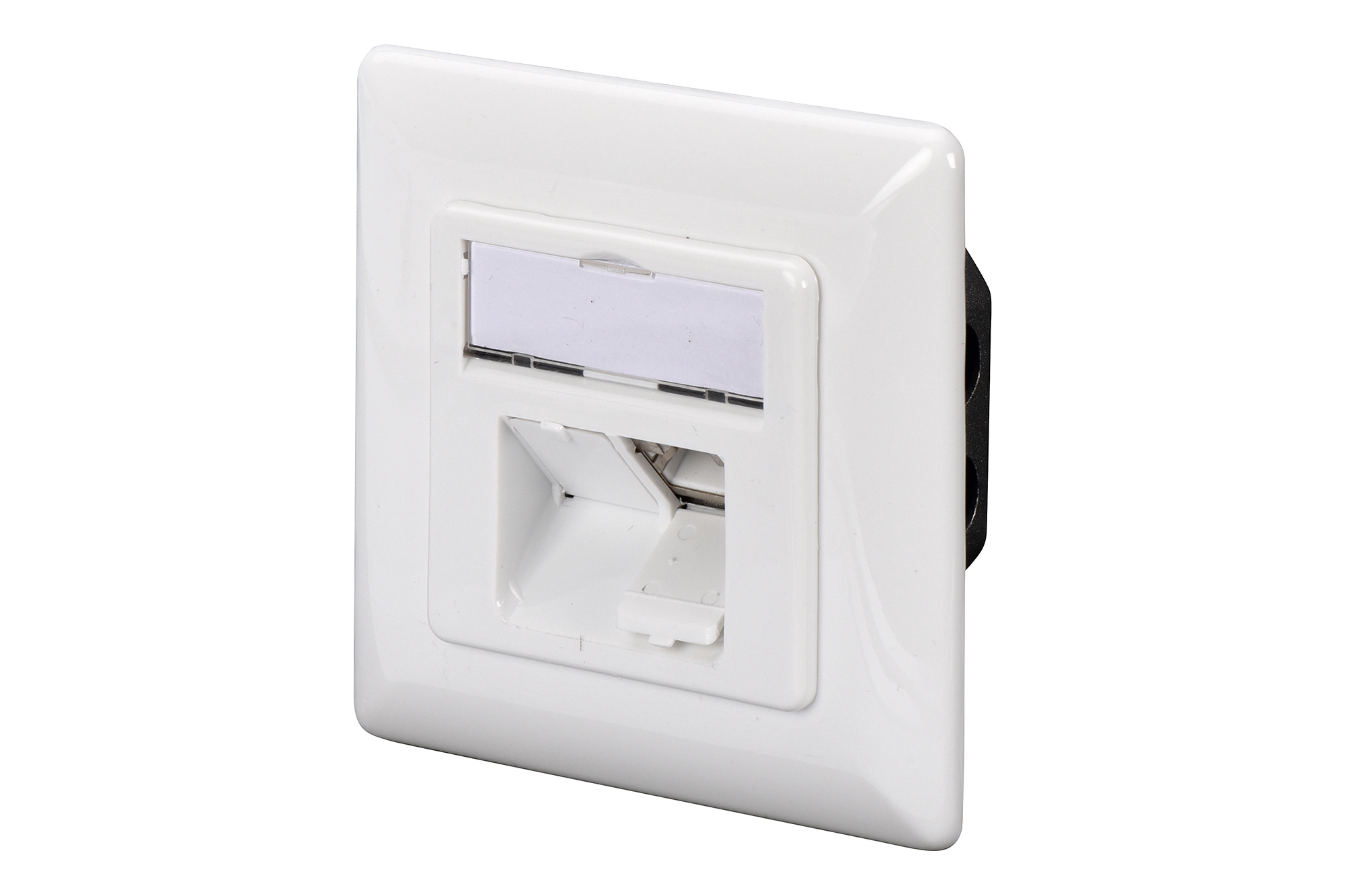

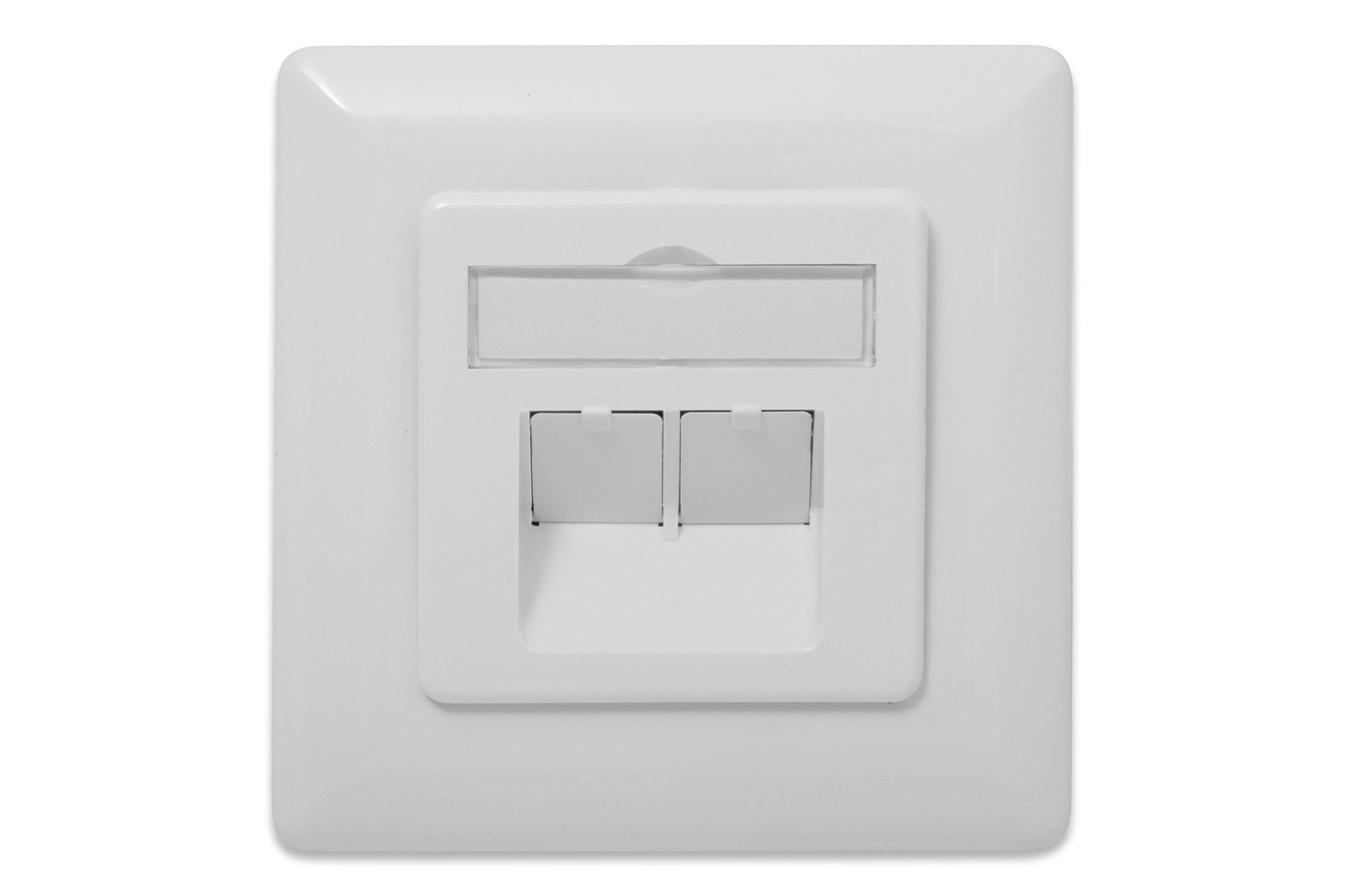

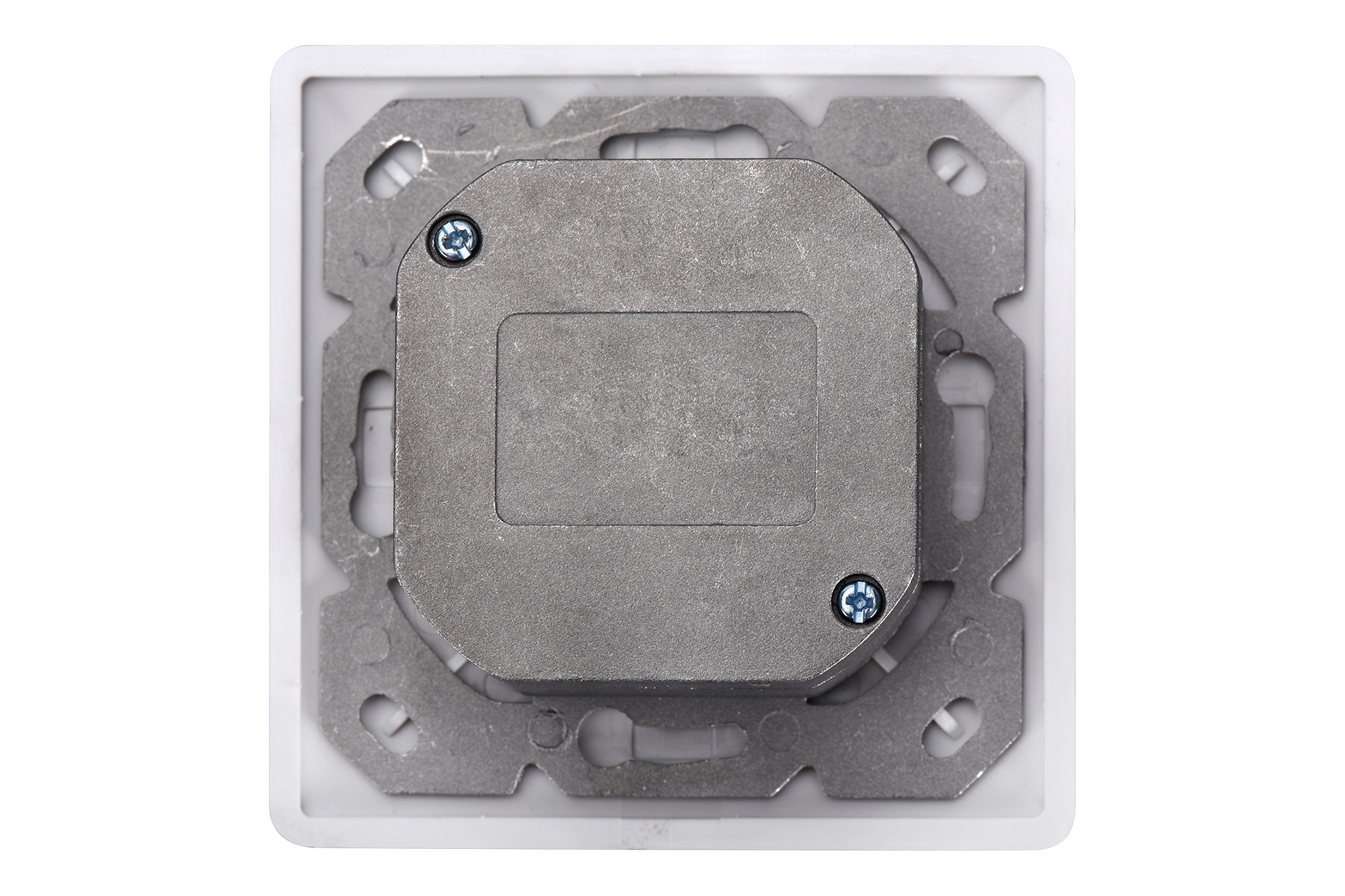

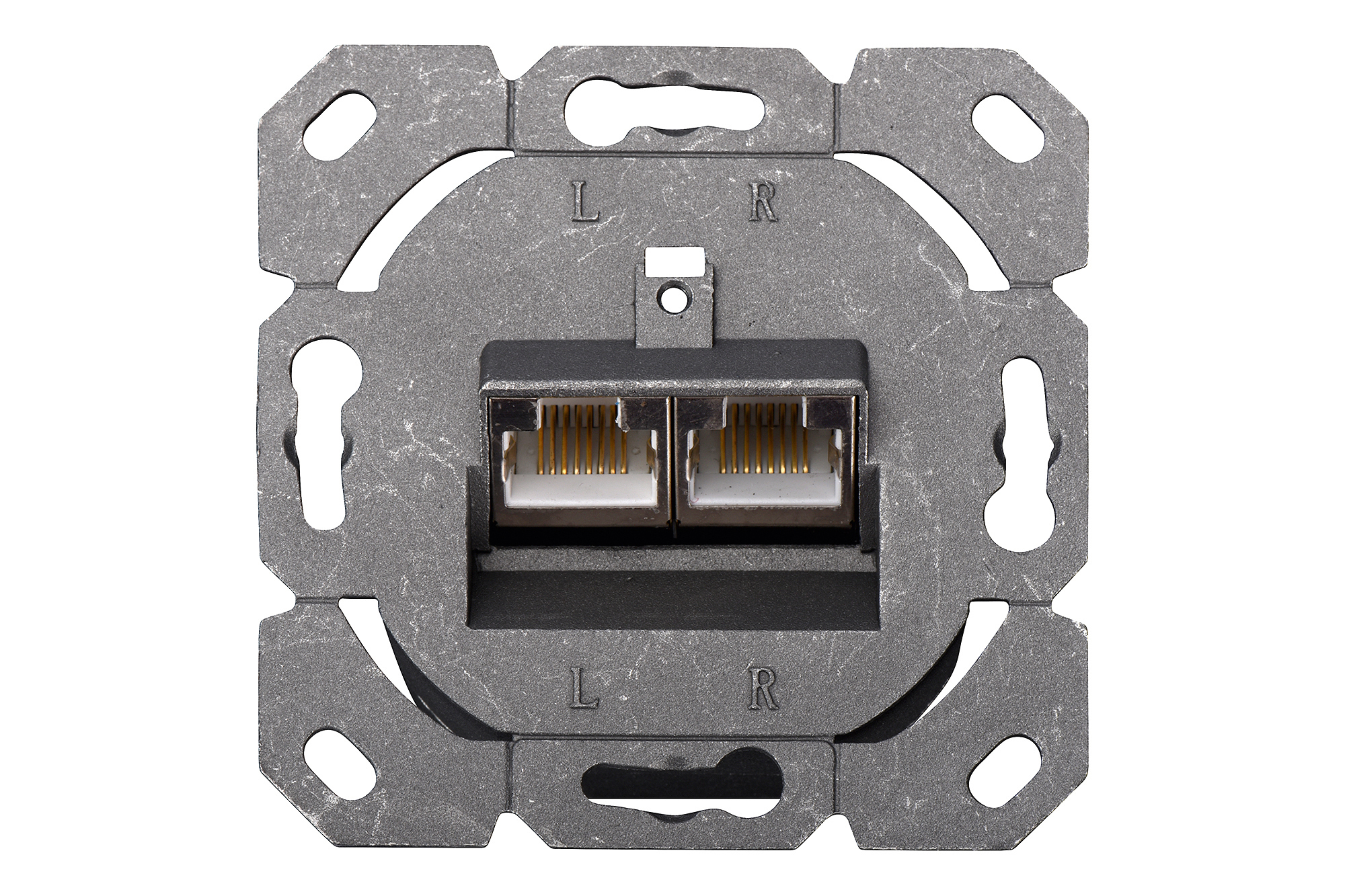

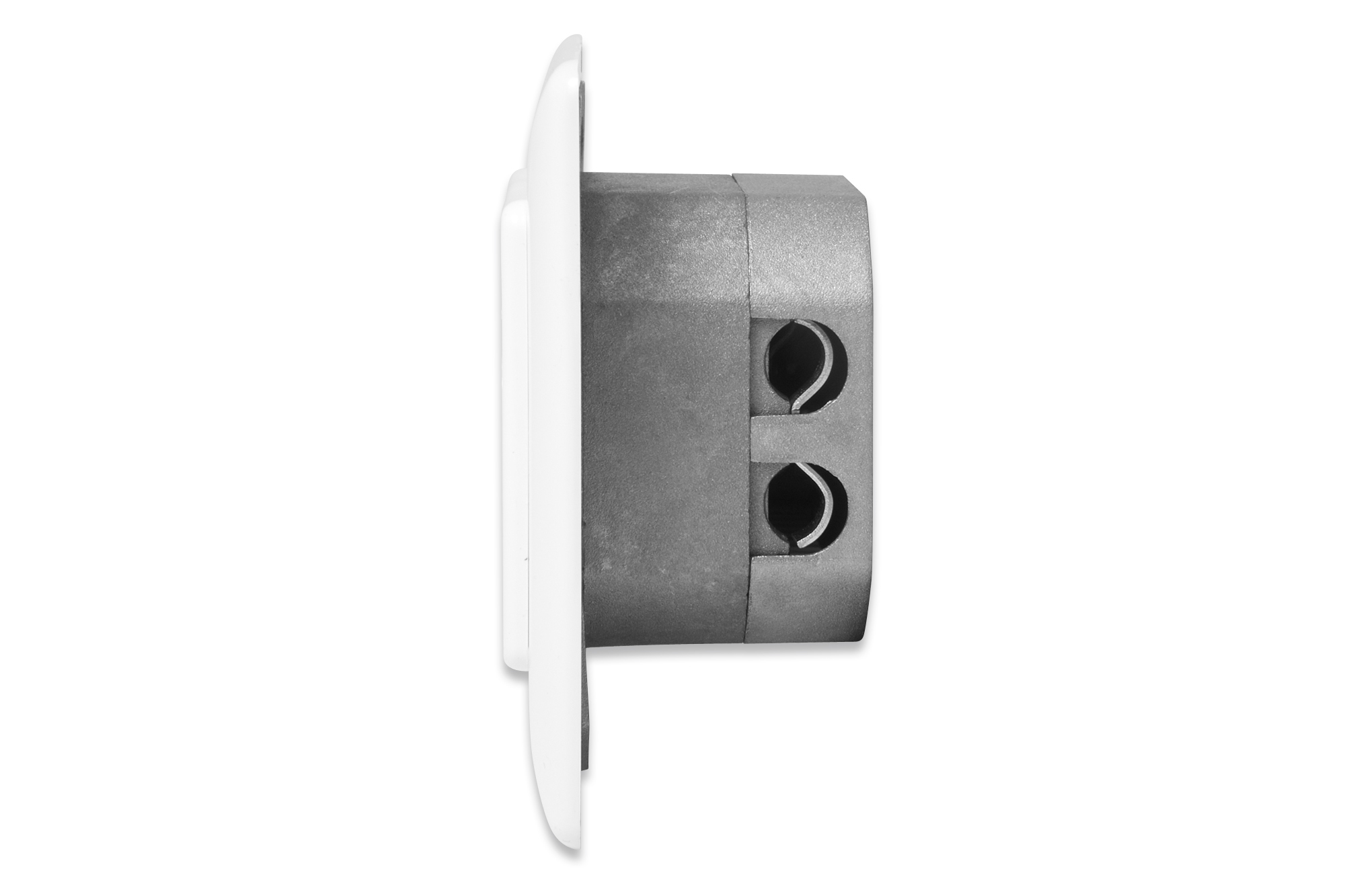

CAT 6A Class EA network outlet, shielded, 2xRJ45, LSA pure white, flush mount, horizontal cable install.



Digitus
Niet op voorraad
€ 8,75
€ 10,59 incl 21% BTW
Heeft u een vraag over dit product?
CAT 6A class EA network socket, design-compatible, shielded, flush-mounted

Future-oriented standards and high-end quality for your network.

- Design compatible with standard switch ranges
- Guaranteed safety thanks to fully shielded RJ45 sockets and LSA strips

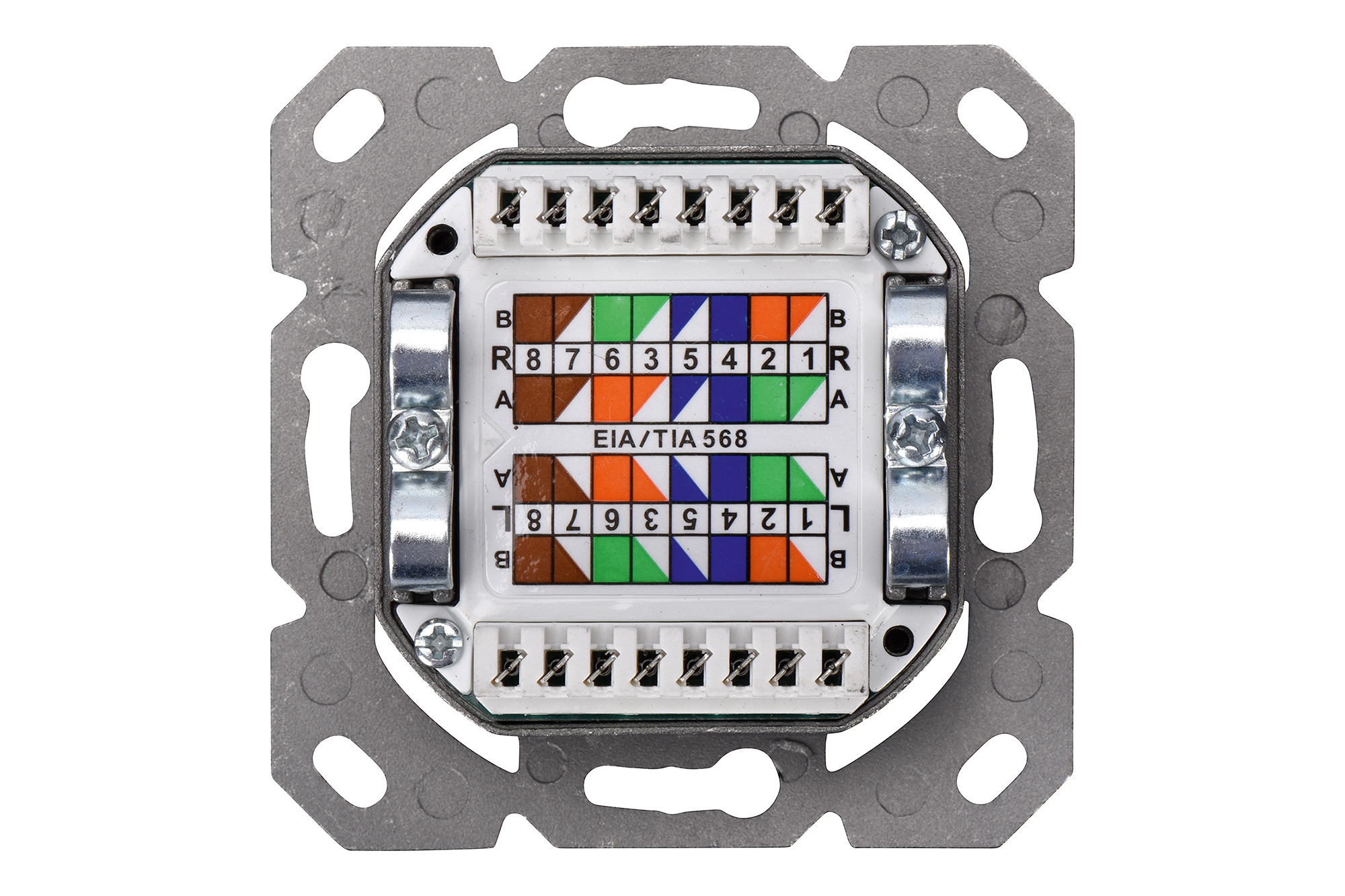

- Easy installation thanks to color-coded IDC strips
- Central plate with integrated dust protection caps

The CAT 6A data outlets from DIGITUS® are design-compatible with all standard switch ranges. They are certified to CAT 6A ANSI/TIA 568 and ISO/IEC 11801, EN 50173 and have 2 shielded RJ45 sockets. The cable is installed via LSA strips, color-coded in accordance with EIA/TIA 568 A & B.

[Data Network Technology][Copper Cabling]

Specificaties

Product
Product id 548749
Merk Digitus
Partnr DN-9008-1
EAN/UPC code 4016032320227
Product informatie blad(en)
Class Data communication connection box copper (twisted pair)
Surface mounting false
Flush-mounted installation false
Duct installation false
Floor box/subfloor mounted false
Type of fastening Screwing
Assembly arrangement Other
Type of connector 2x RJ45 8(8)
With buses/couplings true
Suitable for number of connectors 2
Category 6A (IEC)
Colour White
RAL-number 9003
Connection type LSA
Shielded buses true
Shielded housing true
Separate earthing connection false
With label space true
Compatible with third-party covers true
Separate strain relief false
Mounting method shielding connection Clamp
Outlet direction Inclined
With dust cover true
With terminal resistor false
Degree of protection (IP) IP20
Mechanical coding false
Colour coding true
Device width 80 mm
Device height 80 mm
Device depth 38.4 mm
