CAT 6A Class EA patch panel, shielded, 0.5U 24-port RJ45, incl. dust cover, 8P8C, black



Digitus
Niet op voorraad
€ 64,44
€ 77,97 incl 21% BTW
Heeft u een vraag over dit product?

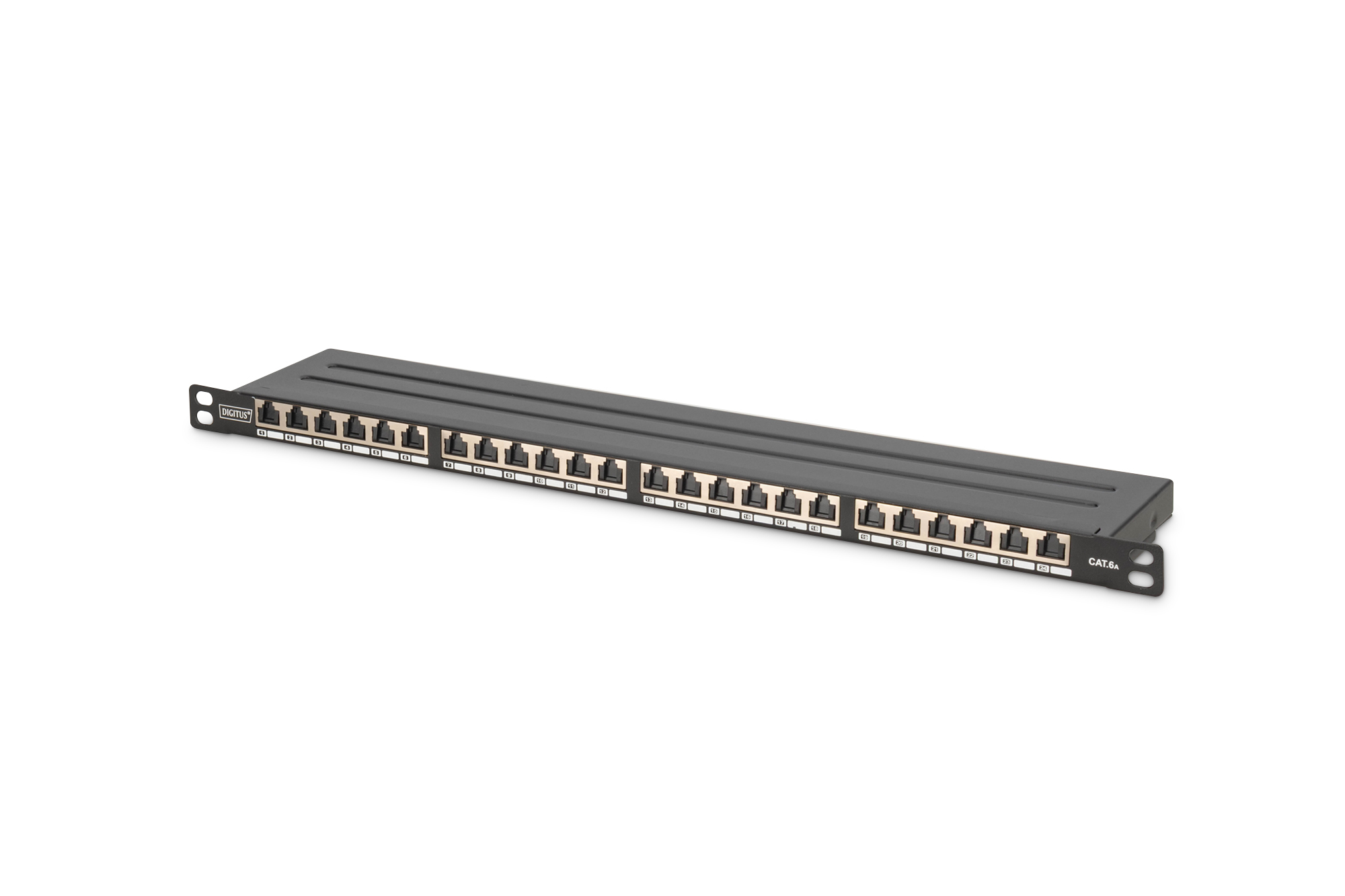

CAT 6A, Class EA High Density Patch Panel, shielded

Very space-saving (only 0.5U) - With dust protection caps - Future-oriented standards and high-end quality for your network

- Slim installation height of only 0.5 U
- Up to 48 ports per U possible (2 x 24 port panels)
- Dust protection flaps on the RJ45 sockets
- 360° shield contacting
- Cable clamp for fixing and routing, reclosable

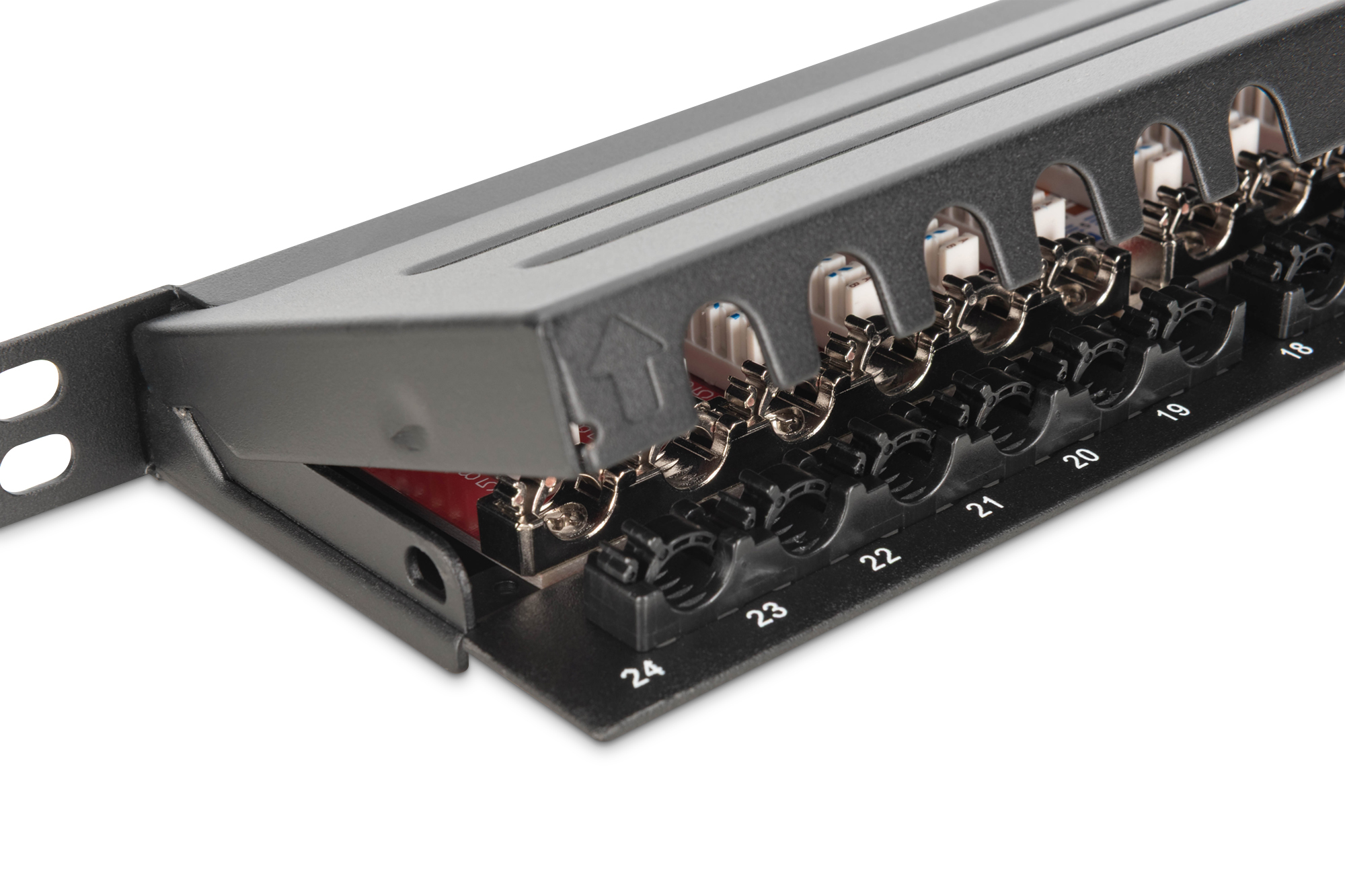

- Quick-release fastener to secure the housing cover

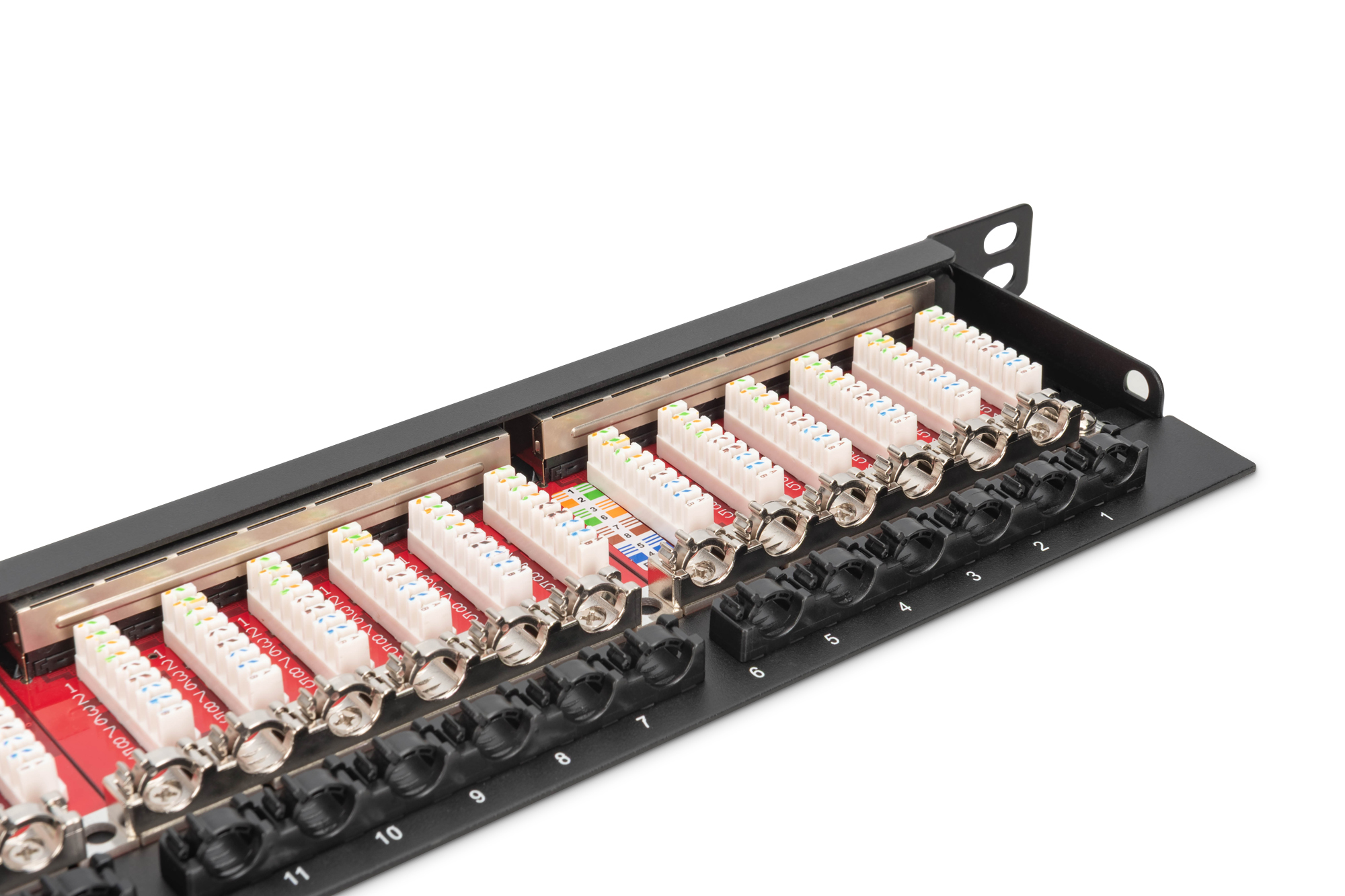

The DIGITUS® 24-port patch panel offers a very high packing density with only 0.5 U. This means that up to 48 ports can be implemented on 1 U with two 0.5 U panels. The patch panel is shielded and equipped with dust protection caps on the RJ45 sockets. The 360° shield contact of the cables ensures the best performance characteristics. The installation cables can be securely fixed with the integrated cable clamps. The quick-release fastener on the housing ensures easy and tool-free access to the LSA insulation displacement connectors.

[Data Network Technology][Copper Cabling]

Specificaties

Product
Product id 548759
Merk Digitus
Partnr DN-91624S-SL-EA
EAN/UPC code 4016032341369
Product informatie blad(en)
Class Patch panel copper (twisted pair)
Number of buses/couplings 24
Suitable for number of connectors 24
Type of connector RJ45 8(8)
Screened true
Category 6A (IEC)
Connection type LSA
Number of height units 0.5
Colour Black
RAL-number 9005
Mounting method 482.6 mm (19 inch) mounting
Height 22.5 mm
Width 482.6 mm
Depth 104.5 mm
Compatible with Grade2TV according to XP-C 90-483 false
Compatible with Grade3TV according to XP-C 90-483 false
