Hdbaset Transmitter Kt-100Tx1



NEC
Niet op voorraad
€ 428,79
€ 518,83 incl 21% BTW
External HDBaseT Transmitter KT-100TX1

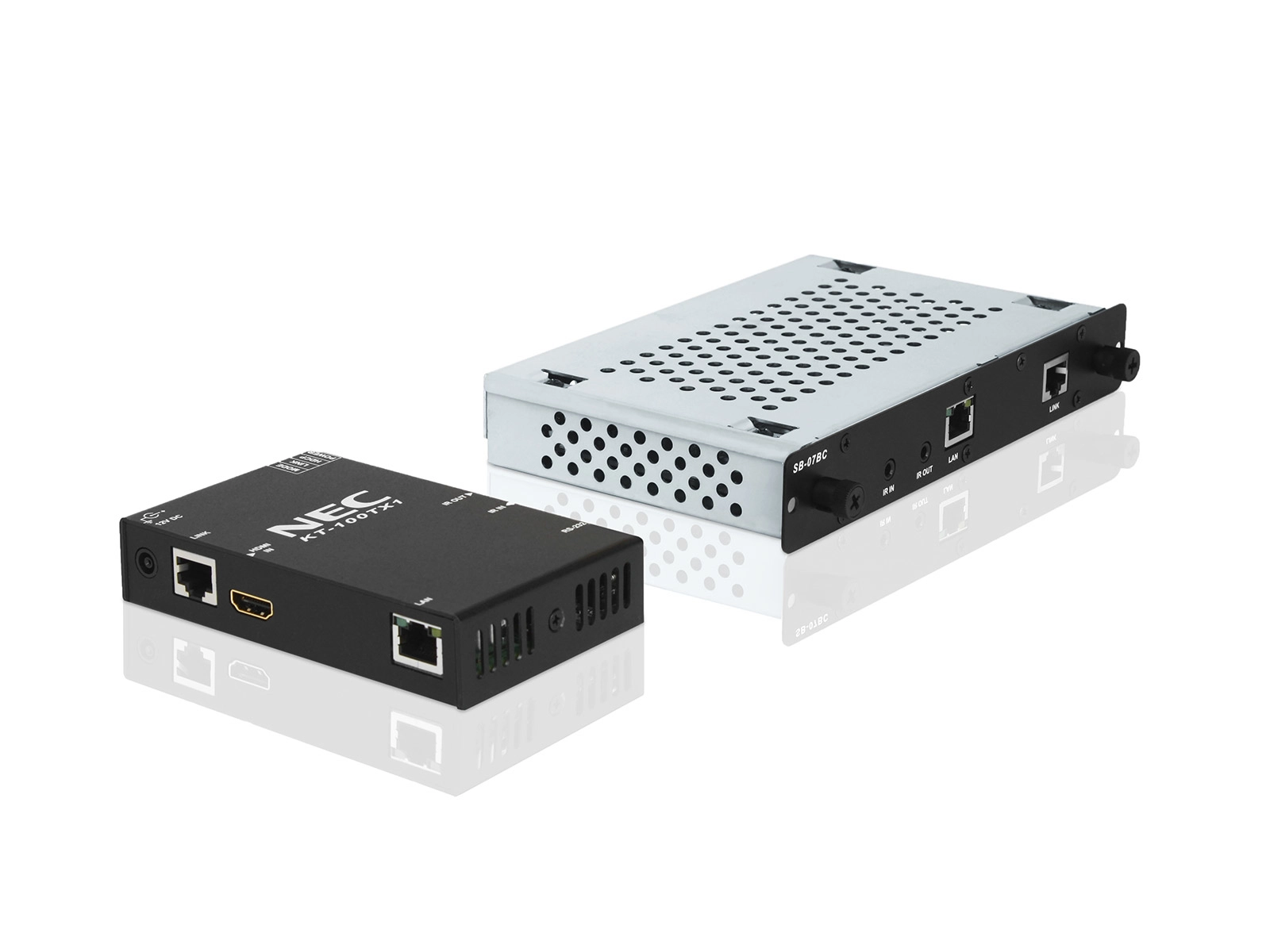

HDBaseT Transmitter and OPS Receiver - a clever solution allowing compressed HD multimedia content transmission up to 100 m through a single network cable.

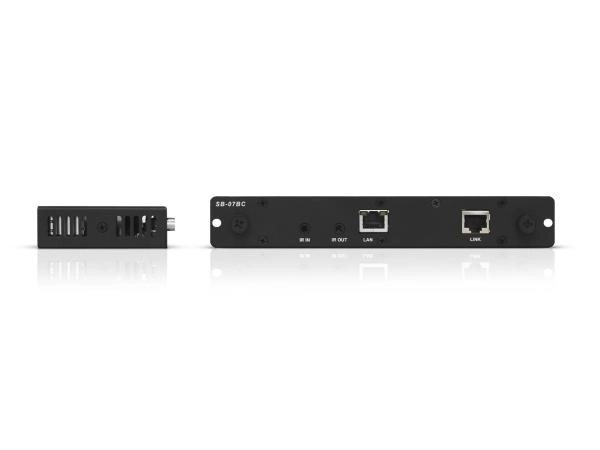

HDBaseT delivers uncompressed full HD digital video plus audio, 100BaseT Ethernet and control signals through a single 100 m LAN cable. The HDBase T transmitter (KT-100TX1) converts the input signal source and provides the high quality signals using a network cable to the HDBaseT receiver (SB-07BC) unit that is embedded into the display.

Compatible with NEC large format displays and projectors featuring OPS technology.

- no more cable length limitations
- one single cable only
- easy setup and operation
- wide range of applications
- compact and fully embedded
- high flexibility

Specificaties

Product
Product id 520071
Merk NEC
Partnr 100013613
EAN/UPC code 5028695110854
Kenmerken
Soort Transmitter
Maximum resolutie 1920 x 1200 Pixels
Ondersteundende kabel types Cat5, Cat6
Maximaal bereik 100 m
Ondersteunde video-modi 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Ondersteunde grafische resoluties 640 x 480 (VGA), 1920 x 1200 (WUXGA)
Bandbreedte 10.2 Gbit/s
HDCP Y
Certificering CE, VCCI, RCM, FCC
Poorten & interfaces
Ethernet LAN Y
RJ-45 invoer ports 1
RJ-45 uitgang ports 1
HDMI in 1
Remote (IR) ingang 1
Remote (IR) uitgang 1
RS-232 ingangspoorten 1
Seriële poort(en) 1
Soort serieële aansluiting RS-232
Aansluiting voor netstroomadapter Y
Energie
Operating voltage 5 V
Typisch stroomverbruik 4 W
Externe adapter Y
Stroom 2 A
Eisen aan de omgeving
Temperatuur, in bedrijf 0 - 40 °C
Temperatuur bij opslag -10 - 60 °C
Relatieve luchtvochtigheid, in bedrijf 20 - 80 procent
Luchtvochtigheid bij opslag 10 - 90 procent
Gewicht en omvang
Transmitter afmetingen (WxDxH) 114 x 140 x 25 mm
Transmitter gewicht 500 g
Afmetingen verpakking (BxDxH) 280 x 200 x 70 mm
Verpakking
Gewicht verpakking 1000 g
Inhoud van de verpakking
Gebruikershandleiding Y
Technische details
Kleurdiepte 8 Bit
Draadloze verbindingen N
Ondersteund audioformaat PCM
RoHS compliance Y
