Not in stock
€ 1.940,18
€ 2.347,61 incl 21% VAT

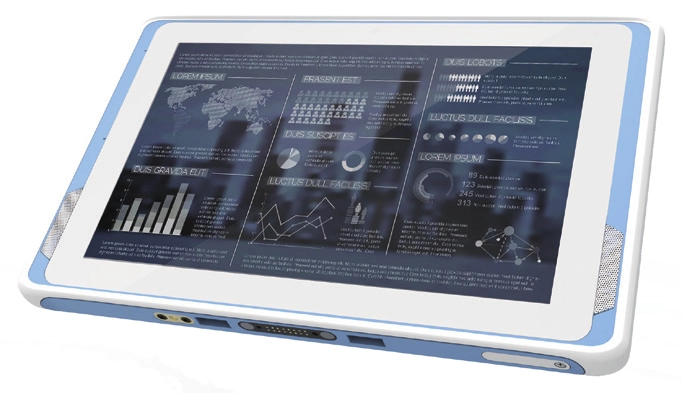

Advantech's AIM-58 is a medical-grade tablet that features a stylish appearance and advanced computing technologies to provide a superior device for mobile computing in healthcare environments.


Product id 698678
Brand Advantech
Partnr AIM-58CT-12101000
EAN/UPC code
Display diagonal 10.1 inch
Display resolution 1920 x 1200 Pixels
Display technology LCD
Display brightness 380 cd/m²
Display glass type Corning Glass
Touch technology Multi-touch
HD type Full HD
Touchscreen type Capacitive
Processor manufacturer Intel
Processor family Intel Atom
Processor model x7-Z8750
Processor frequency 1.6 GHz
Processor boost frequency 2.56 GHz
Processor cores 4
Processor threads 4
Processor cache 2 MB
Scenario Design Power (SDP) 2 W
Processor series Intel Atom x7 series
Tjunction 90 °C
Number of execution units 16
Processor package size 17 x 17 mm
Processor operating modes 64-bit
Processor lithography 14 nm
Conflict-Free processor Y
Processor cache type L3
Processor code SR2KG
Processor codename Cherry Trail
PCI Express configurations 2x1, 1x2
Internal memory 4 GB
Internal memory type DDR3L-SDRAM
Maximum internal memory 8 GB
Internal storage capacity 64 GB
Card reader integrated Y
Compatible memory cards MicroSD (TransFlash)
Storage media eMMC
Built-in speaker(s) Y
Built-in microphone Y
Number of built-in speakers 2
Speaker power 2 W
Rear camera type Single camera
Rear camera Y
Rear camera resolution (numeric) 5 MP
Front camera Y
Front camera resolution (numeric) 2 MP
Mobile network connection N
Bluetooth Y
Bluetooth version 4.1
Top Wi-Fi standard Wi-Fi 5 (802.11ac)
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Near Field Communication (NFC) Y
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1
Micro HDMI ports quantity 1
Combo headphone/mic port Y
Docking connectors quantity 1
Form factor Slate
Product colour Black
Device type Full-size tablet
International Protection (IP) code IP65
Certification CE, CB, VCCI, UL60950 (ITE), UL2054, UN38.3, IEC62133, FCC ID/PTCRB/R&TTE/SRRC/TELEC, FCC15 Class B, CE Mark (DOC Class B), REACH
Accelerometer Y
Ambient light sensor Y
Barcode reader N
Electronic compass Y
Platform Windows
Operating system installed Windows 10 IoT Enterprise
Processor special features
Intel Secure Boot Technology version 1.00
Intel Secure Boot Y
Intel Identity Protection Technology version 1.00
Intel Virtualization Technology (VT-x) Y
Intel Stable Image Platform Program (SIPP) version 0.00
Intel Stable Image Platform Program (SIPP) N
Intel® Identity Protection Technology (Intel® IPT) Y
Intel® Turbo Boost Technology N
Intel® Wireless Display (Intel® WiDi) Y
Intel® AES New Instructions (Intel® AES-NI) Y
Intel 64 Y
Embedded options available N
Battery capacity (Watt-hours) 26 Wh
Battery recharge time 3 uur
Battery life (max) 5.5 uur
AC adapter power 65 W
AC adapter input voltage 100 - 240 V
AC adapter frequency 50/60 Hz
AC adapter output voltage 19 V
Weight & dimensions
Width 280 mm
Depth 18.3 mm
Height 180.1 mm
Weight 980 g
Operational conditions
Operating temperature (T-T) -10 - 50 °C
Storage temperature (T-T) -20 - 70 °C
Operating relative humidity (H-H) 10 - 90 procent
Storage relative humidity (H-H) 10 - 95 procent
Operating altitude 0 - 3048 m
Non-operating altitude 0 - 12192 m
Operating vibration 1 G
Operating shock 20 G
Non-operating shock 50 G
Technical details
Sustainability certificates RoHS
Other features
Processor socket BGA 1380
Processor ARK ID 93362
