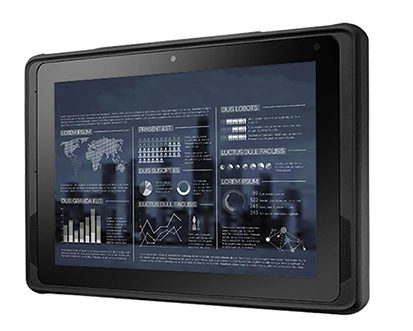

AIM68CT 10IN Wifi+LTE LowBright 4GB/64GB W10/AGPS



Advantech
Not in stock
€ 1.176,26
€ 1.423,27 incl 21% VAT
Advantech AIM-68. Display diagonal: 25.6 cm (10.1"), Display resolution: 1920 x 1200 pixels, Display technology: LCD. Internal storage capacity: 64 GB. Processor frequency: 1.6 GHz, Processor family: Intel Atom®, Processor model: x7-Z8750. Internal memory: 4 GB. Rear camera resolution (numeric): 5 MP, Front camera resolution (numeric): 2 MP. Top Wi-Fi standard: Wi-Fi 5 (802.11ac). Card reader integrated. Weight: 980 g. Operating system installed: Windows 10 IoT Enterprise. Product colour: Black

Specification

Product
Product id 698659
Brand Advantech
Partnr AIM-68CT-C2105000
EAN/UPC code
Display
Display diagonal 10.1 inch
Display resolution 1920 x 1200 Pixels
Display technology LCD
Display brightness 380 cd/m²
Display glass type Corning Glass
Touch technology Multi-touch
HD type Full HD
Touchscreen type Capacitive
Processor
Processor manufacturer Intel
Processor family Intel Atom
Processor model x7-Z8750
Processor frequency 1.6 GHz
Processor boost frequency 2.56 GHz
Processor cores 4
Processor threads 4
Processor cache 2 MB
Scenario Design Power (SDP) 2 W
Processor series Intel Atom x7 series
Tjunction 90 °C
Number of execution units 16
Processor package size 17 x 17 mm
Processor operating modes 64-bit
Processor lithography 14 nm
Conflict-Free processor Y
Processor cache type L3
Processor code SR2KG
Processor codename Cherry Trail
PCI Express configurations 2x1, 1x2
Memory
Internal memory 4 GB
Internal memory type LPDDR3-SDRAM
Maximum internal memory 8 GB
Storage
Internal storage capacity 64 GB
Card reader integrated Y
Compatible memory cards MicroSD (TransFlash)
Storage media eMMC
Graphics
Graphics adapter family Intel
Graphics adapter HD Graphics 5000
Audio
Built-in speaker(s) Y
Built-in microphone Y
Number of built-in speakers 2
Camera
Rear camera type Single camera
Rear camera Y
Rear camera resolution (numeric) 5 MP
Auto focus Y
Image stabilizer Y
Flash type LED
Front camera Y
Front camera resolution (numeric) 2 MP
Network
Mobile network connection Y
Mobile network generation 4G
4G standard LTE
Bluetooth Y
Bluetooth version 4.1
Top Wi-Fi standard Wi-Fi 5 (802.11ac)
Wi-Fi standards 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN N
WWAN Y
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1
Micro HDMI ports quantity 1
Microphone in Y
Headphone out Y
Combo headphone/mic port Y
Design
Form factor Slate
Product colour Black
Device type Full-size tablet
International Protection (IP) code IP65
Certification FCC ID, TELEC, NCC, SRRC, RCM\nUL, CB, LVD + Energy Star 6.1, CE, FCC, IC, VCCI, BSMI
Performance
Position location Y
BeiDou Y
Assisted GPS (A-GPS) Y
GLONASS Y
GPS (satellite) Y
Accelerometer Y
Ambient light sensor Y
Electronic compass Y
Software
Platform Windows
Operating system installed Windows 10 IoT Enterprise
Processor special features
Intel Secure Boot Technology version 1.00
Intel Secure Boot Y
Intel Identity Protection Technology version 1.00
Intel Virtualization Technology (VT-x) Y
Intel Stable Image Platform Program (SIPP) version 0.00
Intel Stable Image Platform Program (SIPP) N
Intel® Identity Protection Technology (Intel® IPT) Y
Intel® Turbo Boost Technology N
Intel® Wireless Display (Intel® WiDi) Y
Intel® AES New Instructions (Intel® AES-NI) Y
Intel 64 Y
Embedded options available N
Battery
Battery capacity (Watt-hours) 26 Wh
Battery voltage 10.8 V
Battery recharge time 3 uur
Battery life (max) 5.5 uur
Power
AC adapter power 65 W
AC adapter input voltage 100 - 240 V
AC adapter frequency 50/60 Hz
AC adapter output voltage 19 V
Weight & dimensions
Width 280 mm
Depth 18.3 mm
Height 180.1 mm
Weight 980 g
Packaging content
AC adapter included Y
Operational conditions
Operating temperature (T-T) -10 - 50 °C
Storage temperature (T-T) -20 - 70 °C
Operating relative humidity (H-H) 10 - 90 procent
Storage relative humidity (H-H) 10 - 95 procent
Operating altitude 0 - 3048 m
Non-operating altitude 0 - 12192 m
Other features
Processor socket BGA 1380
Processor ARK ID 93362
