AIM68CT 10.1IN EU LTE HighBrigh 4GB/64GB Android6 Wi-Fi 800nit



Advantech
Not in stock
€ 1.639,52
€ 1.983,81 incl 21% VAT

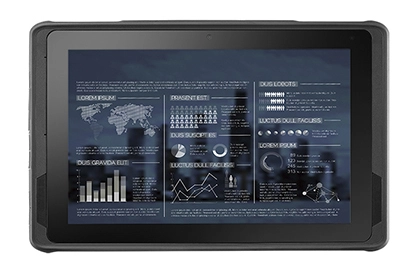

10.1" Industrial Tablet with Intel® AtomTM Processor.

Specification

Product
Product id 698670
Brand Advantech
Partnr AIM-68CT-C3106000
EAN/UPC code
Display
Display diagonal 10.1 inch
Display resolution 1200 x 1920 Pixels
Display technology LCD
Display brightness 800 cd/m²
Display glass type Gorilla Glass
Touch technology Multi-touch
HD type Full HD
Processor
Processor manufacturer Intel
Processor family Intel Atom
Processor model x7-Z8750
Processor frequency 1.6 GHz
Processor boost frequency 2.56 GHz
Processor cores 4
Processor threads 4
Processor cache 2 MB
Scenario Design Power (SDP) 2 W
Processor series Intel Atom x7 series
Tjunction 90 °C
Number of execution units 16
Processor package size 17 x 17 mm
Processor operating modes 64-bit
Processor lithography 14 nm
Conflict-Free processor Y
Processor cache type L3
Processor code SR2KG
Processor codename Cherry Trail
PCI Express configurations 2x1, 1x2
Memory
Internal memory 4 GB
Storage
Internal storage capacity 64 GB
Card reader integrated Y
Compatible memory cards MicroSD (TransFlash)
Storage media eMMC
Audio
Built-in speaker(s) Y
Built-in microphone Y
Number of built-in speakers 2
Number of microphones 2
Camera
Rear camera type Single camera
Rear camera Y
Rear camera resolution (numeric) 5 MP
Auto focus Y
Rear camera flash Y
Flash type LED
Video recording Y
Front camera Y
Front camera resolution (numeric) 2 MP
Network
Mobile network connection Y
Mobile network generation 4G
4G standard LTE
Bluetooth Y
Bluetooth version 4.1
Top Wi-Fi standard Wi-Fi 5 (802.11ac)
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Ethernet LAN Y
Near Field Communication (NFC) Y
Ports & interfaces
USB 2.0 ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1
Micro HDMI ports quantity 1
Microphone in Y
Headphone out Y
Headphone connectivity 3.5 mm
Mini VGA ports quantity 1
Combo headphone/mic port Y
Docking connector type USB
DC-in jack Y
Design
Form factor Slate
Product colour Black
Device type Full-size tablet
International Protection (IP) code IP65
Certification FCC ID, TELEC, NCC, SRRC, RCM UL, CB, LVD + CE, FCC, IC, VCCI, BSMI
Performance
Position location Y
GPS (satellite) Y
Software
Platform Android
Operating system installed Android 6.0
Processor special features
Intel Secure Boot Technology version 1.00
Intel Secure Boot Y
Intel Identity Protection Technology version 1.00
Intel Virtualization Technology (VT-x) Y
Intel Stable Image Platform Program (SIPP) version 0.00
Intel Stable Image Platform Program (SIPP) N
Intel® Identity Protection Technology (Intel® IPT) Y
Intel® Turbo Boost Technology N
Intel® Wireless Display (Intel® WiDi) Y
Intel® AES New Instructions (Intel® AES-NI) Y
Intel 64 Y
Embedded options available N
Battery
Battery capacity (Watt-hours) 26 Wh
Battery recharge time 3 uur
Battery life (max) 5.5 uur
Power
AC adapter output voltage 5 V
AC adapter output current 1 A
Weight & dimensions
Width 280 mm
Depth 18.3 mm
Height 180.1 mm
Weight 980 g
Operational conditions
Operating temperature (T-T) -10 - 50 °C
Storage temperature (T-T) -20 - 70 °C
Operating relative humidity (H-H) 10 - 90 procent
Storage relative humidity (H-H) 10 - 95 procent
Operating altitude 0 - 3048 m
Non-operating altitude 0 - 12192 m
Operating vibration 1 G
Operating shock 20 G
Non-operating shock 50 G
Technical details
Sustainability certificates ENERGY STAR
Other features
Processor socket BGA 1380
Processor ARK ID 93362
