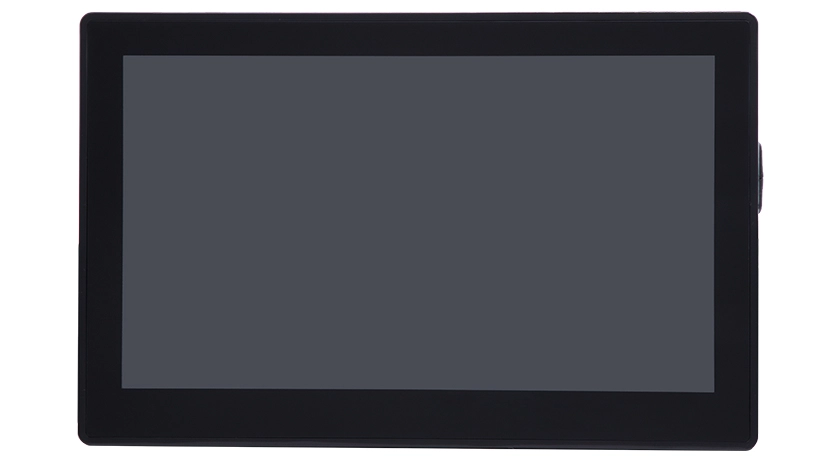

11.6in 16:9 RK3399 2G ram/16G eMMC HD Android 10 WIFI PoE and DC



Advantech
Not in stock
€ 529,68
€ 640,91 incl 21% VAT
Would you like to ask us a question about this product?
Advantech’s DeviceOn/iService is a next-generation unified device management solution based on the WISE-DeviceOn platform. Designed to enable centralized monitoring and remote management, DeviceOn/iService supports Advantech devices equipped with Windows, Linux, or Android operating systems. The software also supports the management of applications and integrated peripherals, such as a barcode scanner, card reader, camera, and printer. Users can remotely access and control connected devices, take screenshots, rollout OTA upgrades, and use remote desktop capabilities for troubleshooting from any location at any time. Moreover, DeviceOn/iService supports batch operations to facilitate the management of multiple devices simultaneously for easy and convenient device configuration and deployment.

Specification

Product
Product id 786873
Brand Advantech
Partnr USC-130AP-BC201
EAN/UPC code 5704174805229
Display
Display diagonal 11.6 inch
Display resolution 1366 x 768 Pixels
Touchscreen Y
Display type TFT
Touchscreen technology Projected capacitive system
Contrast ratio (typical) 500:1
Display brightness 250 cd/m²
Viewing angle, vertical 170 °
Aspect ratio 16:9
Viewing angle, horizontal 170 °
Second display N
Processor
Processor frequency 1.8 GHz
Processor manufacturer Rockchip
Processor model RK3399
Processor cores 2
Memory
Internal memory 2 GB
Maximum internal memory 16 GB
Storage
Total storage capacity 16 GB
Storage media eMMC
Graphics
Graphics adapter Mali T764
Features
Certification IP65 FCC, CCC, BSMI, VCCI, UL, CB
Multimedia
Built-in speaker(s) Y
Card reader integrated Y
Compatible memory cards MicroSD (TransFlash), MicroSDHC
Network
Ethernet LAN Y
Ethernet LAN data rates 10,100,1000 Mbit/s
Wi-Fi Y
Wi-Fi standards 802.11a,802.11b,802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
HDMI ports quantity 1
DVI port N
Line-out Y
Microphone in Y
Serial ports quantity 1
DC-in jack Y
Near Field Communication (NFC) Y
Design
Chassis type All-in-one
Product colour Black
Software
Operating system installed Android 10
Power
AC adapter output voltage 12 - 36 V
Power supply 36 W
Operational conditions
Operating relative humidity (H-H) 10 - 95 procent
Operating temperature (T-T) 0 - 40 °C
Ergonomics
Wall mountable Y
VESA mounting Y
Panel mounting interface 75 x 75 mm
Weight & dimensions
Width 296 mm
Depth 34.9 mm
Height 189 mm
Weight 2000 g
Packaging data
Quantity per pack 1 stuk(s)
Technical details
Sustainability compliance Y
Sustainability certificates CE
