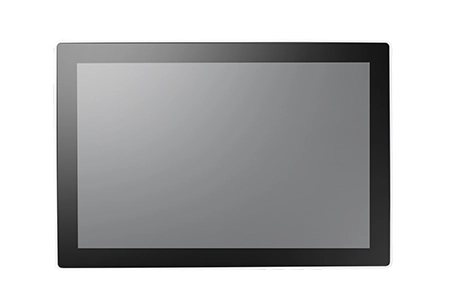

UTC-310 is the multi-purpose all-in-one computing system which equipped with wide format, touch based LCD panel. It is easy to integrate key peripherals and display systems for diversified self-service and interactive signage deploy in different application areas. With the emovable frame , the system also could fulfill industries or control system applications with panel mounting design. UTC series touch panel computers are the best investments to enhance user satisfaction, further brand equity, and maximize business profits.

Specification

Product
Product id	698570
Brand	Advantech
Partnr	UTC-310GP-ADL1E
EAN/UPC code
Display
Display diagonal	10.1 inch
Display resolution	1280 x 800 Pixels
Touchscreen	Y
Display type	TFT
Display brightness	350 cd/m²
Viewing angle, vertical	170 °
Aspect ratio	16:10
Display number of colours	16.78 million colours
Viewing angle, horizontal	170 °
Processor
Processor frequency	1.1 GHz
Processor manufacturer	Intel
Processor family	Intel Celeron
Processor model	N3350
Processor cores	2
Processor cache	2 MB
Processor threads	2
Memory
Internal memory	4 GB
Internal memory type	DDR3L-SDRAM
Maximum internal memory	8 GB
Number of memory slots	1
Memory slots type	SO-DIMM
Memory clock speed	1600 MHz
Storage
Total storage capacity	64 GB
Storage media	SSD
SSD capacity	64 GB
Graphics
Graphics adapter manufacturer	Intel
Graphics adapter	HD Graphics 500
Features
Certification	CE, FCC, CB, UL, CCC, BSMI\nIP 65
Multimedia
Built-in speaker(s)	Y
Number of speakers	1
Network
Ethernet LAN	Y
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Wi-Fi	N
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Serial ports quantity	2
RS-232 ports	2
Design
Chassis type	All-in-one
Product colour	Black
Software
Operating system installed	Windows 10 IoT
Power
AC adapter output voltage	12 - 24 V
Power supply	36 W
Operational conditions
Operating relative humidity (H-H)	10 - 95 procent
Operating temperature (T-T)	0 - 40 °C
Ergonomics
Wall mountable	Y
VESA mounting	Y
Panel mounting interface	75 x 75 mm
Weight & dimensions
Width	251 mm
Depth	32.5 mm
Height	170 mm
Weight	1120 g
Packaging data
Quantity per pack	1 stuk(s)
