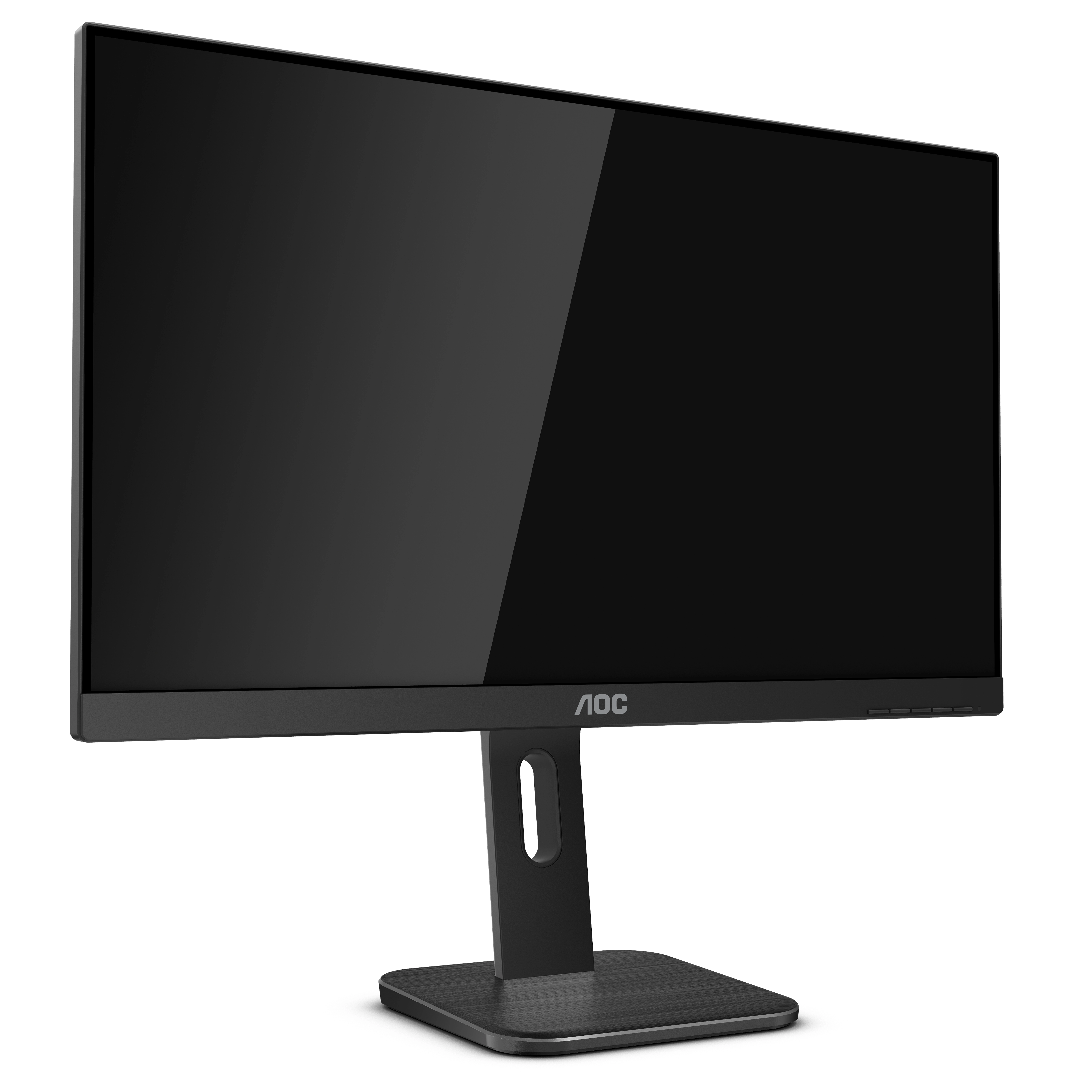

Product |
Product id
| 605826
|
Brand
| AOC
|
Partnr
| 24P1
|
EAN/UPC code
| 4038986146630
|
Technical details |
Sustainability certificates
| RoHS, EPEAT Gold
|
Doesn't contain
| PVC/BFR
|
Display |
Display diagonal
| 23.8 inch
|
Display resolution
| 1920 x 1080 Pixels
|
Native aspect ratio
| 16:9
|
Panel type
| IPS
|
Display brightness (typical)
| 250 cd/m²
|
Response time
| 5 ms
|
HD type
| Full HD
|
Display technology
| LED
|
Backlight type
| W-LED
|
Display surface
| Matt
|
Screen shape
| Flat screen
|
Supported graphics resolutions
| 1920 x 1080 (HD 1080)
|
Supported video modes
| 1080p
|
Aspect ratio
| 16:9
|
Contrast ratio (typical)
| 1000:1
|
Contrast ratio (dynamic)
| 50000000:1
|
Maximum refresh rate
| 60 Hz
|
Viewing angle, horizontal
| 178 °
|
Viewing angle, vertical
| 178 °
|
Display number of colours
| 16.78 million colours
|
Pixel pitch
| 0.2745 x 0.2745 mm
|
Horizontal scan range
| 30 - 83 kHz
|
Vertical scan range
| 50 - 76 Hz
|
Viewable size, horizontal
| 527.04 mm
|
Viewable size, vertical
| 296.46 mm
|
Colour depth
| 6 Bit
|
sRGB coverage (typical)
| 106 procent
|
Adobe RGB coverage
| 78 procent
|
Performance |
Flicker-free technology
| Y
|
Low Blue Light technology
| Y
|
Multimedia |
Built-in speaker(s)
| Y
|
Built-in camera
| N
|
Number of speakers
| 2
|
RMS rated power
| 4 W
|
Design |
Market positioning
| Business
|
Product colour
| Black
|
Detachable stand
| Y
|
Feet colour
| Black
|
Heavy metals free
| Hg (mercury)
|
Certification
| ISO
|

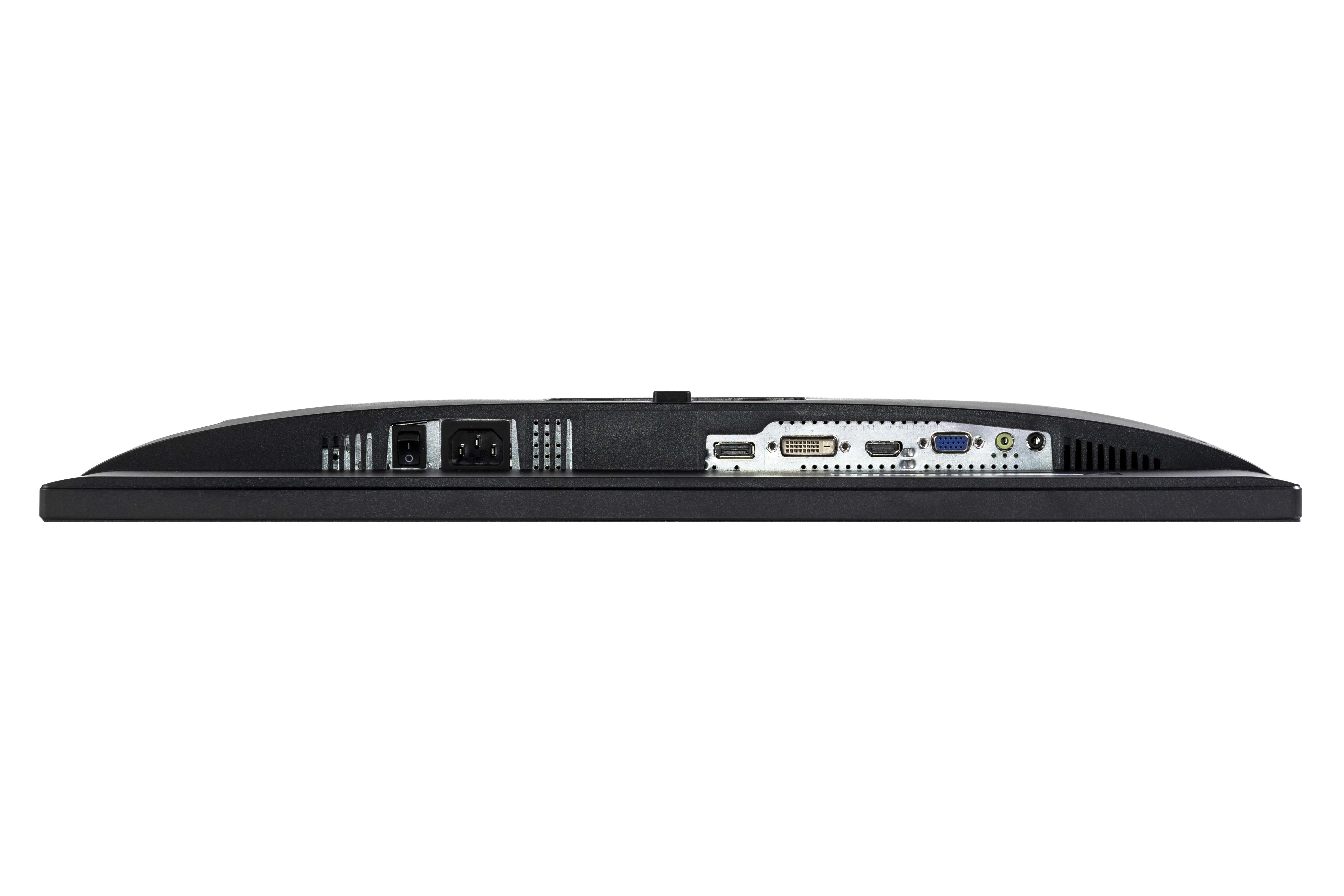

Ports & interfaces |

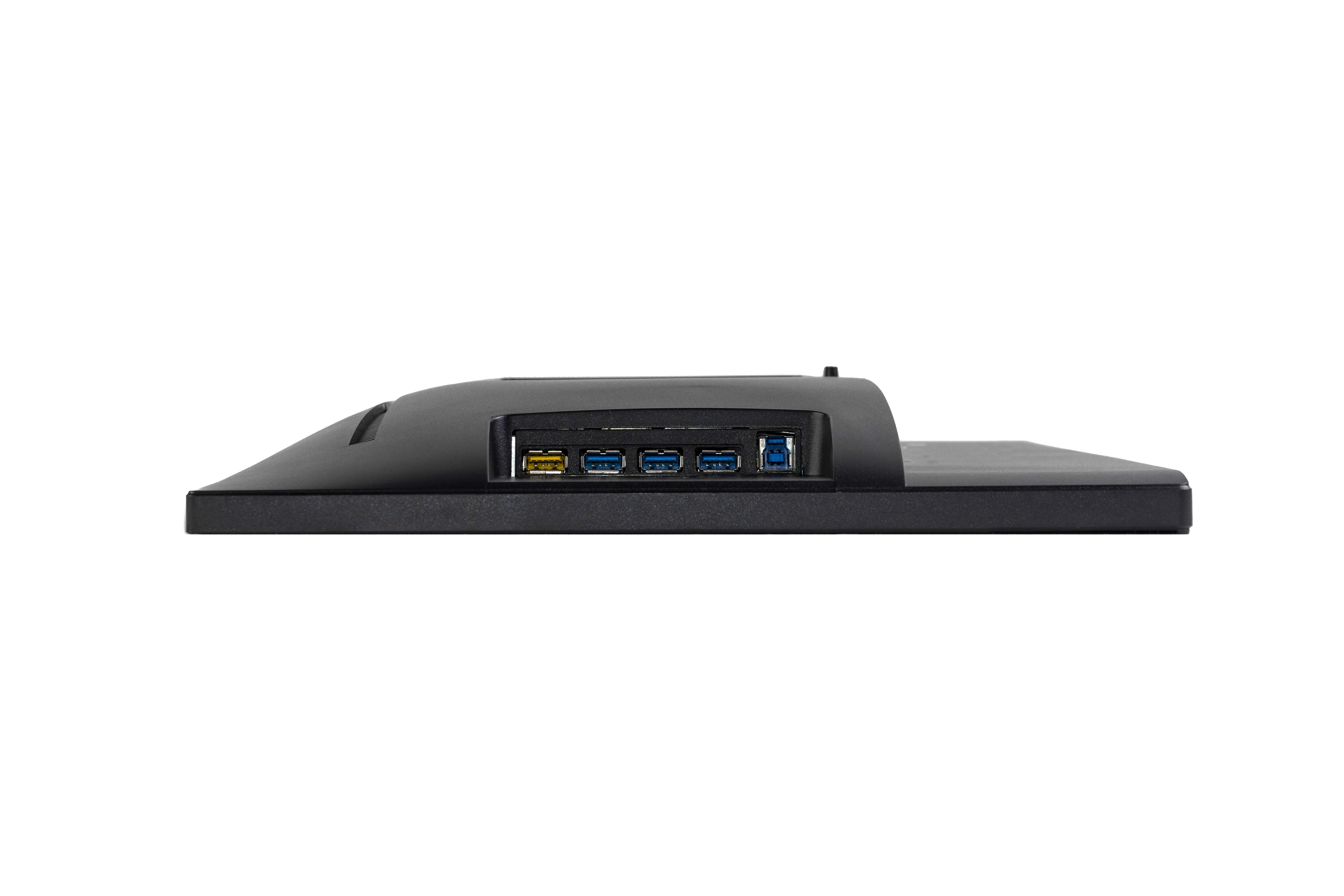

Built-in USB hub
| Y
|
USB hub version
| 3.2 Gen 1 (3.1 Gen 1)
|
USB Type-A downstream ports quantity
| 4
|
VGA (D-Sub) ports quantity
| 1
|
DVI port
| Y
|
HDMI ports quantity
| 1
|
HDMI version
| 1.4
|
DisplayPorts quantity
| 1
|
DisplayPort version
| 1.2
|
Headphone out
| Y
|
Headphone outputs
| 1
|
Headphone connectivity
| 3.5 mm
|
Microphone in
| Y
|
Ergonomics |
VESA mounting
| Y
|
Panel mounting interface
| 100 x 100 mm
|
Cable lock slot
| N
|
Cable lock slot type
| Kensington
|
Height adjustment
| Y
|
Height adjustment
| 150 mm
|
Swivelling
| Y
|
Pivot
| Y
|
Swivel angle range
| -180 - 180 °
|
Tiltable
| Y
|
Tilt angle range
| -5 - 35 °
|
On Screen Display (OSD)
| Y
|
On Screen Display (OSD) languages
| CHI (SIMPL), CHI (TR), CZE, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, KOR, POL, POR, RUS, SWE
|
Number of OSD languages
| 16
|
Plug and Play
| Y
|
Packaging data |
Cables included
| AC, Audio (3.5mm), DVI, DisplayPort, HDMI, VGA
|
Power cable length
| 1.8 m
|
Audio cable length
| 1.5 m
|
DisplayPort cable length
| 1.8 m
|
HDMI cable length
| 1.8 m
|
USB cable length
| 1.8 m
|
Package width
| 752 mm
|
Package depth
| 59 mm
|
Package height
| 408 mm
|
Package weight
| 6550 g
|
Package type
| Box
|
Power |
Energy efficiency class (SDR)
| E
|
Energy consumption (SDR) per 1000 hours
| 18 kWu
|
Power consumption (typical)
| 16.73 W
|
Power consumption (standby)
| 0.32 W
|
Power consumption (off)
| 0.23 W
|
AC input voltage
| 100 - 240 V
|
AC input frequency
| 50 - 60 Hz
|
Energy efficiency scale
| A to G
|
External power adapter
| N
|
Operational conditions |
Operating temperature (T-T)
| 0 - 40 °C
|
Storage temperature (T-T)
| -25 - 55 °C
|
Operating relative humidity (H-H)
| 10 - 85 procent
|
Storage relative humidity (H-H)
| 5 - 93 procent
|
Operating altitude
| 0 - 5000 m
|
Non-operating altitude
| 5000 - 12192 m
|
Weight & dimensions |
Width (with stand)
| 539.1 mm
|
Depth (with stand)
| 202.5 mm
|
Height (with stand)
| 518.9 mm
|
Weight (with stand)
| 4600 g
|
Width (without stand)
| 325.6 mm
|
Depth (without stand)
| 49.4 mm
|
Height (without stand)
| 39.1 mm
|
Weight (without stand)
| 2800 g
|
Recycling data |
Post-consumer recycled plastic
| 85 procent
|
Other features |
Bezel thickness type
| Frameless
|
Recyclable packaging material
| 100 procent
|
Mean time between failures (MTBF)
| 50000 uur
|
