Dual monitor arm clamped to desks holds



AOC
Not in stock
€ 57,09
€ 69,07 incl 21% VAT

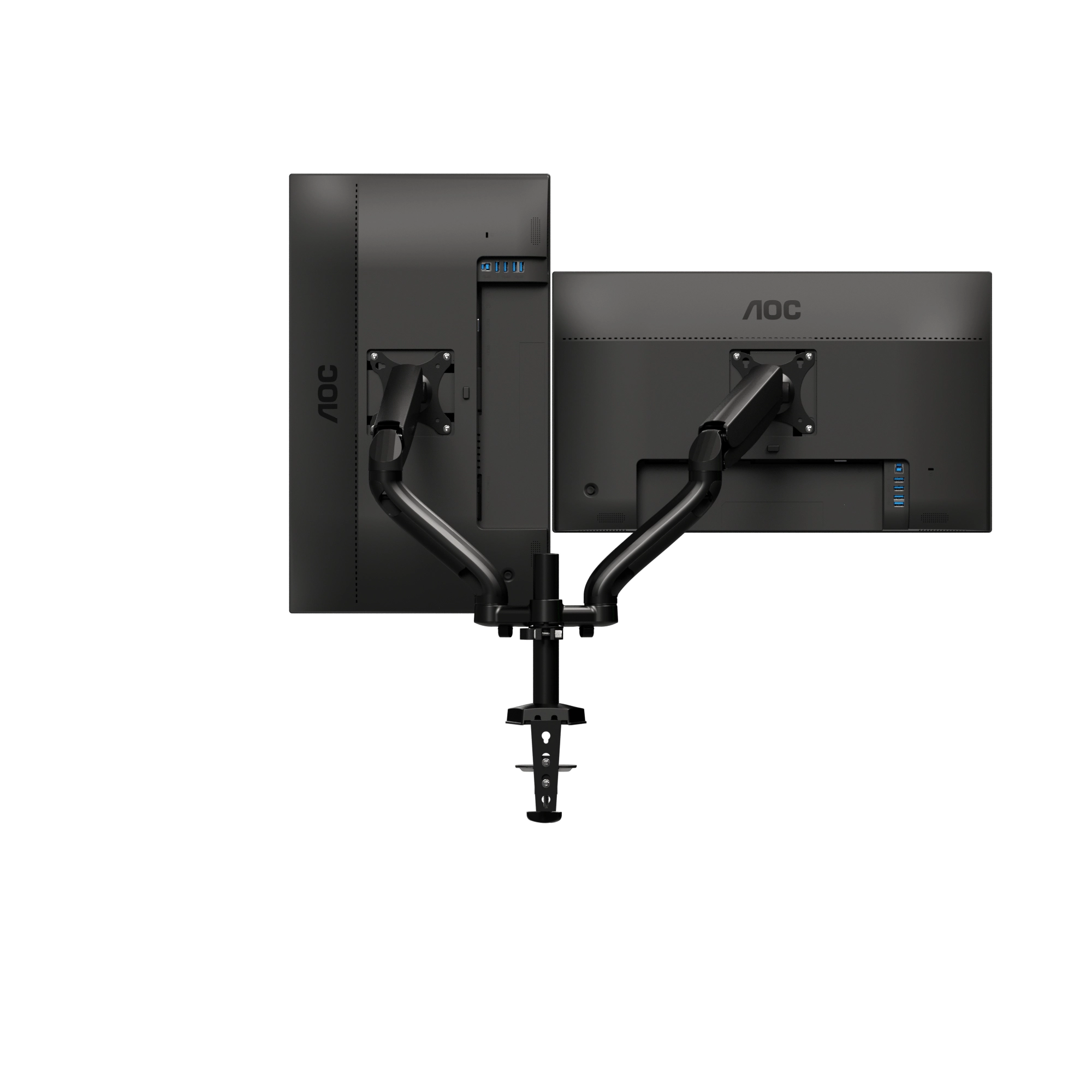

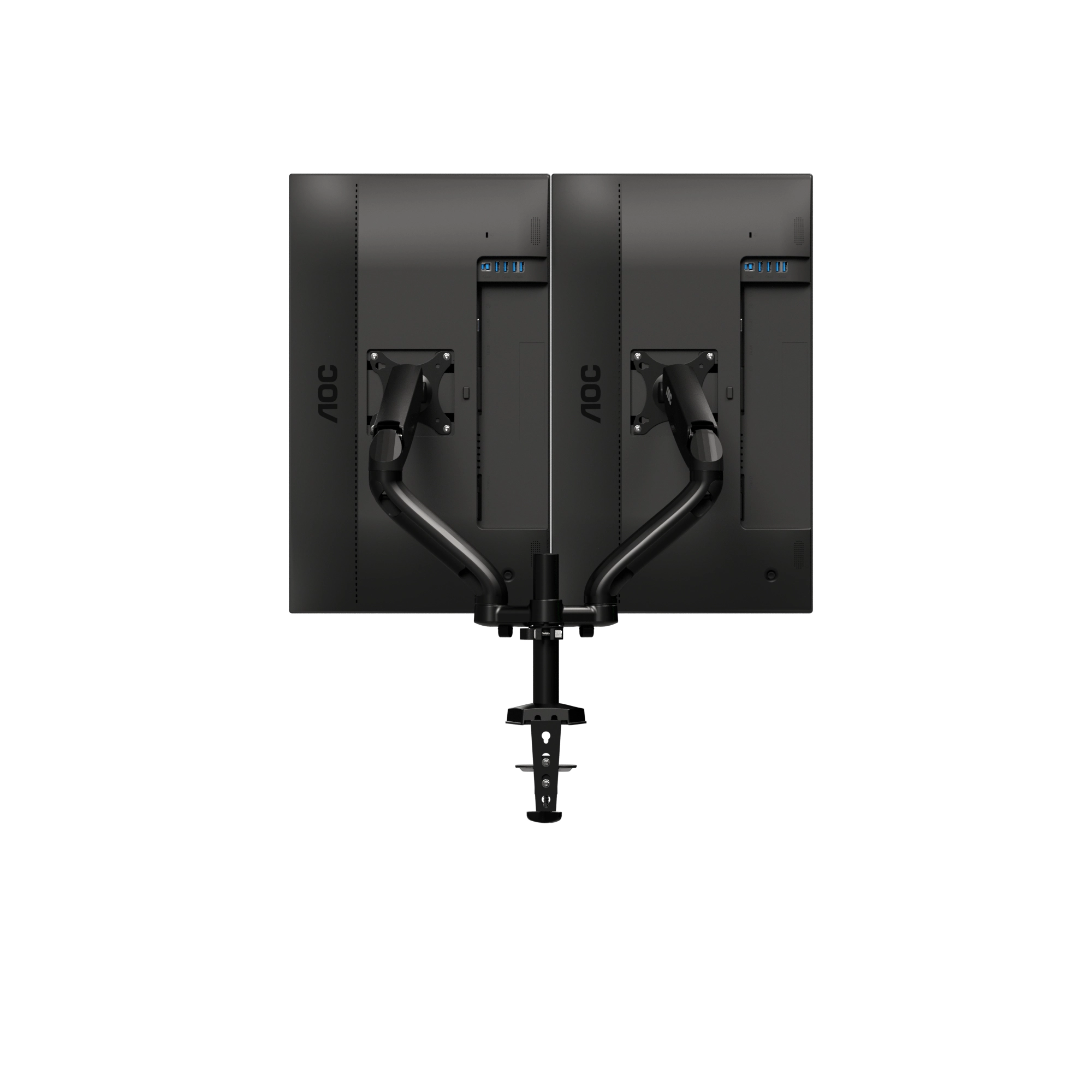

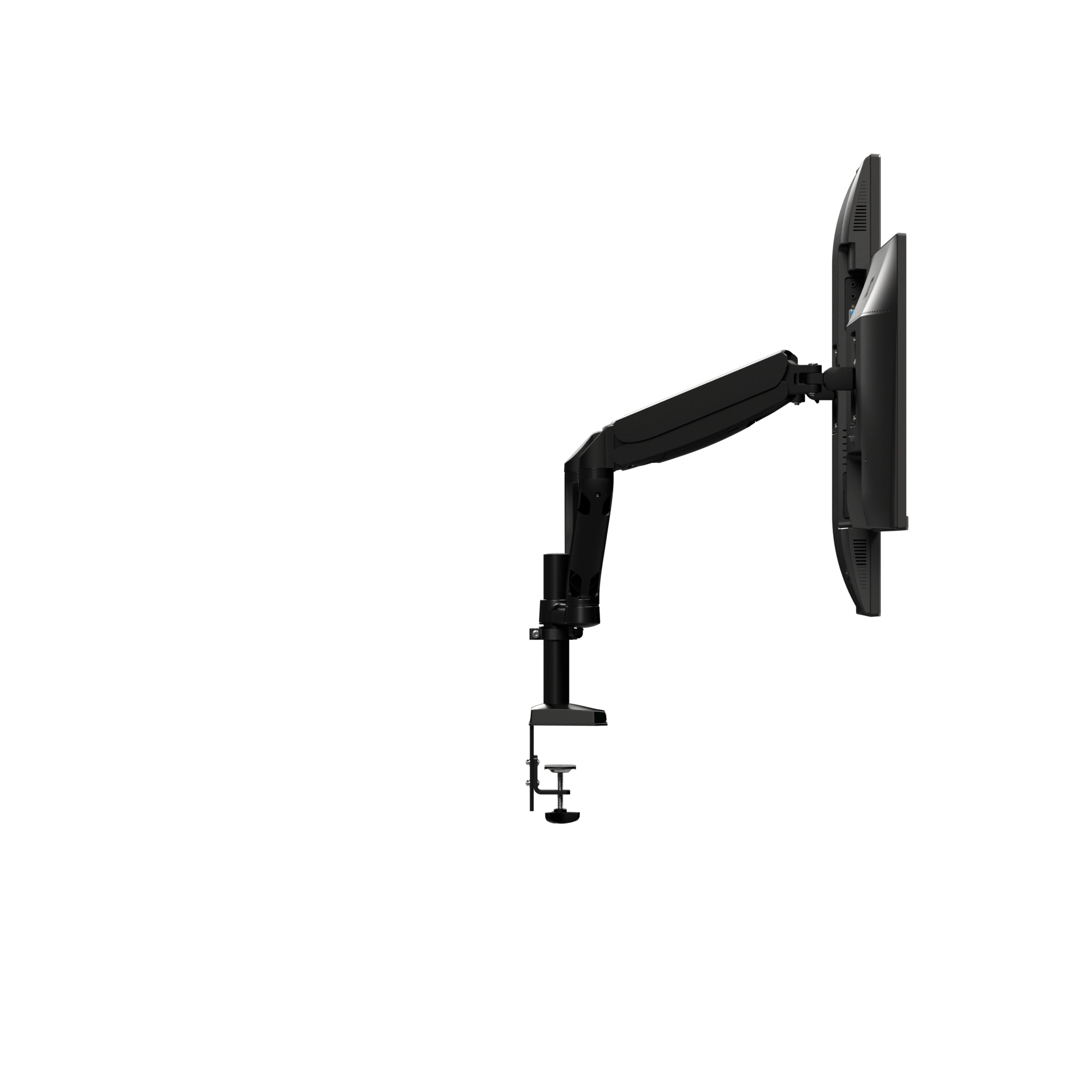

Dual monitor arm for up to 27“ displays

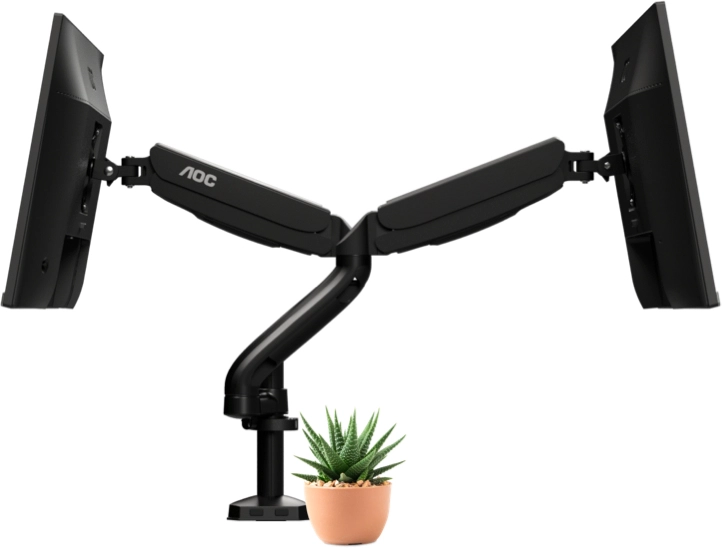

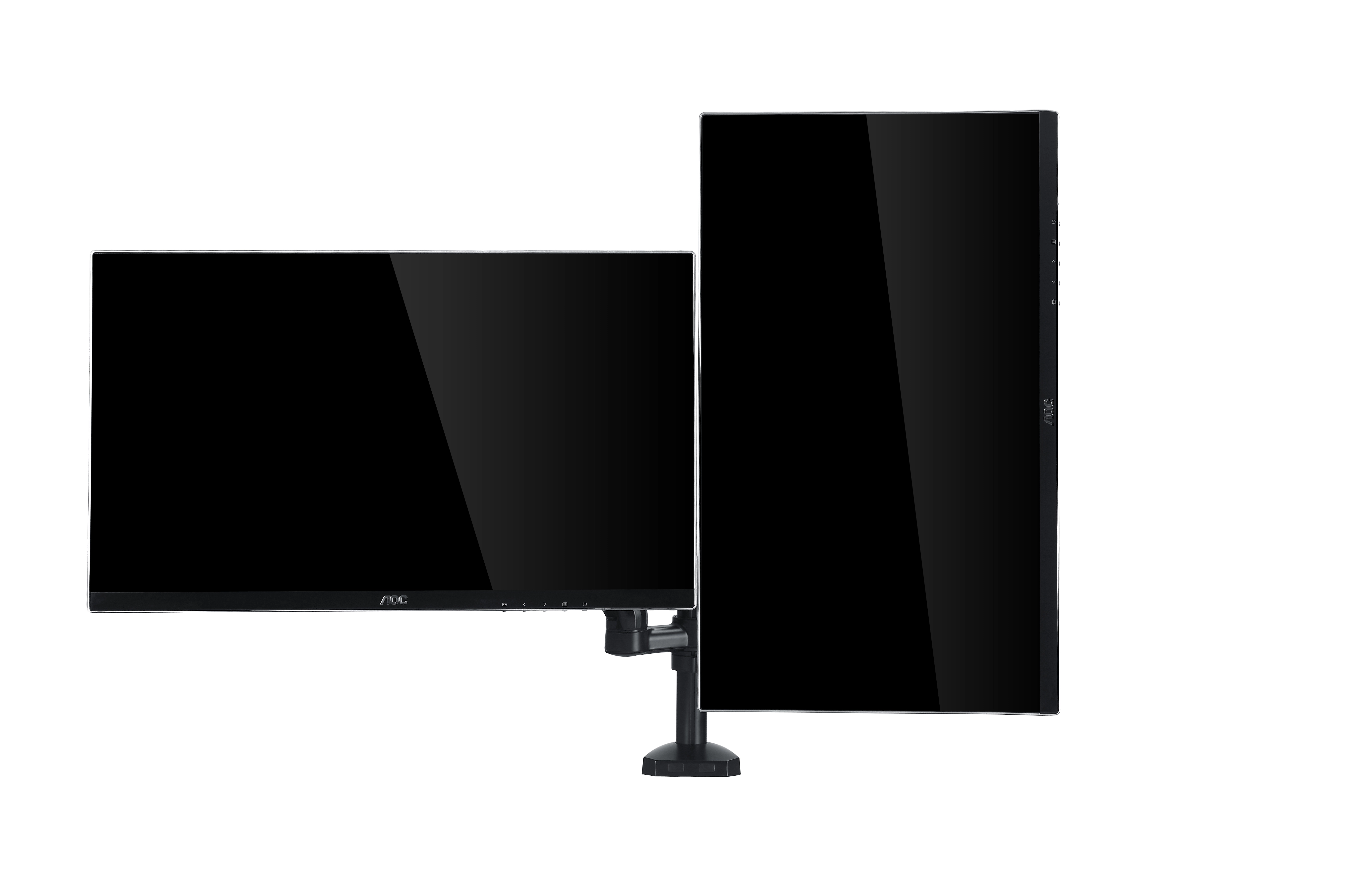

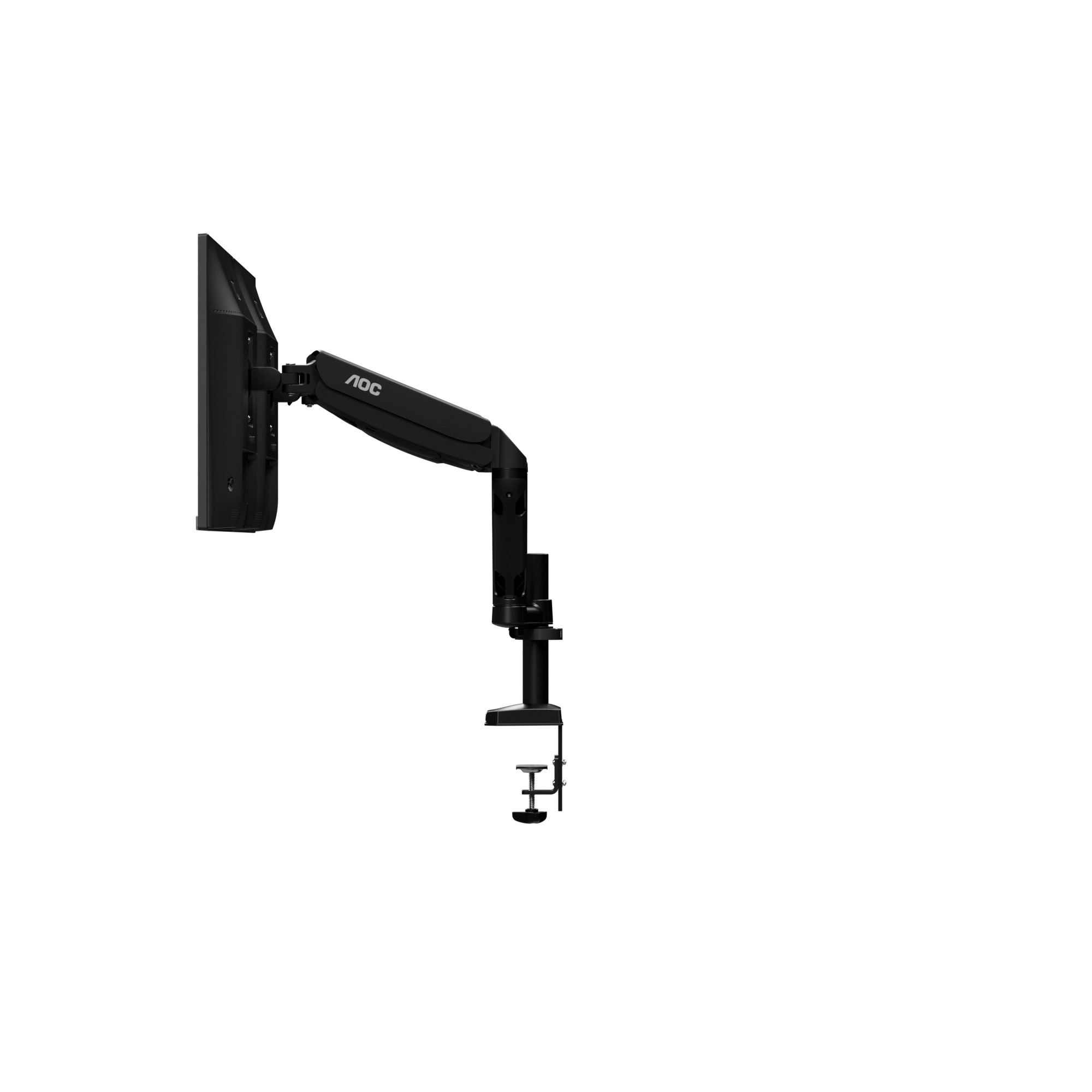

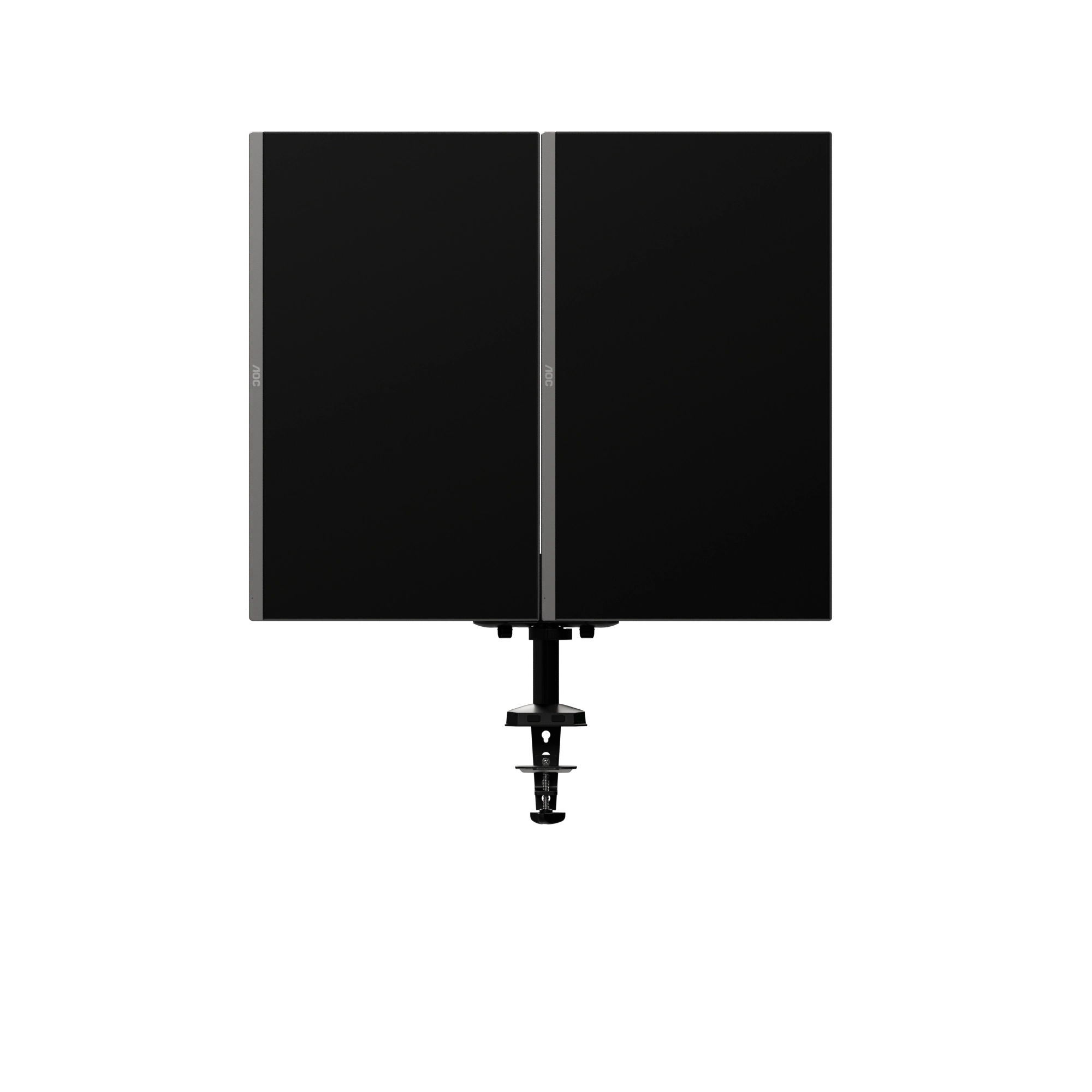

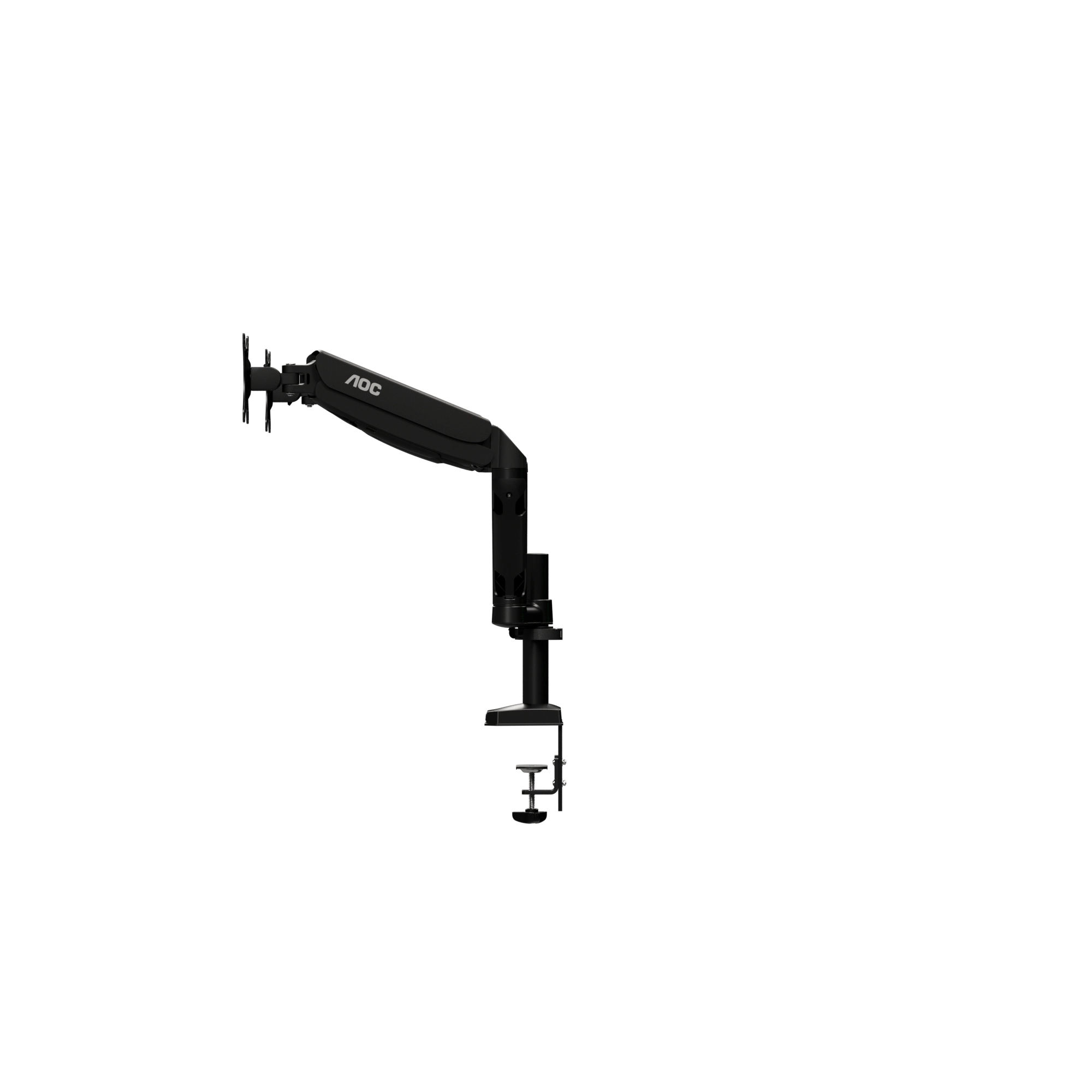

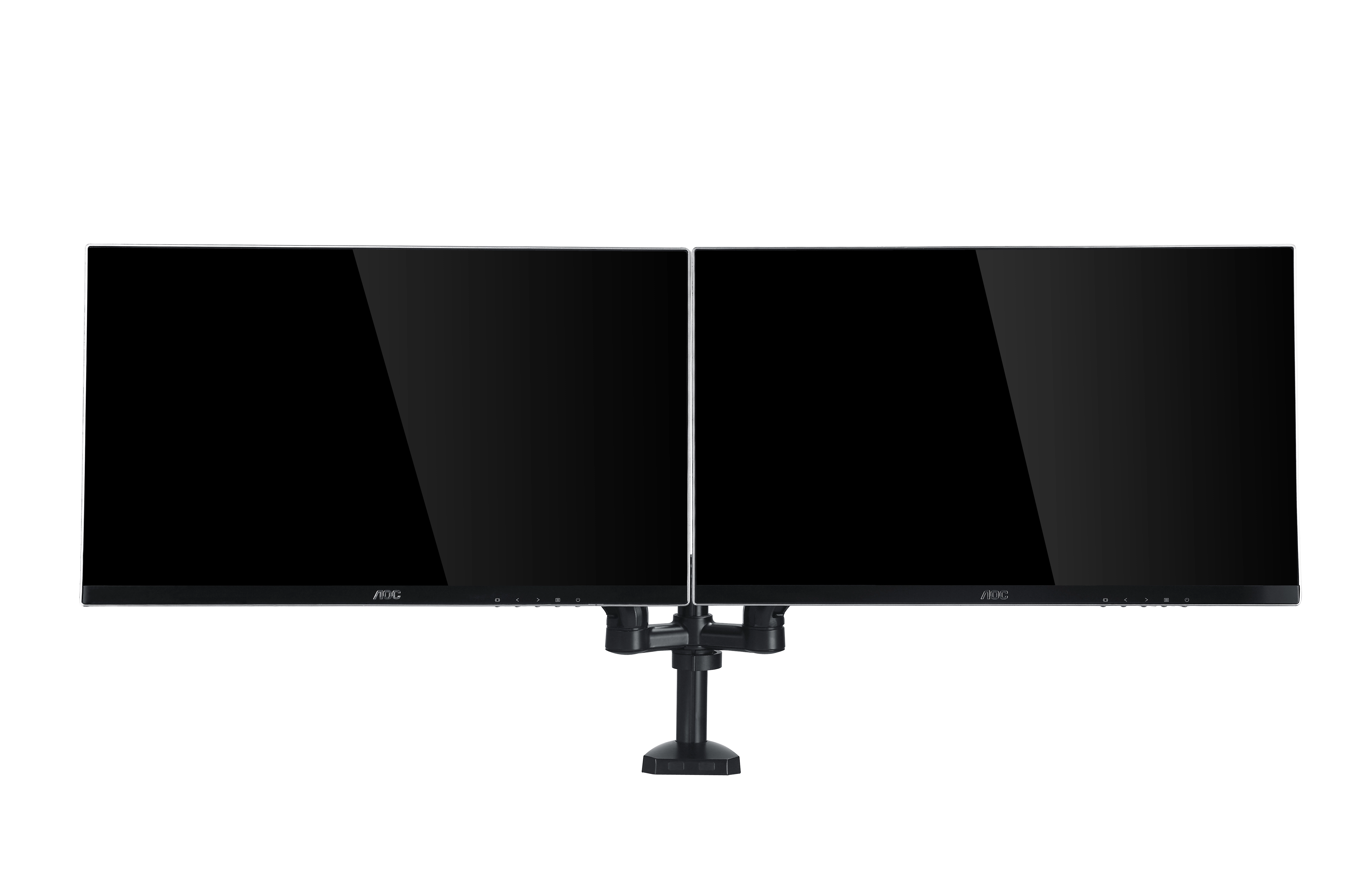

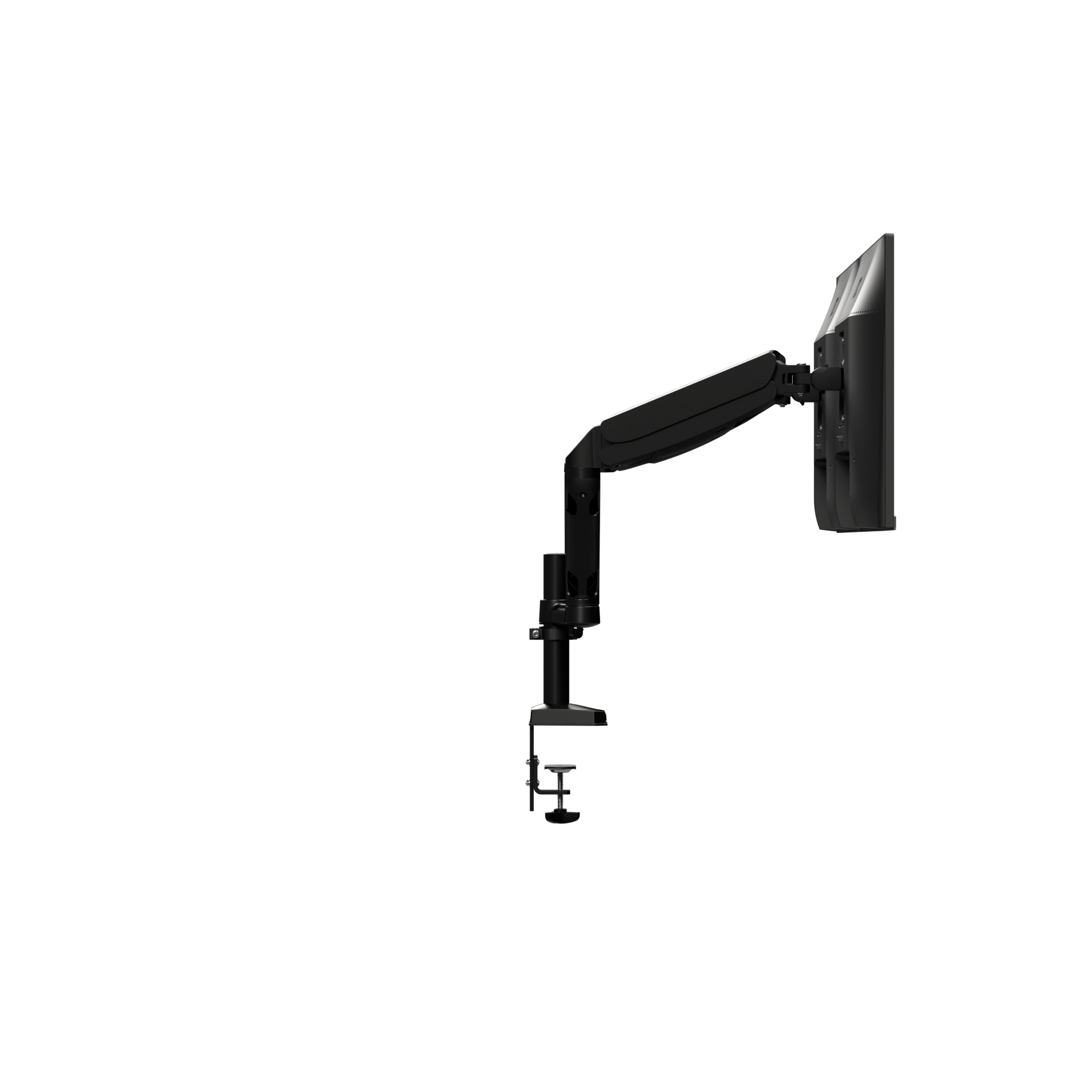

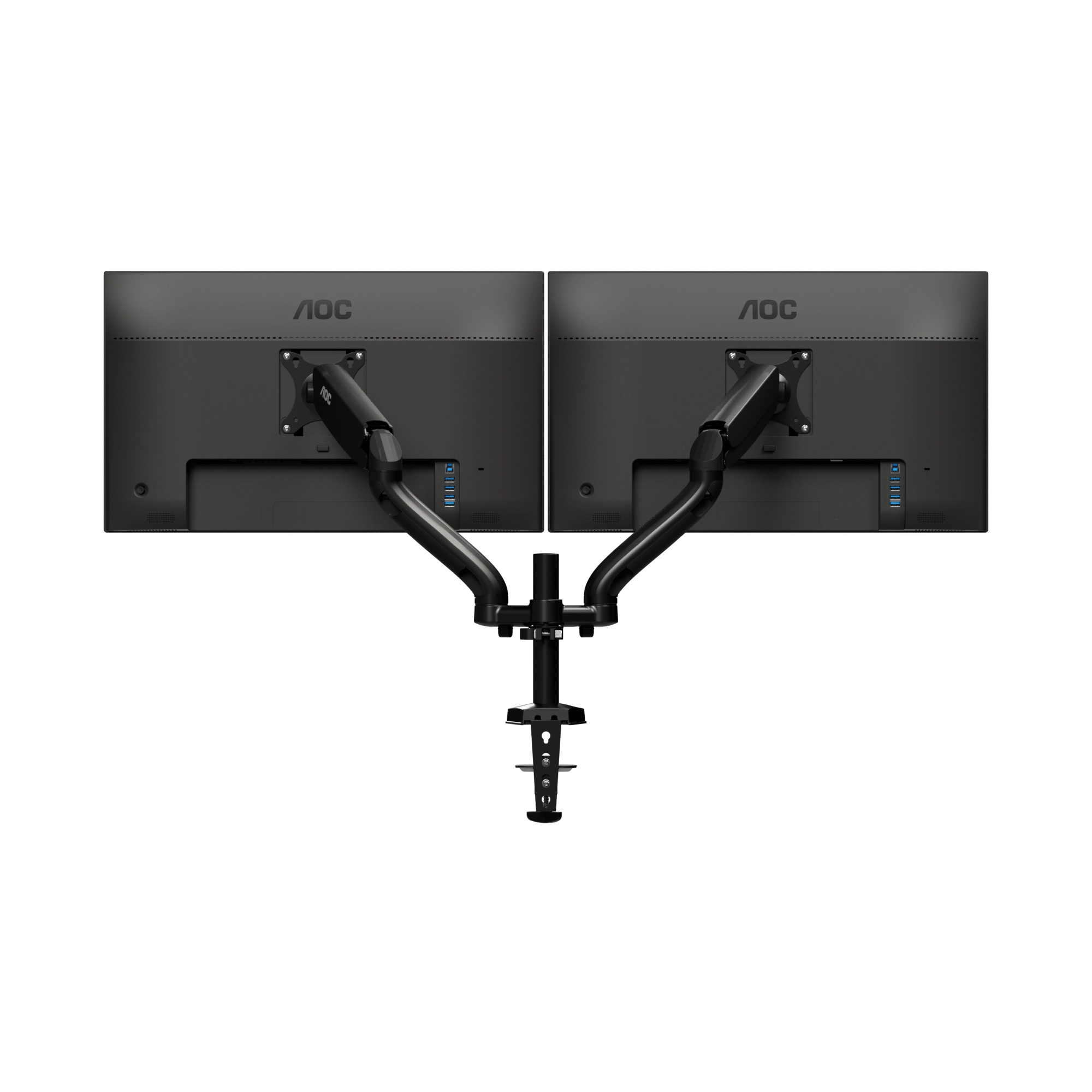

The gas-spring loaded, sleek AD100 dual monitor arm can be clamped to desks, holds two displays up to 27" size. 360° pivot range, wide tilt range, 320 mm height range delivers huge flexibility.

Specification

Product
Product id 653199
Brand AOC
Partnr AD110D0
EAN/UPC code 4038986636735
Mounting
Maximum weight capacity 9 kg
Minimum screen size compatibility 13 "
Maximum screen size 27
Mounting type Desk
Mounting Clamp/Bolt-through
Minimum VESA mount 75 x 75 mm
Maximum VESA mount 100 x 100 mm
Panel mounting interface 75 x 75, 100 x 100 mm
Number of displays supported 2
Clamp mount desk thickness (max) 105 mm
Grommet mount desk thickness (max) 83 mm
Mounting hole range 7 - 87 mm
Ergonomics
Height adjustment Y
Height adjustment type Manual
Adjustable depth Y
Depth adjustment range 0 - 460 mm
Tilt angle range -45 - 60 °
Swivel angle 360 °
Swivel angle range -90 - 90 °
Pivot angle 0 - 360 °
Cable management Y
Design
Product colour Black
Housing material Aluminium
Technical details
Adjustment type Gas spring
Weight (with stand) 5700 g
Height adjustment 320 mm
Packaging content
Packaging content Monitor Arm, Clamp mount, Grommet mount, Installation materials, User manual
Weight & dimensions
Width 387 mm
Depth 165 mm
Height 450 mm
Weight 4120 g
Package width 125 mm
Package depth 690 mm
Package height 245 mm
Package weight 5100 g
Other features
Height (max) 580 mm
