Product |
Product id
| 968363
|
Brand
| AOC
|
Partnr
| U27B3CF
|
EAN/UPC code
| 4038986181518
|
Warranty (months)
| 3 years
|
Technical details |
Warranty period
| 3 jaar
|
Display |
Display diagonal
| 27 inch
|
Display resolution
| 3840 x 2160 Pixels
|
Native aspect ratio
| 16:9
|
Panel type
| IPS
|
Display brightness (typical)
| 350 cd/m²
|
Response time
| 4 ms
|
HD type
| 4K Ultra HD
|
Display technology
| LCD
|
LED backlight
| Y
|
Backlight type
| W-LED
|
Anti-glare screen
| Y
|
BT.2020 coverage
| 72.1 procent
|
Screen shape
| Flat screen
|
Contrast ratio (typical)
| 1000:1
|
Contrast ratio (dynamic)
| 20000000:1
|
Maximum refresh rate
| 60 Hz
|
Viewing angle, horizontal
| 178 °
|
Viewing angle, vertical
| 178 °
|
Display number of colours
| 1.073 billion colours
|
Display diagonal (metric)
| 68.5 cm
|
Pixel pitch
| 0.1554 x 0.1554 mm
|
Horizontal scan range
| 30 - 140 kHz
|
Vertical scan range
| 40 - 60 Hz
|
Viewable size, horizontal
| 596.736 mm
|
Viewable size, vertical
| 335.664 mm
|
High Dynamic Range (HDR) technology
| High Dynamic Range 10 (HDR10)
|
High Dynamic Range (HDR) supported
| Y
|
DDC/CI
| Y
|
Surface hardness
| 3H
|
sRGB coverage (typical)
| 128.7 procent
|
NTSC coverage (typical)
| 109 procent
|
Adobe RGB coverage
| 107.2 procent
|
Performance |
VESA Adaptive Sync support
| Y
|
Flicker-free technology
| Y
|
Low Blue Light technology
| Y
|
Multimedia |
Built-in speaker(s)
| Y
|
Number of speakers
| 2
|
RMS rated power
| 4 W
|
Design |
Market positioning
| Home
|
Product colour
| Black
|
Frameless design
| Y
|
Introduction year
| 2024
|
Front bezel colour
| Black
|
Introduction month
| July
|

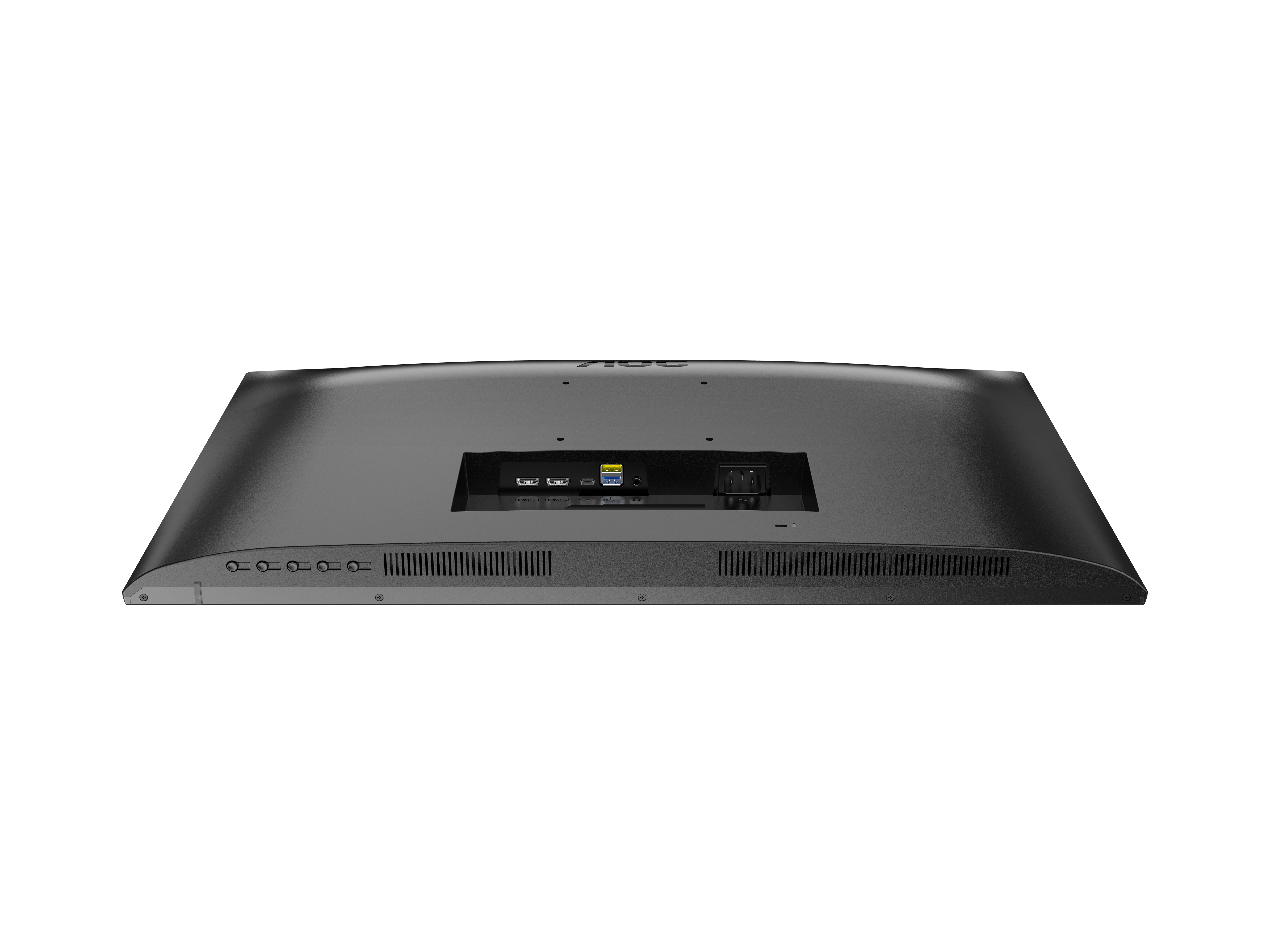

Ports & interfaces |
Built-in USB hub
| Y
|
USB hub version
| 3.2 Gen 1 (3.1 Gen 1)
|
USB upstream port type
| USB Type-C
|
Number of upstream ports
| 1
|
USB Type-A downstream ports quantity
| 2
|
USB Type-C DisplayPort Alternate Mode
| Y
|
USB Power Delivery up to
| 65 W
|
HDMI
| Y
|
HDMI ports quantity
| 2
|
HDMI version
| 2.0
|
Headphone out
| Y
|
Headphone outputs
| 1
|
Headphone connectivity
| 3.5 mm
|
Built-in KVM switch
| N
|
AC (power) in
| Y
|
Ergonomics |
VESA mounting
| Y
|
Panel mounting interface
| 100 x 100 mm
|
Cable lock slot
| Y
|
Cable lock slot type
| Kensington
|
Height adjustment
| Y
|
Height adjustment
| 110 mm
|
Tilt angle range
| -5 - 20 °
|
Tilt adjustment
| Y
|
On Screen Display (OSD)
| Y
|
On Screen Display (OSD) languages
| CHI (SIMPL), CHI (TR), CRO, CZE, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, KOR, POL, POR, RUS, SWE, TUR, UKR
|
Number of OSD languages
| 19
|
Plug and Play
| Y
|
Packaging data |
Cables included
| AC, HDMI, USB Type-C to USB Type-C
|
HDMI cable length
| 1.5 m
|
Package width
| 820 mm
|
Package depth
| 162 mm
|
Package height
| 481 mm
|
Package weight
| 9310 g
|
Power |
Energy efficiency class (SDR)
| F
|
Energy consumption (SDR) per 1000 hours
| 25 kWu
|
Power consumption (typical)
| 28 W
|
Energy efficiency class (HDR)
| G
|
Power consumption (standby)
| 0.5 W
|
Energy consumption (HDR) per 1000 hours
| 45 kWu
|
Power consumption (max)
| 140 W
|
Power consumption (off)
| 0.3 W
|
AC input voltage
| 100 - 240 V
|
AC input frequency
| 50/60 Hz
|
Input current
| 1.5 A
|
Energy efficiency scale
| A to G
|
Operational conditions |
Operating temperature (T-T)
| 0 - 40 °C
|
Storage temperature (T-T)
| -25 - 55 °C
|
Operating relative humidity (H-H)
| 10 - 85 procent
|
Storage relative humidity (H-H)
| 5 - 93 procent
|
Operating altitude
| 0 - 5000 m
|
Non-operating altitude
| 0 - 12192 m
|
Weight & dimensions |
Width (with stand)
| 614 mm
|
Depth (with stand)
| 229.8 mm
|
Height (with stand)
| 517.9 mm
|
Weight (with stand)
| 5640 g
|
Width (without stand)
| 614 mm
|
Depth (without stand)
| 45.7 mm
|
Height (without stand)
| 363.8 mm
|
Weight (without stand)
| 4080 g
|
Other features |
USB Power Delivery
| Y
|
Power supply type
| Internal
|
Touchscreen
| N
|
