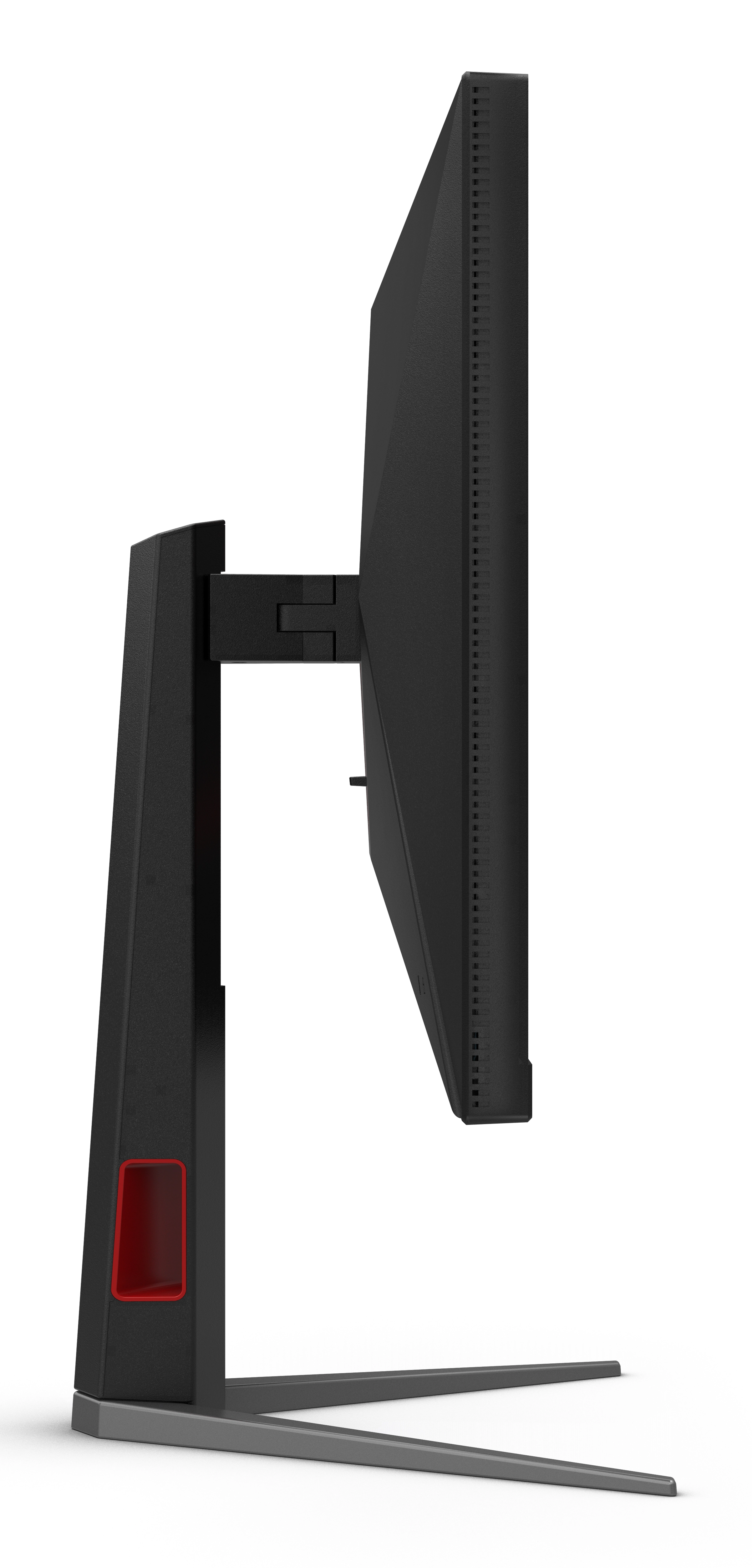

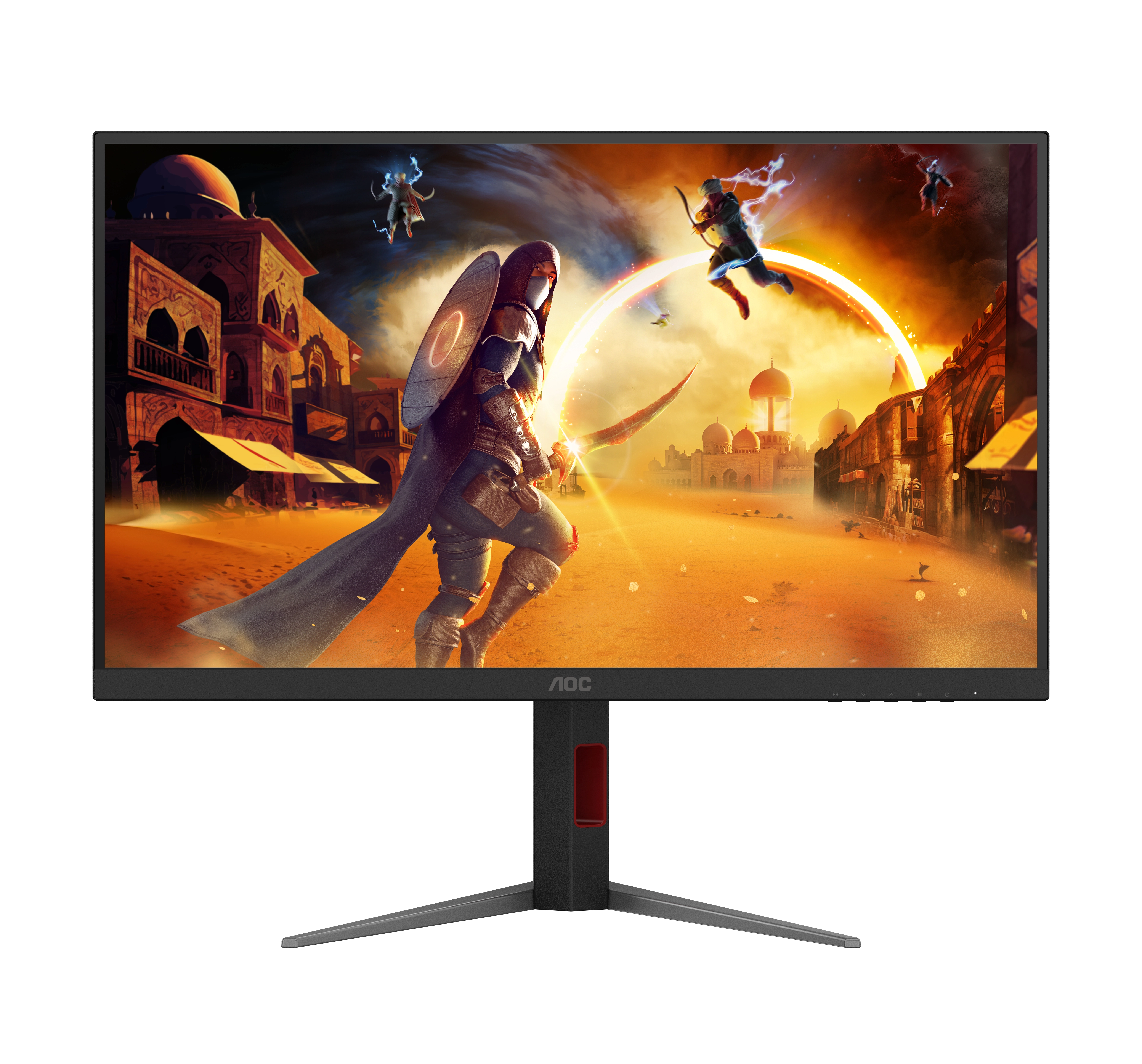

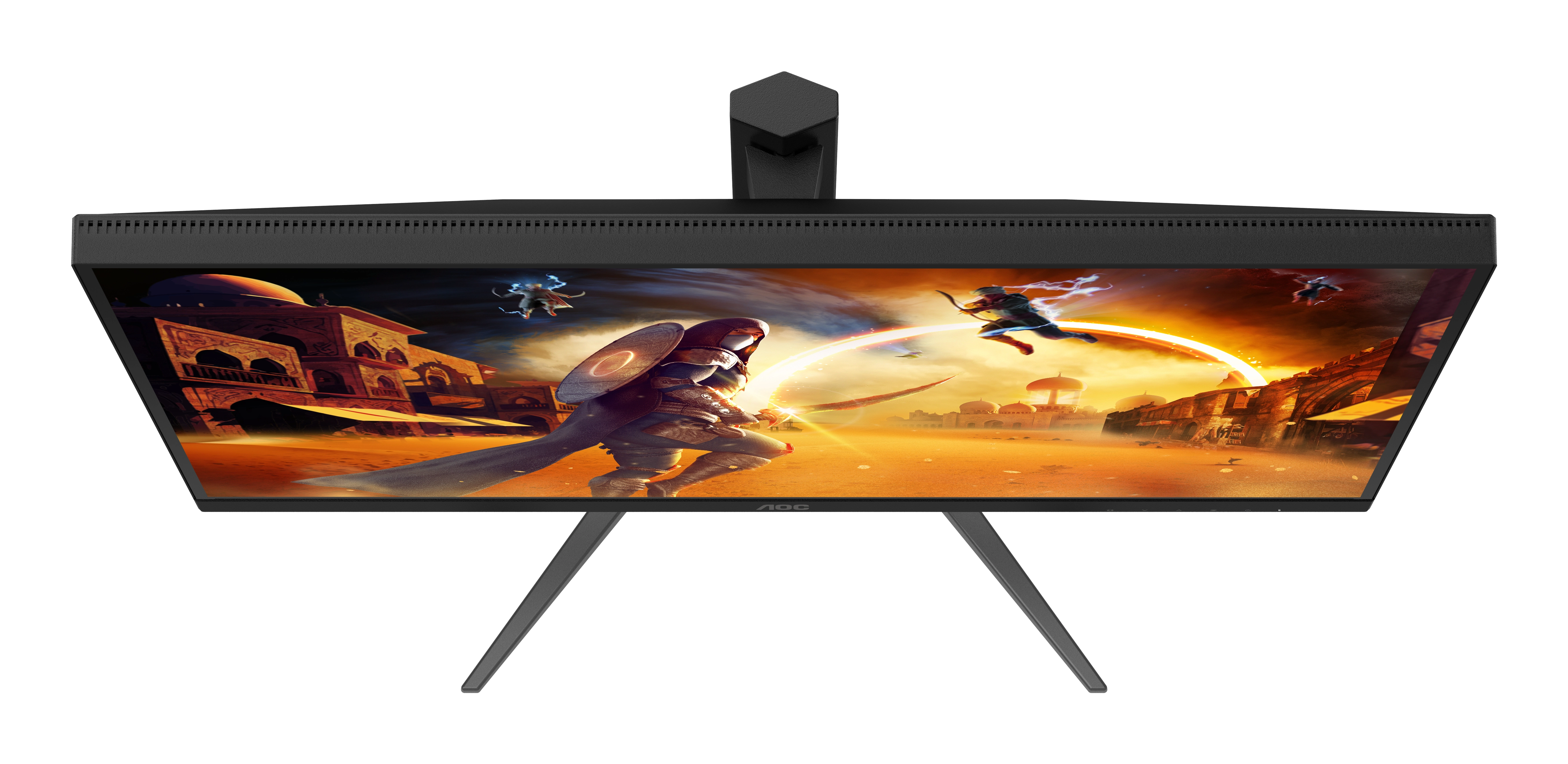

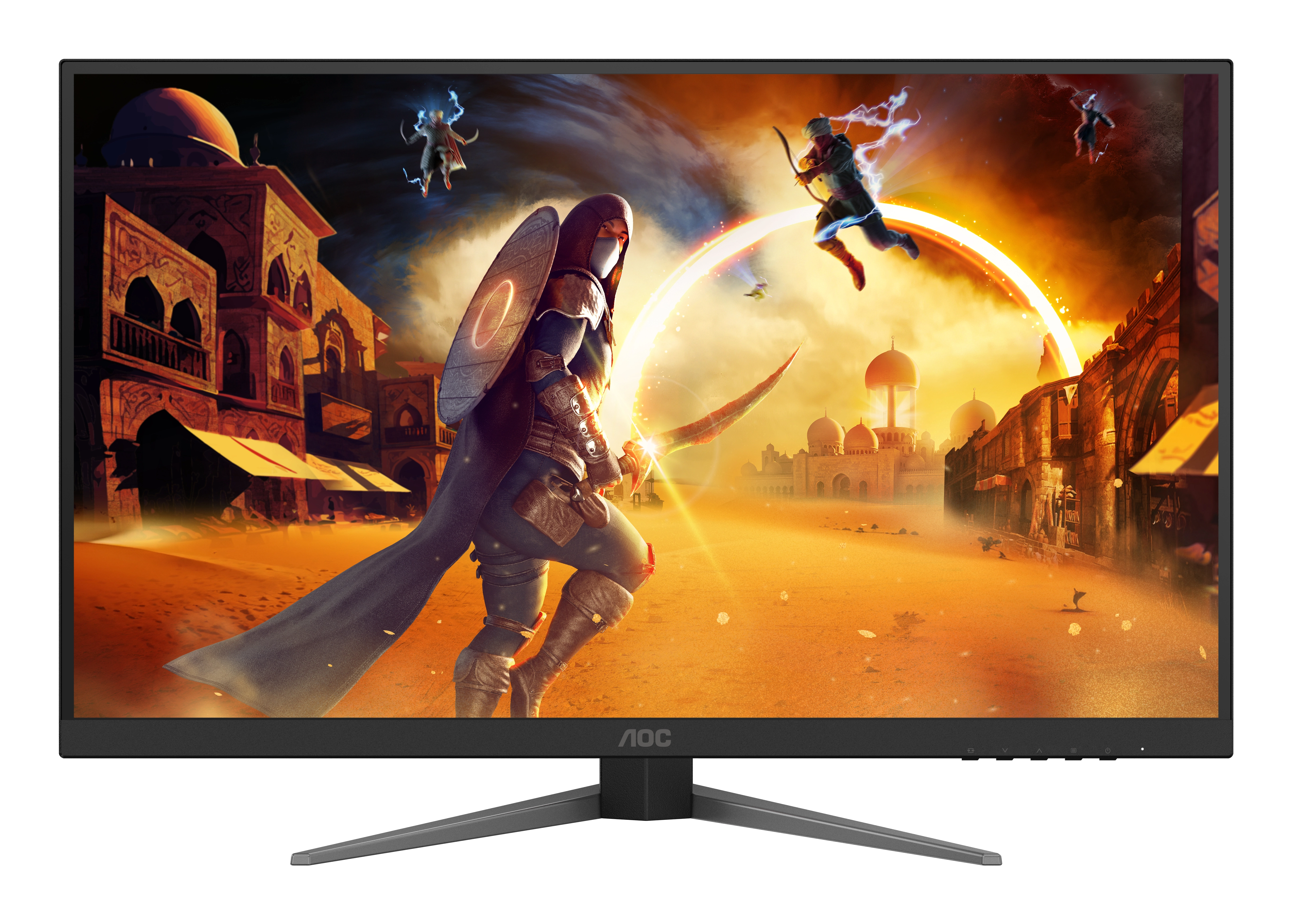

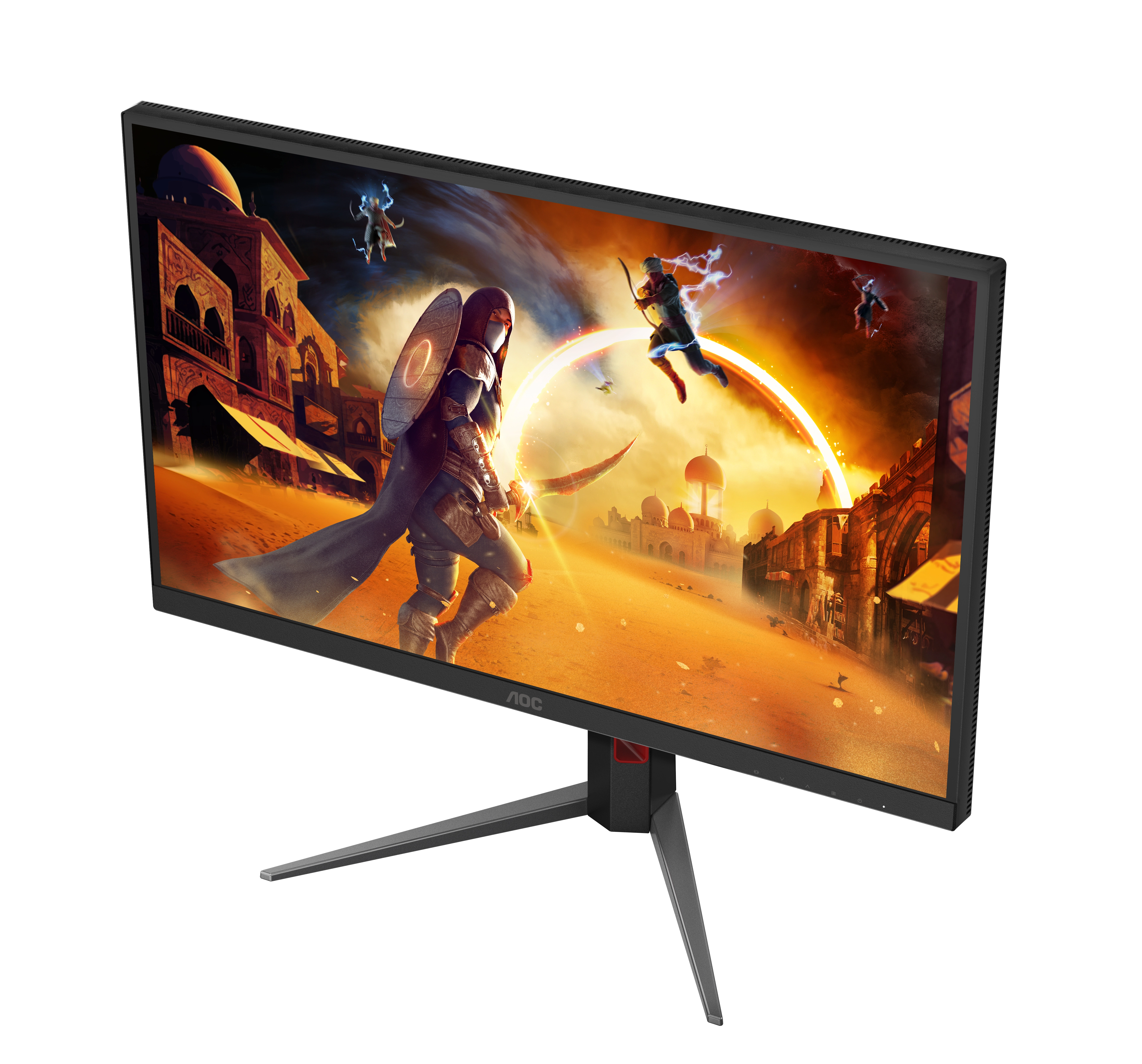

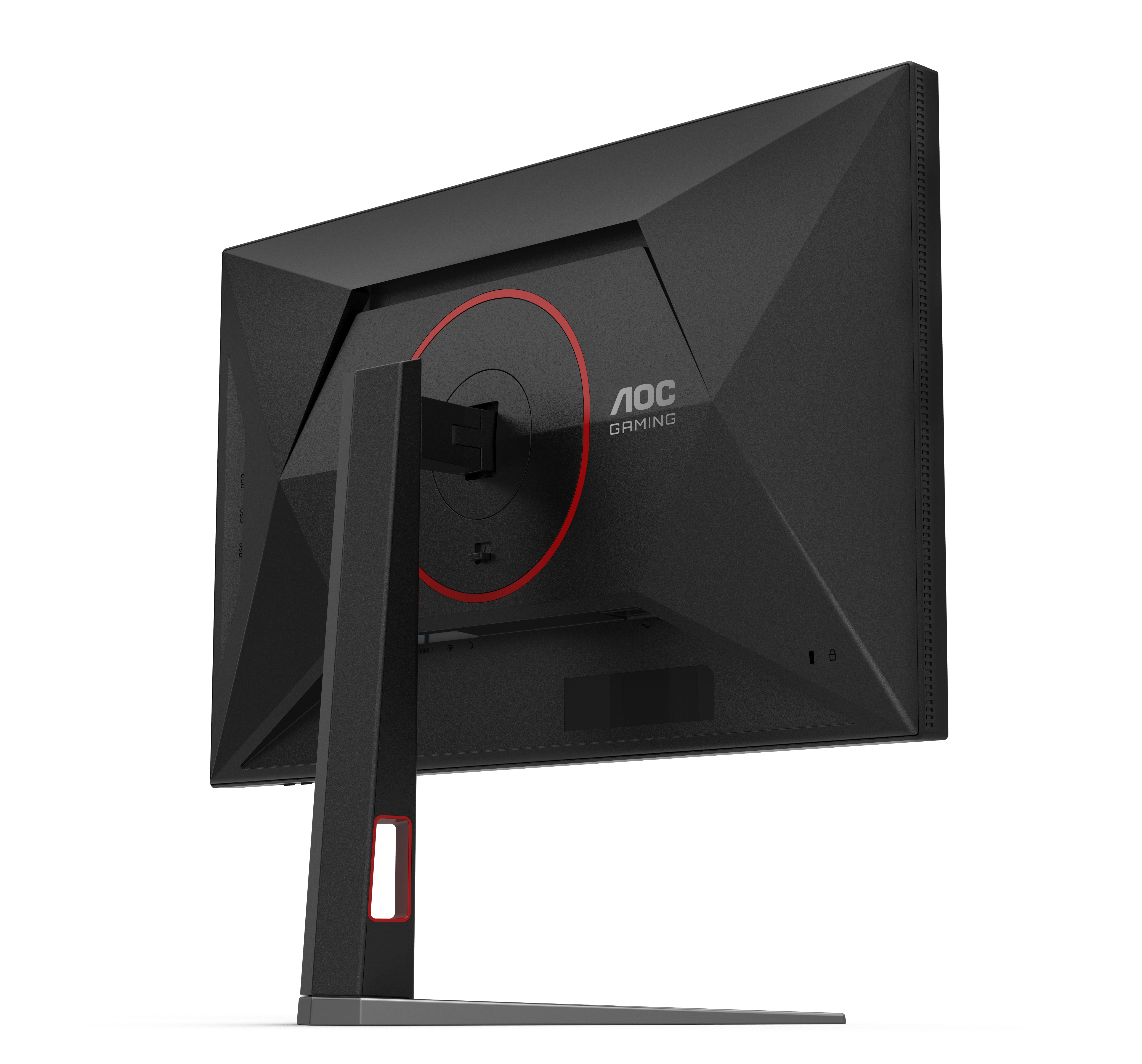

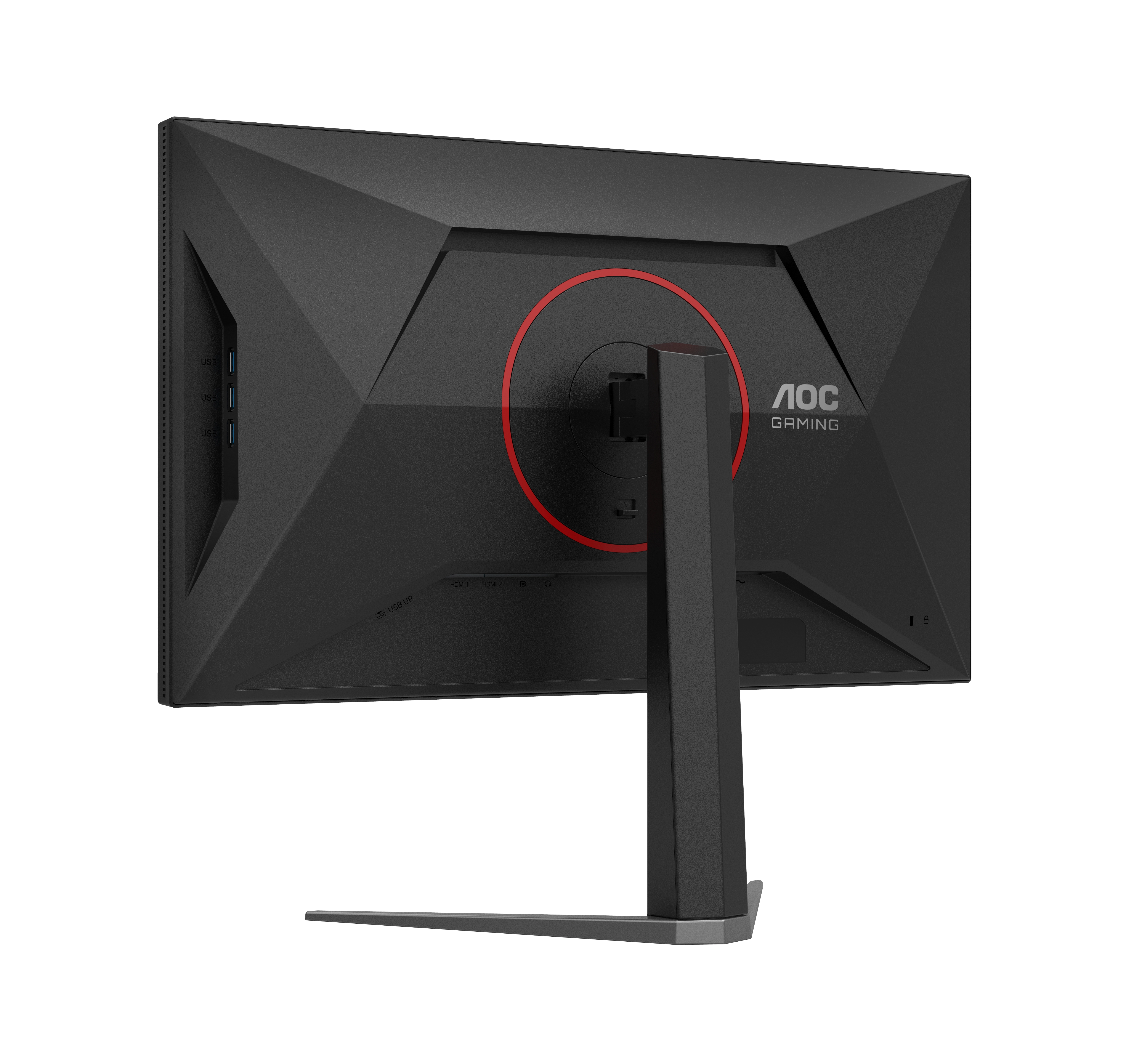

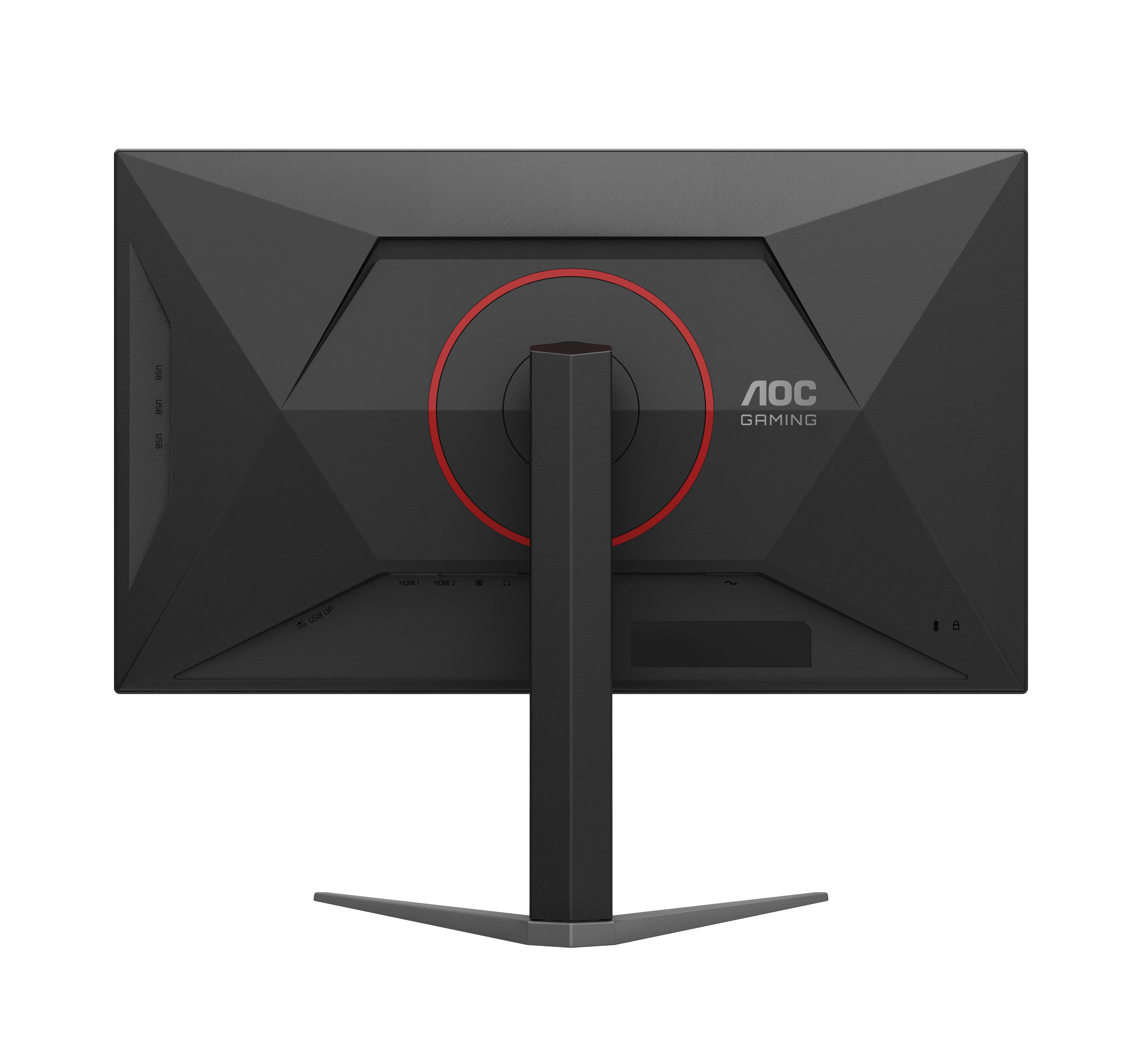

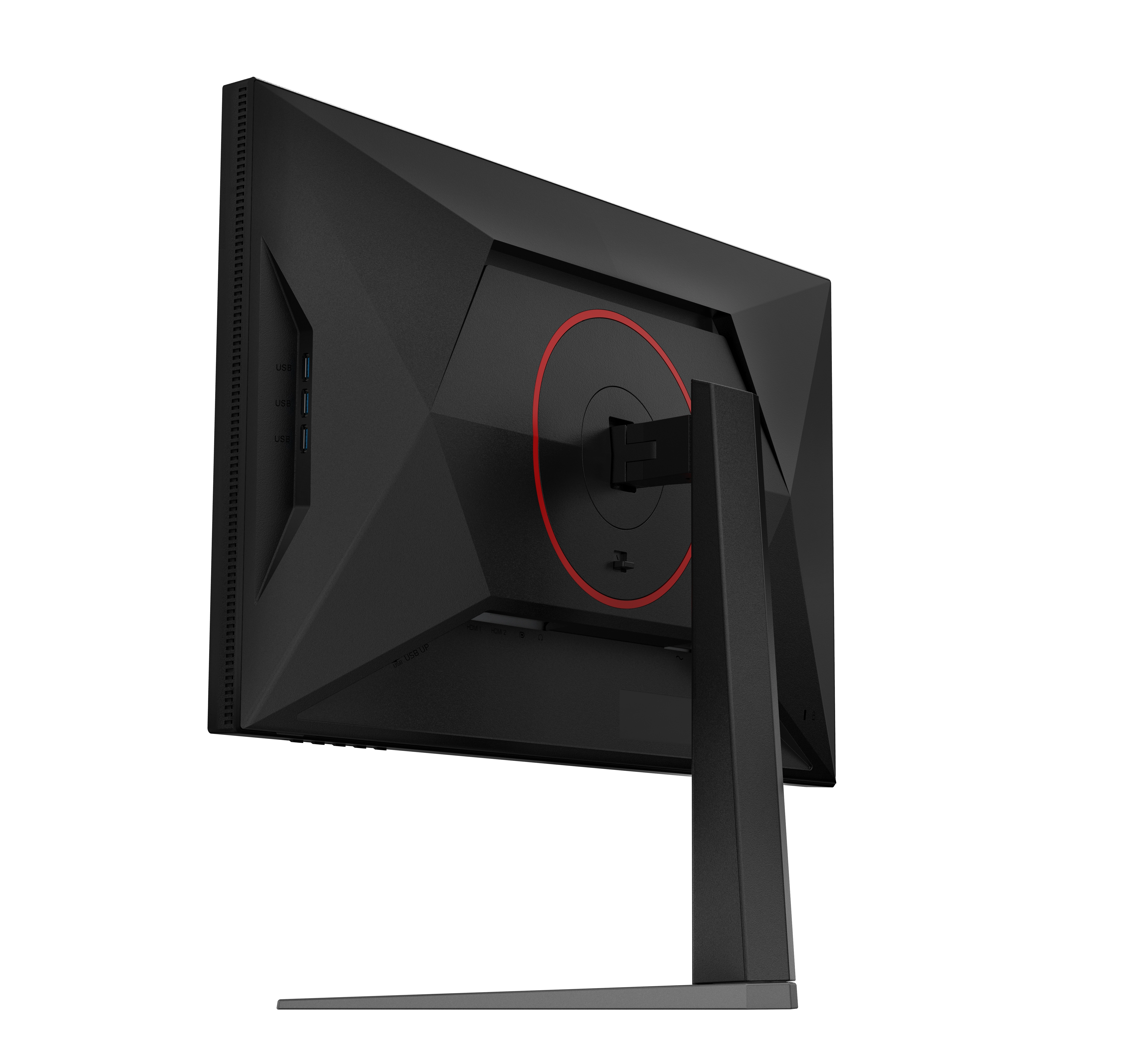

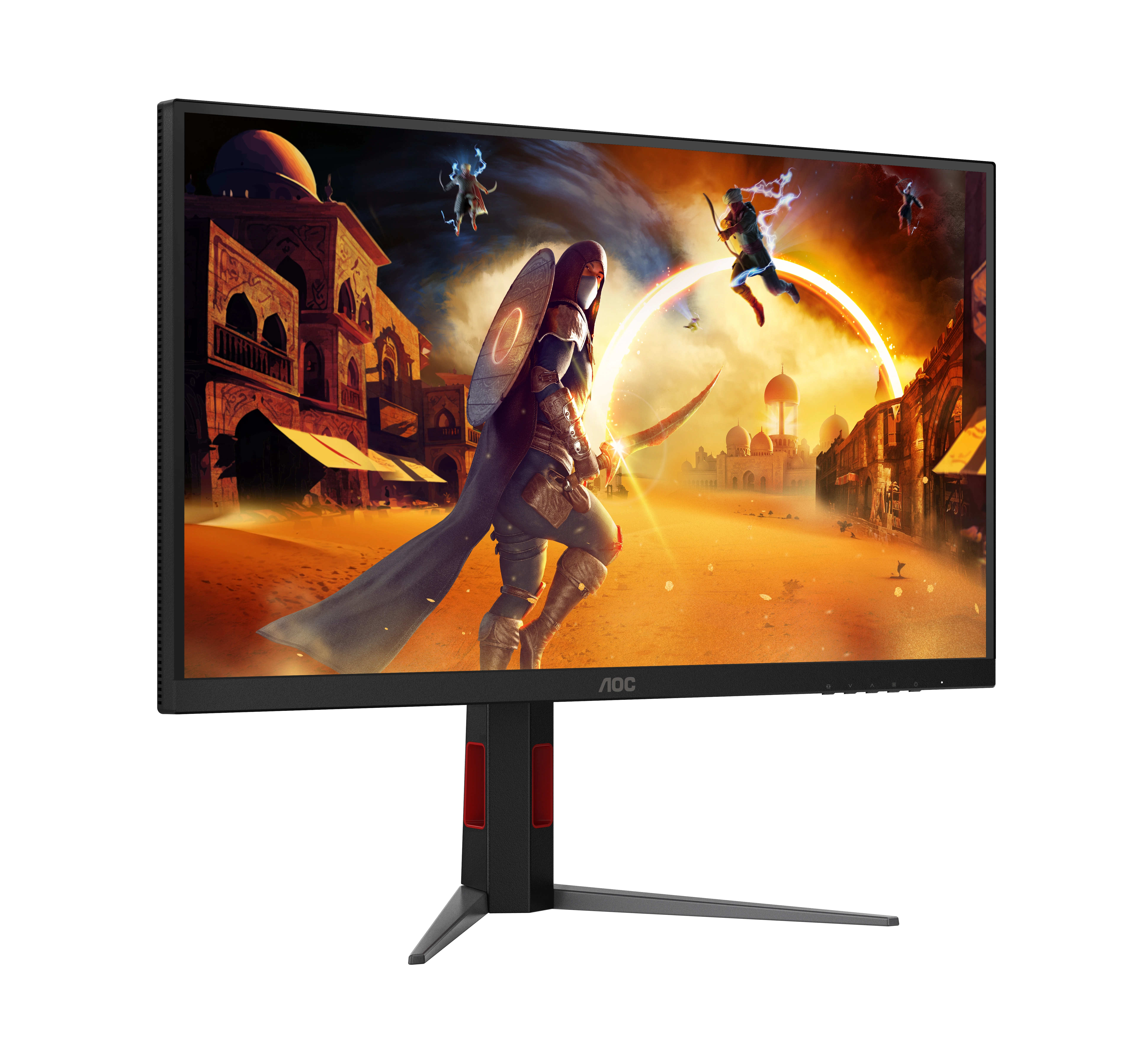

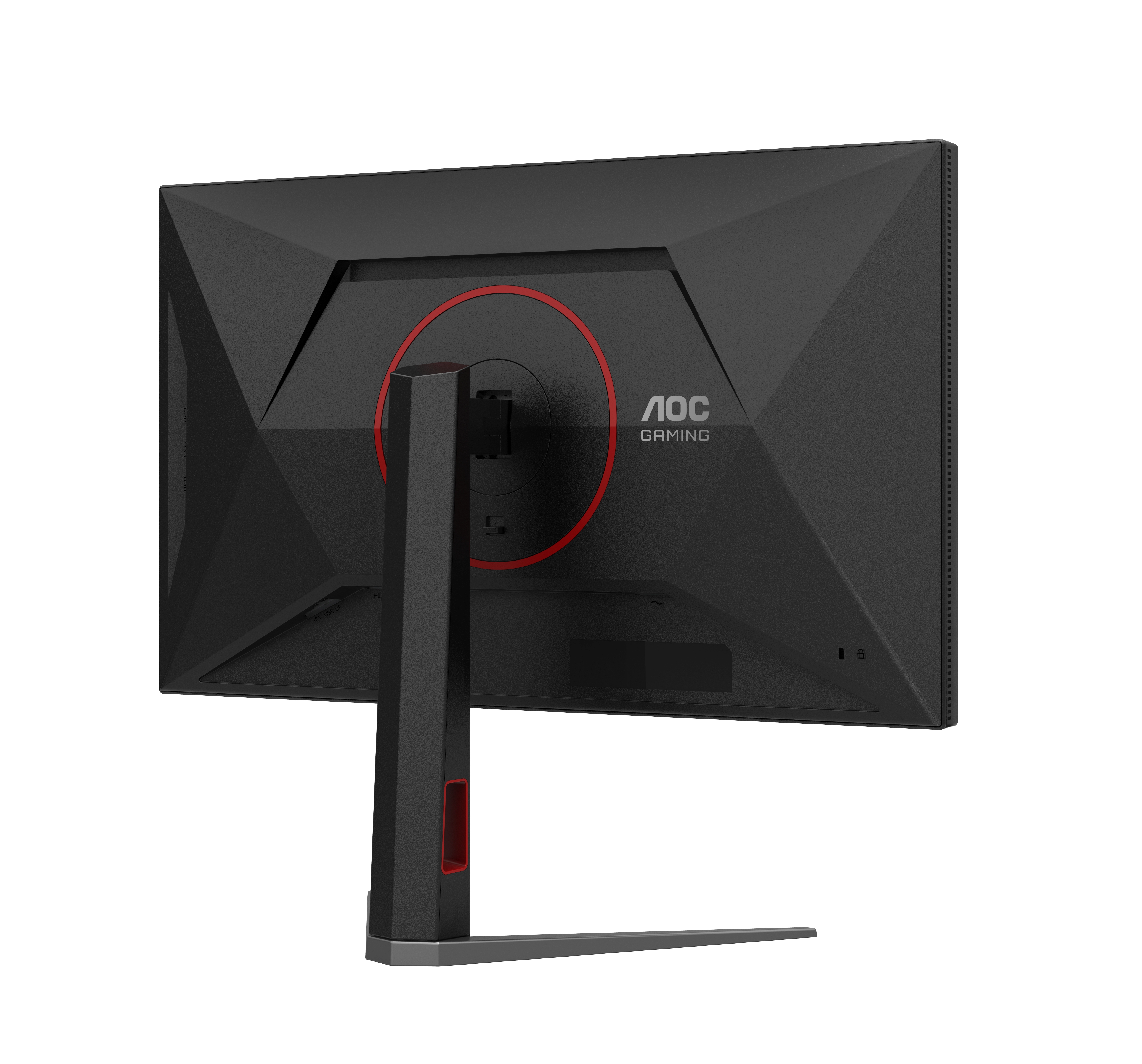

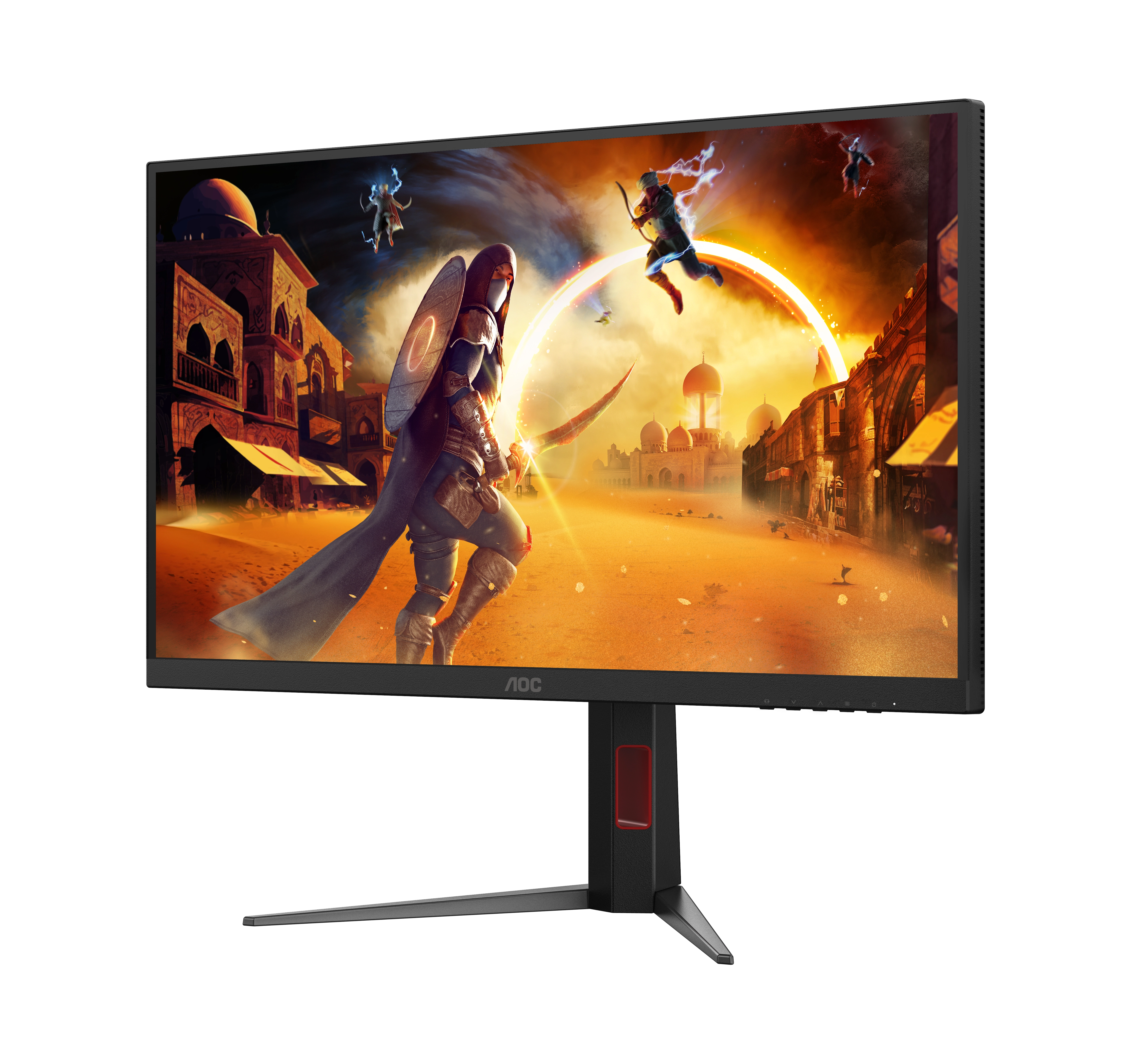

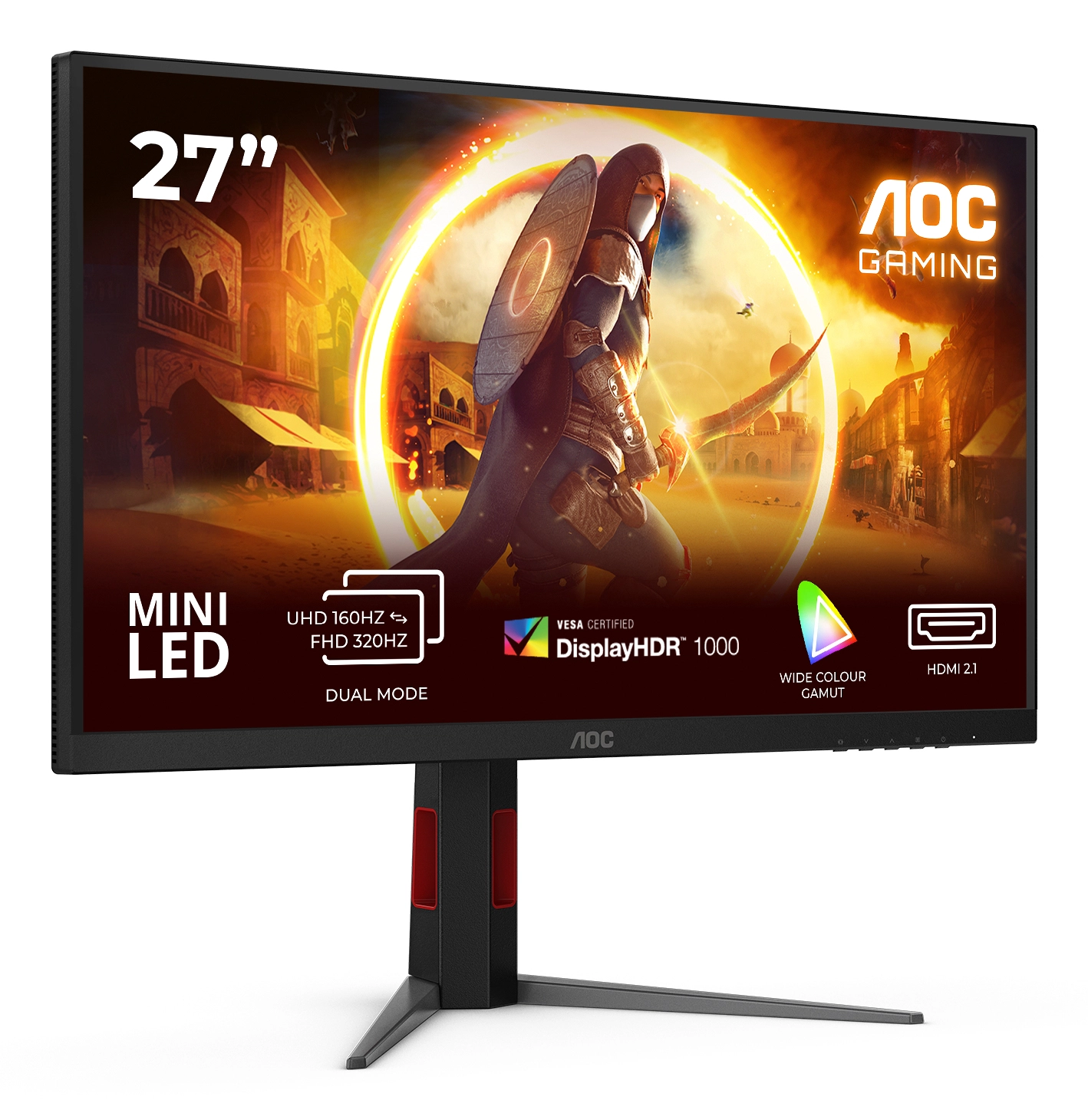

Elevate your play with the U27G4XM MiniLED dual gaming monitor
Step into next-gen gaming with the U27G4XM MiniLED. Combining 4K UHD clarity, 1 ms response time, and 160 Hz refresh rate, this monitor delivers lightning-fast performance and stunning visuals. Perfect for competitive and immersive play alike.

Specification

Product
Product id	1009482
Brand	AOC
Partnr	U27G4XM
EAN/UPC code	6973985233142
Warranty (months)	3 years
Technical details
Warranty period	3 jaar
Compliance certificates	CE
Display
Display diagonal	27 inch
Display resolution	3840 x 2160 Pixels
Native aspect ratio	16:9
Panel type	Fast IPS
Display brightness (typical)	450 cd/m²
Response time	1 ms
Local dimming	Y
HD type	4K Ultra HD
Local dimming zones	1152
Response time measurement type	GTG (Gray to Gray)
Display technology	LED
LED backlight	Y
Backlight type	Mini LED
Anti-glare screen	Y
Screen shape	Flat screen
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	80000000:1
Maximum refresh rate	320 Hz
Dynamic contrast ratio marketing name	Mega DCR
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	1.073 billion colours
Display diagonal (metric)	68.58 cm
Pixel density	109 ppi
Pixel pitch	0.2331 x 0.2331 mm
Viewable size, horizontal	596.736 mm
Viewable size, vertical	335.664 mm
Digital horizontal frequency	30 - 360 kHz
Digital vertical frequency	48 - 320 Hz
High Dynamic Range (HDR) technology	DisplayHDR 1000
High Dynamic Range (HDR) supported	Y
Adobe RGB coverage	96.5 procent
Colour gamut standard	Adobe RGB, DCI-P3
Performance
VESA Adaptive Sync support	Y
Low input lag	Y
FPS counter	Y
Dial point	Y
Shadow сontrol	Y
Flicker-free technology	Y
Low Blue Light technology	Y
Game mode	Y
Design
Market positioning	Gaming
Product colour	Black, Red
Frameless design	Y
Front bezel colour	Black
Detachable stand	Y
Certification	WEEE, REACH compliant, RoHs compliant, CB, TUV-Bauart-Mark, ISO 9241-307, EAC, FCC
Ports & interfaces
Built-in USB hub	Y
USB hub version	3.2 Gen 1 (3.1 Gen 1)
Number of USB Type-B upstream ports quantity	1
USB Type-A downstream ports quantity	4
HDMI	Y
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	1
DisplayPort version	1.4
Headphone out	Y
HDCP version	1.4/2.2
HDCP	Y
Ergonomics
VESA mounting	Y
Panel mounting interface	100 x 100 mm
Cable lock slot	Y
Cable management	Y
Adjustable height (max)	130 mm
Height adjustment	Y
Swivelling	Y

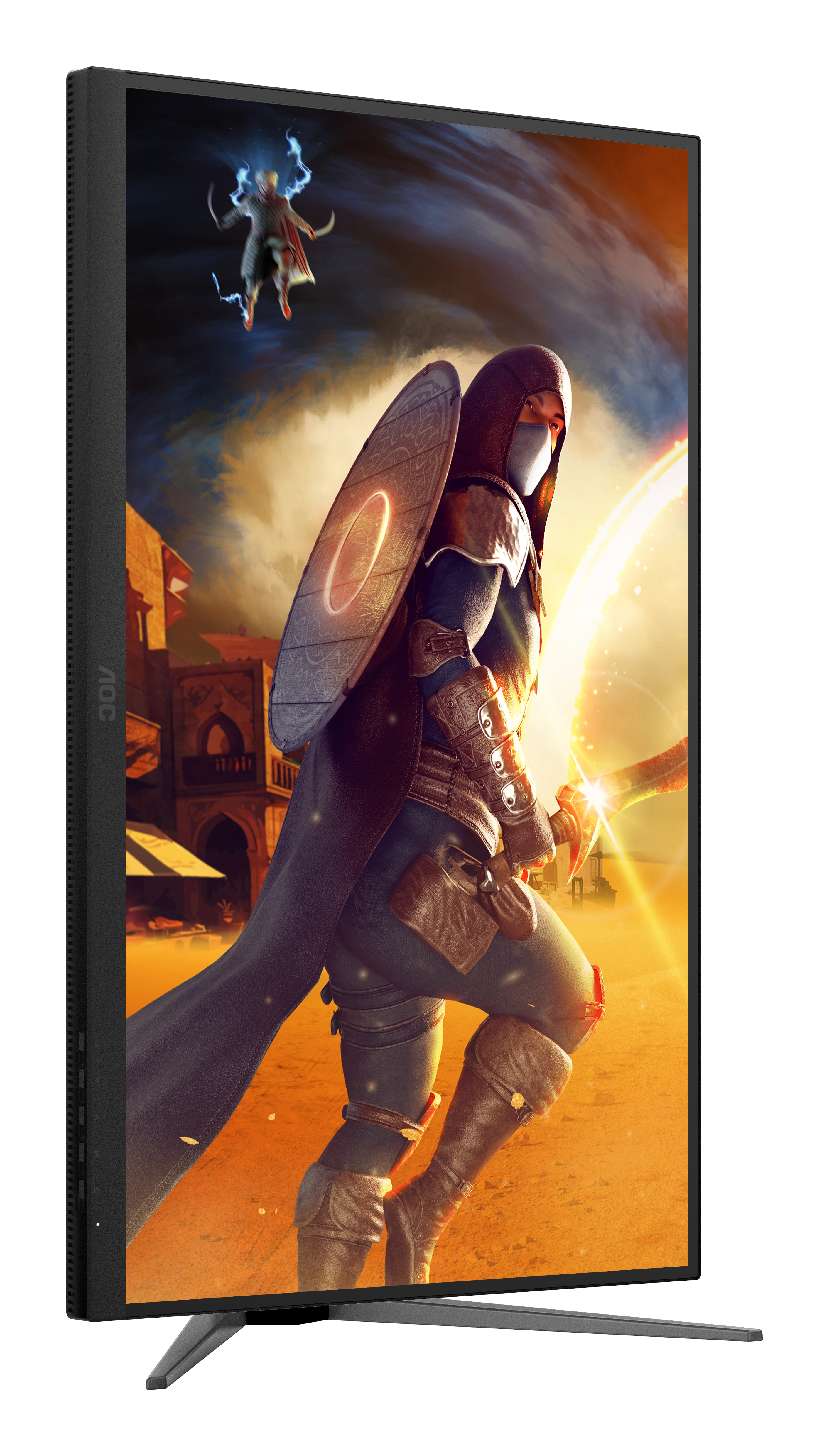

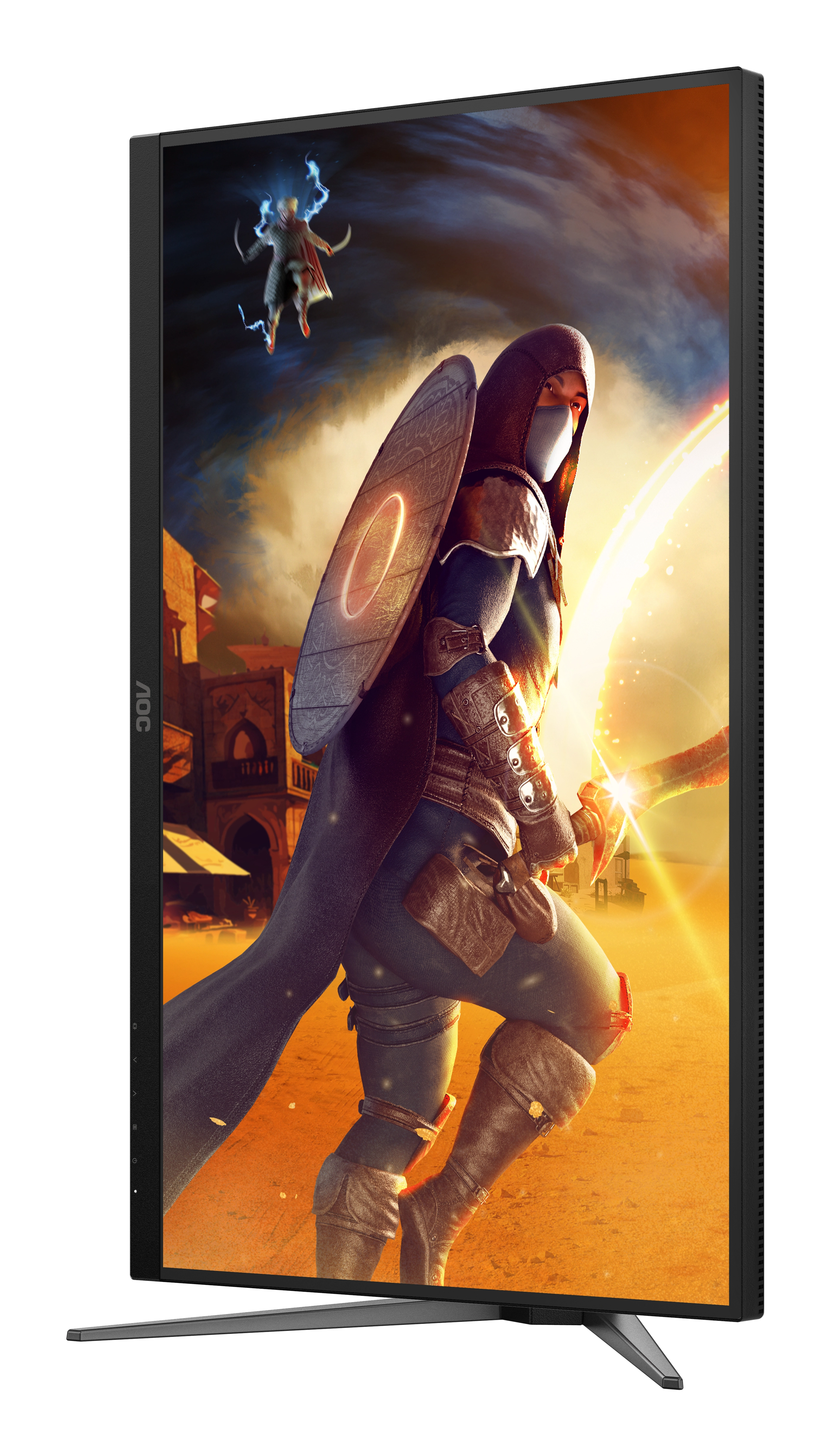

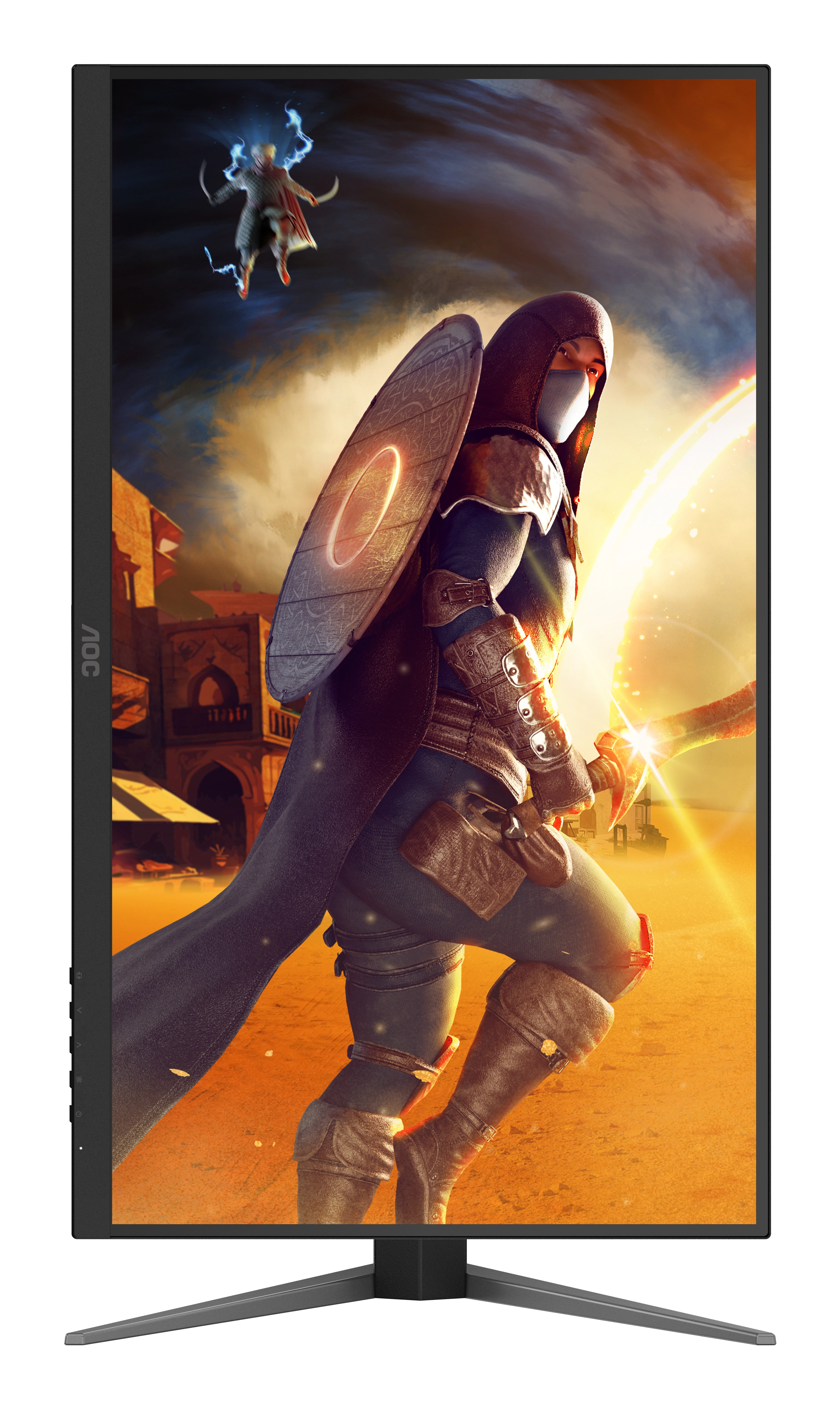

Pivot angle	-90 - 90 °
Pivot	Y
Swivel angle range	-28 - 28 °
Tilt angle range	-3 - 21 °
Picture-in-Picture	Y
Tilt adjustment	Y
Packaging data
Cables included	AC, HDMI, DisplayPort, USB
Power cable length	1.8 m
HDMI cable length	1.8 m
Package width	820 mm
Package depth	159 mm
Package height	481 mm
Package weight	10300 g
Power
Energy efficiency class (SDR)	G
Energy consumption (SDR) per 1000 hours	26 kWu
Power consumption (typical)	45 W
Energy efficiency class (HDR)	G
Power consumption (standby)	0.3 W
Energy consumption (HDR) per 1000 hours	40 kWu
Power consumption (off)	0.3 W
AC input voltage	120 - 240 V
AC input frequency	50/60 Hz
Input current	1.5 A
Energy efficiency scale	A to G
Weight & dimensions
Width (with stand)	614 mm
Depth (with stand)	240 mm
Height (with stand)	516.6 mm
Weight (with stand)	7100 g
Width (without stand)	614 mm
Depth (without stand)	59.4 mm
Height (without stand)	366.4 mm
Weight (without stand)	5600 g
Other features
Colour gamut DCI-P3	98 procent
Power supply type	Internal
Touchscreen	N
Bezel thickness type	Frameless
