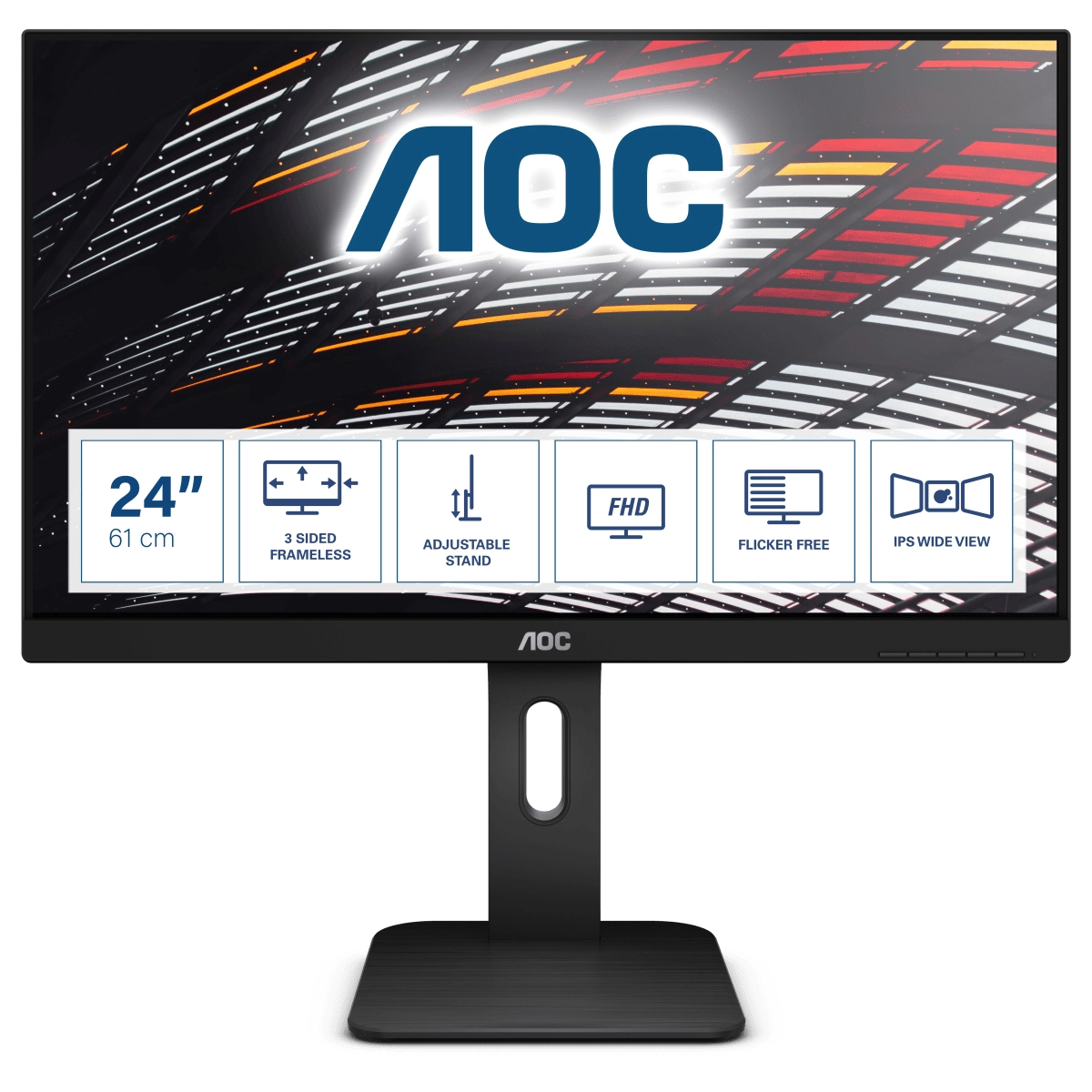

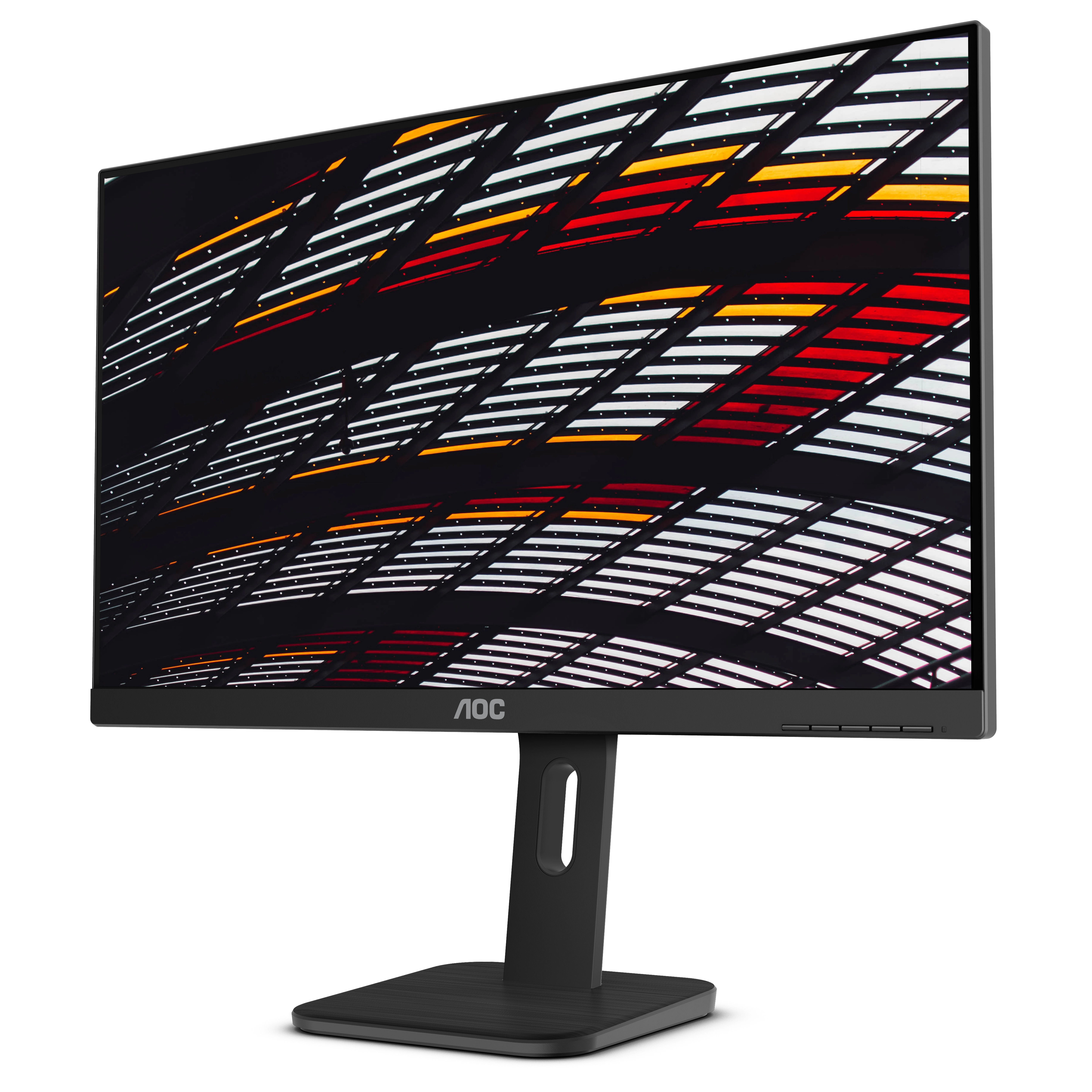

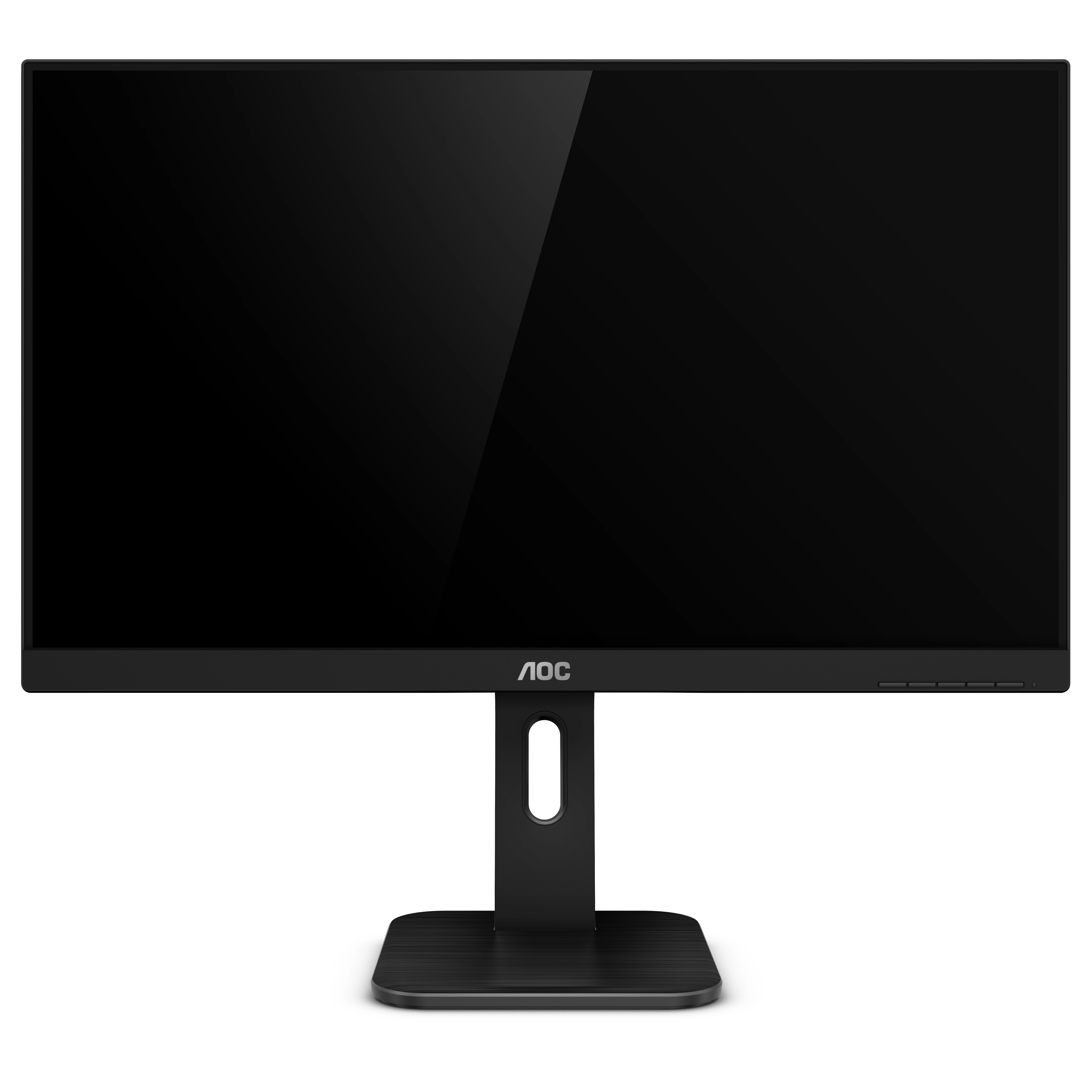

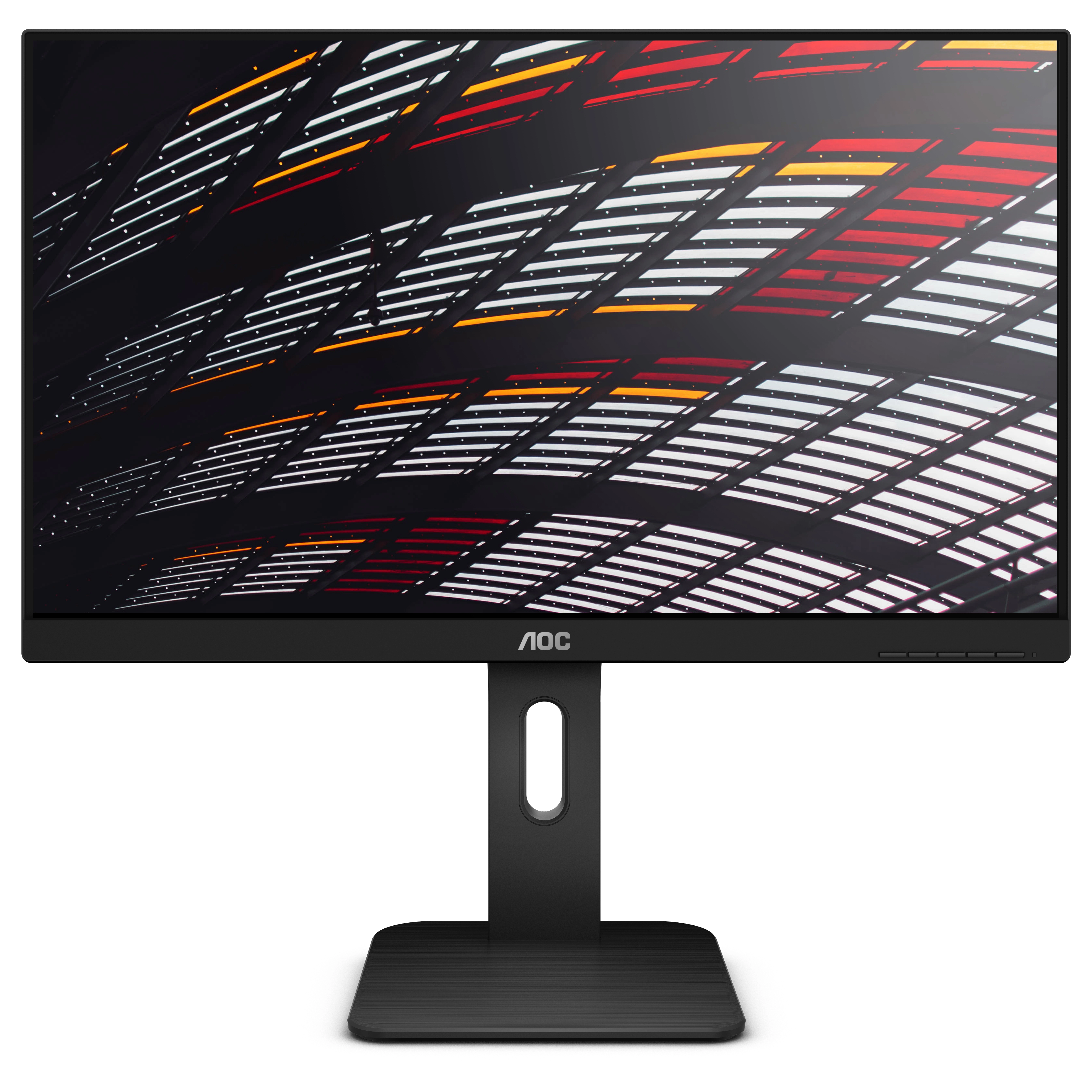

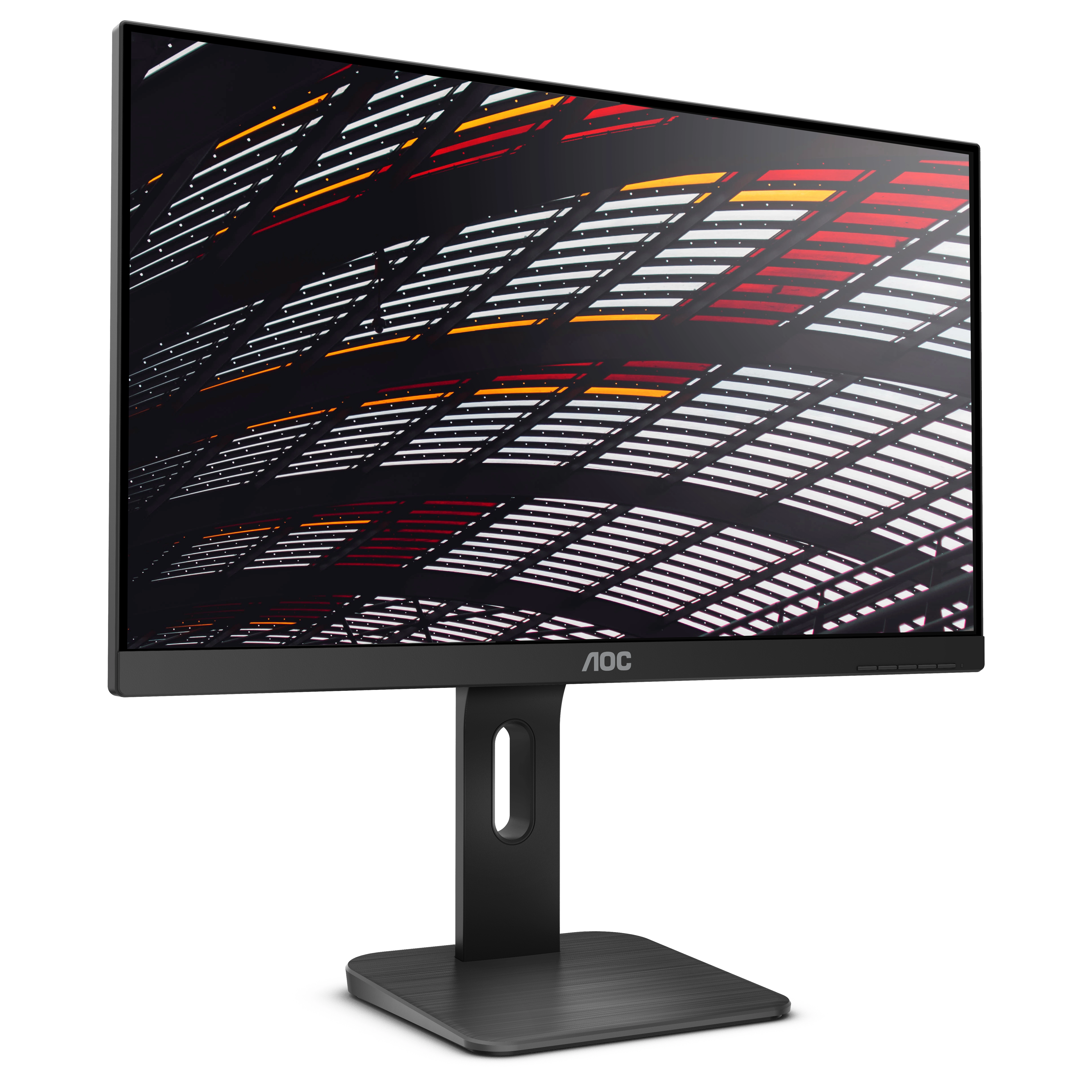

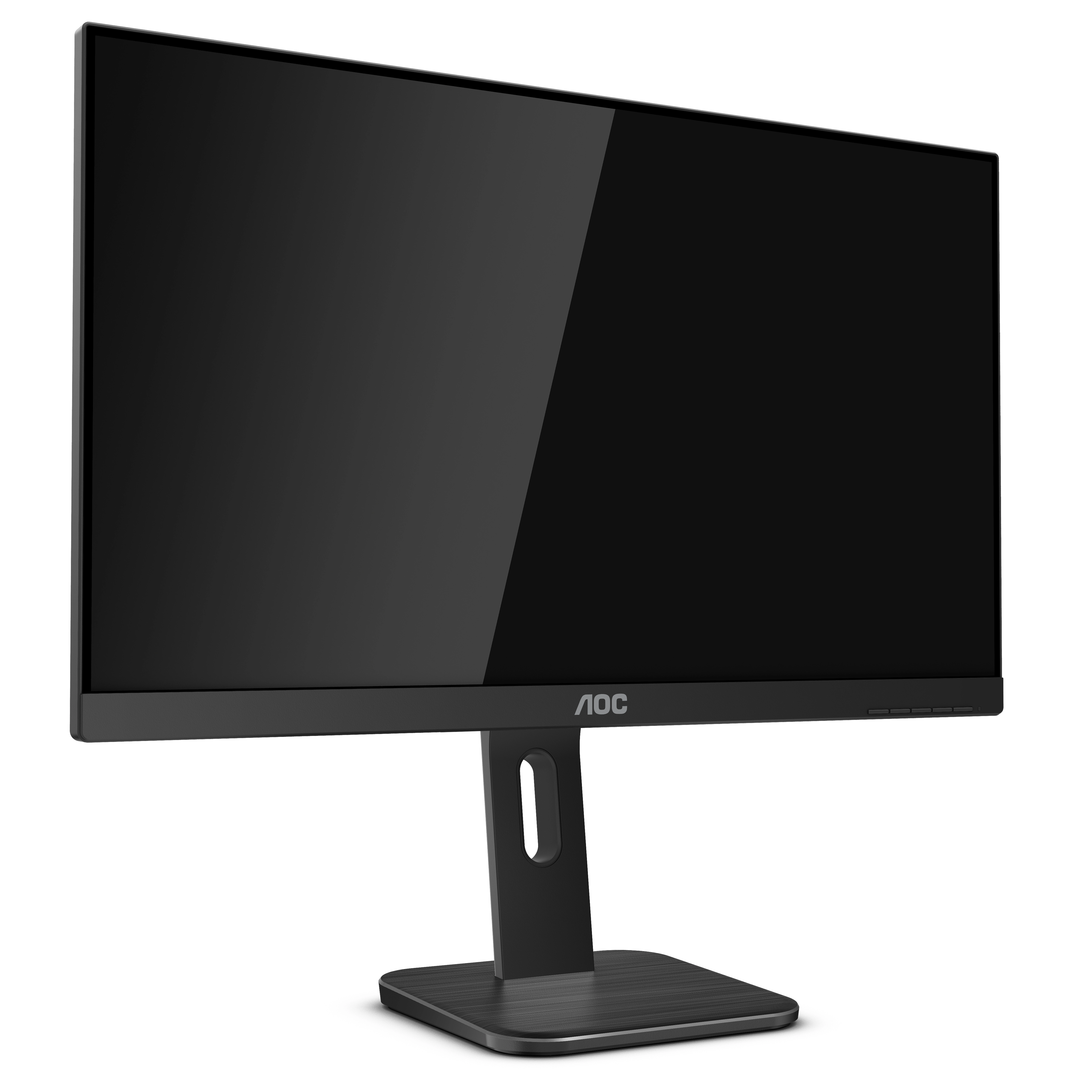

Sleek looks and rich colours from every angle
The 16:10 aspect ratio and 1920x1200 resolution of the 24" sized, 3-sides frameless X24P1 is suited perfectly for productivity tasks (spreadsheets, texts). X24P1 comes with a fully adjustable stand with 150 mm height range, capable of pivot mode. It is also fully equipped with VGA, DVI, HDMI and DisplayPort inputs, a built-in USB 3.0 hub and speakers.

Specification

Product
Product id	605253
Brand	AOC
Partnr	X24P1
EAN/UPC code	4038986146241
Technical details
Sustainability certificates	REACH, RoHS, EPEAT Gold
Doesn't contain	PVC/BFR
Display
Display diagonal	24 inch
Display resolution	1920 x 1200 Pixels
Native aspect ratio	16:10
Panel type	IPS
Display brightness (typical)	300 cd/m²
Response time	4 ms
HD type	WUXGA
Display technology	LED
Backlight type	W-LED
Display surface	Matt
Screen shape	Flat screen
Supported graphics resolutions	1920 x 1200 (WUXGA)
Aspect ratio	16:10
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	50000000:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	16.78 million colours
3D	N
Pixel pitch	0.27 x 0.27 mm
Horizontal scan range	30 - 83 kHz
Vertical scan range	50 - 76 Hz
Viewable size, horizontal	596.73 mm
Viewable size, vertical	335.66 mm
Colour depth	6 Bit
sRGB coverage (typical)	99 procent
Adobe RGB coverage	77 procent
Performance
Flicker-free technology	Y
Low Blue Light technology	Y
Multimedia
Built-in speaker(s)	Y
Built-in camera	N
Number of speakers	2
RMS rated power	4 W
Design
Market positioning	Business
Product colour	Black
Detachable stand	Y
Feet colour	Black
Heavy metals free	Hg (mercury)
Certification	GOST

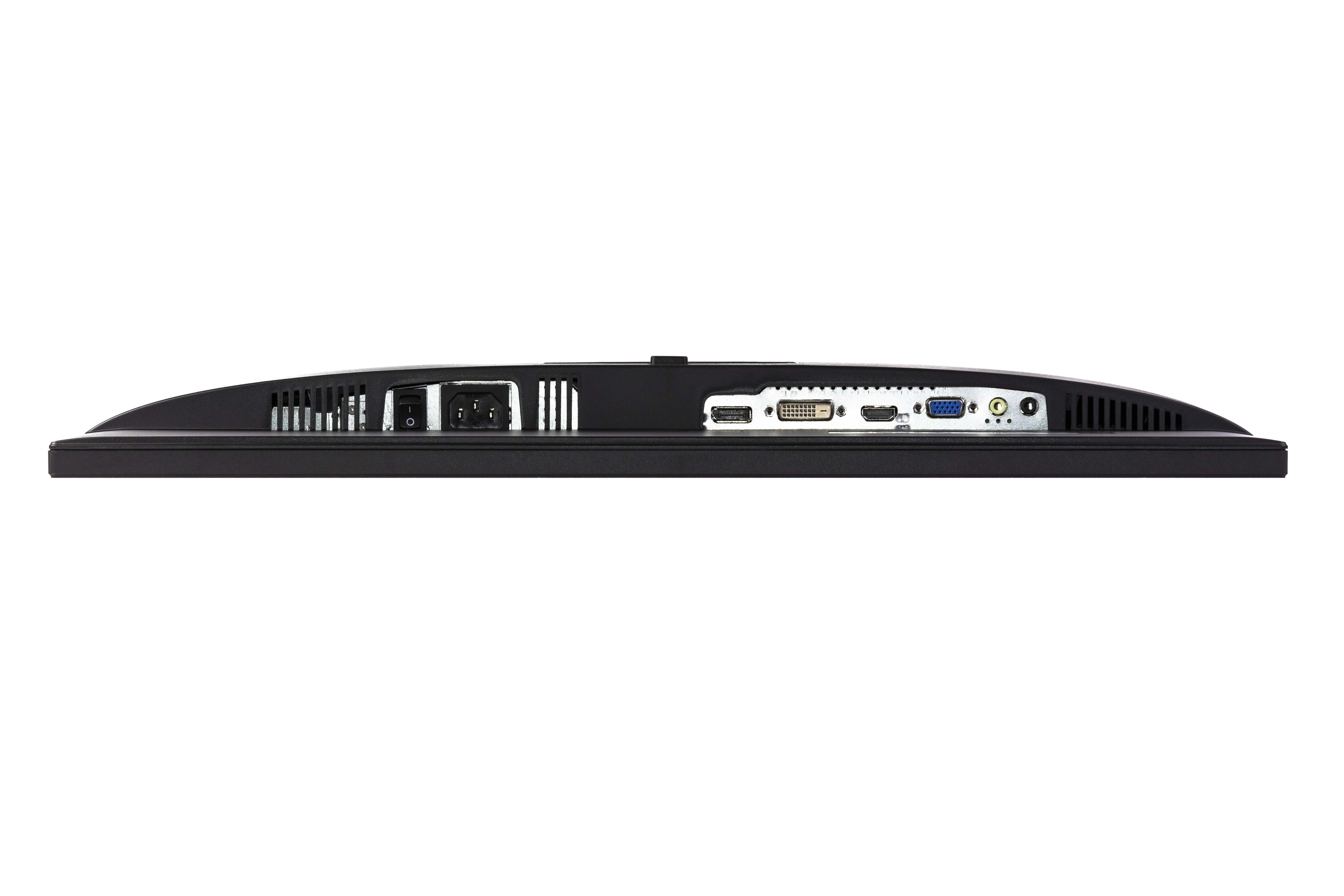

Ports & interfaces

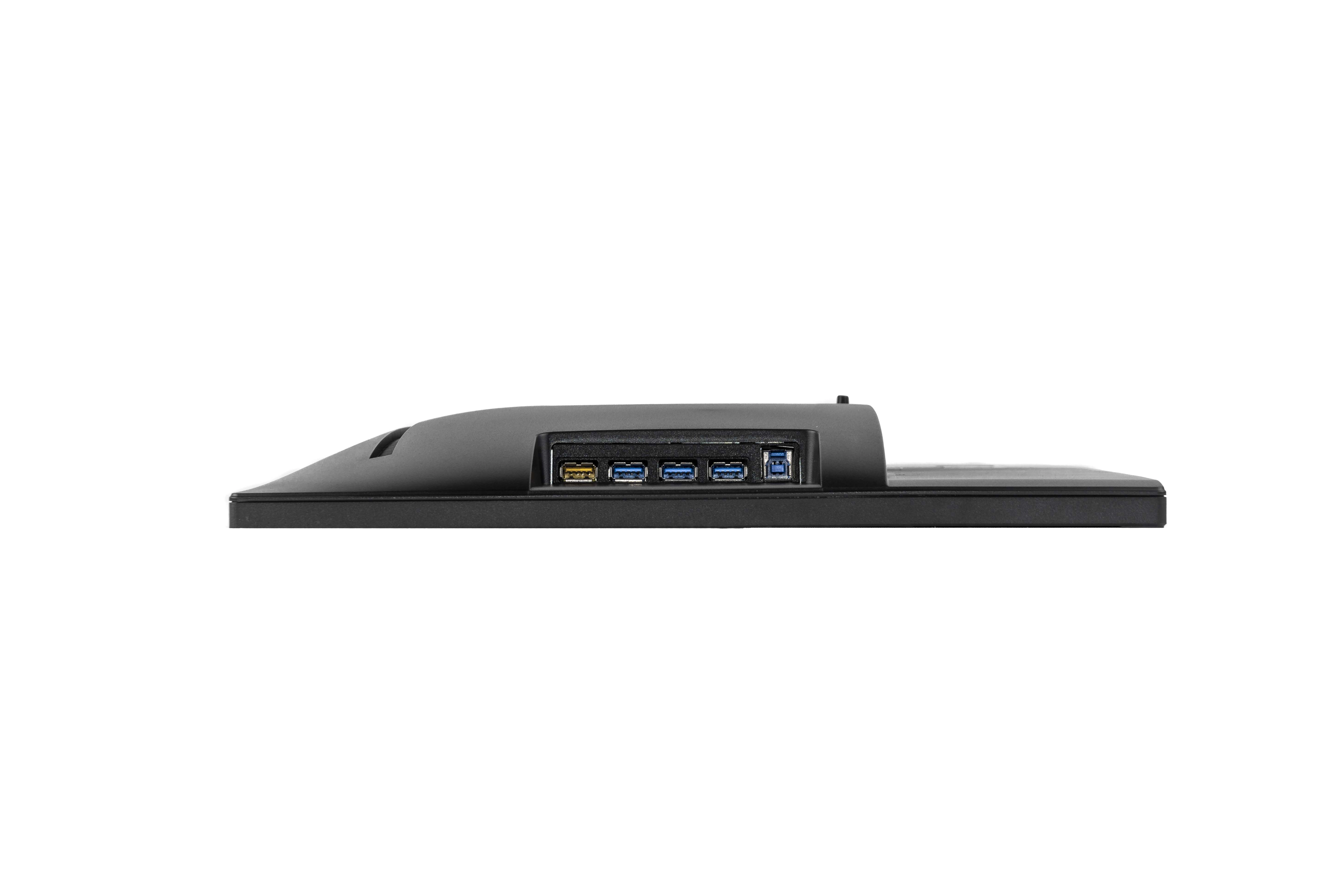

Built-in USB hub	Y
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB Type-A downstream ports quantity	4
VGA (D-Sub) ports quantity	1
DVI port	Y
HDMI ports quantity	1
HDMI version	1.4
DisplayPorts quantity	1
DisplayPort version	1.2
Headphone out	Y
Headphone outputs	1
Headphone connectivity	3.5 mm
Microphone in	Y
Ergonomics
VESA mounting	Y
Panel mounting interface	100 x 100 mm
Cable lock slot	N
Cable lock slot type	Kensington
Height adjustment	Y
Height adjustment	150 mm
Swivelling	Y
Pivot angle	1 - 90 °
Pivot	Y
Swivel angle range	-175 - 175 °
Tiltable	Y
Tilt angle range	-5 - 35 °

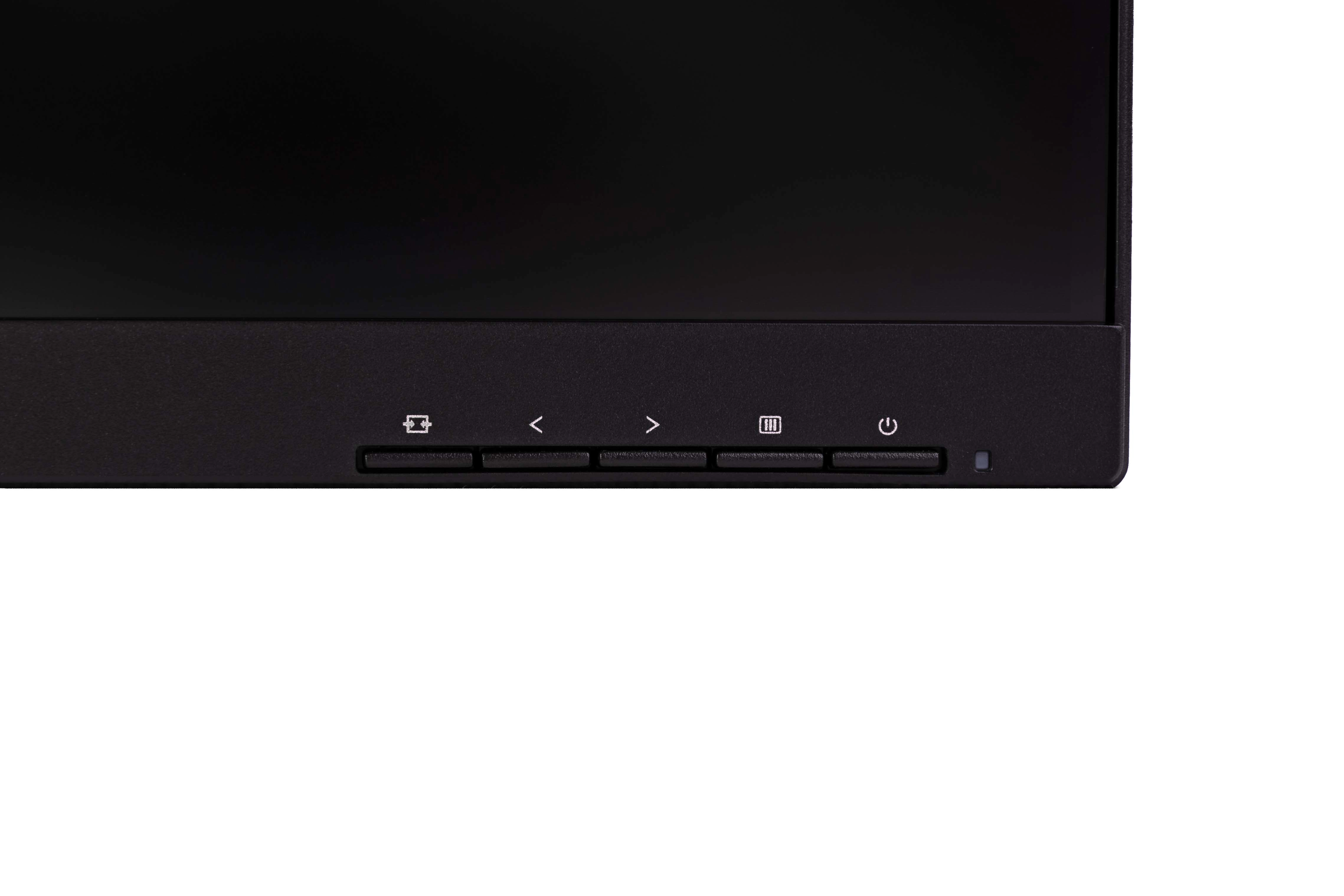

On Screen Display (OSD)	Y
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), CZE, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, KOR, POL, POR, RUS, SWE
Number of OSD languages	16
Plug and Play	Y
Packaging data
Stand included	Y
Cables included	AC, Audio (3.5mm), DisplayPort, HDMI, USB
Power cable length	1.8 m
Audio cable length	1.8 m
DisplayPort cable length	1.8 m
HDMI cable length	1.8 m
USB cable length	1.8 m
Package width	752 mm
Package depth	168 mm
Package height	422 mm
Package weight	7500 g
Package type	Box
Power
Energy efficiency class (SDR)	E
Energy consumption (SDR) per 1000 hours	18 kWu
Power consumption (typical)	16.73 W
Power consumption (standby)	0.32 W
Power consumption (off)	0.23 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
External power adapter	N
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-25 - 55 °C
Operating relative humidity (H-H)	10 - 85 procent
Storage relative humidity (H-H)	5 - 93 procent
Operating altitude	0 - 5000 m
Non-operating altitude	5000 - 12192 m
Weight & dimensions
Width (with stand)	533 mm
Depth (with stand)	202.96 mm
Height (with stand)	535 mm
Weight (with stand)	5500 g
Width (without stand)	533.5 mm
Depth (without stand)	46.48 mm
Height (without stand)	354.4 mm
Weight (without stand)	3710 g
Recycling data
Post-consumer recycled plastic	85 procent
Other features
On/off switch	Y
TV tuner integrated	N
Bezel thickness type	Frameless
Recyclable packaging material	100 procent
Mean time between failures (MTBF)	50000 uur
