Free up space and secure power cords between rack-mount PDUs and attached IT equipment with this exclusive easy-to-use cord retention method. While these cords will fit into any standard IEC receptacle or power inlet; the "locking" feature is enabled only when used with APC AP8000 series Rack PDUs or IT equipment with built-in locking receptacles. These locking connectors reduce the probability of accidentally disconnecting cords and dropping loads.

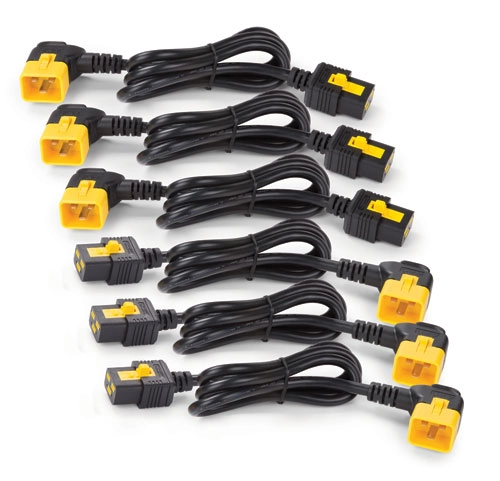

Includes: 3 Left-angle jumper cords, 3 Right-angle jumper cords

Specification

Product
Product id	323451
Brand	American Power Conversion
Partnr	AP8716R
EAN/UPC code	2002091674007
Warranty (months)	2 years repair or replace
Features
Product colour	Black
Cable length	1.83 m
Weight & dimensions
Weight	2160 g
Packaging data
Package height	300 mm
Packaging length	70 mm
Package width	80 mm
Operational conditions
Operating temperature (T-T)	0 - 75 °C
Operating relative humidity (H-H)	20 - 80 procent
Operating altitude	0 - 3000 m
Storage relative humidity (H-H)	20 - 80 procent
Non-operating altitude	0 - 15000 m
Technical details
Maximum total current draw per phase	16 A
Gender type	male/female
Width	80 mm
Package weight	2160 g
Height	300 mm
Depth	70 mm
Storage temperature (T-T)	-25 - 75 °C
Ports & interfaces
Connector 1	IEC-320 C19
Connector 2	IEC-320 C20
