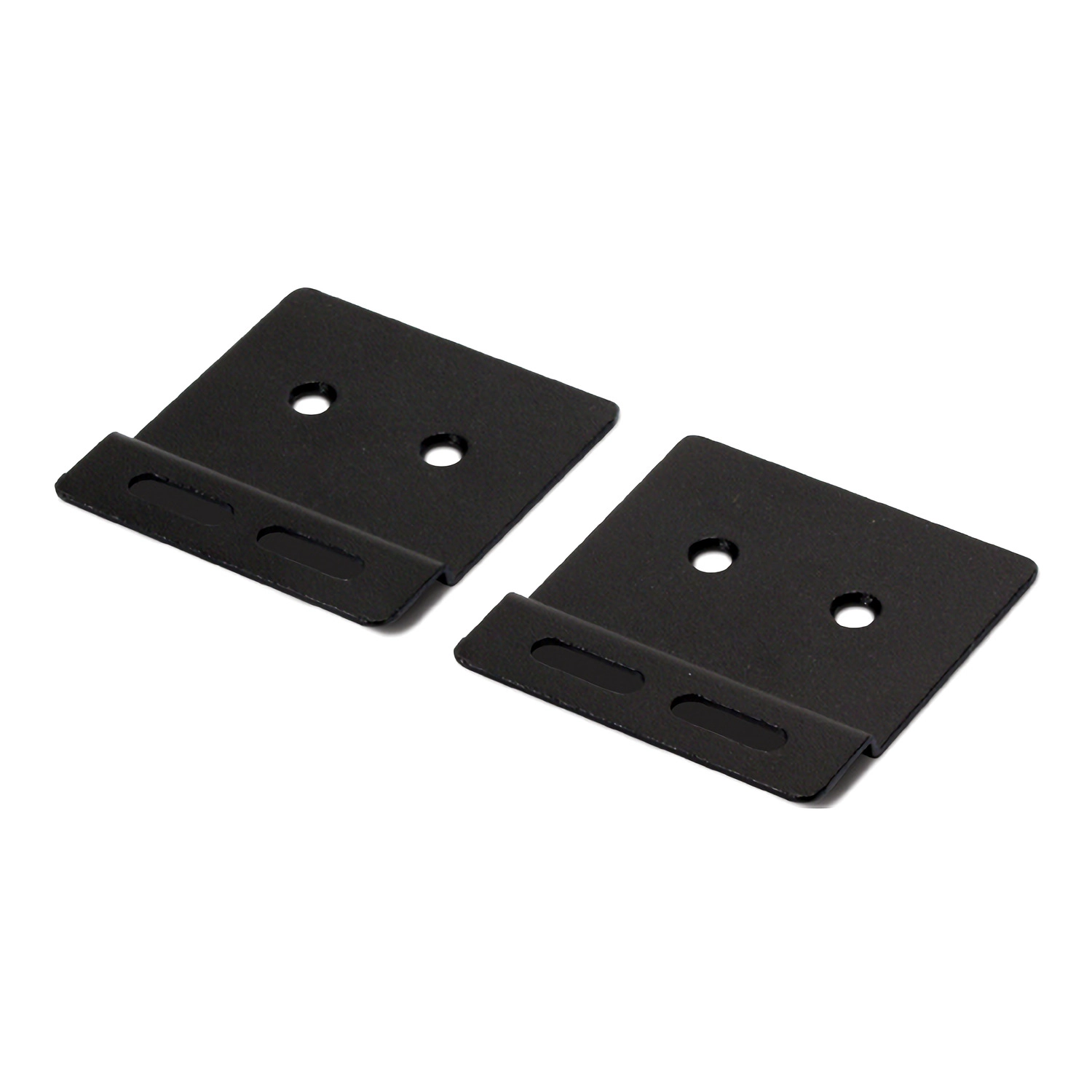

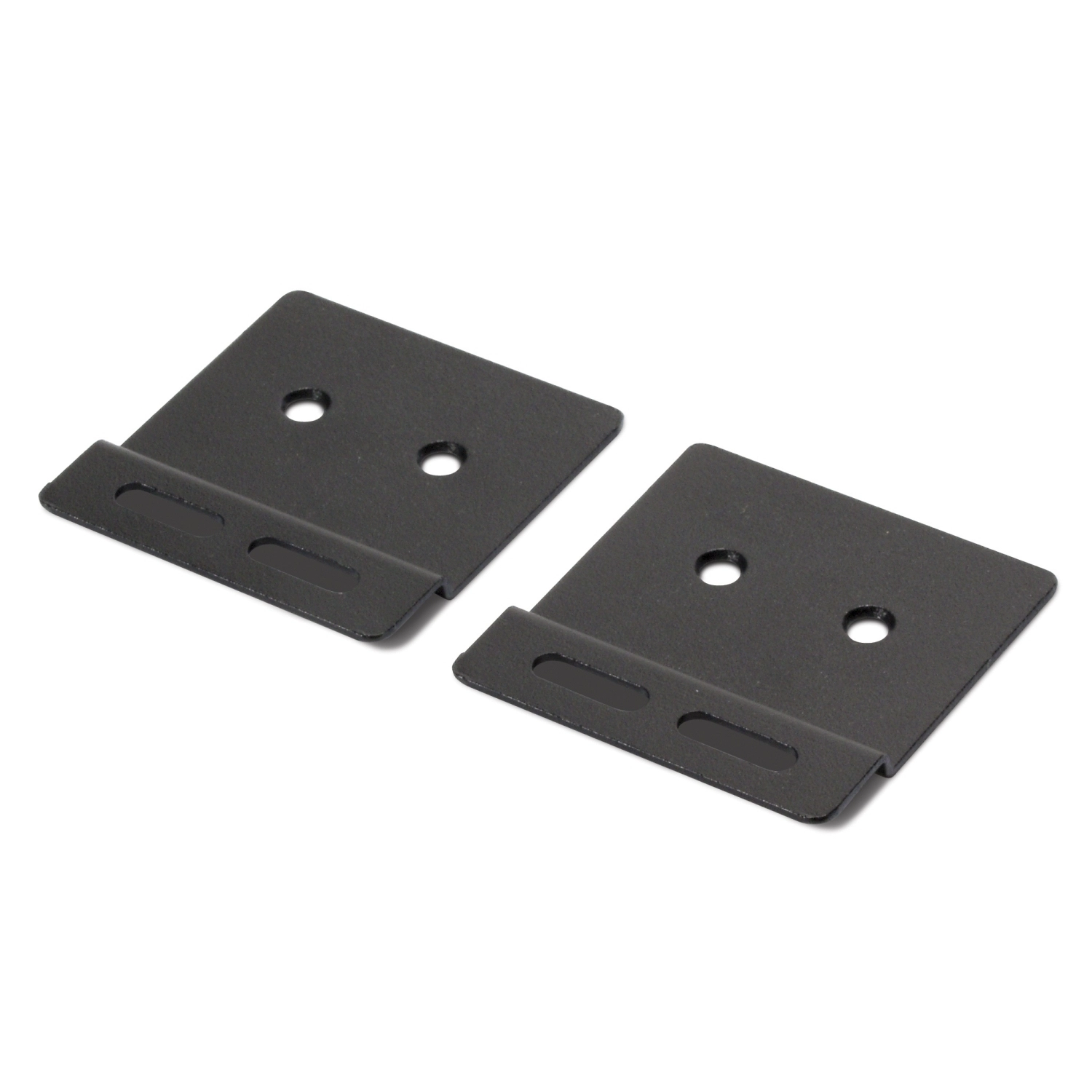

APC's Rack PDU Accessories contain bracket kits specifically designed to mount many of APC's vertical Rack Power Distribution Units (PDUs) into third party racks or enclosures as well as a cord retention bracket to help retain power cord connection to the Rack PDUs. Specially designated SKUs in the Basic, Metered, and Switched Rack PDUs can utilize these bracket kits. See features list to see if your Rack PDU is compatible with these brackets. See model names for rack vendor compatibility.

Specification

Product
Product id	156767
Brand	American Power Conversion
Partnr	AP7400
EAN/UPC code	731304217534
Warranty (months)	Core product: 24 month(s)
Technical details
Product colour	Black
Country of origin	United States
Preferred mounting position	no preference
Halogen free	N
Packaging recycled materials	Recycled cardboard
Total carbon footprint	0.7149296024 kilogram CO2e
Compliance certificates	RoHS, REACH, WEEE
Mounting	front
Maximum weight capacity	0.200 kg
Rack capacity	0U
SCIP number	1cdb2fed-a06f-4574-913d-8df8e70936b2
Take-back system	N
Sustainable packaging	N
Packaging without single use plastic	N
Other features
Dimensions (WxDxH)	64 x 67 x 6 mm
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance	Y
Weight & dimensions
Weight	110 g
Width	63.5 mm
Depth	66.8 mm
Height	6.4 mm
Packaging data
Package dimensions (WxDxH)	229 x 165 x 44 mm
Package weight	200 g
Logistics data
Customs product code (TARIC)	7326909890
