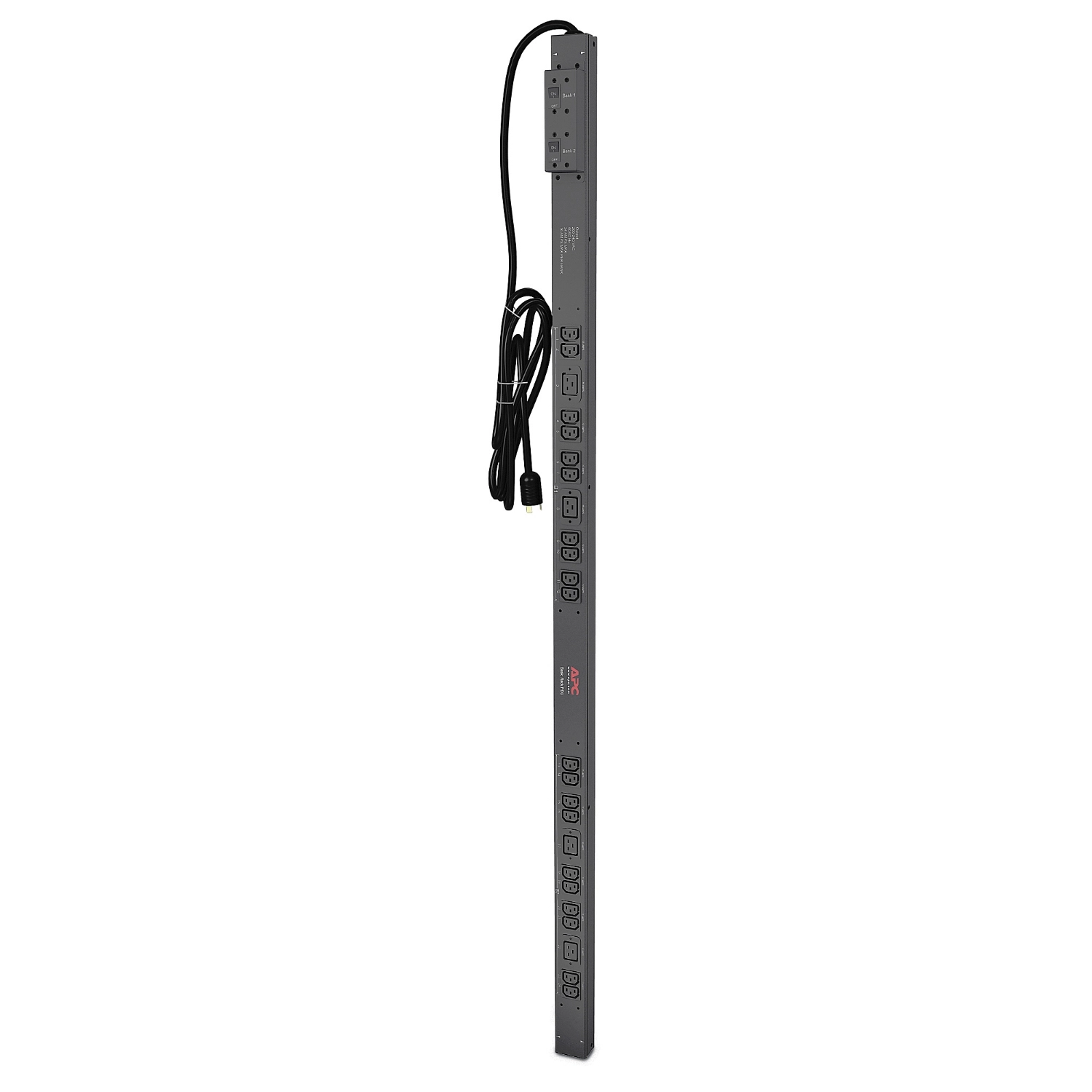

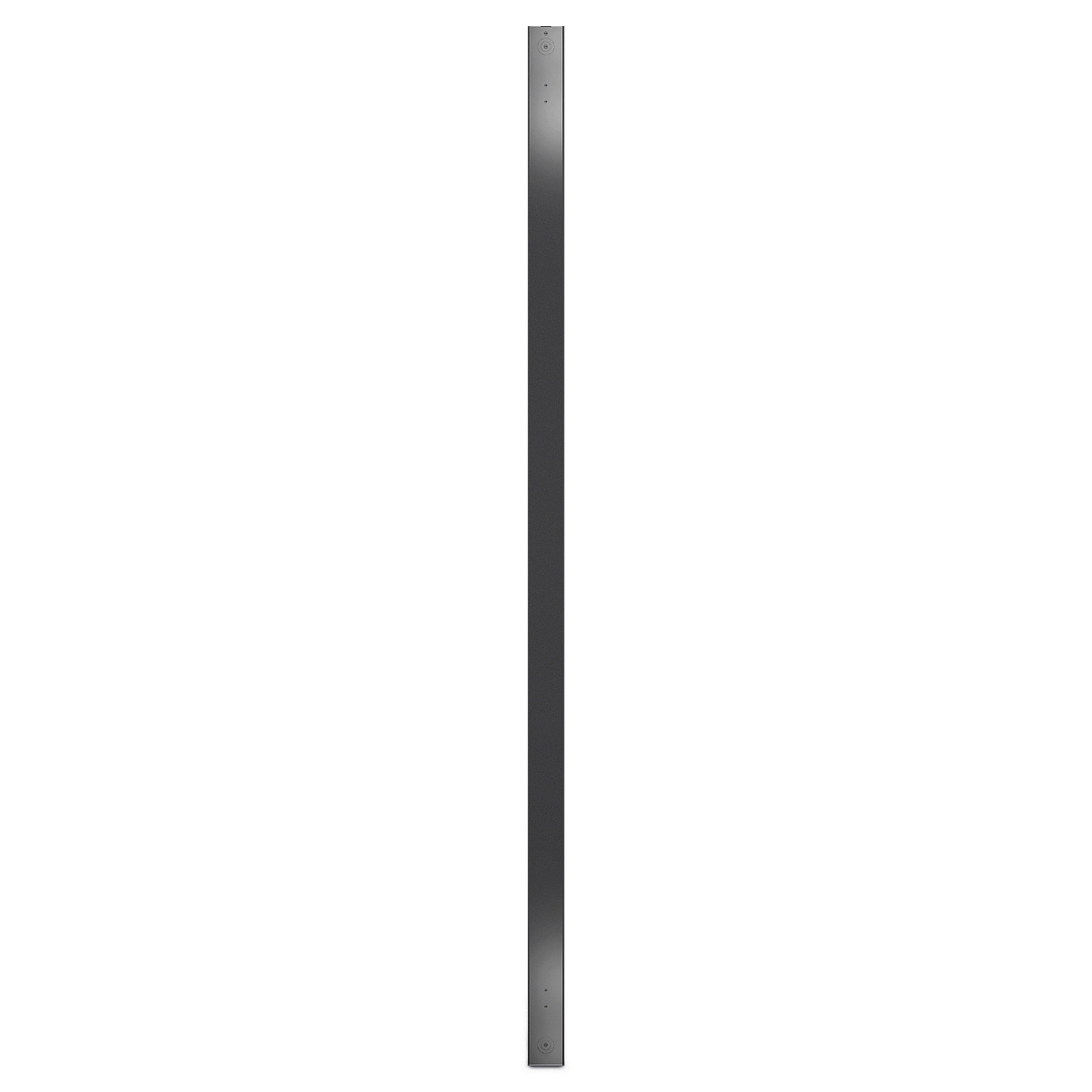

APC Basic Rack PDUs distribute reliable rack power distribution via a single input with multiple output receptacles. Easily mount this vertical PDU in racks or enclosures. It occupies zero U of valuable rack space, which allows space for more equipment in the rack. This vertical PDU does not require additional tools to mount into APC NetShelter Enclosures. Enables a quick recovery from overload events. Packaging Includes PDU, Installation guide, Rack Mounting brackets, Toolless Mounting Kit

Specification

Product
Product id	490449
Brand	American Power Conversion
Partnr	AP7541
EAN/UPC code	731304225560
Warranty (months)	Core product: 24 month(s)
Design
PDU types	Basic
Type	Single-phase
Rack capacity	0U
Mounting	Vertical
Ports & interfaces
AC outlets quantity	24 AC-uitgang(en)
Power plug	NEMA L6-30P
AC outlet types	NEMA L6-30P
Cables included	Power
Power
AC input frequency	50 - 60 Hz
Maximum current	30 A
Output voltage	200 V; 208 V V
Load capacity	4992 VA
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance	Y
Weight & dimensions
Width	56 mm
Depth	44 mm
Dimensions (WxDxH)	56 x 44 x 1619 mm
Height	1619 mm
Weight	5570 g
Package weight	6480 g
Packaging data
Package width	127 mm
Package depth	152 mm
Package height	2121 mm
Technical details
Nominal input voltage	208 V
Preferred mounting position	no preference
Cable length	3.05 m
Compliance certificates	RoHS, REACH, WEEE
Halogen free	N
Maximum input current per phase	30 A
Maximum total current draw per phase	24 A
Packaging recycled materials	Recycled cardboard
Output connections	(20) IEC 320 C13 (4) IEC 320 C19
Input connection type	NEMA L6-30P
Certification	cUL, CSA C22.2 No. 60950-1-03, METI Denan, UL 60950-1, UL
Sustainable packaging	N
Product colour	Black
Take-back system	N
Packaging without single use plastic	N
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	0 - 95 procent
Storage relative humidity (H-H)	0 - 95 procent
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15240 m
Logistics data
Country of origin	India
Total carbon footprint	3936.6696350091 kilogram CO2e
Customs product code (TARIC)	8544429090
