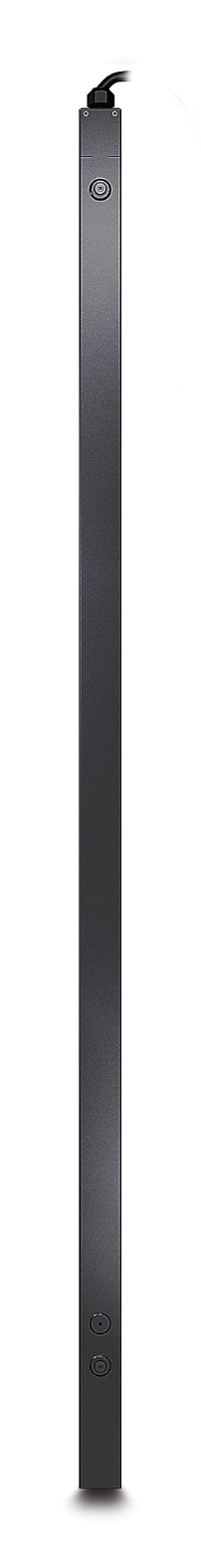

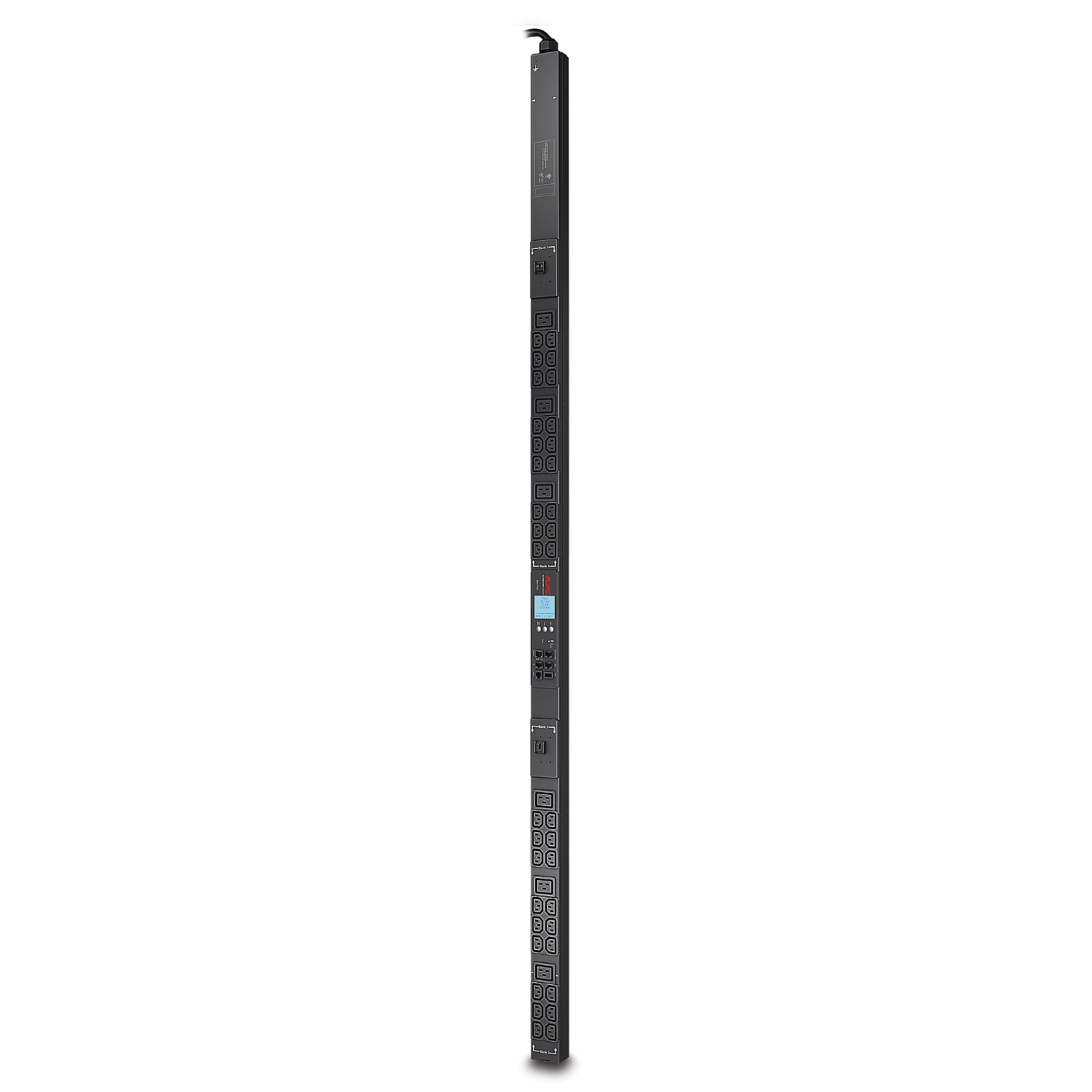

Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Specification

Product
Product id	631580
Brand	American Power Conversion
Partnr	AP8841
EAN/UPC code	731304277002
Warranty (months)	2 years repair or replace
Design
PDU types	Basic
Type	Single-phase
Rack capacity	0U
Mounting	Vertical
Ports & interfaces
AC outlets quantity	42 AC-uitgang(en)

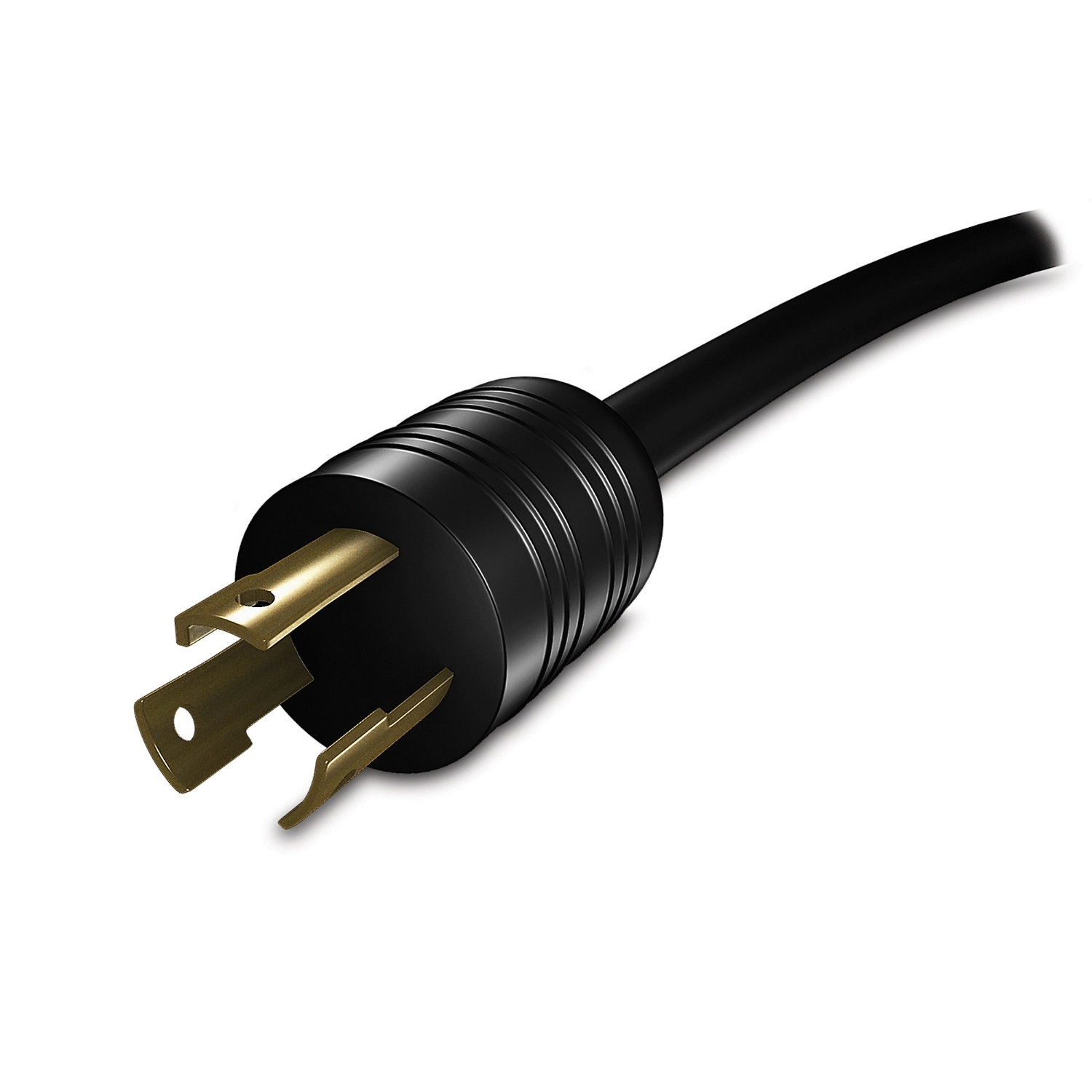

Power plug	NEMA L6-30P
AC outlet types	NEMA L6-30P
Cables included	Serial
Power
AC input frequency	50 - 60 Hz
Maximum current	30 A
Output voltage	200 V; 208 V V
Load capacity	4992 VA
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance	Y
Weight & dimensions
Width	56 mm
Depth	44 mm
Dimensions (WxDxH)	56 x 44 x 1791 mm
Height	1791 mm
Weight	6840 g
Package dimensions (WxDxH)	162 x 107 x 2000 mm
Package weight	8470 g
Packaging data
Package width	107 mm
Package depth	162 mm
Package height	2000 mm
Packaging content
Manual	Y
Technical details
Nominal input voltage	200; 208 V
Preferred mounting position	no preference
Cable length	3 m
Compliance certificates	RoHS, REACH, WEEE
Halogen free	N
Maximum input current per phase	30 A
Removable battery	Y
Maximum total current draw per phase	30 A
Packaging recycled materials	Recycled cardboard
Output connections	36x IEC 320 C13 6x IEC 320 C19
Input connection type	NEMA L6-30P
Certification	CSA C22.2 No. 60950, IEC 60950, METI Denan, UL 60950-1, VDE RoHS, REACH
Sustainable packaging	N
Product colour	Black
Take-back system	N
Packaging without single use plastic	N
Operational conditions
Operating temperature (T-T)	5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	5 - 95 procent
Storage relative humidity (H-H)	5 - 95 procent
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15240 m
Logistics data
Country of origin	India
Total carbon footprint	2676.8173692539 kilogram CO2e
Customs product code (TARIC)	8537109899
