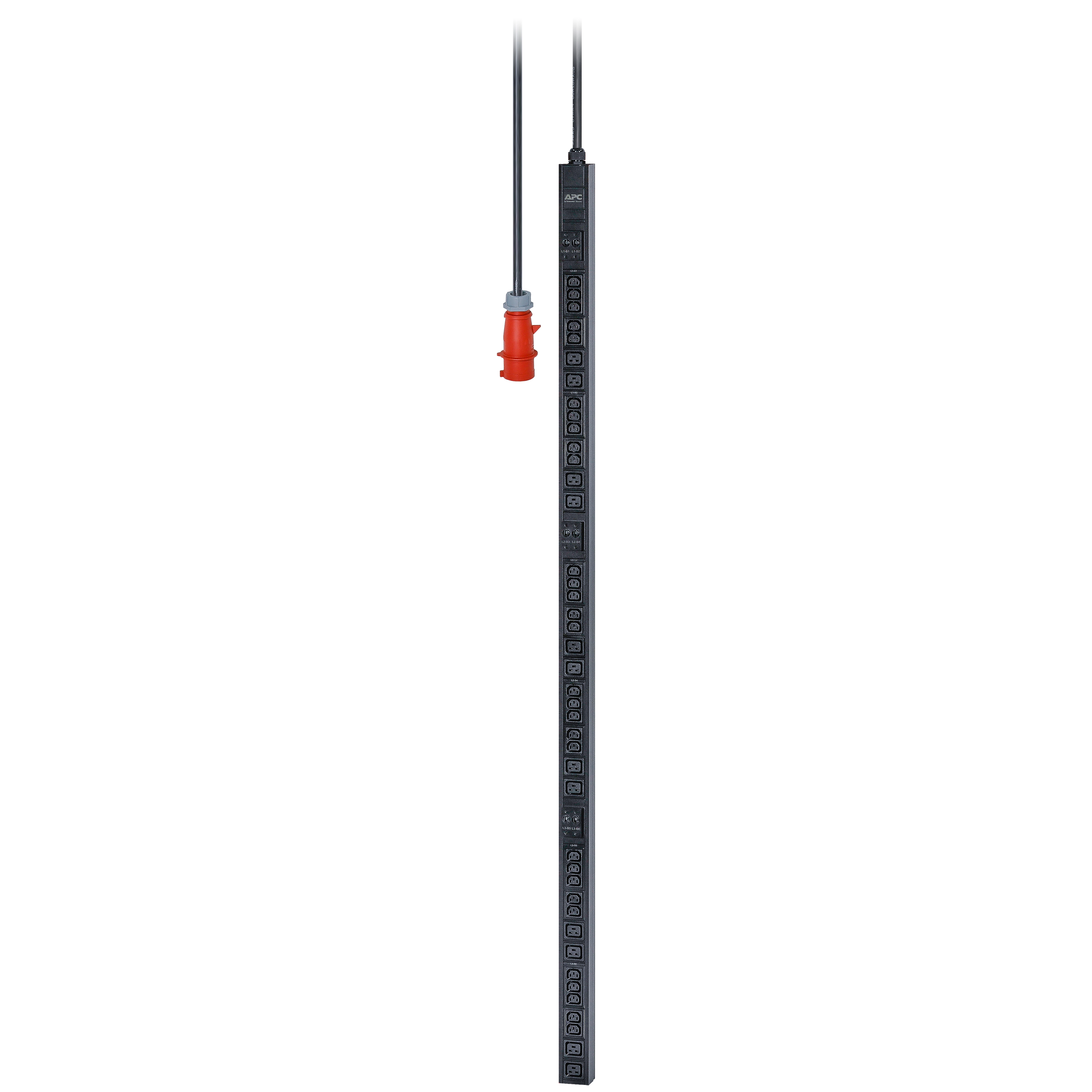

Easy PDU Basic Zero U 22 kW 230V (30) C13 and (12) C19 IEC309



American Power Conversion
In stock
€ 691,76
€ 837,02 incl 21% VAT
Easy Basic PDU provide reliable rack power distribution units (PDU) that offer more than a power strip for server rack and network rack solutions.

Resettable circuit breakers
Enables a quick recovery from overload events.

Toolless Rack Mounting Capabilities
Server cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure.

Zero U Rack Mounting Abilities
Vertical mounting capabilities allow users to mount the units in a rack or enclosure without expending valuable rack space.

Agility

Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.

Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.

Cost Savings

Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.

Specification

Product
Product id 674326
Brand American Power Conversion
Partnr EPDU1232B
EAN/UPC code 731304405061
Warranty (months) 1 year repair or replace
Design
PDU types Basic
Type Three-phase
Rack capacity 0U
Mounting Vertical
Ports & interfaces
AC outlets quantity 42 AC-uitgang(en)
Power plug IEC 60309
AC outlet types C13 coupler, C19 coupler
Power
Nominal output voltage 230 V
AC input frequency 50/60 Hz
Maximum current 32 A
Load capacity 22000 VA
Weight & dimensions
Width 62 mm
Depth 44 mm
Height 1794 mm
Weight 5140 g
Package weight 6200 g
Packaging data
Package width 160 mm
Package depth 110 mm
Package height 1950 mm
Packaging content
Manual Y
Technical details
Nominal input voltage 400 V
Cable length 2 m
Maximum input current per phase 32 A
Certification CE, TUV
Product colour Black
Operational conditions
Operating temperature (T-T) -5 - 45 °C
Storage temperature (T-T) -25 - 65 °C
Operating relative humidity (H-H) 5 - 95 procent
Storage relative humidity (H-H) 5 - 95 procent
Operating altitude 0 - 3000 m
Non-operating altitude 0 - 15000 m
