EASY PDU METERED ZERO U 22 KW 230V (18) C13 & (6) C19IEC309



American Power Conversion
Not in stock
€ 1.197,73
€ 1.449,25 incl 21% VAT

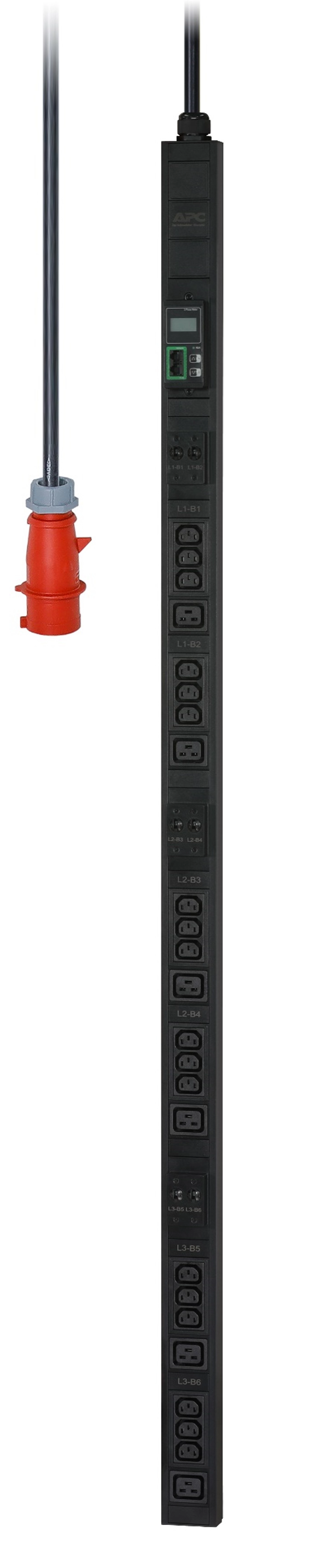

Easy Metered Rack Power Distribution Units (PDU) provide real-time remote
monitoring and power management of connected loads in server rack and network
rack solutions. Going beyond the average power strip, Easy PDU offers User-defined
alarms to warn of potential circuit overloads before critical IT failures occur.


Easy Metered Rack Power Distribution Units (PDU) provide real-time remote monitoring and power management of connected loads in server rack and network rack solutions. Going beyond the average power strip, Easy PDU offers User-defined alarms to warn of potential circuit overloads before critical IT failures occur.

Remote Management Capabilities
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.

Toolless Rack Mounting Capabilities
Server cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure.

Zero U Rack Mounting Abilities
Vertical mounting capabilities allow users to mount the units in a rack or enclosure without expending valuable rack space.

Specification

Product
Product id 793113
Brand American Power Conversion
Partnr EPDU1232M
EAN/UPC code 731304405115
Warranty (months) 1 year
Design
PDU types Metered
Type Three-phase
Rack capacity 0U
Mounting Vertical
Housing material Aluminium
Display LCD
On/off switch N
Ports & interfaces
AC outlets quantity 32 AC-uitgang(en)
Power plug C13 coupler
AC outlet types C13 coupler, C19 coupler
Features
Daisy chain N
Reset button Y
LED indicators Y
Management features
Monitoring Current, Power, Voltage
Power
Nominal output voltage 230 V
AC input frequency 50 - 60 Hz
Maximum current 32 A
Output voltage 230 V
Load capacity 22000 VA
Weight & dimensions
Width 62 mm
Depth 44 mm
Height 1506 mm
Weight 4640 g
Technical details
Nominal input voltage 400 V
Sustainability certificates RoHS
Certification CE, EAC, RCM, TUV
Product colour Black
Operational conditions
Operating temperature (T-T) -5 - 45 °C
Storage temperature (T-T) -25 - 65 °C
Operating relative humidity (H-H) 5 - 95 procent
Storage relative humidity (H-H) 5 - 95 procent
