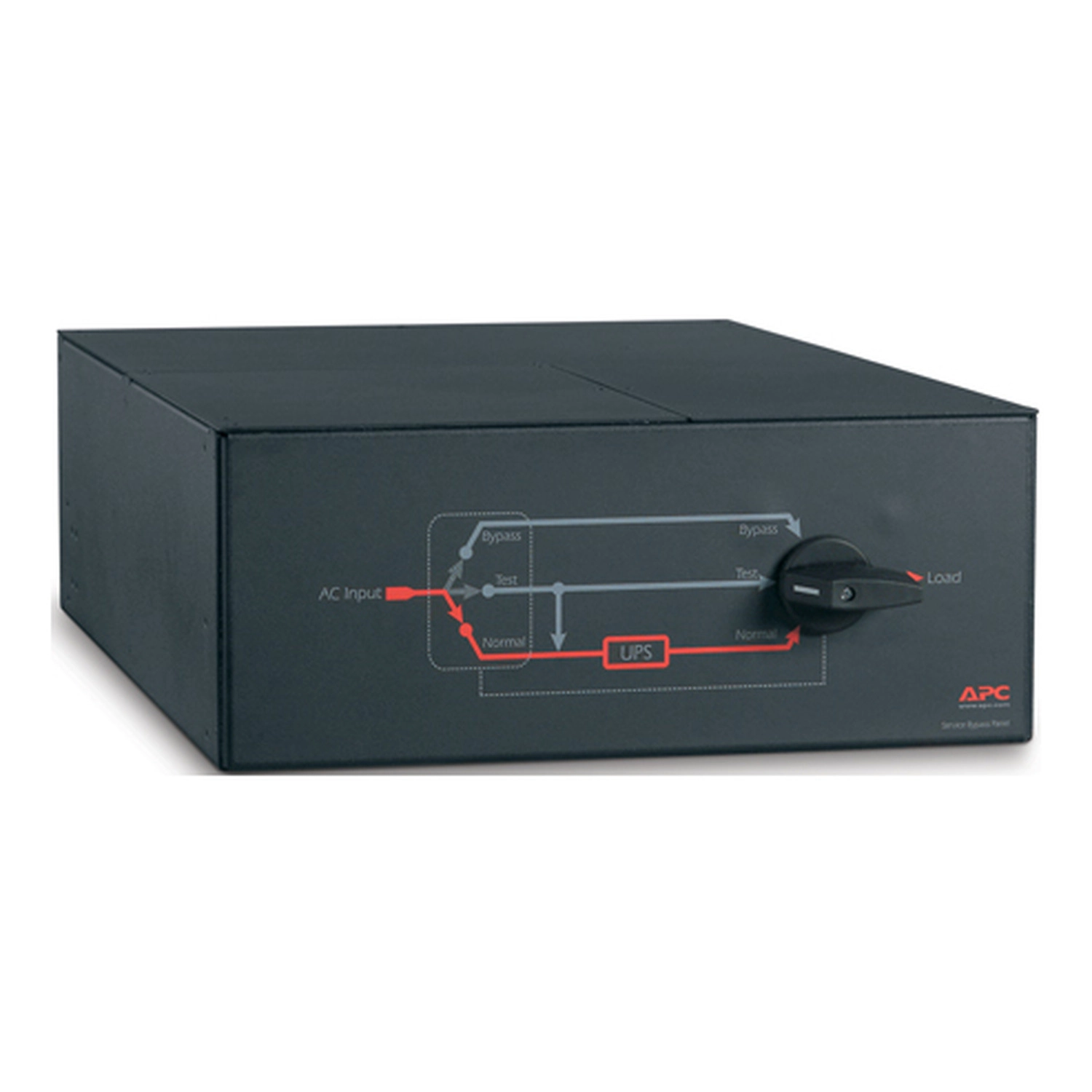

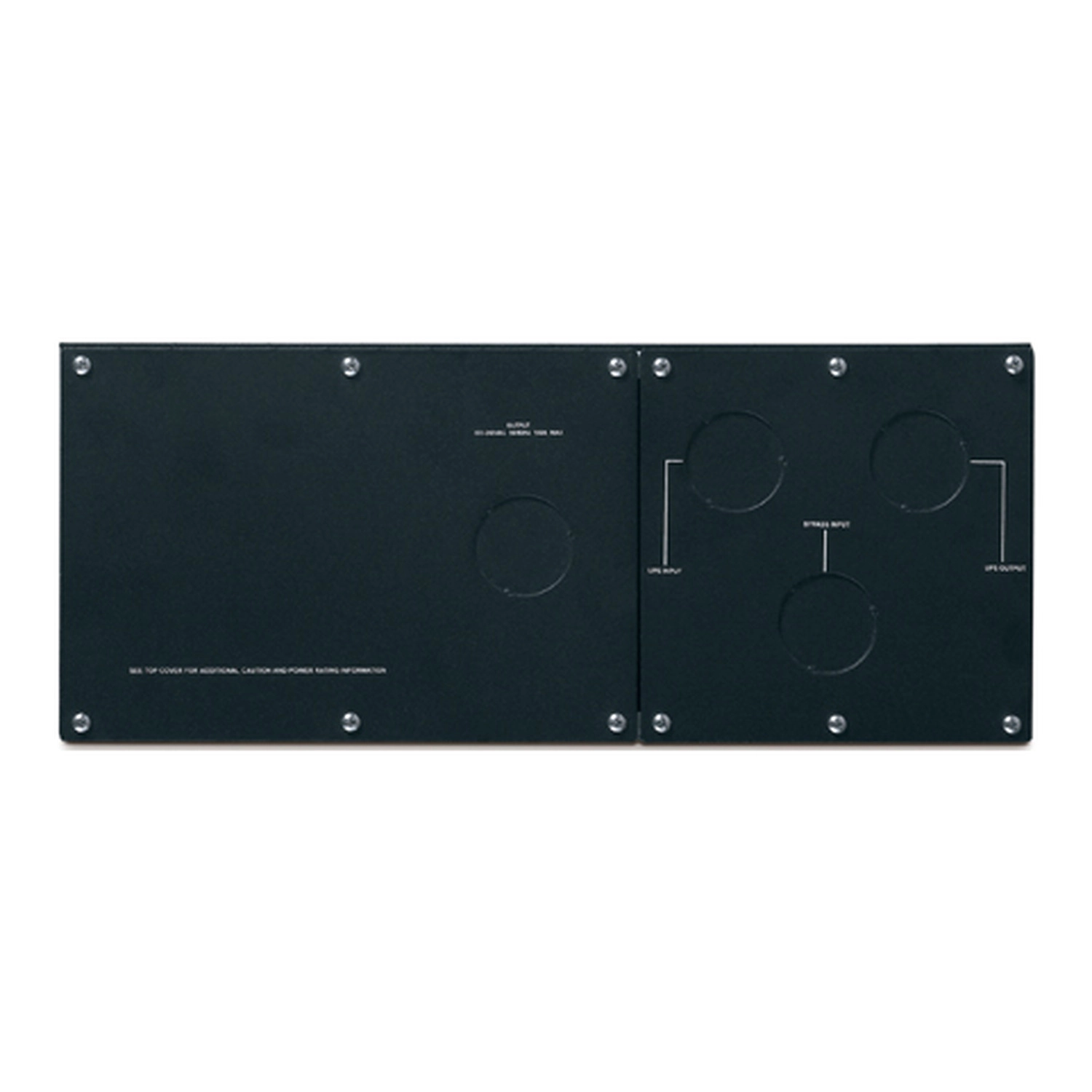

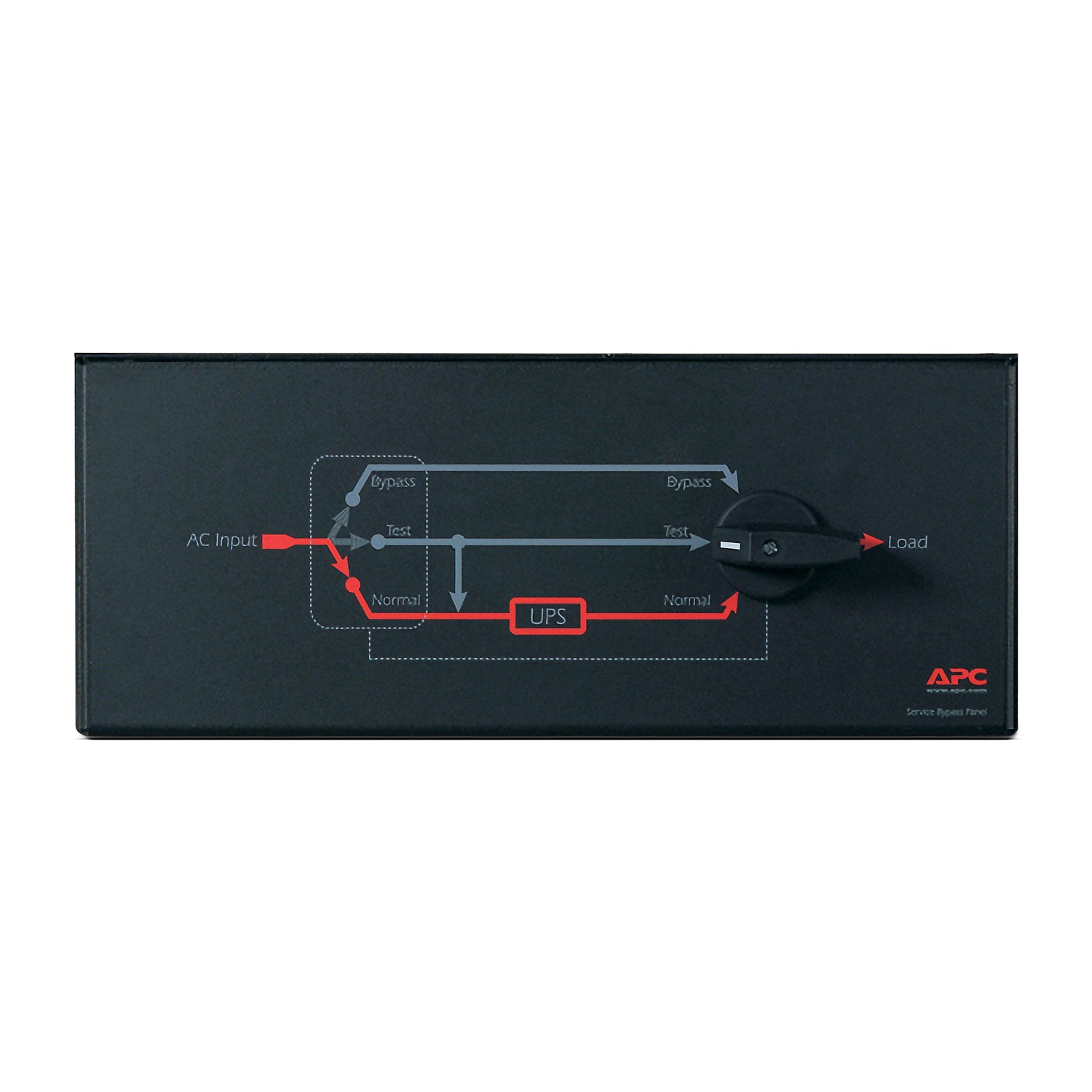

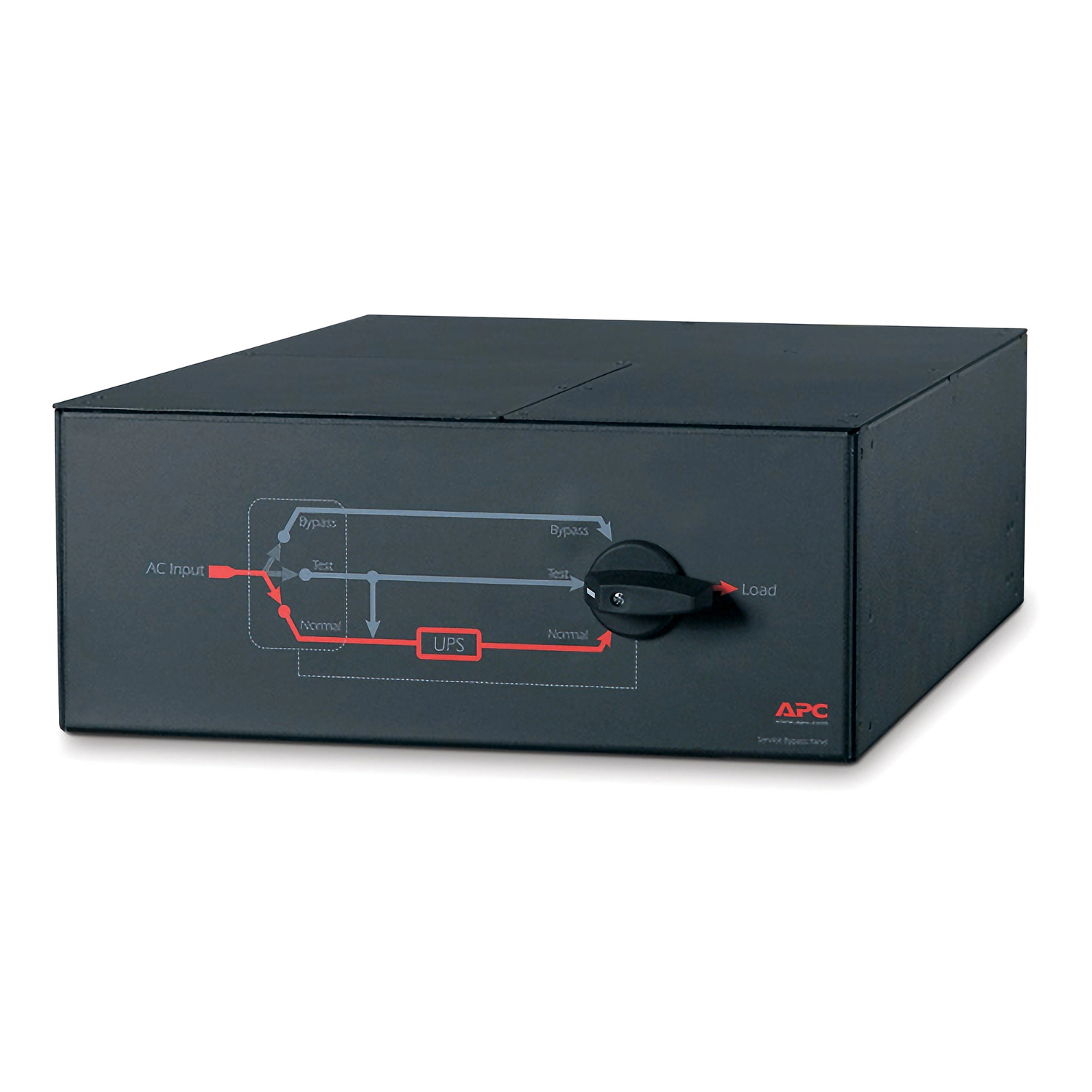

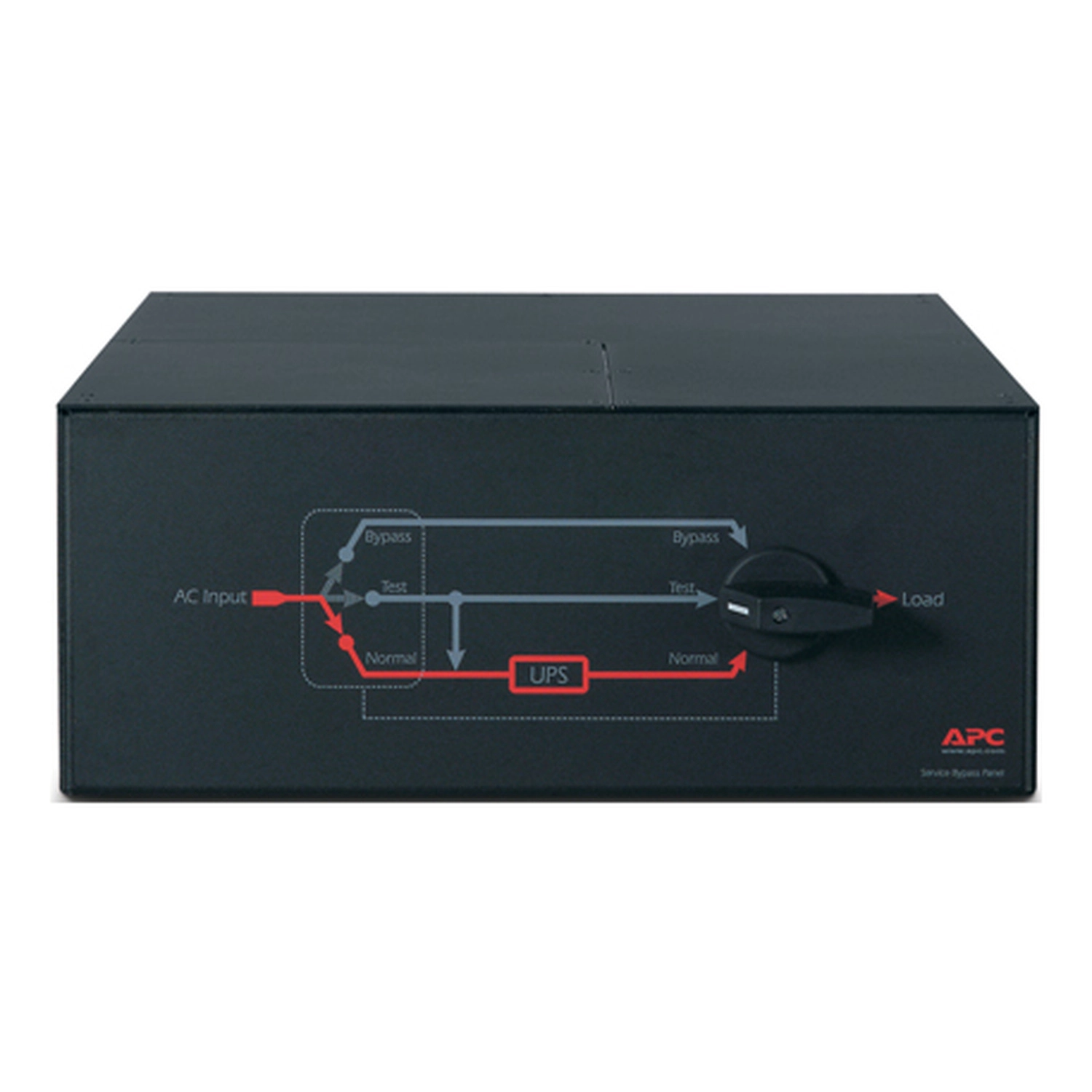

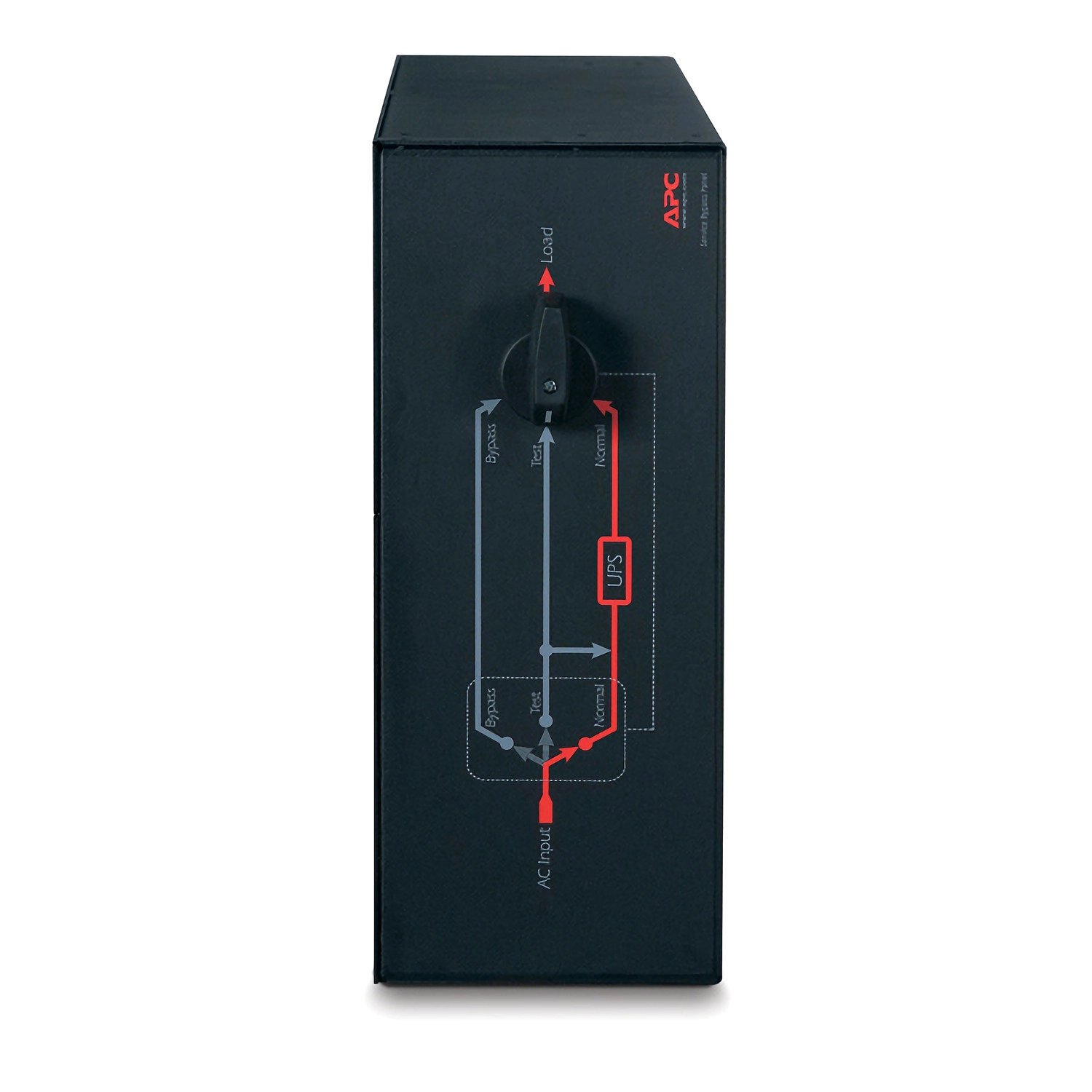

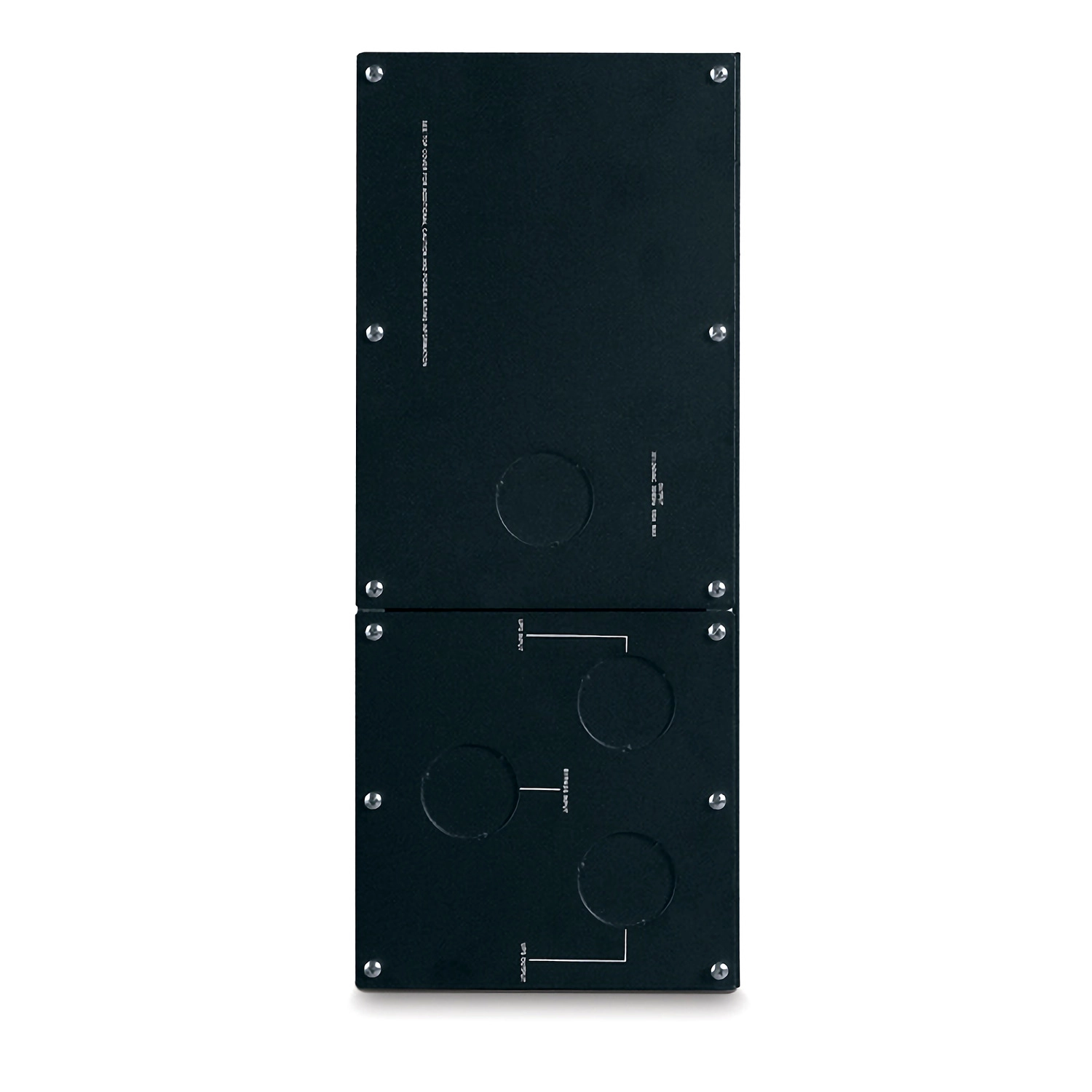

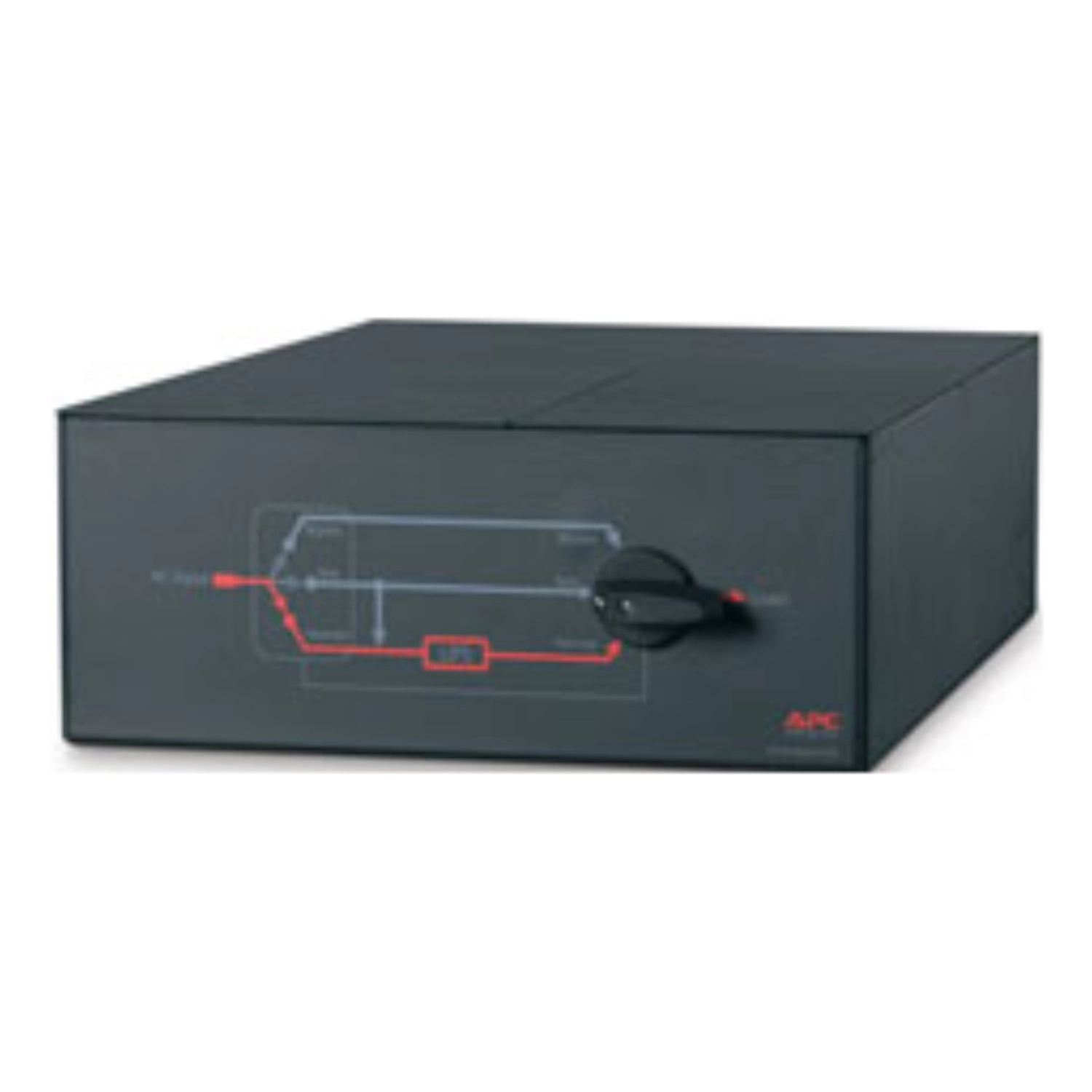

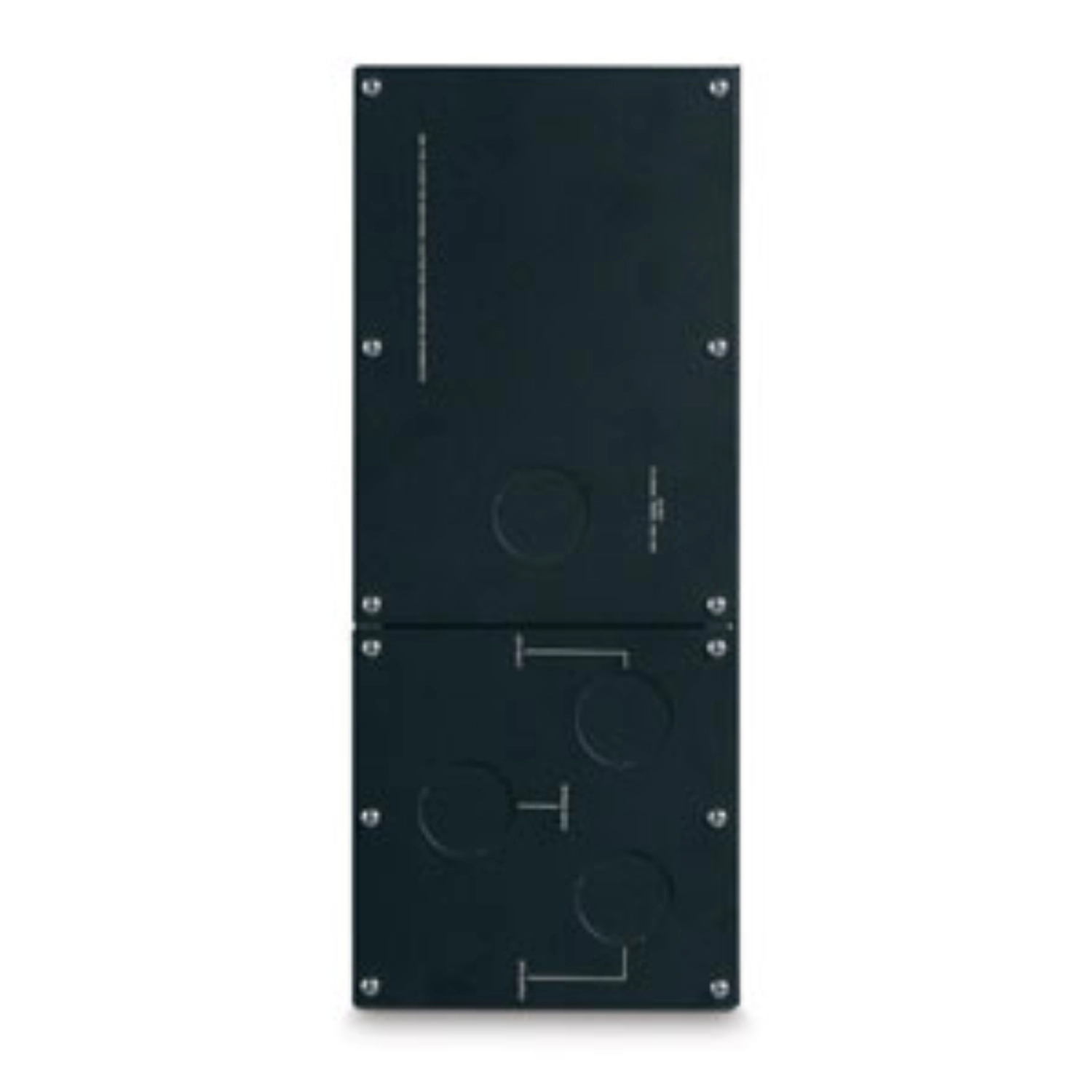

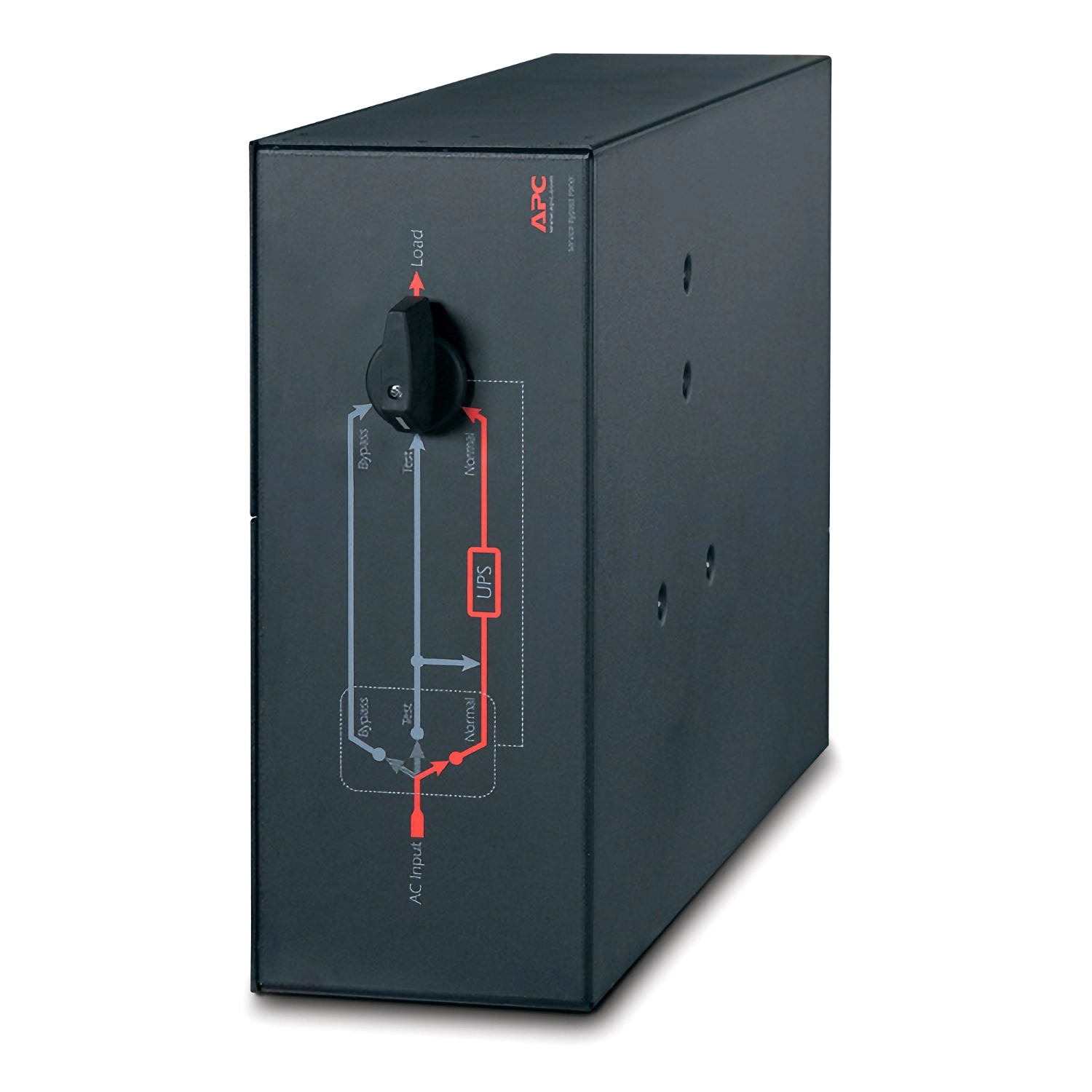

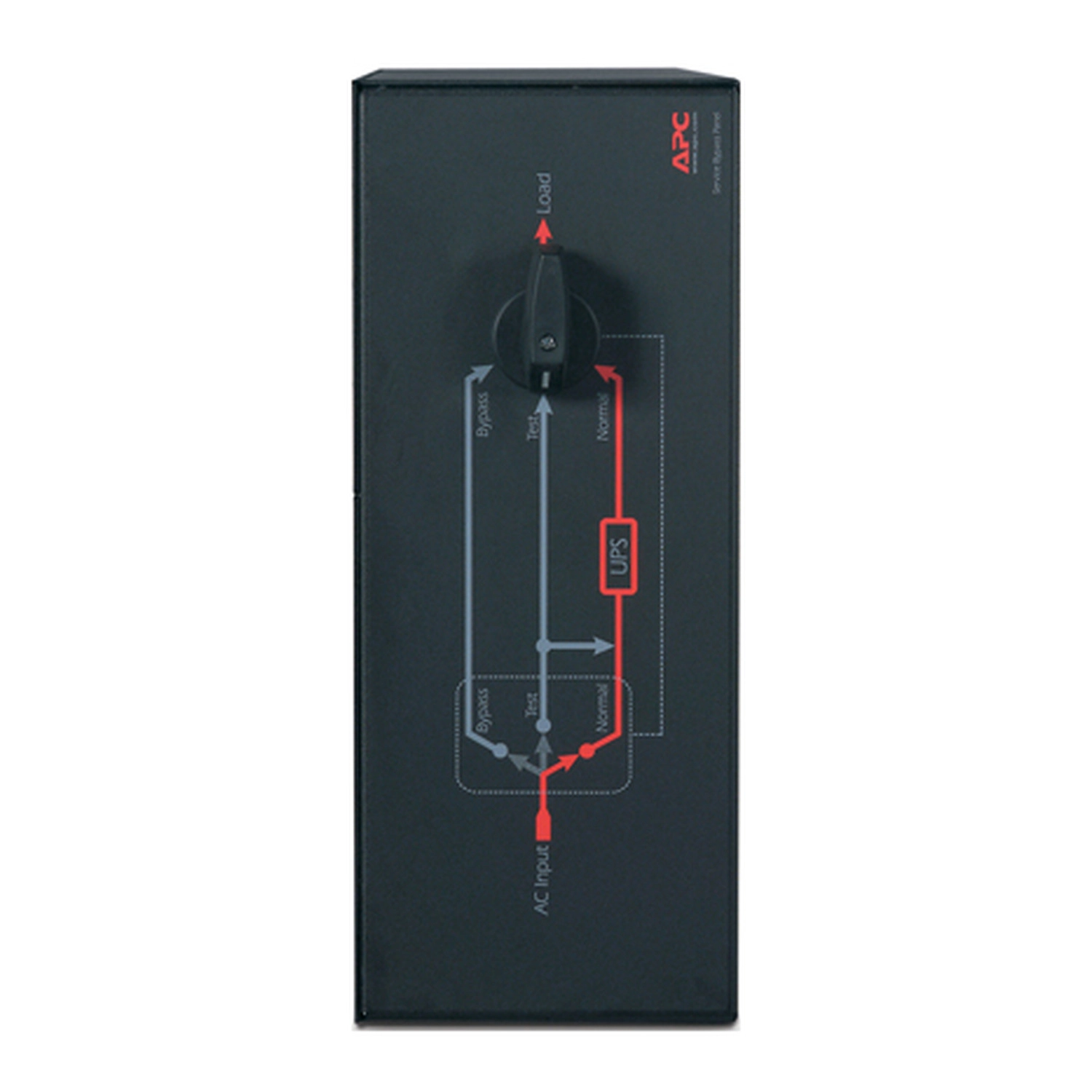

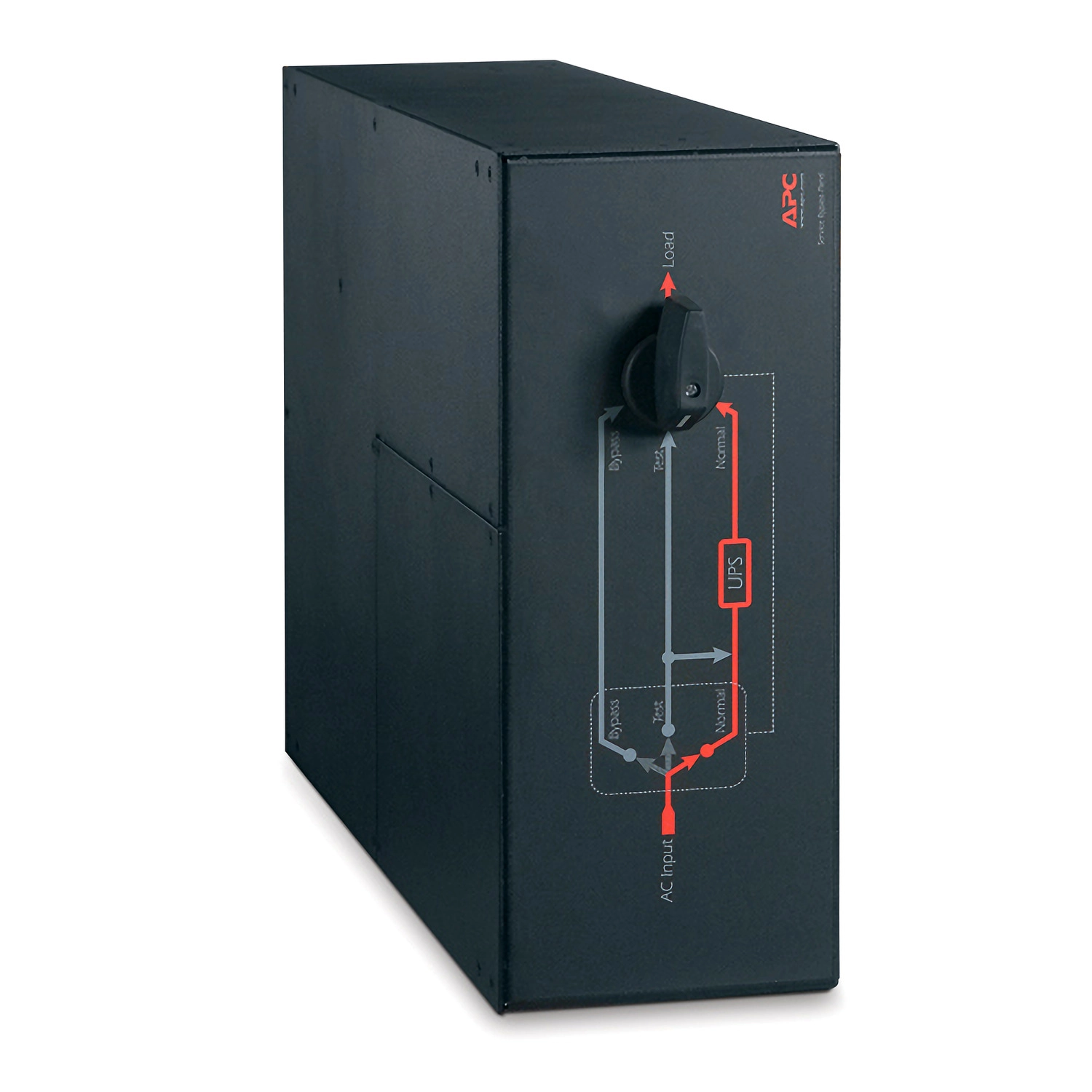

APC Service Bypass Panel- 200/208/240V; 100A; MBB; Hardwire input/output

Extremely reliable service bypass panels designed for APC InfraStruXure® Type A, Smart-UPS, and Symmetra UPS products.

Specification

Product
Product id	126728
Brand	American Power Conversion
Partnr	SBP16KP
EAN/UPC code	731304212645
Warranty (months)	2 years
Power
AC input voltage	200 / 208 / 230 / 480 3 phases V
AC input frequency	50 - 60 Hz
Performance
Certification	CSA; GOST
Compatible products	Hard Wire 3 wire (1PH+1PH+G), Hard Wire 3 wire (1PH+N+G), Hard Wire 4-wire (2PH+N+G), Hard Wire 5-wire (3PH + N + G)
Country of origin	China
Technical details
Compliance certificates	RoHS, REACH, WEEE
Operational conditions
Operating temperature (T-T)	-20 - 50 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	0 - 95 procent
Weight & dimensions
Width	432 mm
Depth	660 mm
Height	178 mm
Weight	21360 g
Other features
Operating altitude	0 - 4500 m
Dimensions (WxDxH)	432 x 660 x 178 mm
Output connections	hard wire 3-wire (H N + E) for 1 zone(s); hard wire 3-wire (2P + E) for 1 zone(s); hard wire 4-wire (2P + N + E) for 1 zone(s)
Mounting	front
Rack capacity	4U
AC output voltage	120 / 200 / 208 / 230 V
Customs product code (TARIC)	8537109199
Packaging recycled materials	Recycled cardboard
Sustainable packaging	N
Preferred mounting position	lower
Packaging without single use plastic	N
Take-back system	N
