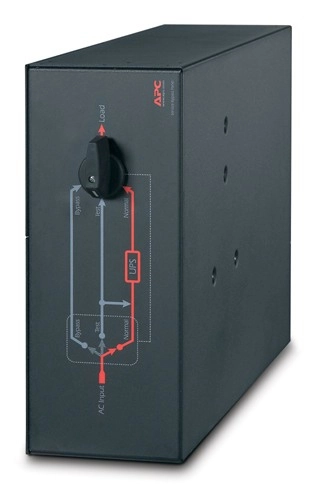

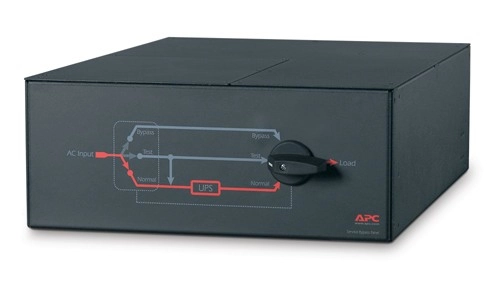

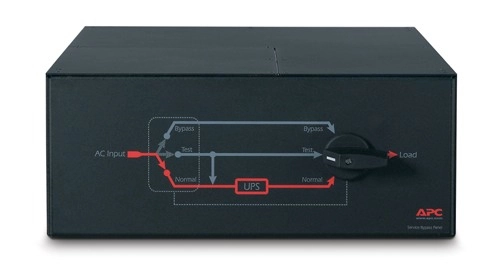

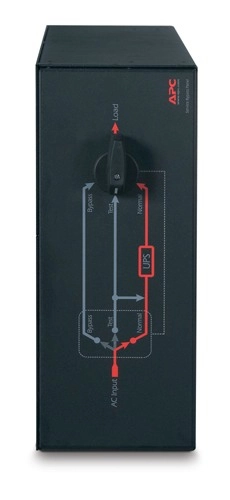

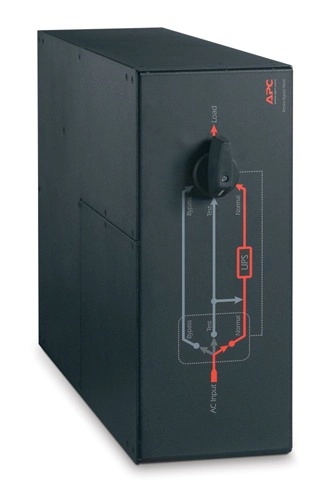

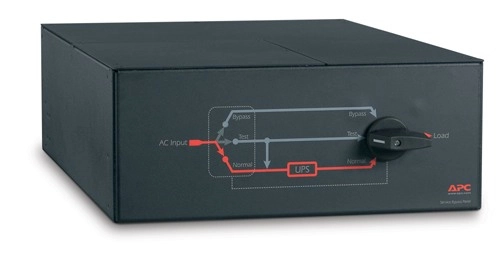

Service Bypass panel voor Symmetra RT 4-16 kVA (1+3 fase, tower/Rackmount 4U)



American Power Conversion
Not in stock
€ 1.467,15
€ 1.775,25 incl 21% VAT
- 19 inch Rack-Mountable
- Quick Transfer Rate
- Wrap Around System Bypass

Specification

Product
Product id 126729
Brand American Power Conversion
Partnr SBP16KRMI4U
EAN/UPC code 731304212652
Warranty (months) 12 months
Features
Product type Bypass switch
Mounting type Rack-mount
Product colour Black
Rack capacity 4U
Compatibility CSA, EN 60950, GOST, IEC 60950, IEC 60950, UL 1778
Certification CSA, EN 60950, GOST, IEC 60950, IEC 60950, UL 1778
Power
Load capacity 20000 VA
Input voltage 230 V
Input frequency 50/60 Hz
Number of phases 1
Maximum total current draw per phase 100 A
Weight & dimensions
Width 432 mm
Depth 673 mm
Height 178 mm
Weight 21820 g
Package width 610 mm
Package depth 991 mm
Package height 305 mm
Package weight 31820 g
Operational conditions
Operating temperature (T-T) -20 - 45 °C
Storage temperature (T-T) -40 - 65 °C
Operating relative humidity (H-H) 0 - 95 procent
Storage relative humidity (H-H) 0 - 95 procent
Operating altitude 0 - 4500 m
Non-operating altitude 0 - 15000 m
Technical details
Sustainability certificates RoHS
