Product |
Product id
| 526186
|
Brand
| American Power Conversion
|
Partnr
| SRT5KRMXLW-HW
|
EAN/UPC code
| 731304301516
|
Warranty (months)
| 3 years repair or replace (excluding battery) and 2 years for battery
|
Power |
Input frequency
| 40 - 70 Hz
|
Technical details |
Sustainability certificates
| RoHS, ENERGY STAR
|
Features |
UPS topology
| Double-conversion (Online)
|
Output power capacity
| 5 VA
|
Output power
| 4500 W
|
Waveform
| Sine
|
Input operation voltage (min)
| 100 V
|
Input operation voltage (max)
| 275 V
|
Output operation voltage (min)
| 220 V
|
Output operation voltage (max)
| 240 V
|
Output frequency regulation
| 50/60 Hz
|
Surge energy rating
| 480 J
|
Efficiency
| 93.8 procent
|
Crest factor
| 3:1
|
Emergency Power Off (EPO)
| Y
|
Noise level
| 55 dB
|
Surge protection
| Y
|
Audible alarm(s)
| Y
|
Auto-restart
| Y
|
Ports & interfaces |
AC outlet types
| Hard Wire 3-wire (2PH + G)
|
Power plug
| Terminal
|
USB port
| Y
|
Serial interface
| Y
|
Serial interface type
| RJ-45
|
SmartSlot
| Y
|
Battery |
Battery technology
| Sealed Lead Acid (VRLA)
|
Battery capacity
| 845 VAh
|
Number of batteries supported
| 1
|
Typical backup time at full load
| 4 min
|
Typical backup time at half load
| 11.8 min
|
Battery life (max)
| 5 jaar
|
Battery recharge time
| 1.5 uur
|

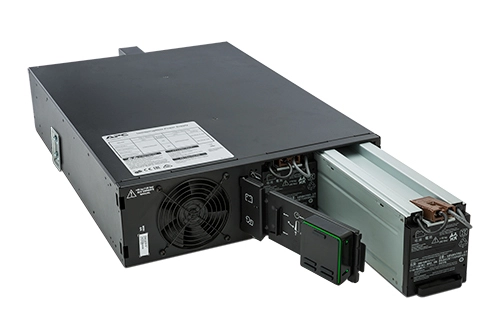

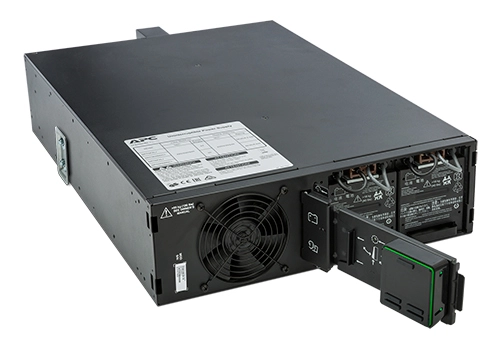

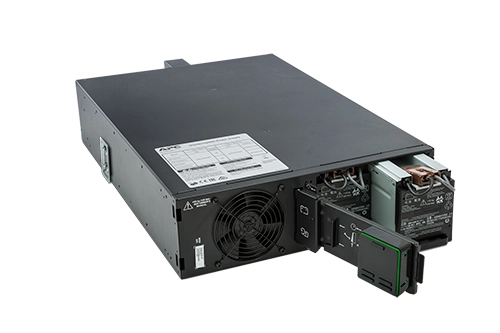

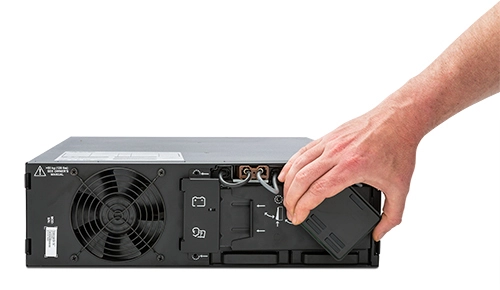

Hot-swap battery
| Y
|
Automatic battery test
| Y
|
Cold start
| Y
|
Design |
Form factor
| Rackmount
|
Product colour
| Black
|
Rack capacity
| 3U
|
LED indicators
| Status
|
International Protection (IP) code
| IP20
|
Display
| LCD
|
Certification
| REACH, CE, CE Mark, CSA C22.2 No.107.3-05, EAC, EN/IEC 62040-1, EN/IEC 62040-2, FCC Part 15 Class A, IRAM, NOM, RCM, UL
|
Operational conditions |
Operating temperature (T-T)
| 0 - 40 °C
|
Storage temperature (T-T)
| -15 - 45 °C
|
Operating relative humidity (H-H)
| 0 - 95 procent
|
Storage relative humidity (H-H)
| 0 - 95 procent
|
Operating altitude
| 0 - 3000 m
|
Non-operating altitude
| 0 - 15000 m
|
Packaging data |
Package width
| 610 mm
|
Package depth
| 960 mm
|
Package height
| 330 mm
|
Package weight
| 68040 g
|
Weight & dimensions |
Width
| 432 mm
|
Depth
| 719 mm
|
Height
| 130 mm
|
Weight
| 55790 g
|
Logistics data |
Quantity per pallet
| 6 stuk(s)
|
Other features |
Number of phases
| 3
|
Battery type
| APCRBC140
|
Output connections
| 1x Hard Wire 3-wire (2PH + G)
1x Hard Wire 3-wire (H N + G)
|
