Modular design
Increases adaptability with an open architecture configurable to any IT environment.

Modular design
Modular construction - can be deployed as a non-standby and migrate to a standby (UPS) system.

Modular design
Provides fast serviceability and reduced maintenance requirements via self-diagnosing, field-replaceable modules.

Input power factor correction
Minimizes installation costs by enabling the use of smaller generators and cabling.

Modular design
Modular design provides scalable solutions to add cooling as demand increases.

Fully-rated power kW equals kVA

Specification

Product
Product id	251192
Brand	American Power Conversion
Partnr	SYPM10K16H
EAN/UPC code	731304252153
Warranty (months)	1 year
Features

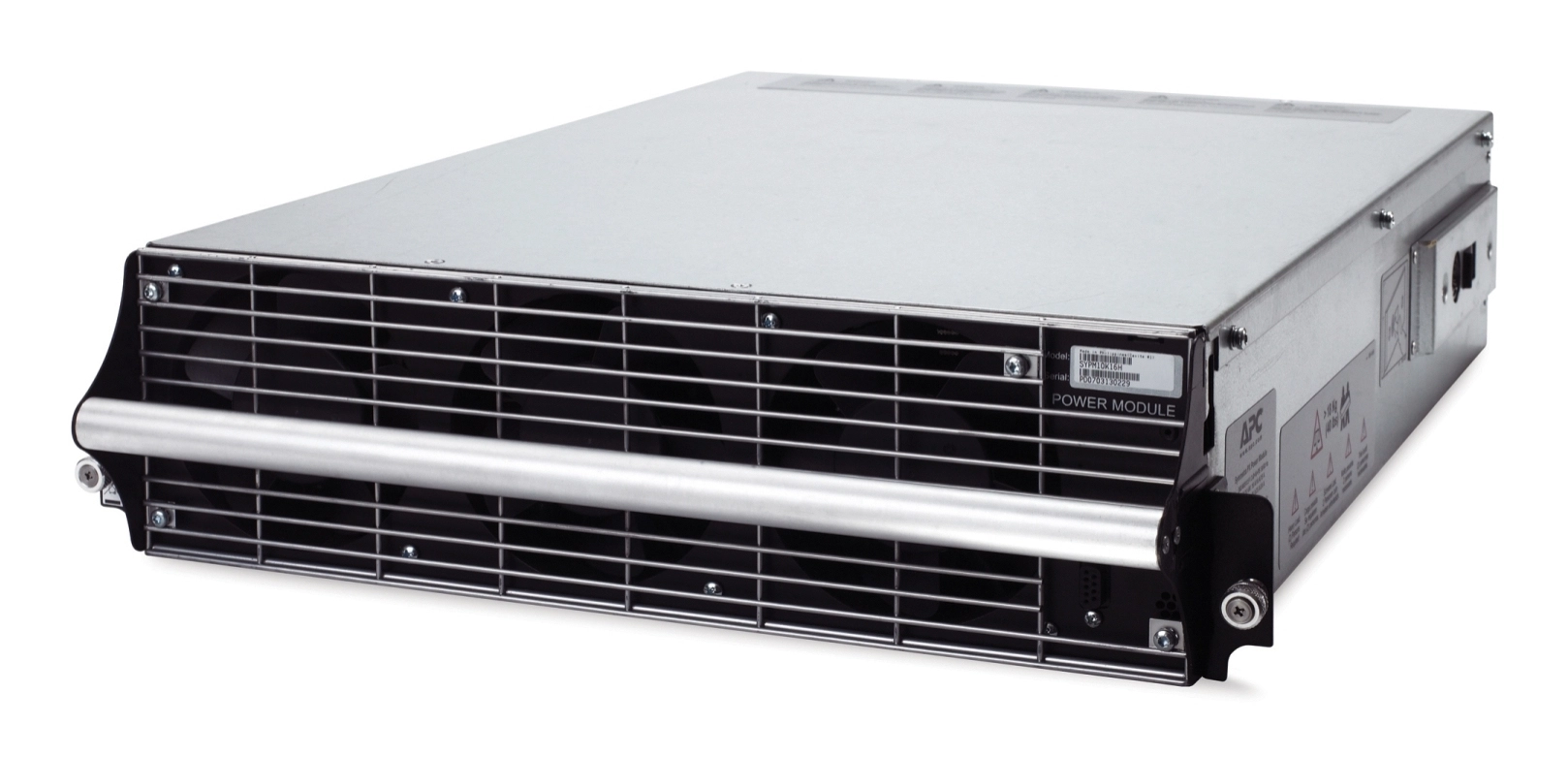

Product type	Power module
Product colour	Black, Grey
Noise level	63 dB
Certification	CE, EN 50091-1, EN 50091-3, FCC Part 15 Class A, VFI-SS-111
Power
Load capacity	16000 VA
Capacity	16000 W
Input voltage	400 V
Input frequency	40/70 Hz
Number of phases	3
Output voltage	400 V
Maximum total current draw per phase	33 A
Output power capacity	16 VA
Weight & dimensions
Width	483 mm
Depth	70 mm
Height	132 mm
Weight	28500 g
Package width	700 mm
Package depth	595 mm
Package height	225 mm
Package weight	31550 g
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-50 - 40 °C
Operating relative humidity (H-H)	0 - 95 procent
Storage relative humidity (H-H)	0 - 95 procent
Operating altitude	0 - 999.9 m
Non-operating altitude	0 - 4500 m
Technical details
Harmonized System (HS) code	85079080
Logistics data
Export Control Classification Number (ECCN)	EAR99
