Gaming Redefined
Power Meets Precision

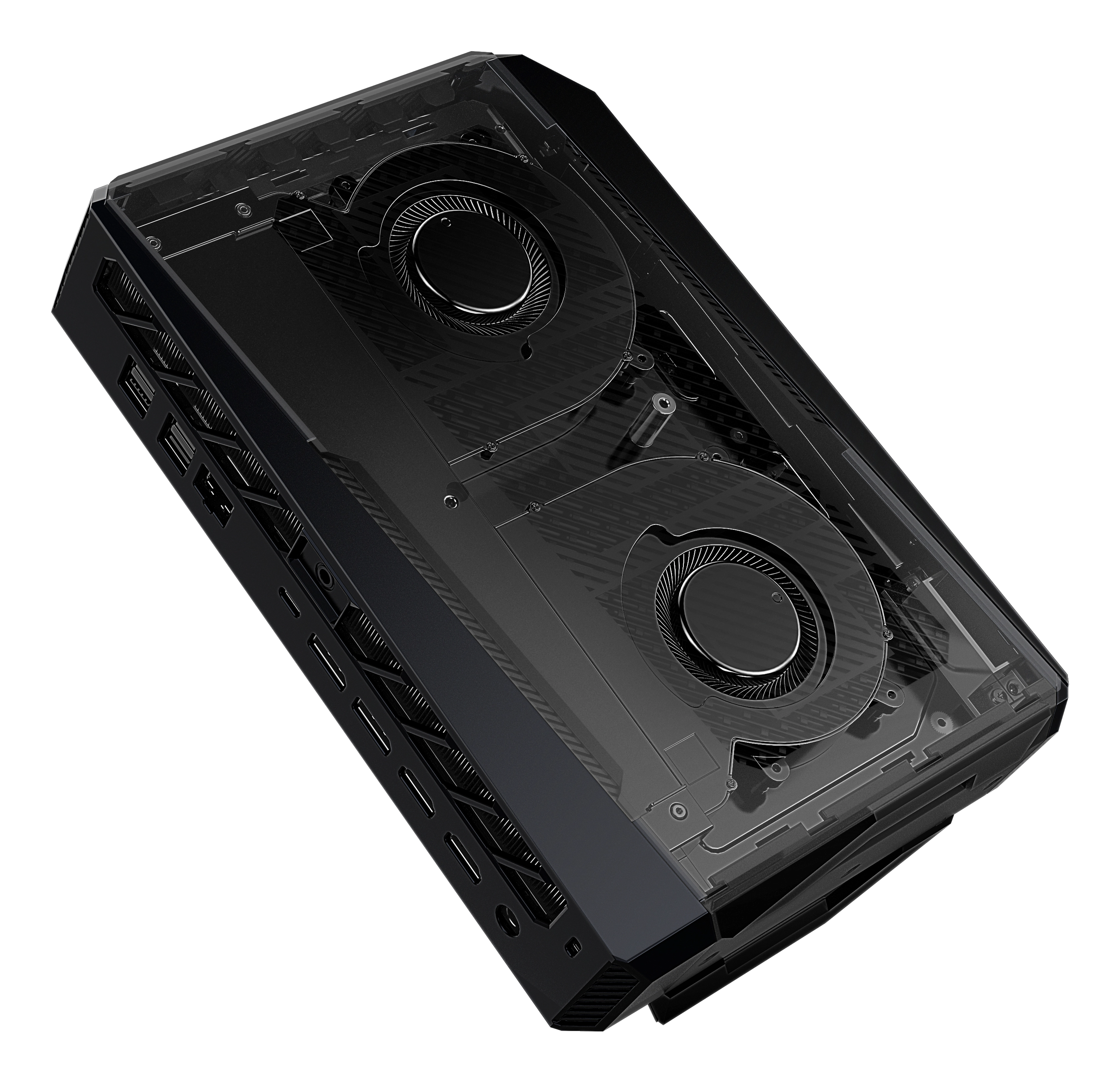

Unlock new gaming horizons with ROG NUC (2025), powered by the Intel® Core™ Ultra 9 processors (Series 2) and up to NVIDIA® GeForce RTX™ 5080 Laptop GPU. Equipped with triple fan cooling and support for five 4K displays, this compact powerhouse delivers unprecedented performance.

Specification

Product
Product id	1001514
Brand	AsusTek
Partnr	90AS00I1-M002Y0
EAN/UPC code	4711636132954
Processor
Processor manufacturer	Intel
Processor family	Intel Core Ultra 9
Processor generation	Intel Core Ultra (Series 2)
Processor model	275HX
Processor cores	24
Processor boost frequency	5.4 GHz
Performance cores	8
Efficient cores	16
Processor cache	36 MB
Performance-core base frequency	2.7 GHz
Processor threads	24
Efficient-core base frequency	2.1 GHz
Efficient-core Max Turbo Frequency	4.6 GHz
Performance-core Max Turbo Frequency	5.4 GHz
Processor base power	55 W
Maximum turbo power	160 W
Memory
Internal memory	32 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	32 GB
Memory slots	2x SO-DIMM
Memory clock speed	6400 MHz
Supported memory types	DDR5-SDRAM
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Y
Windows Studio effects support	Y
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance (up to)	36 TOPs
NPU performance up to	13 TOPs
GPU performance up to	8 TOPs
Storage
Total storage capacity	1000 GB
Optical drive type	N
Storage media	SSD
Total SSDs capacity	1000 GB
Number of SSDs installed	1
SSD capacity	1000 GB
SSD interface	PCI Express 4.0
NVMe	Y
SSD form factor	M.2
Compatible memory cards	SD
M.2 SSD size	2280 (22 x 80 mm)
Graphics
Discrete graphics adapter	Y
On-board graphics adapter	Y
Discrete GPU manufacturer	NVIDIA
Discrete graphics adapter model	NVIDIA GeForce RTX 5070
Discrete graphics memory type	GDDR7
On-board graphics adapter family	Intel Graphics
On-board GPU manufacturer	Intel
On-board graphics adapter model	Intel Graphics
Network
Ethernet LAN	Y
Ethernet LAN data rates	2500 Mbit/s
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 7 BE200
Bluetooth	Y
Bluetooth version	5.4

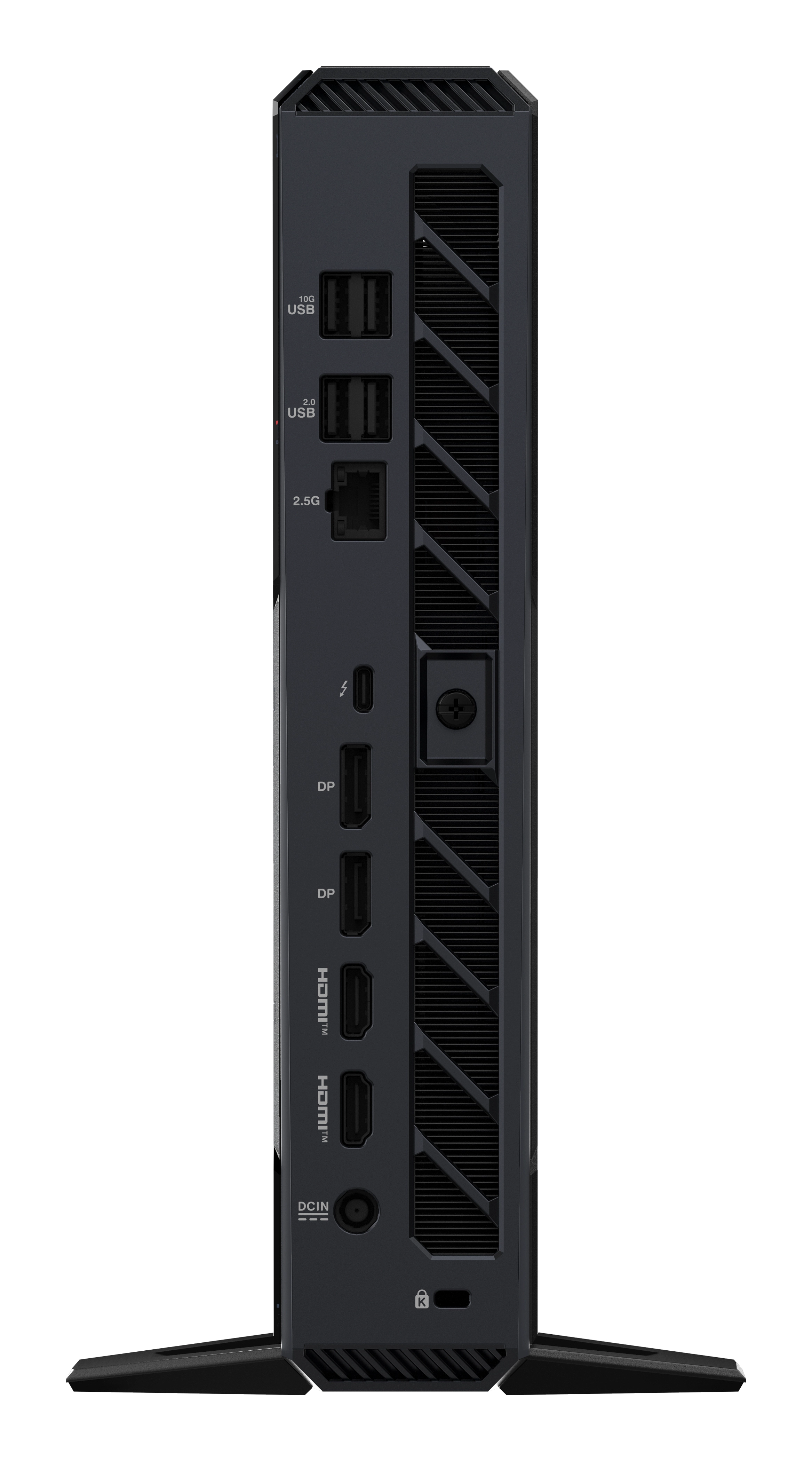

Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Intel® Thunderbolt 4	Y
Thunderbolt 4 ports quantity	1
HDMI ports quantity	2
DisplayPorts quantity	2
Ethernet LAN (RJ-45) ports	1
Design
Chassis type	Mini PC
Product colour	Black
Performance
Product type	Mini PC (<= 3L)
Market positioning	Gaming
Software
Operating system installed	Windows 11 Home
Operating system architecture	64-bit
Weight & dimensions
Width	282.4 mm
Depth	187.7 mm
Height	56.5 mm
Weight	3120 g
Package width	370 mm
Package depth	258 mm
Package height	190 mm
Package weight	5600 g
Packaging content
Display included	N
Cables included	Power
Other features
Power supply type	External AC adapter
