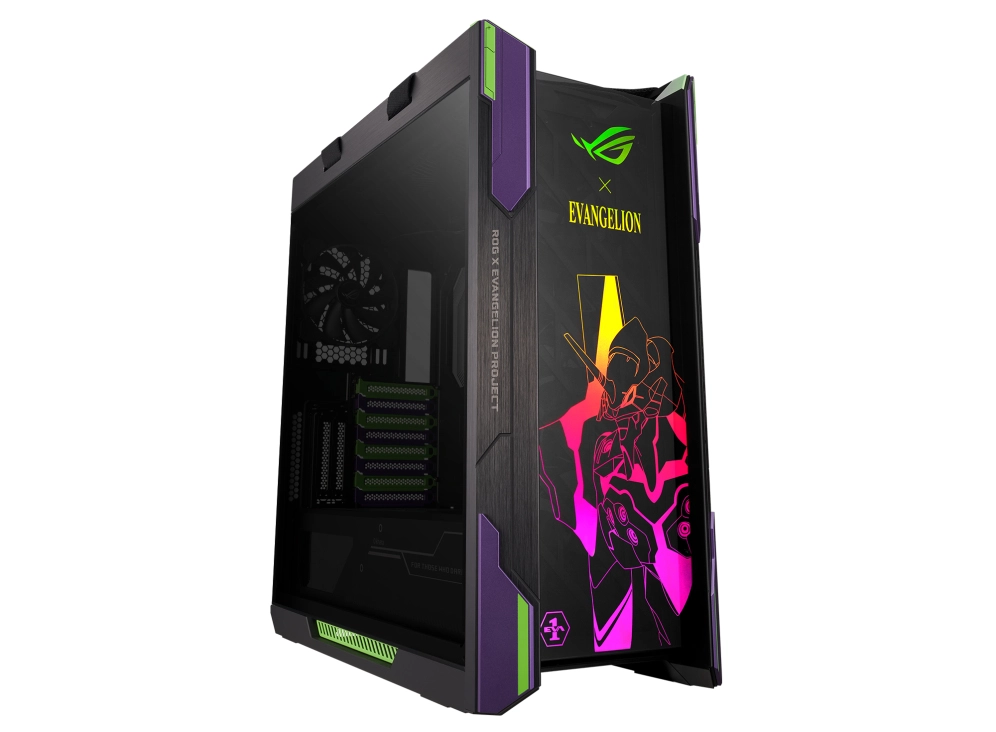

It's 2022. The Republic of Gamers is launching new equipment for the EVANGELION project. The ROG Strix Helios EVA Edition is a premium mid-tower gaming chassis with three tempered-glass panels, refined aluminum frame, and integrated front-panel RGB lighting. Interior and exterior details have been fashioned to match the aesthetics of the EVA-01 and house the other ROG x EVANGELION components, making it the cornerstone of the collaboration.

MADE FOR SHOWCASE BUILDS
ROG Strix Helios EVA EDITION CHASSIS
Premium aesthetics
Easy cable management
Ready for serious cooling
Comfortable case handles

PREMIUM DESIGN & AESTHETICS
ROG Strix Helios is made for showcase builds with three smoked tempered-glass panels fitted in a refined brushed-aluminum frame. A stunning display of dynamic RGB lighting is integrated into the front panel to outshine the competition.

EASE CABLE MANAGEMENT
Multifunction cover with GPU braces, PSU shroud and translucent rear cover for an effortlessly tidy build.

COMFORTABLE CASE HANDLES
Easily carry your prized build to LAN parties using the ergonomic and stylish fabric handles that are rigorously tested to support up to 50 kg

Specification

Product
Product id	844420
Brand	AsusTek
Partnr	90DC0020-B39020
EAN/UPC code	4711081710547
Warranty (months)	24 months
Design
Form factor	Midi Tower
Type	PC
Material	Aluminium, Tempered glass
Product colour	Black
Supported motherboard form factors	ATX, EATX, Micro ATX, Mini-ITX
Number of 3.5" bays	2
Number of 2.5" bays	4
Number of expansion slots	8
Side window	Y
Suitable for	Gaming
Illumination	Y
Illumination colour	Multi
Illumination location	Front
Tempered glass panel(s)	Y
Anti-dust filter	Y
Cable management	Y
Reset button	Y
RGB control button	Y
On/off button	Y
Maximum CPU cooler height	190 mm
Maximum graphics card length	450 mm
Maximum PSU length	220 mm
Power supply
Power supply included	N
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Audio input	Y
Audio output	Y
Cooling
Front fans installed	3x 140 mm
Number of front fans supported (max)	3
Front fans diameters supported	120, 140 mm
Rear fans installed	1x 140 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120, 140 mm
Number of top fans supported (max)	3
Top fans diameters supported	120, 140 mm
Liquid cooling capability	Y
Front radiator fan sizes supported	120, 140, 240, 280, 360, 420 mm
Rear radiator fan sizes supported	120, 140 mm
Top radiator fan sizes supported	120, 140, 240, 280, 360 mm
Storage
Supported HDD sizes	2.5, 3.5 "
HDD/SSD combo cage	Y
Number of HDDs supported	6
Weight & dimensions
Width	250 mm
Depth	565 mm
Height	591 mm
Weight	18000 g
