World's First WiFi 8 Mesh Router
Meet ASUS ZenWiFi BN12, the world's first WiFi 8 mesh system. The ZenWiFi BN12 combines next-generation innovations, intelligent AiMesh networking, and comprehensive security to deliver faster, smarter, and more reliable whole-home connectivity for every connected device.

Specification

Product
Product id	1028409
Brand	AsusTek
Partnr	90IG0AQ0-MO9B20
EAN/UPC code	4711636432351
Warranty (months)	36 months
Design
LED indicators	Power
Product colour	White
Product type	Mesh system
Antenna type	Internal
Antennas quantity	8
Reset button	Y
Maximum coverage	650 m²
Wireless LAN features
Wi-Fi band	Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Top Wi-Fi standard	Wi-Fi 8 (802.11bn)
Wi-Fi standards	Wi-Fi 7 (802.11be), Wi-Fi 6E (802.11ax), Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), Wi-Fi 8 (802.11bn)
Security algorithms	WPA3-Personal, WPA, WPA2, WPA2-Enterprise, WPS
WLAN data transfer rate (max)	11529 Mbit/s
WLAN data transfer rate (first band)	1376 Mbit/s
WLAN data transfer rate (second band)	5764 Mbit/s
WLAN data transfer rate (third band)	11529 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g
IGMP snooping	Y
Dynamic DNS (DDNS)	Y
Guest access	Y
Control apps supported	ASUS Router
VPN support	Instant Guard, VPN Client L2TP, VPN Client Open VPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP, VPN Server WireGuard, VPN Fusion
Features
Processor cores	4
Built-in processor	Y
Processor frequency	2.6 GHz
Internal memory	2000 MB
Flash memory	256 MB
Quality of Service (QoS) support	Y
Port forwarding	Y
WPS push button	Y
Firewall security	Firewall
Parental control	Y
Parental control features	Content filter, Time controls, Time rewards
MU-MIMO technology	Y
Mobile network
Mobile network generation	Not supported
Protocols
DHCP server	Y

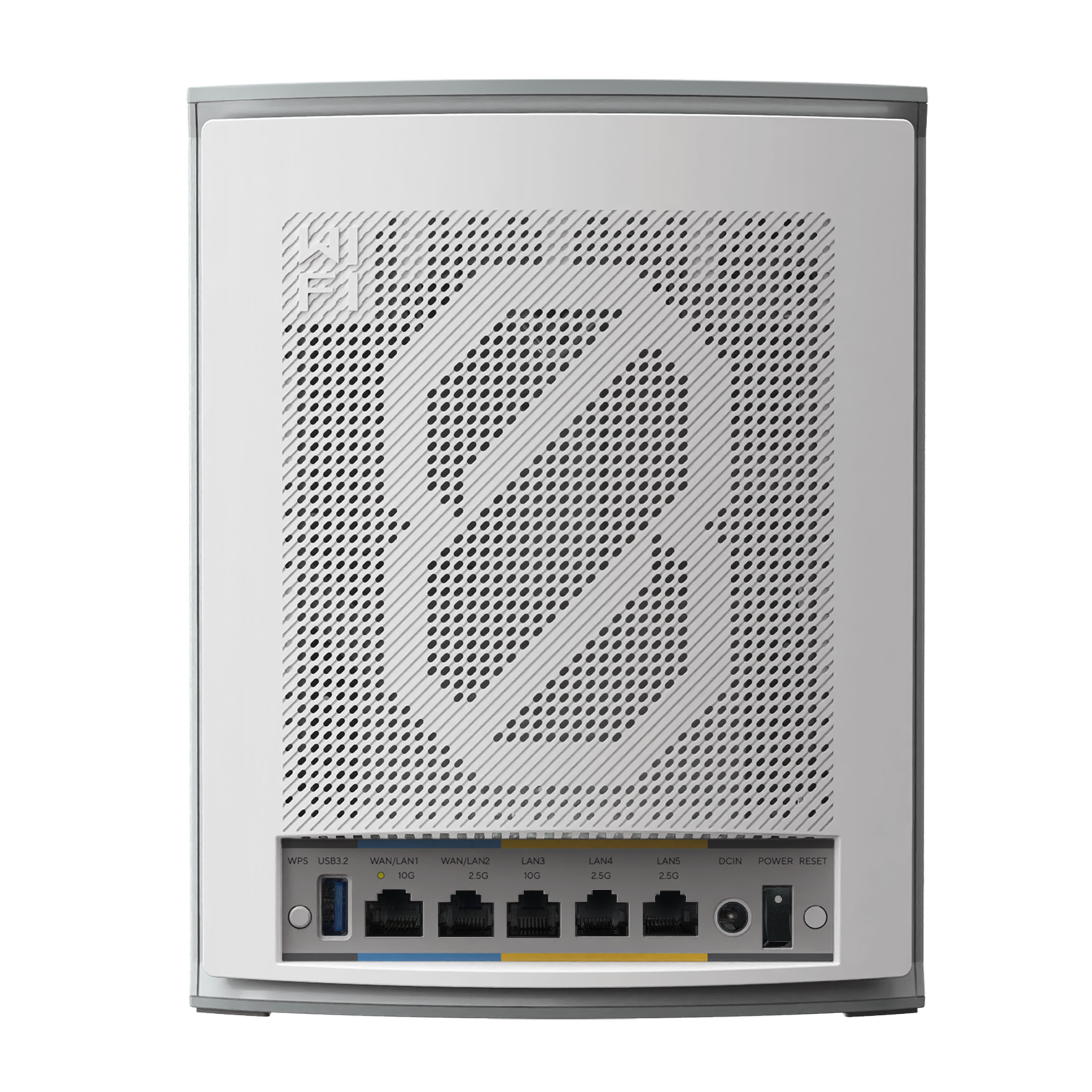

Ports & interfaces
Ethernet LAN (RJ-45) ports	5
DC-in jack	Y
Ethernet WAN	Y
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Power
AC input voltage	110 - 240 V
AC adapter output voltage	12 V
AC adapter output current	5 A
AC input frequency	50 - 60 Hz
Weight & dimensions
Width	173 mm
Depth	88 mm
Height	218 mm
Weight	1300 g
Package width	418 mm
Package depth	291 mm
Package height	124 mm
Package weight	4200 g
Packaging content
AC adapter included	Y
Number of products included	2 stuk(s)
Ethernet cable	Y
Number of units included	2 stuk(s)
Quick installation guide	Y
