Wireless-N300 Router
- 300 Mbps high speed;
- Plug-n-surf CD free installation;
- Power saving: consumes less power during stand by mode;
- Support EZ WPS connection.

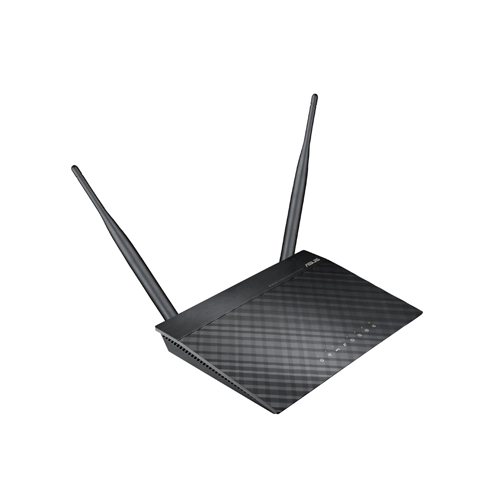

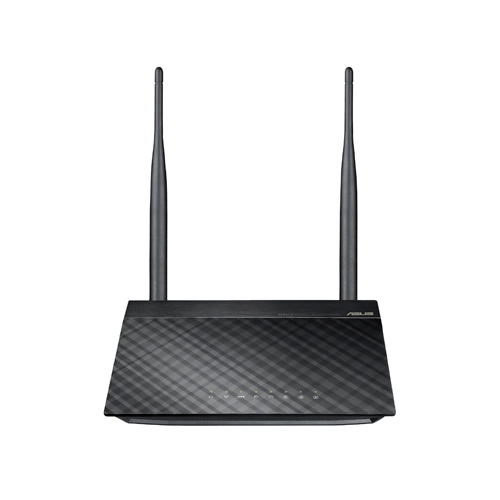

ASUS RT-N12LX supports 802.11 b/g/n and has 300 Mbps high speed. With CD free easy installation and stable data transmission, RT-N12LX is the basic solution for wireless internet setup. It also contents Green WLAN technology so it consumes less power during stand by mode.

Plug-n-Surf Installation
3-steps is all you need to set up the router. You don't need a CD for installation.

Save the planet and your pocket
Compared with generic Wireless-N routers, ASUS ECO-WiFi CPU reduces 72% of energy consumption and utility cost.

Specification

Product
Product id	555584
Brand	AsusTek
Partnr	90-IG29002M03-3PA0-
EAN/UPC code	4719543397275
Warranty (months)	24 months
WAN connection
Ethernet WAN	Y
DSL WAN	N
SIM card slot	N
3G/4G USB modem compatibility	N
Wireless LAN features
Wi-Fi band	Single-band (2.4 GHz)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Network
Ethernet LAN	Y
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN data rates	10, 100 Mbit/s
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
VPN support	IPsec, PPTP, L2TP
Mobile network
3G	N
4G	N
Ports & interfaces

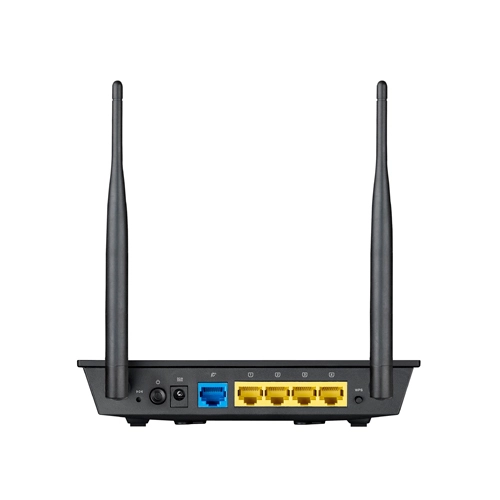

Ethernet LAN (RJ-45) ports	4
USB port	N
Memory card slot(s)	N
DC-in jack	Y
Management features
Web-based management	Y
Reset button	Y
Security
Security algorithms	128-bit WEP, 64-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK, WPS
Stateful Packet Inspection (SPI)	Y
Filtering	Y
MAC address filtering	Y
Network address translation (NAT)	Y
Protocols
DHCP client	Y
DHCP server	Y
Supported network protocols	IPv4, PPPoE, MPPE, PPTP, L2TP
Design
Product type	Tabletop router
Product colour	Black
LED indicators	LAN, Power, WAN, Y
Antenna
Antenna design	External
Antenna gain level (max)	2 dBi
Antennas quantity	2
Features
Harmonized System (HS) code	85176990
Power
Power source type	AC
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Output current	0.5 A
Power over Ethernet (PoE)	Y
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90 procent
Storage relative humidity (H-H)	5 - 90 procent
Weight & dimensions
Width	124 mm
Depth	168 mm
Height	30 mm
Weight	210 g
Packaging data
Cables included	LAN (RJ-45)
AC adapter included	Y
Manual	Y
Quick start guide	Y
Other features
Input frequency	50/60 Hz
Input voltage	100 - 240 V
Frequency range	2.4GHz
Bandwidth	2.4 GHz
xDSL connection	N
Networking features	Fast Ethernet
Dimensions (WxDxH)	168 x 124 x 30 mm
WLAN data transfer rates supported	1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54, 300 Mbit/s
Output power description	12V, 0.5A
