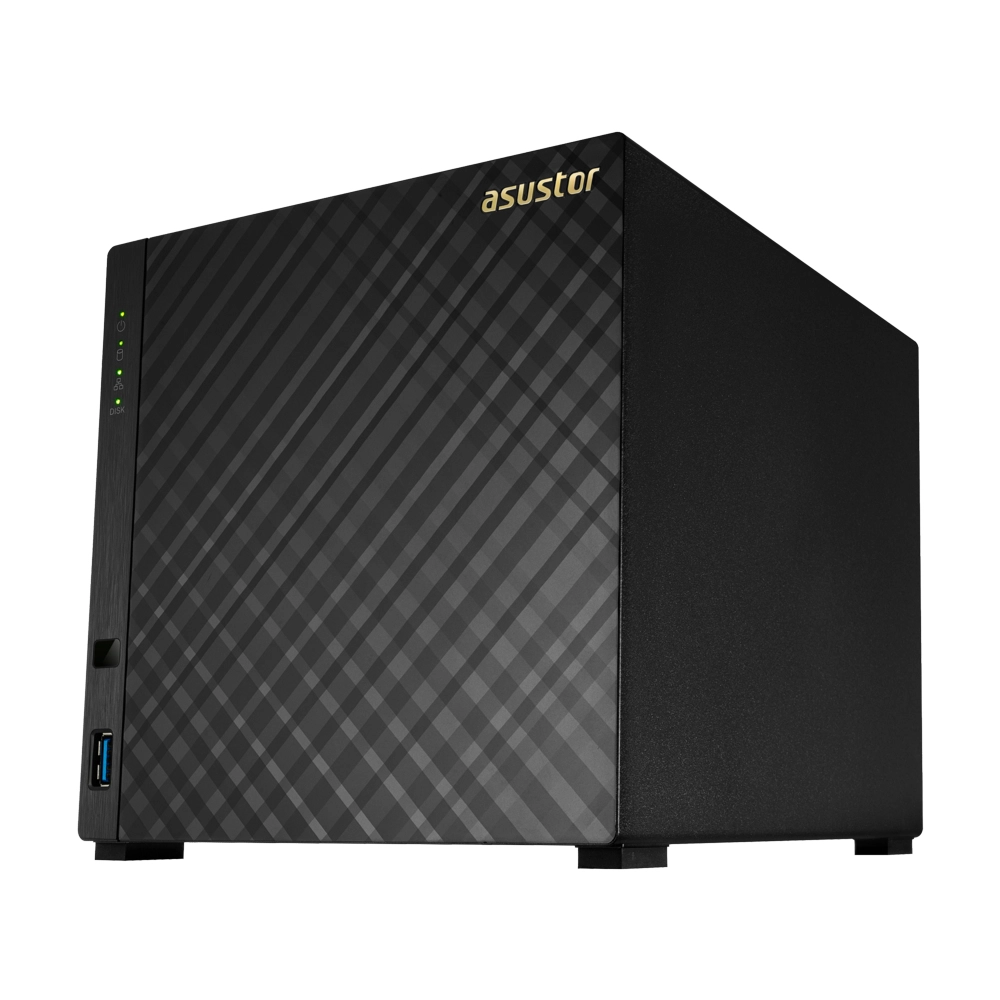

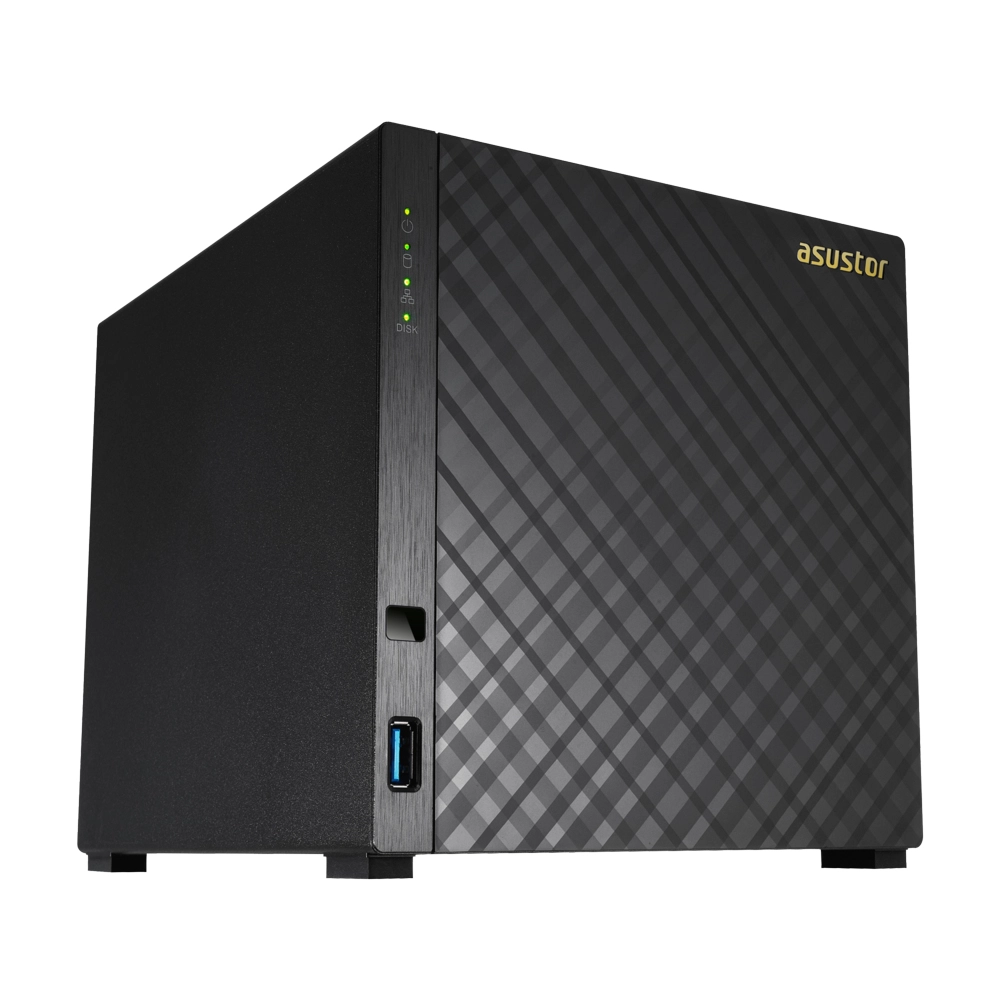

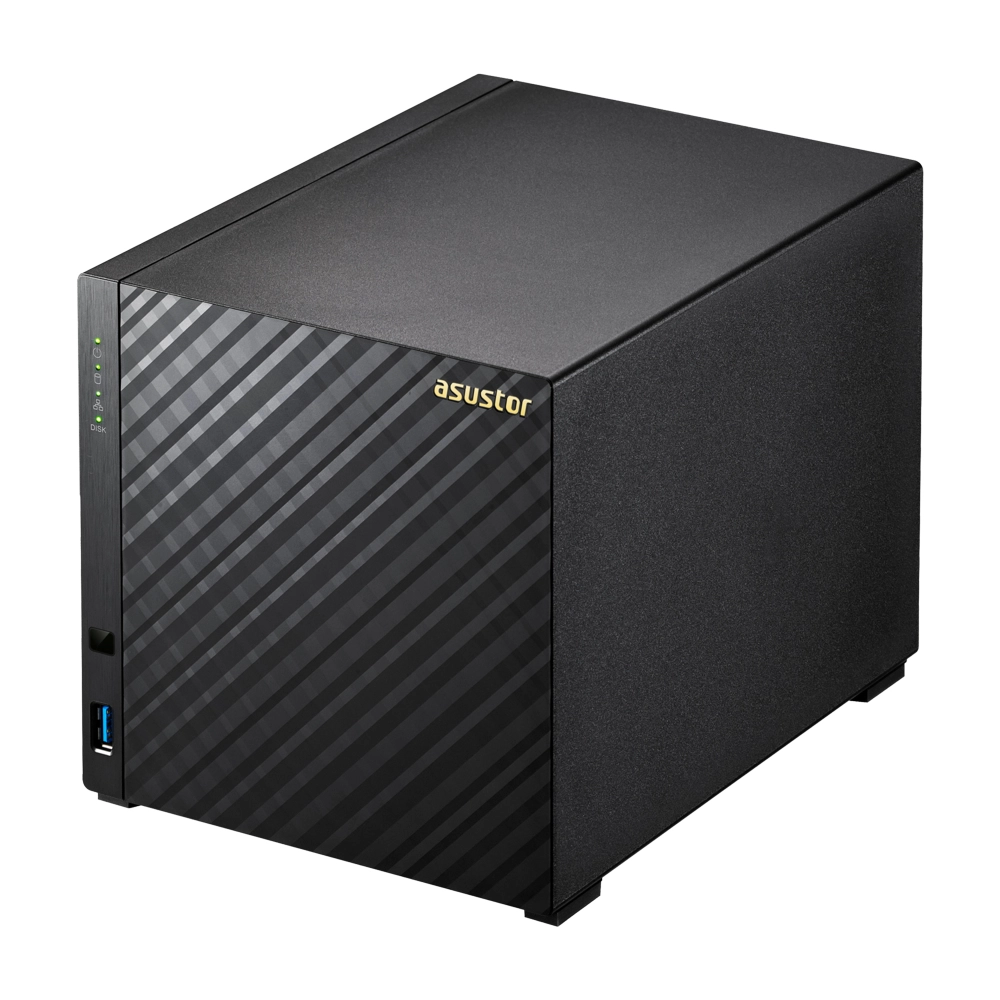

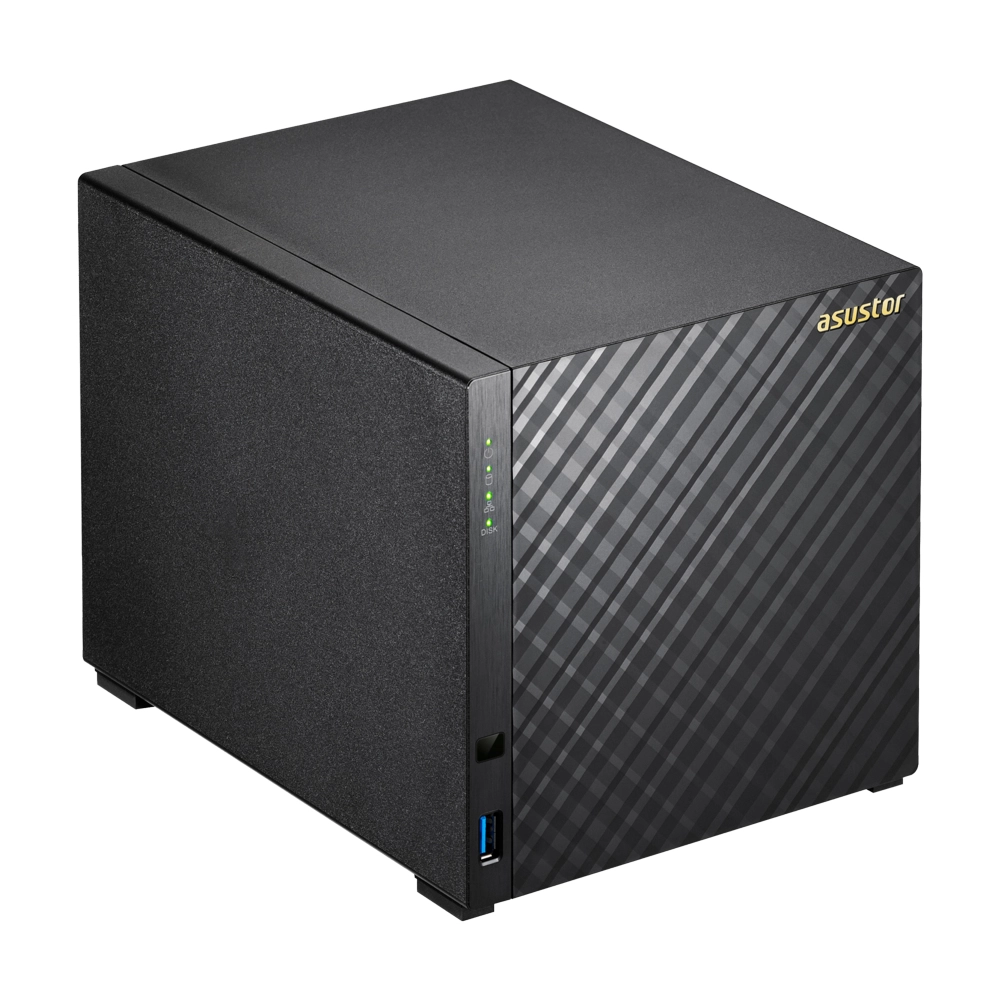

AS3104T 4 Bay N3050 1.6GHz 2GB 2X GBE 3X USB3 1x HDMI



AsusTek
Not in stock
€ 305,89
€ 370,12 incl 21% VAT
Powered by the latest Intel Celeron processors
AS3104 is powered by Intel Celeron Braswell dual-core processors, equipped with 2GB of dual-channel memory, and feature read speeds of over112 MB/s and write speeds of over 112 MB/s under RAID 5 configurations.

Dual-channel power
The AS31 models support dual-channel memory, be able to smoothly playback 4K video. Furthermore, AS31 series devices are not only energy efficient, but offer a combination of performance and price that is unmatched in its class. Get ready to enjoy brilliant ultra high-definition 4K video from the comfort of your own home!

Supercharge your multimedia experience
You no longer need to worry about running into resolution compatibility issues when playing videos on your phone, tablet or computer.
Media Converter utilizes a quick and simple conversion method, allowing you to execute conversion tasks in the background.
The exclusive built-in Hyper-Transcoding technology was expertly crafted by ASUSTOR. This technology utilizes the Intel CPU hardware acceleration function to make video file conversions faster and simpler than ever before. Using Hyper-Transcoding to convert video files can reduce the normal conversion time by at least 10 times.

Toolless installation
The AS31 series’ sliding outer cover design allows it to be conveniently removed when needed. The inner hard disk rails and outer cover all use hand screws allowing for the simple installation of hard disks without any extra tools.

Add modern flair to your favorite space
The AS31 series devices redefine the aesthetics of a NAS. The stylish diamond-plate finished cover makes it an elegant addition to any space, no matter if it is a family room, living room or office.

Hardware encryption engine
Protecting your data is ASUSTOR’s top priority. The AS31 series devices feature Intel AES-NI encryption engines, allowing data to be completely protected from the moment it is first stored on the NAS. This means that you never have to worry about your confidential data falling into the wrong hands even if your hard disks become lost or stolen. The built-in hardware encryption engine also features read speeds of over 112 MB/s and write speeds of over 71 MB/s for encrypted data providing an optimal combination of file security and system performance.

High capacity cloud storage for all your digital assets
The AS3104 provides a large capacity NAS for home users at an affordable price. Users can install four 8 TB hard disks to immediately create a high capacity storage space of up to 32 TB. When taking photos or recording videos of family vacations, gatherings and other cherished memories, users no longer need to be confined to the limited storage on memory cards. With high capacity AS3104, users can save all of their videos and photos in high quality resolution, preserving them perfectly. Additionally, RAID 5 and 6 storage volume setting provide comprehensive protection for all digital assets stored on the NAS, minimizing the risk of data loss due to hard disk failure or accidents.

Create the Ultimate Home Multimedia Center
Enjoy electrifying digital entertainment on demand with ASUSTOR NAS. The built-in HDMI interface and variety of multimedia Apps let you to enjoy all of your favorite multimedia from your NAS by directly connecting it to an LCD/LED TV or amplifier.

ASUSTOR NAS supports Full HD (1080p) output, allowing you to savor your movies, TV shows, music and photos in high definition. What's more, through ASUSTOR's App Central, you can install additional multimedia server Apps such as UPnP Media Server and iTunes Server giving your NAS the ability to stream multimedia content to your computers, TVs and mobile devices.

Additionally, you can also further add a surround sound amplifier to create an unprecedented high definition multi-channel listening experience. Imagine watching your favorite racing movie and being immersed in the roar of the engines. Feel the thrill and the sense of speed as you listen to the sounds of cars whizzing by. Prepare for an unparalleled entertainment experience that will have you on the edge of your seat.

Even More Reliable After-Sales Service
ASUSTOR has extended the warranty period on all of its products to three years, continuing to make customer service a huge priority. It is ASUSTOR's mission to continue to provide its customers with products of the highest quality along with only the most reliable and attentive after-sales service and technical support.

Specification

Product
Product id 534267
Brand AsusTek
Partnr 90IX00P1-BW3S10
EAN/UPC code 4710474830749
Warranty (months) 3 years
Storage
Storage drives installed N
Number of storage drives supported 4
Installed storage drive type N
Supported storage drive types HDD
Storage drive interface Serial ATA II, Serial ATA III
Storage drive size 3.5 "
Maximum supported storage capacity 32 TB
RAID support Y
RAID levels 0, 1, 5, 6, 10, JBOD
Hot-swap drive bays Y
Supported file systems FAT32, HPFS, NTFS, ext3, ext4
Processor
Processor manufacturer Intel
Processor family Intel Celeron
Processor model N3050
Processor frequency 1.6 GHz
Processor boost frequency 2.16 GHz
Processor cores 2
Processor threads 2
Processor cache 2 MB
Processor operating modes 64-bit
Processor package size 25 x 27 mm
Processor series Intel Celeron N3000 series
Processor socket BGA 1170
Scenario Design Power (SDP) 4 W
Stepping C0
System bus rate 5 GT/s
Tjunction 90 °C
Thermal Design Power (TDP) 6 W
Processor lithography 14 nm
Processor codename Braswell
CPU configuration (max) 1
ECC supported by processor N
Integrated 4G WiMAX N
PCI Express slots version 2.0
Processor cache type L2
On-board graphics adapter model Intel HD Graphics
Maximum internal memory supported by processor 8 GB
Conflict-Free processor Y
Memory
Internal memory type DDR3L
Internal memory 2 GB
Memory clock speed 1600 MHz
Network
Ethernet LAN Y
Ethernet LAN data rates 10, 100, 1000 Mbit/s
Wi-Fi N
DHCP client Y
Jumbo frames support Y
iSCSI support Y
Wake-on-LAN ready Y
Supported network protocols CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI, HTTP, HTTPS, Proxy, SNMP, Syslog
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
HDMI ports quantity 1
Graphics
On-board graphics adapter base frequency 320 MHz
On-board graphics adapter burst frequency 600 MHz
Maximum on-board graphics adapter memory 8 GB
Number of displays supported (on-board graphics) 3
Design
Cooling type Active
Product colour Black
Number of fans 1 ventilator(en)
Fan diameter 120 mm
Performance
Type NAS
Device class Home & Home Office
Backup function Y
Backup features Cloud
Multilingual support Y
Noise level (idle) 19.7 dB
Security algorithms HTTPS, SSH, SSL/TLS
Software
Operating system installed ADM
Operating system version 2.6
Windows operating systems supported Y
Linux operating systems supported Y
Mac operating systems supported Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported Windows Server 2003, Windows Server 2008, Windows Server 2012
Power
Power consumption (typical) 24.5 W
Power consumption (sleep) 0.69 W
Weight & dimensions
Width 164 mm
Depth 218 mm
Height 165 mm
Weight 1600 g
Processor special features
UART Y
Intel® OS Guard N
Intel® InTru™ 3D Technology N
Intel® Insider™ N
Intel® Identity Protection Technology (Intel® IPT) Y
Intel® Hyper Threading Technology (Intel® HT Technology) N
Intel® High Definition Audio (Intel® HD Audio) Y
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) Y
Intel® Clear Video HD Technology (Intel® CVT HD) Y
Intel® Anti-Theft Technology (Intel® AT) N
Intel® AES New Instructions (Intel® AES-NI) Y
Intel® Quick Sync Video Technology Y
Intel® Secure Key Y
Intel® Small Business Advantage (Intel® SBA) N
Thermal Monitoring Technologies Y
Number of execution units 12
Maximum number of PCI Express lanes 4
Intel® Wireless Display (Intel® WiDi) Y
Intel® Turbo Boost Technology N
Intel® Smart Response Technology N
Intel VT-x with Extended Page Tables (EPT) Y
Intel Virtualization Technology for Directed I/O (VT-d) N
Intel Virtualization Technology (VT-x) Y
Intel Enhanced Halt State Y
Intel Clear Video Technology Y
Intel 64 Y
Idle States Y
Execute Disable Bit Y
Enhanced Intel SpeedStep Technology Y
Embedded options available N
Intel Identity Protection Technology version 1.00
Intel Trusted Execution Technology N
Intel Stable Image Platform Program (SIPP) version 0.00
Intel Stable Image Platform Program (SIPP) N
Intel Smart Response Technology version 0.00
Intel Smart Connect Technology version 0.00
Intel Smart Connect Technology N
Intel Small Business Advantage (SBA) version 0.00
Intel Secure Key Technology version 1.00
Intel Secure Boot Technology version 1.00
Intel Secure Boot Y
Intel Rapid Storage Technology N
Memory channels supported by processor Dual
Memory types supported by processor DDR3L-SDRAM
Operational conditions
Operating temperature (T-T) 5 - 35 °C
Operating relative humidity (H-H) 5 - 95 procent
Certificates
Certification FCC, CE, VCCI, BSMI, C-TICK
Other features
Processor ARK ID 87257
