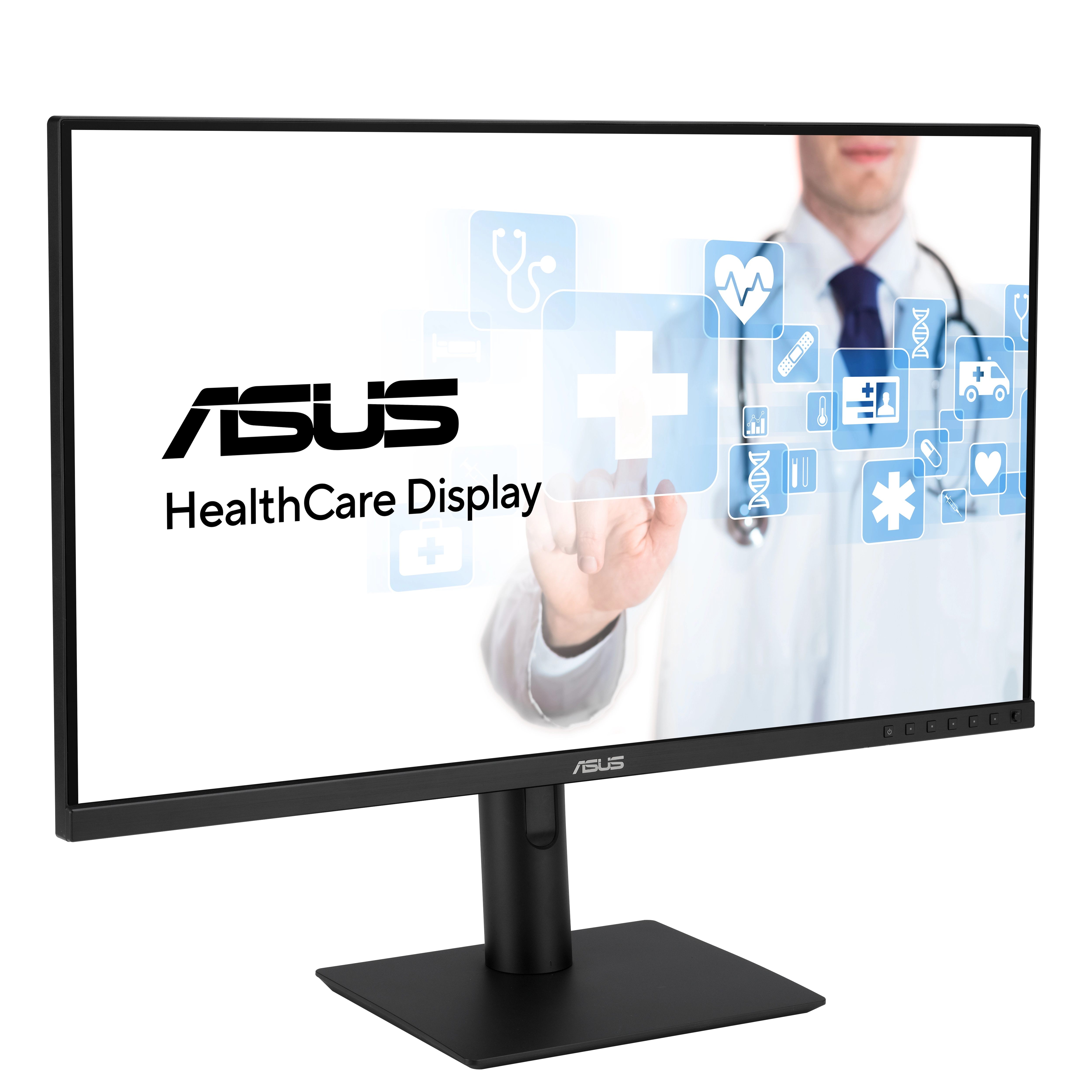

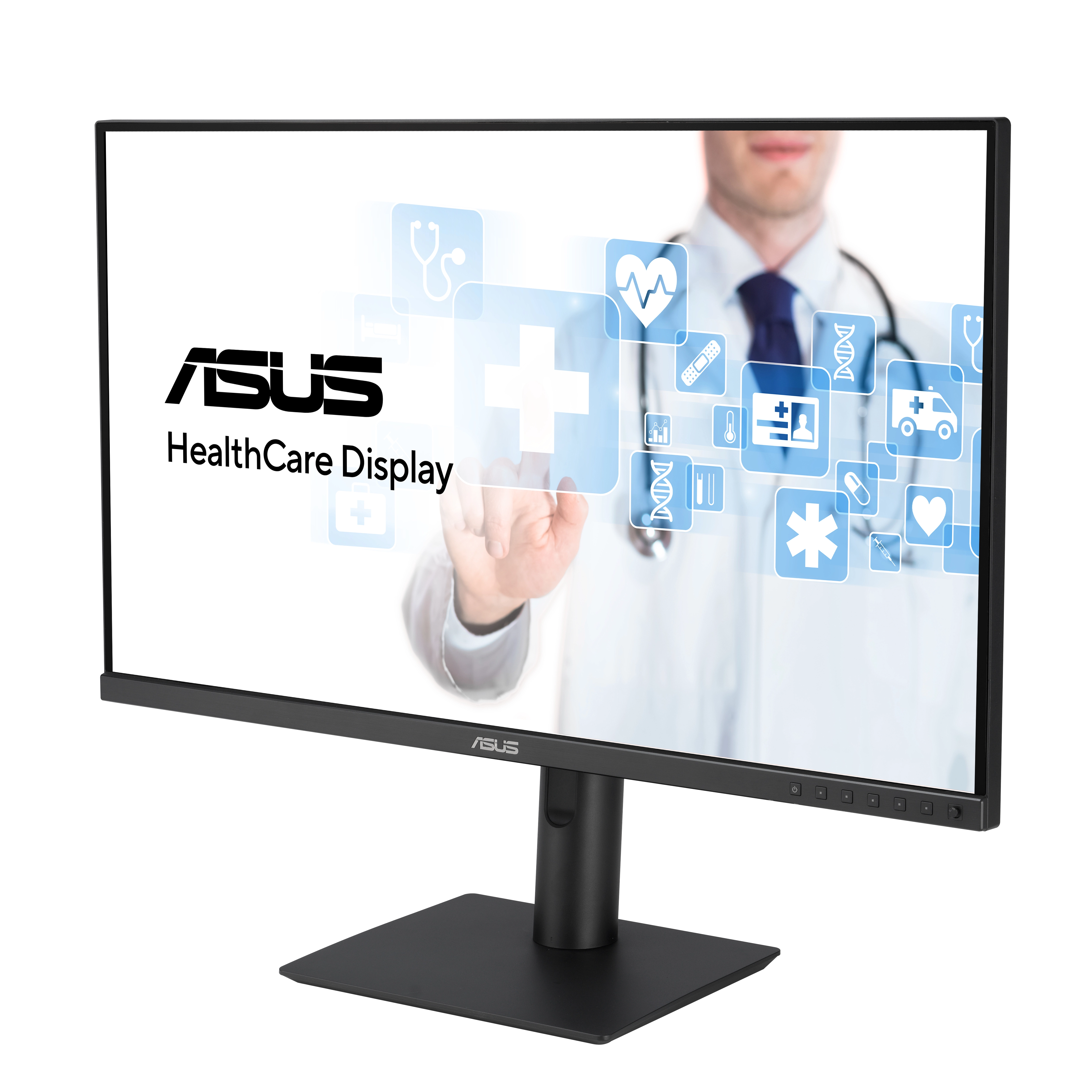

HealthCare Monitor
ASUS HealthCare Displays provides comprehensive line-up targeting for every HealthCare institutions needs. ASUS HealthCare Displays are factory calibrated with DICOM® Part 14 GSDF (Grayscale Standard Display Function) compliance to ensure visual accuracy and consistency in finest details. ASUS HA2741A features 27-inch 3.6MP Anti-Glare, Low-Reflection (AGLR) IPS panel, ASUS exclusive Hardware Calibration Technology supports auto calibration to keep DICOM long term accuracy. ASUS HealthCare Displays delivers high-performance, precise and stable capabilities to fit any scenario.

Lifelike Views Vith 178° Wide View Angle
ASUS HA2741A IPS panel provides 178° viewing angles, both horizontally and vertically, so you can reproduce excellent contrast, ensuring the accurate and clear medical images from almost any direction.

Specification

Product
Product id	969243
Brand	AsusTek
Partnr	90LM08Z0-B01M70
EAN/UPC code	4711387308233
Warranty (months)	LCD ZBD Warranty : Yes(3 yr)
Technical details
Sustainability compliance	Y
Sustainability certificates	Forest Stewardship Council (FSC) Mix, ENERGY STAR
Display
Display diagonal	27 inch
Display resolution	2560 x 1440 Pixels
Native aspect ratio	16:9
Panel type	IPS
Display brightness (typical)	300 cd/m²
Response time	5 ms
HD type	Quad HD
Display technology	LCD
LED backlight	Y
Backlight type	LED
Anti-glare screen	Y
Screen shape	Flat screen
Contrast ratio (typical)	900:1
Maximum refresh rate	75 Hz
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	16.7 million colours
Display diagonal (metric)	69 cm
Pixel pitch	0.233 x 0.233 mm
Viewable size, horizontal	596.74 mm
Viewable size, vertical	335.66 mm
Colour gamut	100 procent
Colour gamut standard	sRGB
Performance
Brand specific technologies	Eye Care+
Flicker-free technology	Y
Low Blue Light technology	Y
Multimedia
Built-in speaker(s)	N
Built-in camera	N
Design
Market positioning	Medical
Product colour	Black
Frameless design	Y
Feet colour	Black

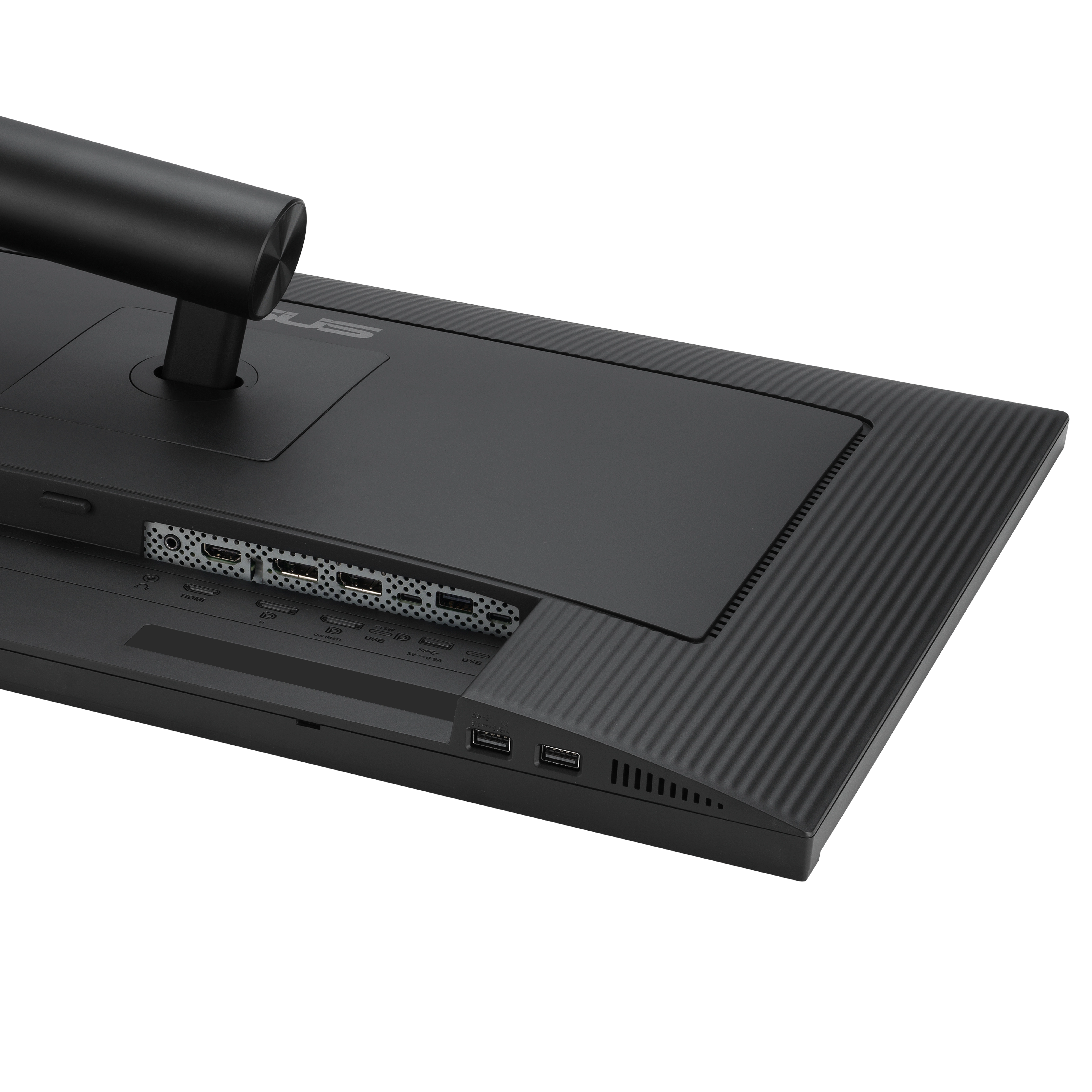

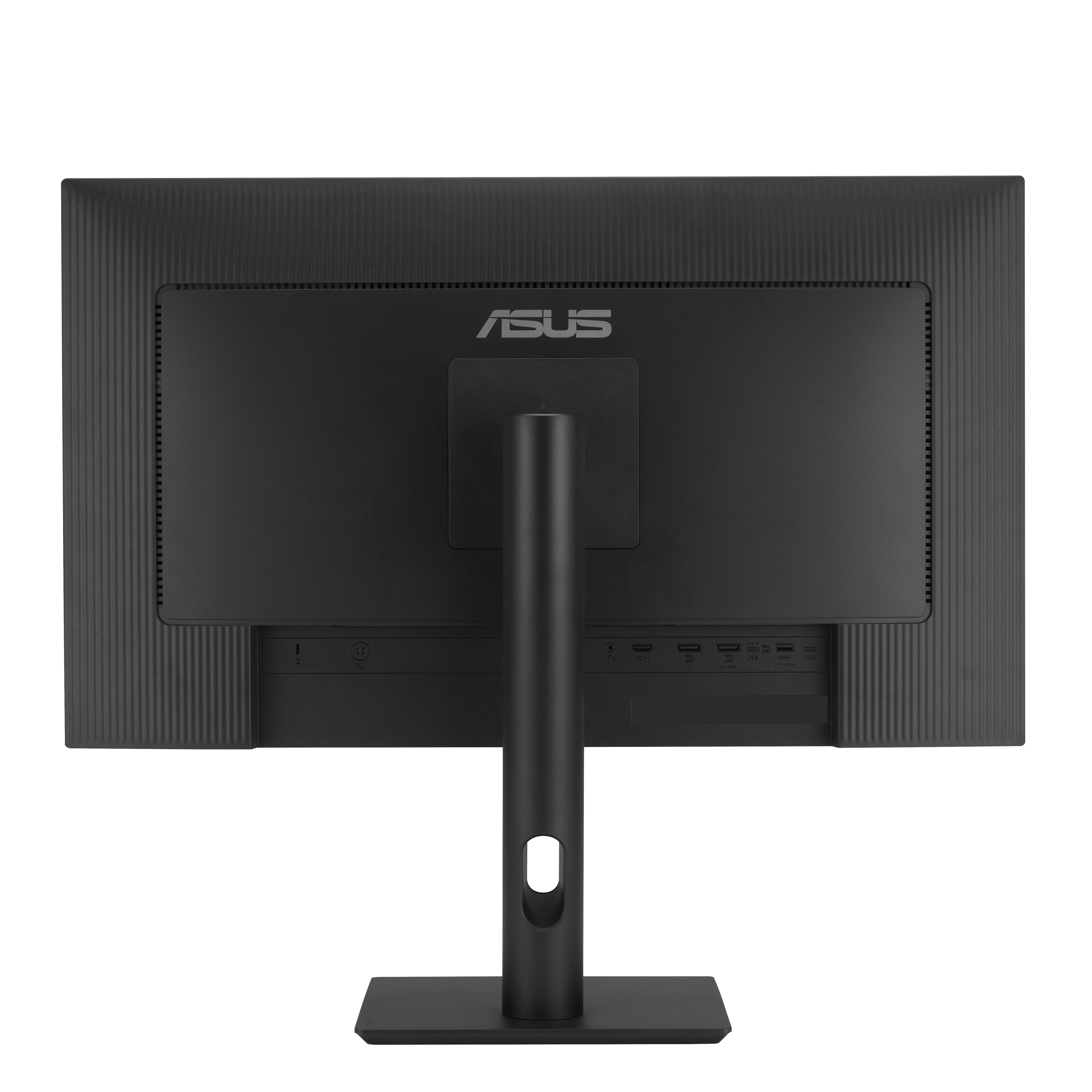

Ports & interfaces
Built-in USB hub	Y
USB hub version	3.2 Gen 1 (3.1 Gen 1)
Number of USB Type-C upstream ports quantity	1
USB Type-A downstream ports quantity	3
USB Type-C downstream ports quantity	1
USB Type-C DisplayPort Alternate Mode	Y
USB Power Delivery up to	15 W
HDMI	Y
HDMI ports quantity	1
HDMI version	2.0
DisplayPorts quantity	2
DisplayPort version	1.4
Headphone out	Y
Headphone outputs	1
HDCP version	2.2
HDCP	Y
Sustainability
European Product Registry for Energy Labelling (EPREL) code	1854534
Ergonomics
VESA mounting	Y
Panel mounting interface	100 x 100 mm
Cable lock slot	Y
Cable lock slot type	Kensington

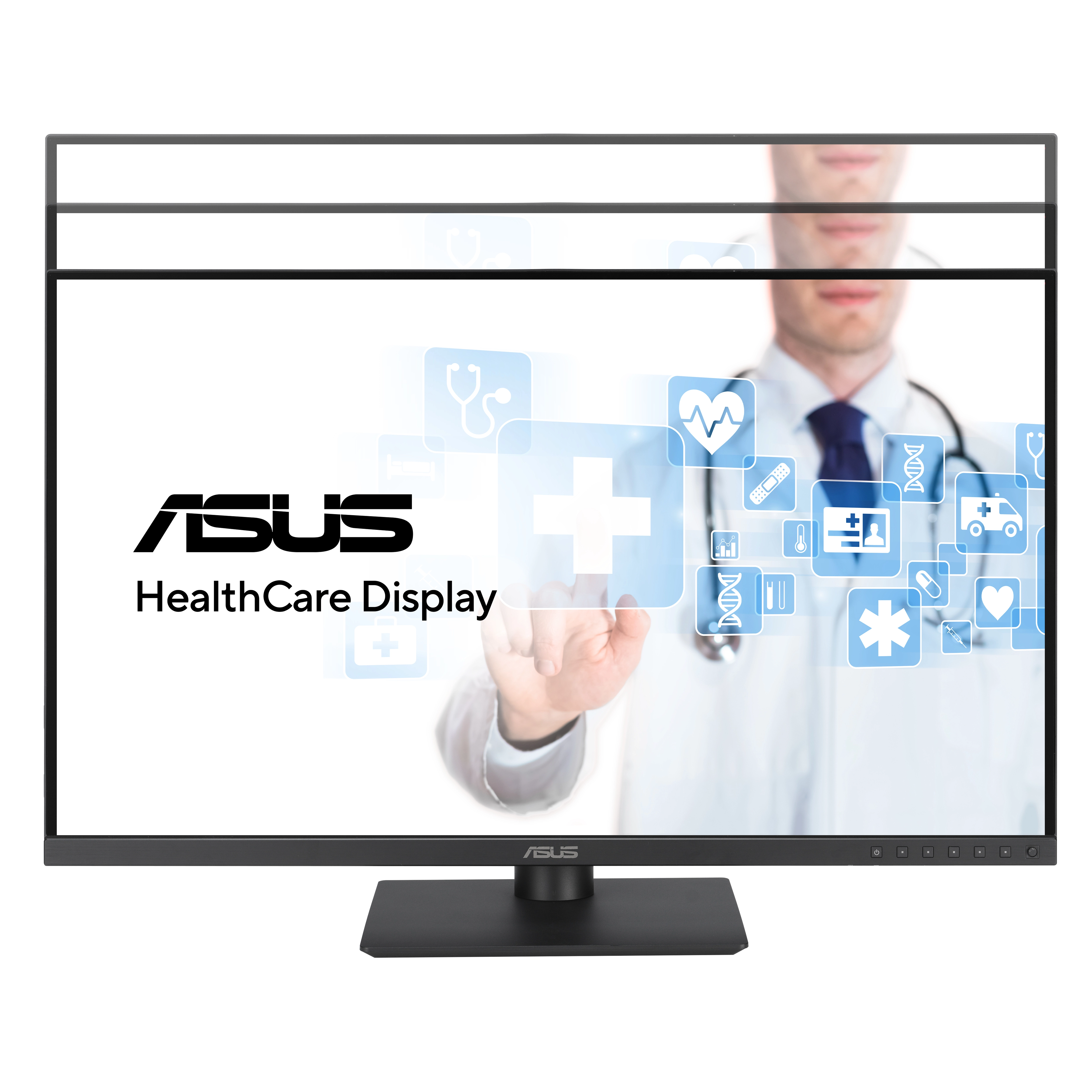

Height adjustment	Y
Height adjustment	130 mm
Swivelling	Y

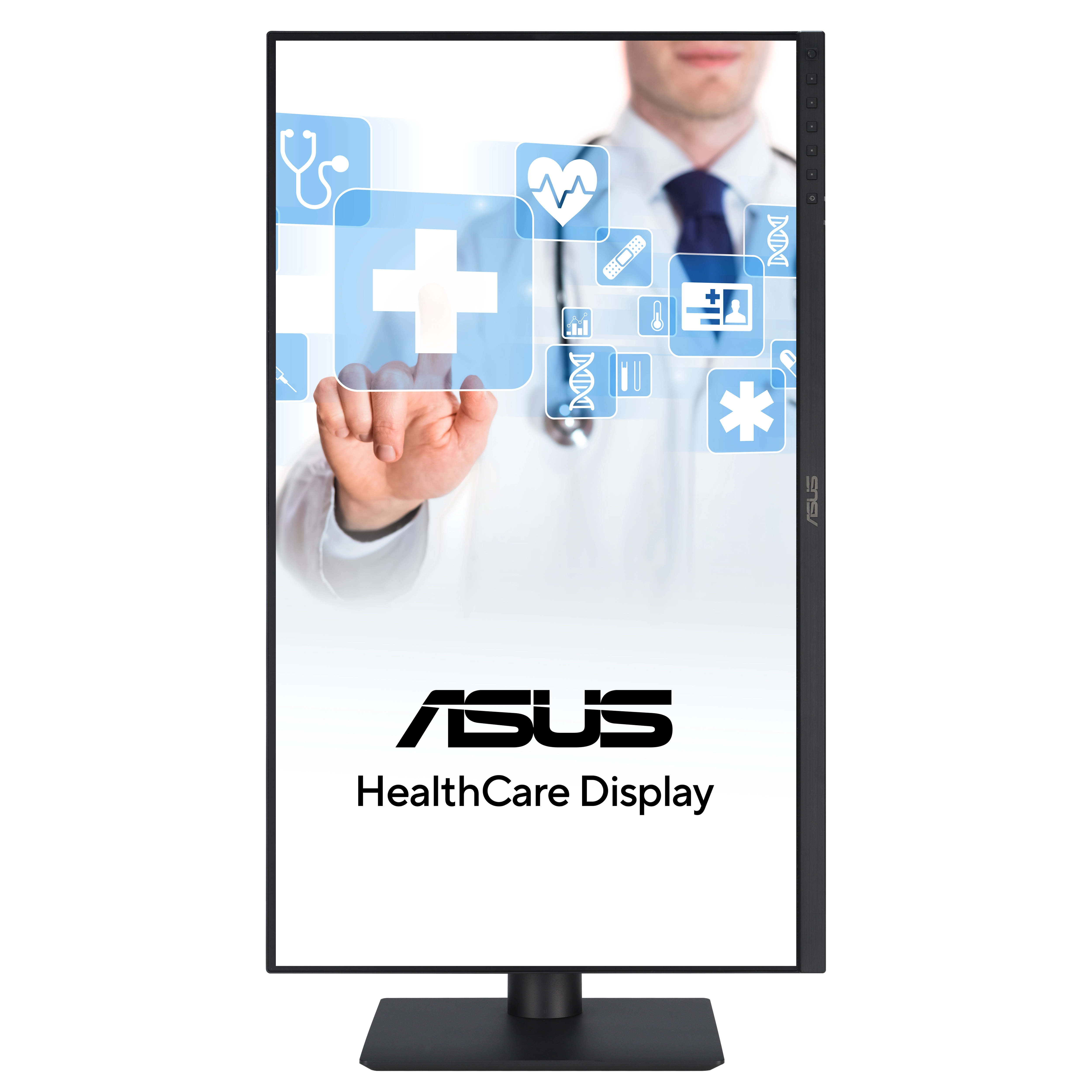

Pivot angle	-90 - 90 °
Pivot	Y
Swivel angle range	-30 - 30 °
Wall mountable	Y

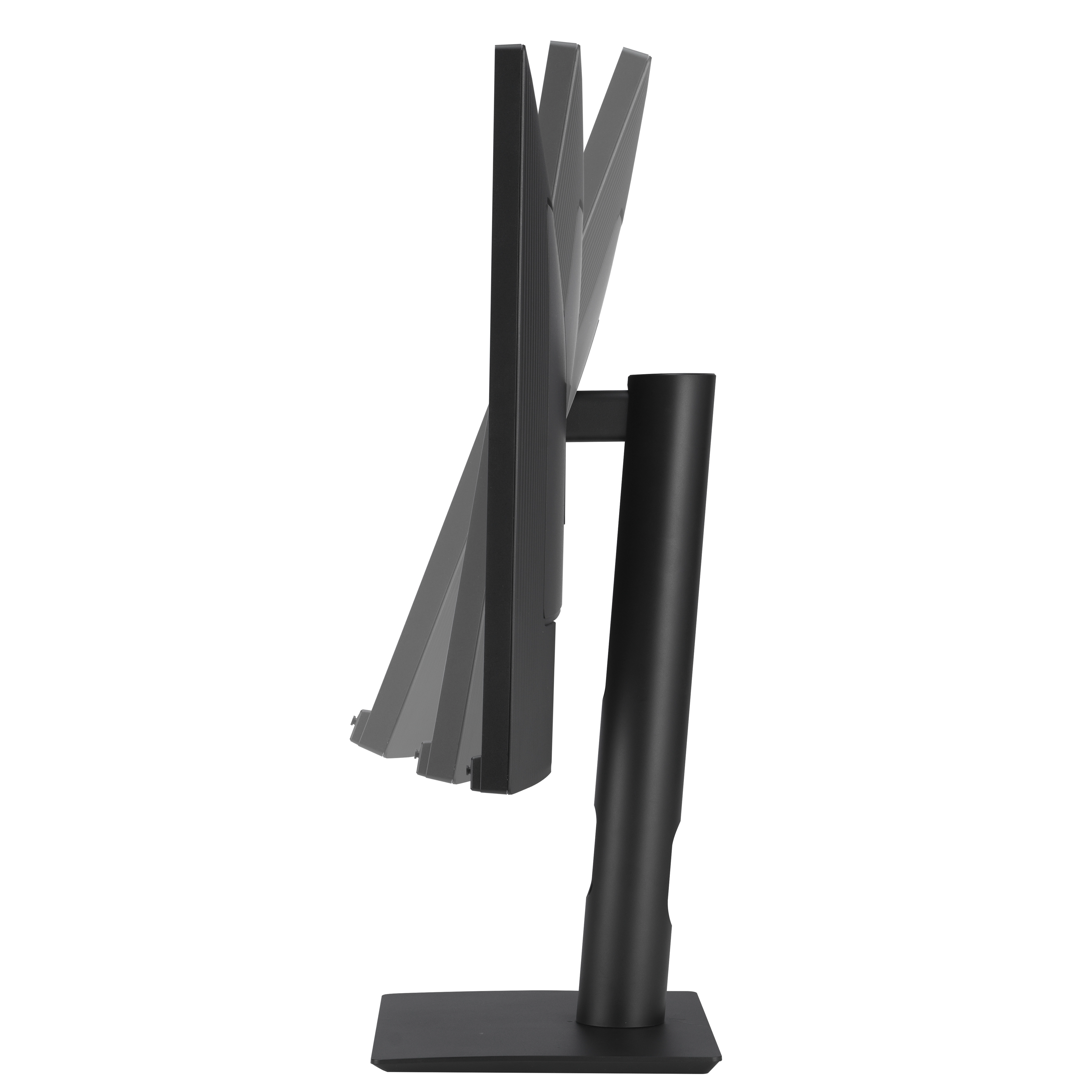

Tilt angle range	-5 - 23 °
Tilt adjustment	Y
Packaging data
Package width	695 mm
Package depth	133 mm
Package height	421 mm
Package weight	9300 g
Package type	Box
Power
Energy efficiency class (SDR)	D
Energy consumption (SDR) per 1000 hours	17 kWu
Power consumption (typical)	13.7 W
Energy efficiency class (HDR)	F
Energy consumption (HDR) per 1000 hours	23 kWu
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Energy efficiency scale	A to G
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 90 procent
Weight & dimensions
Width (with stand)	613.3 mm
Depth (with stand)	197.2 mm
Height (with stand)	536.7 mm
Weight (with stand)	6700 g
Width (without stand)	613.3 mm
Depth (without stand)	44.9 mm
Height (without stand)	363.4 mm
Weight (without stand)	5000 g
Other features
USB Power Delivery	Y
Touchscreen	N
