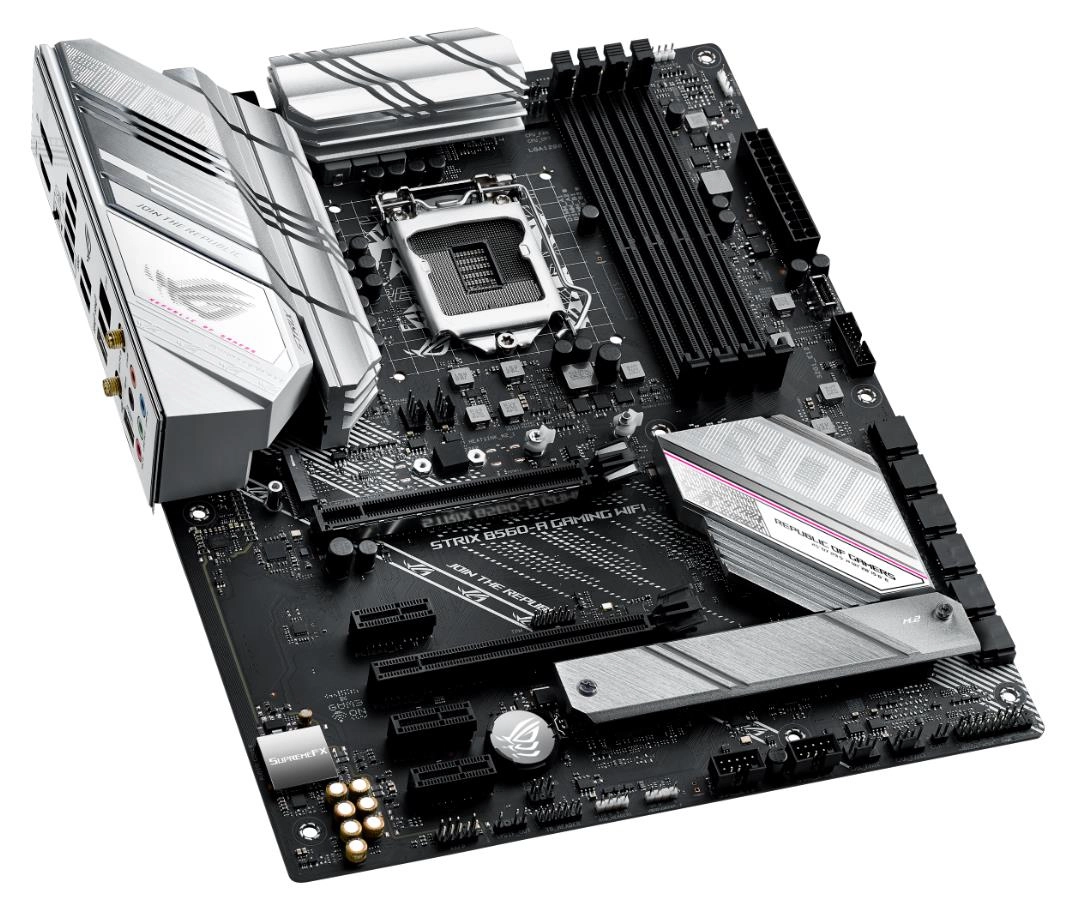

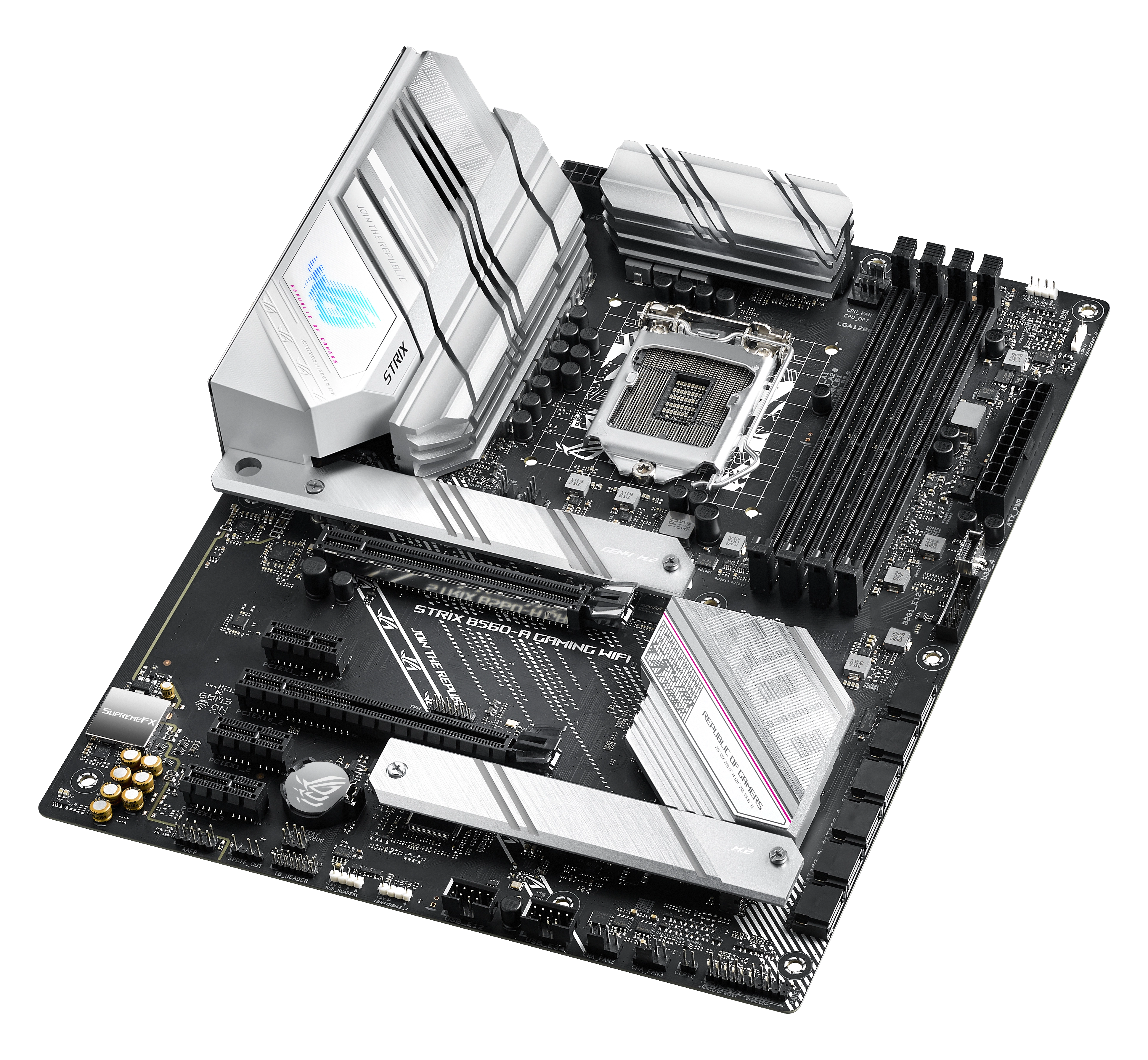

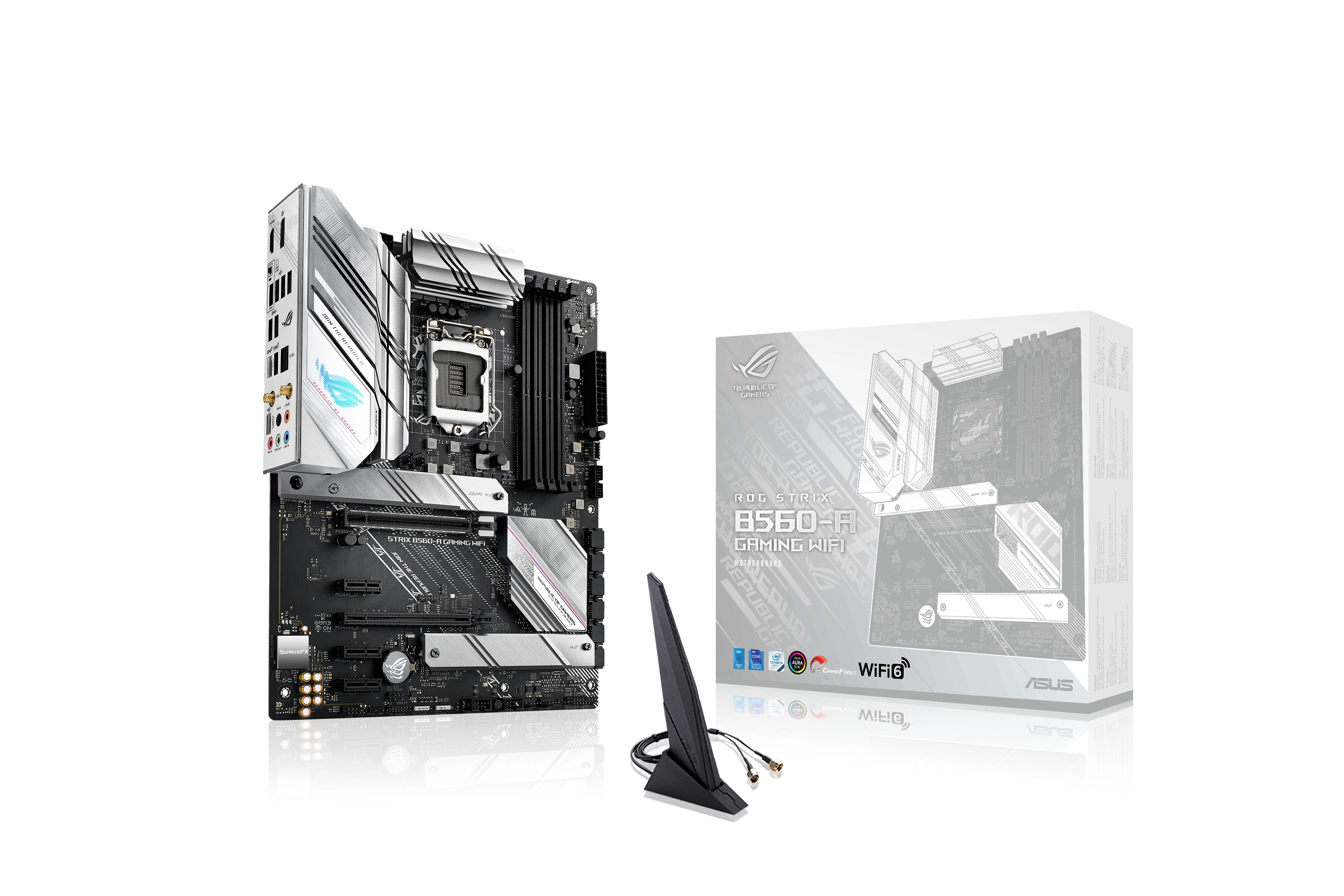

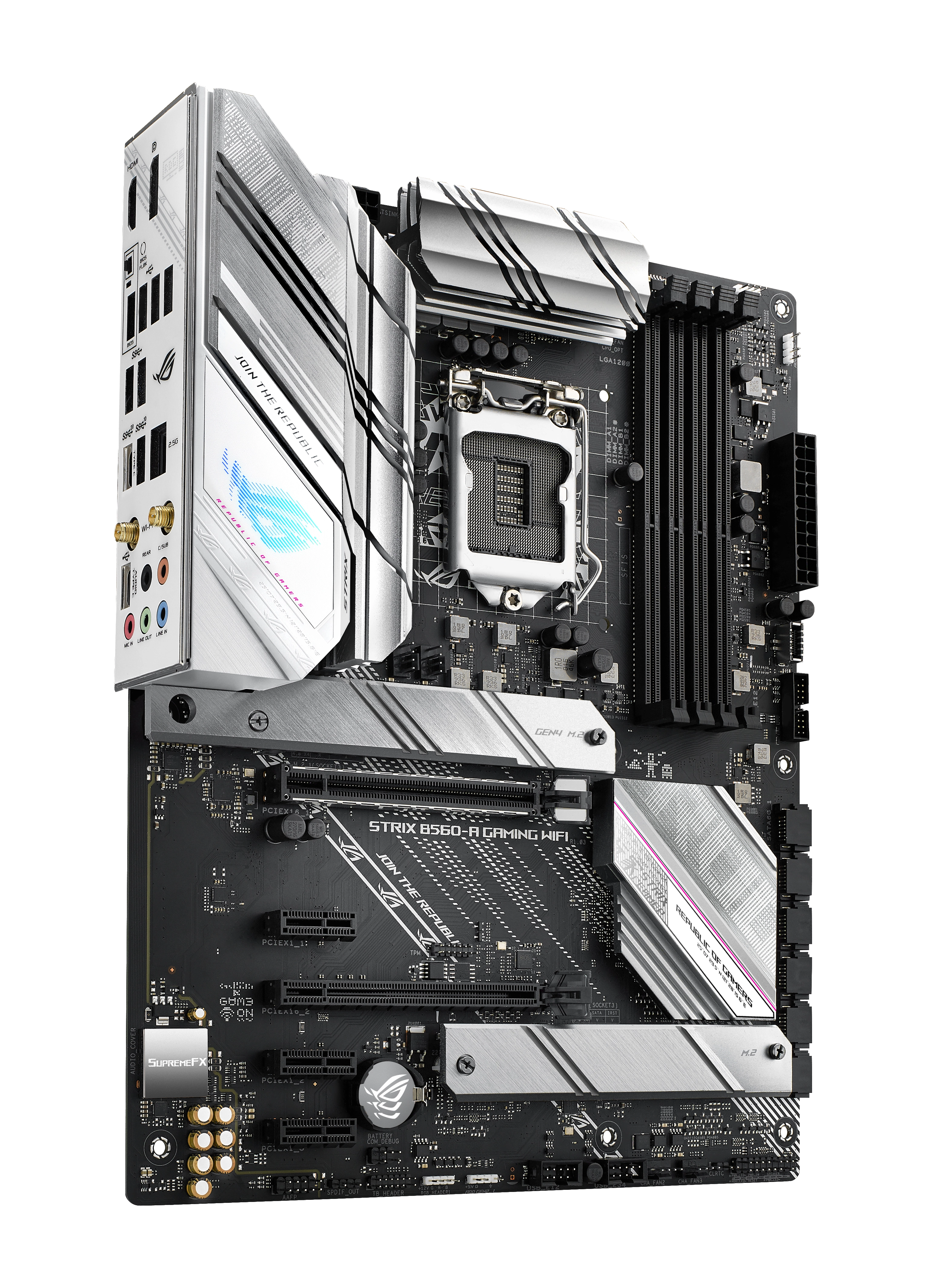

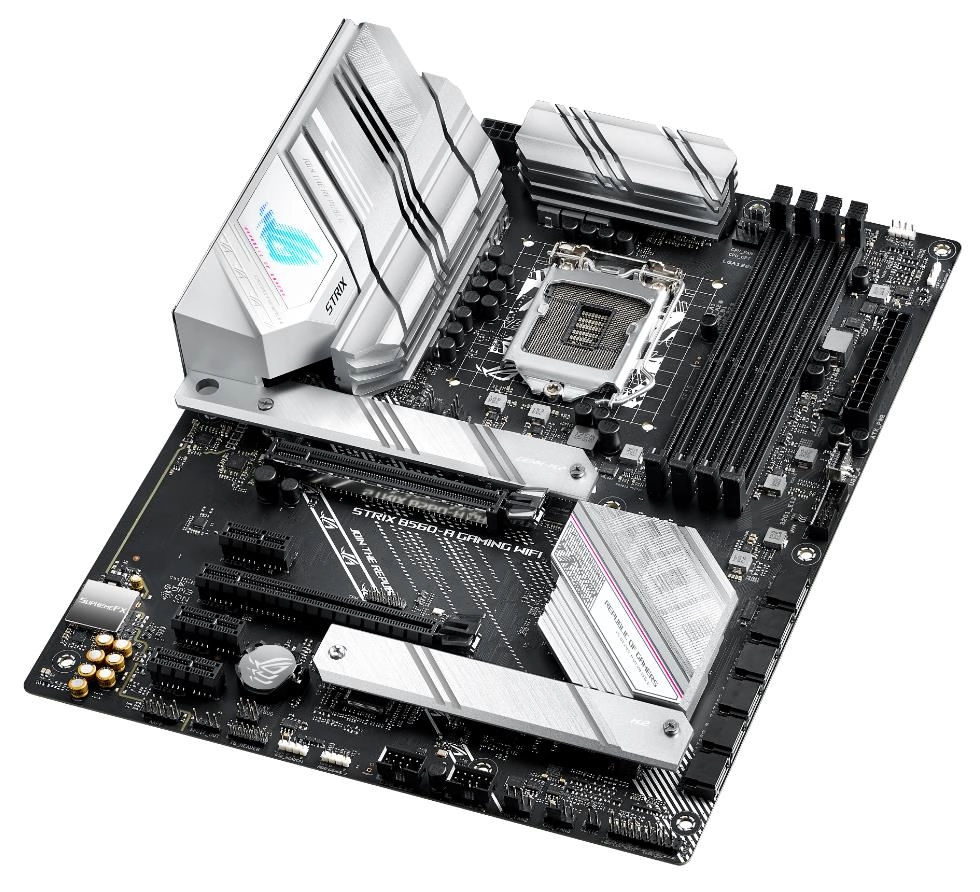

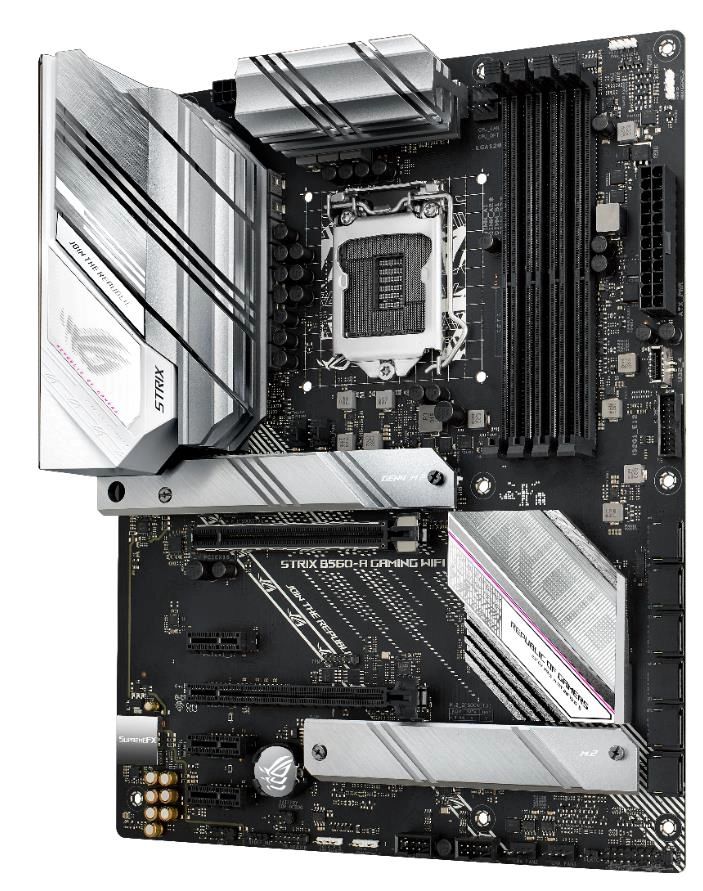

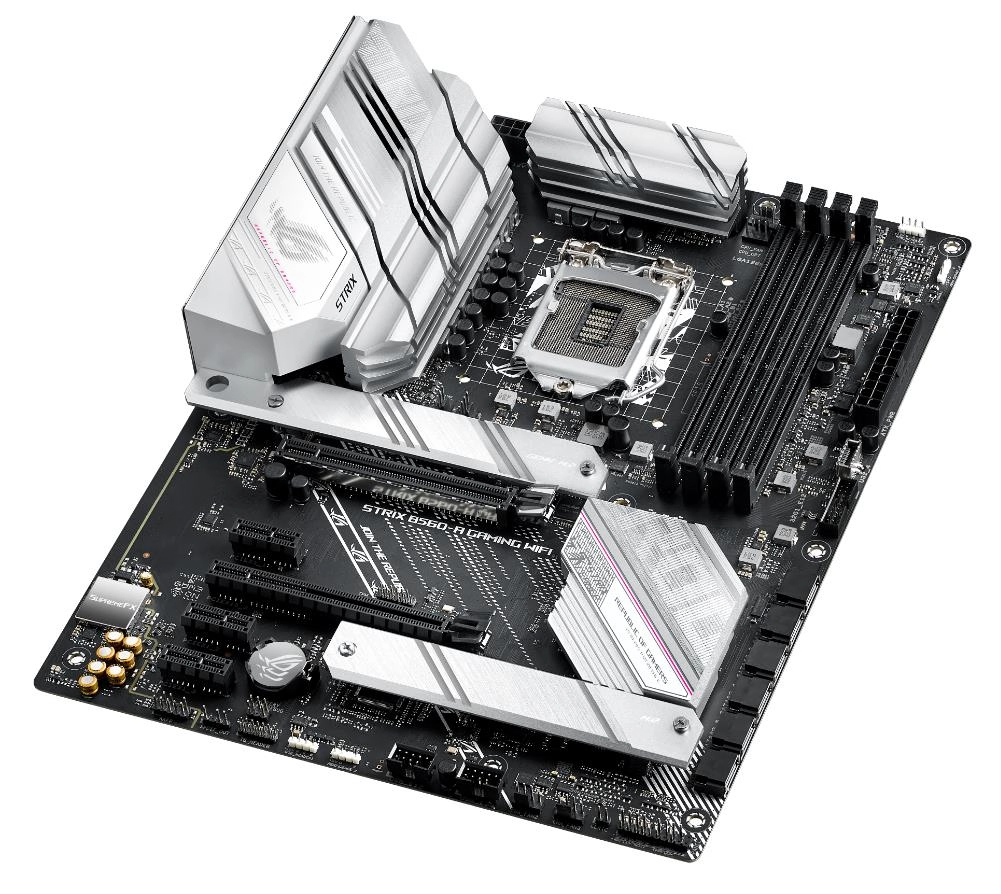

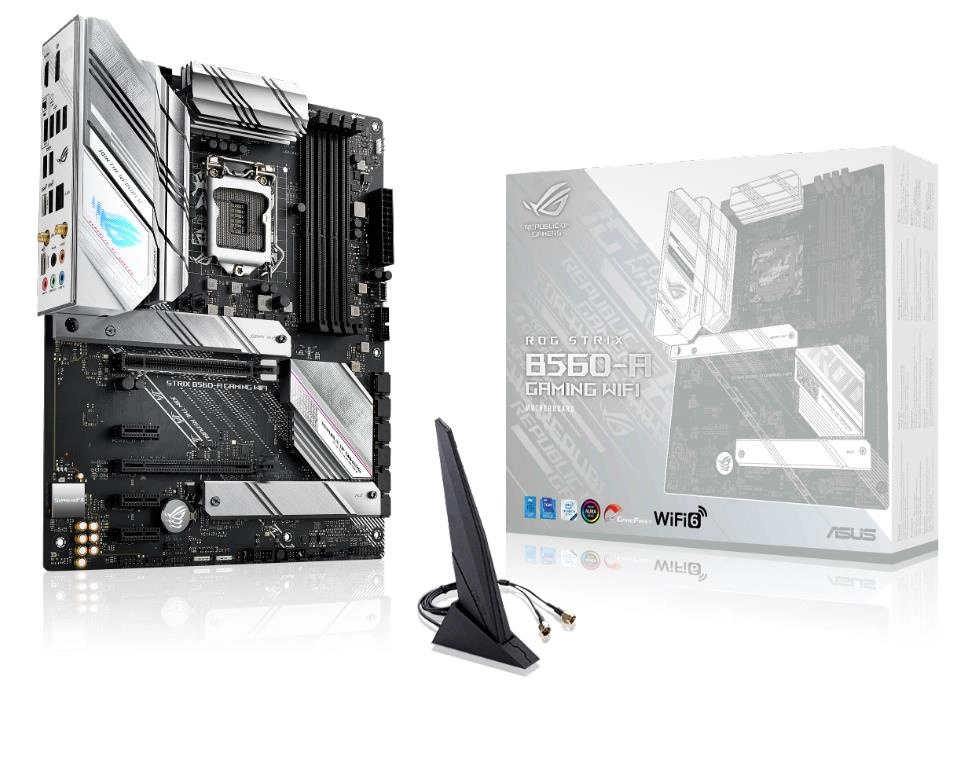

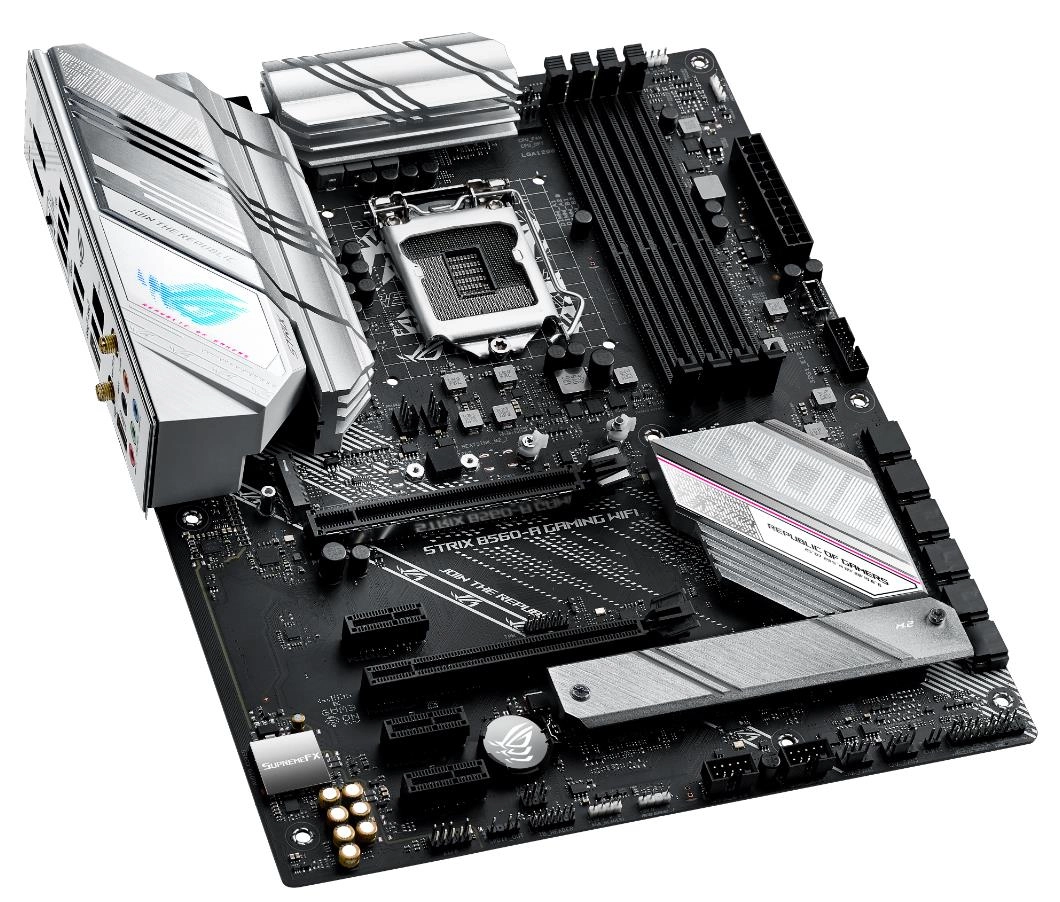

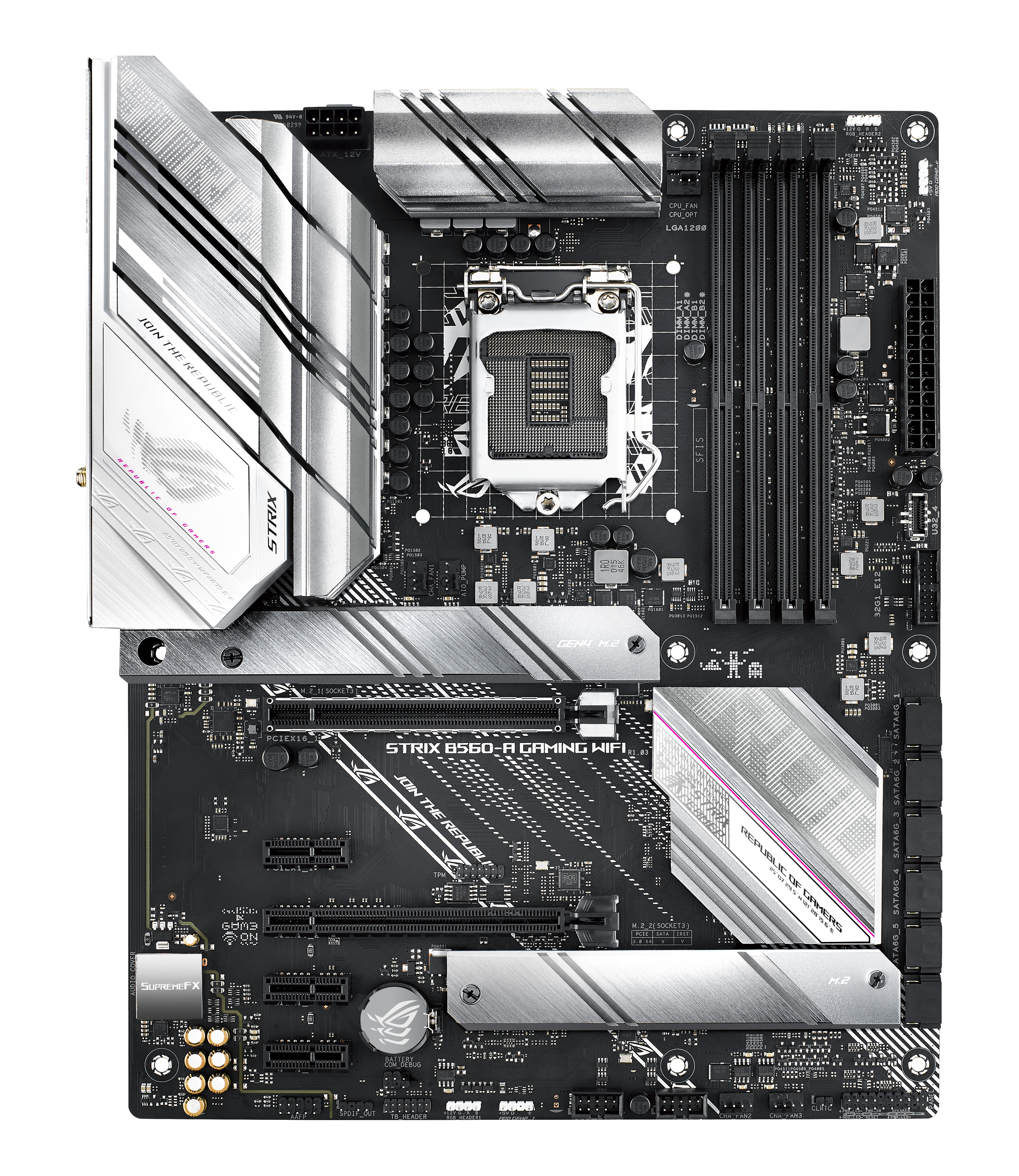

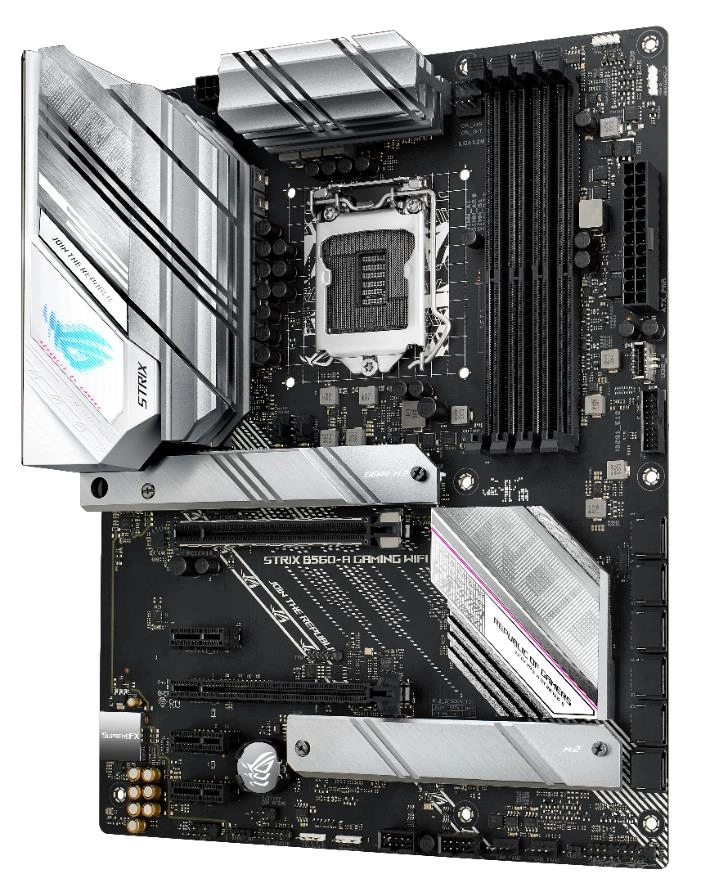

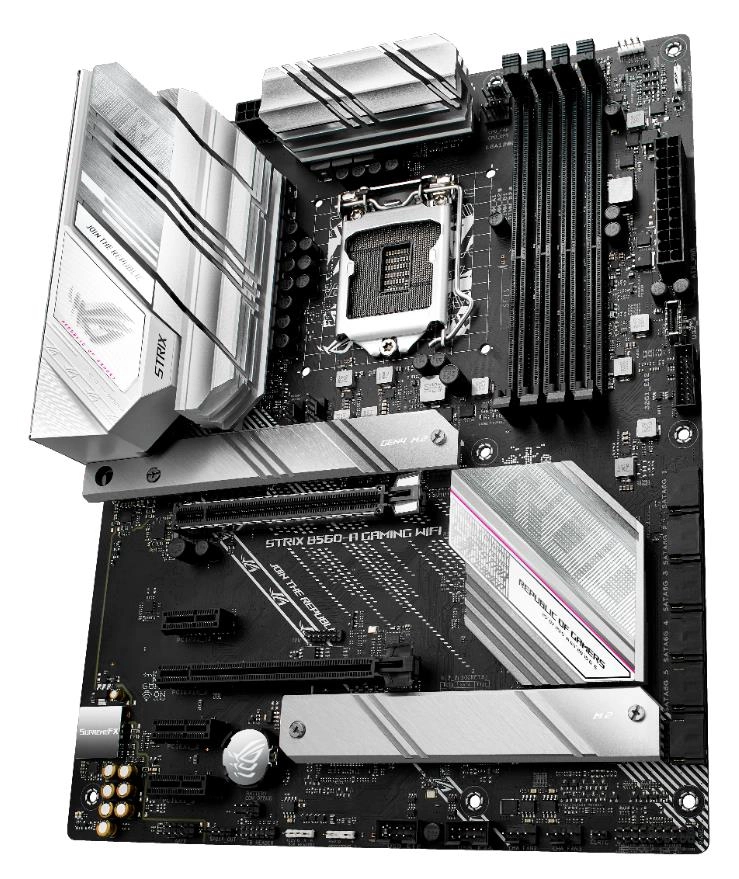

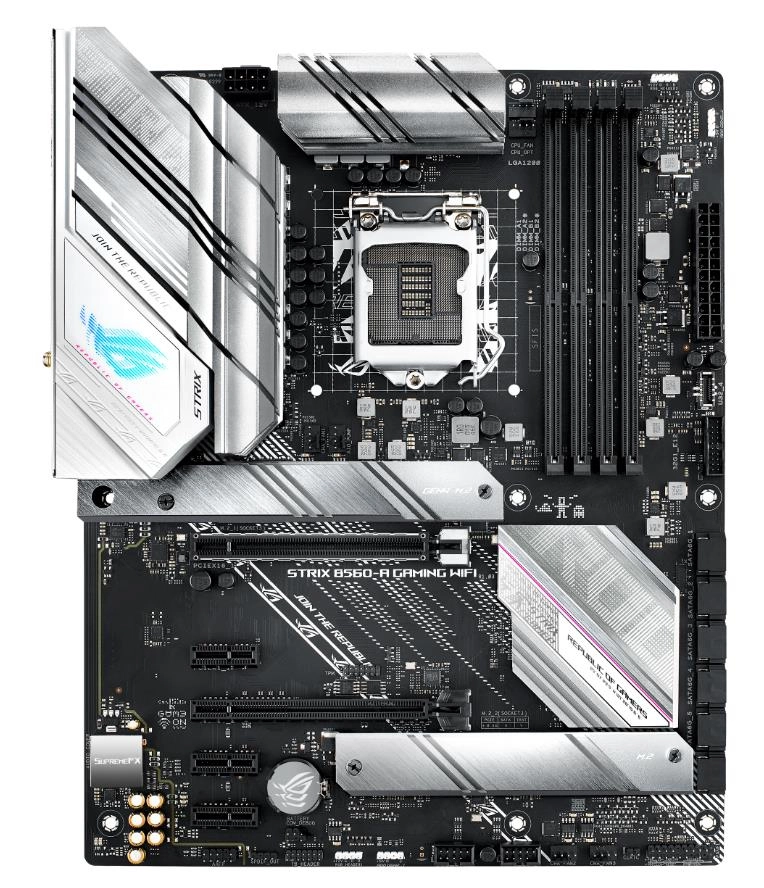

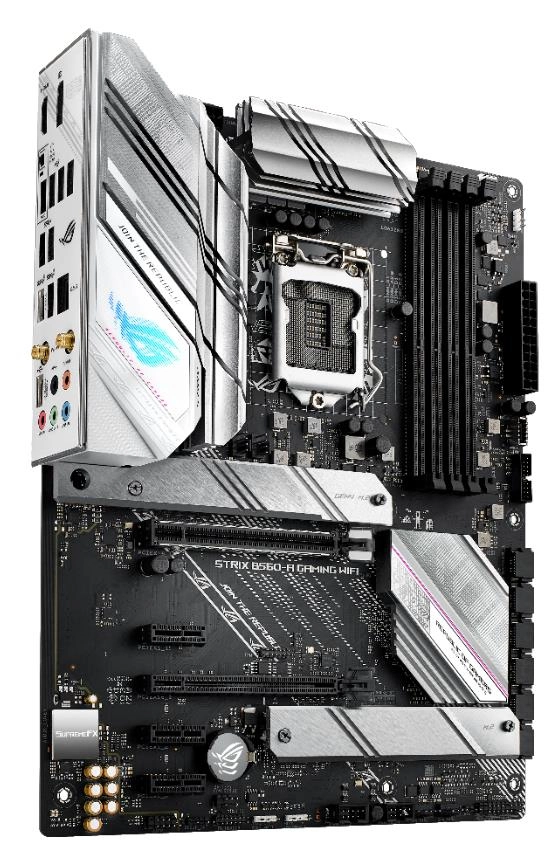

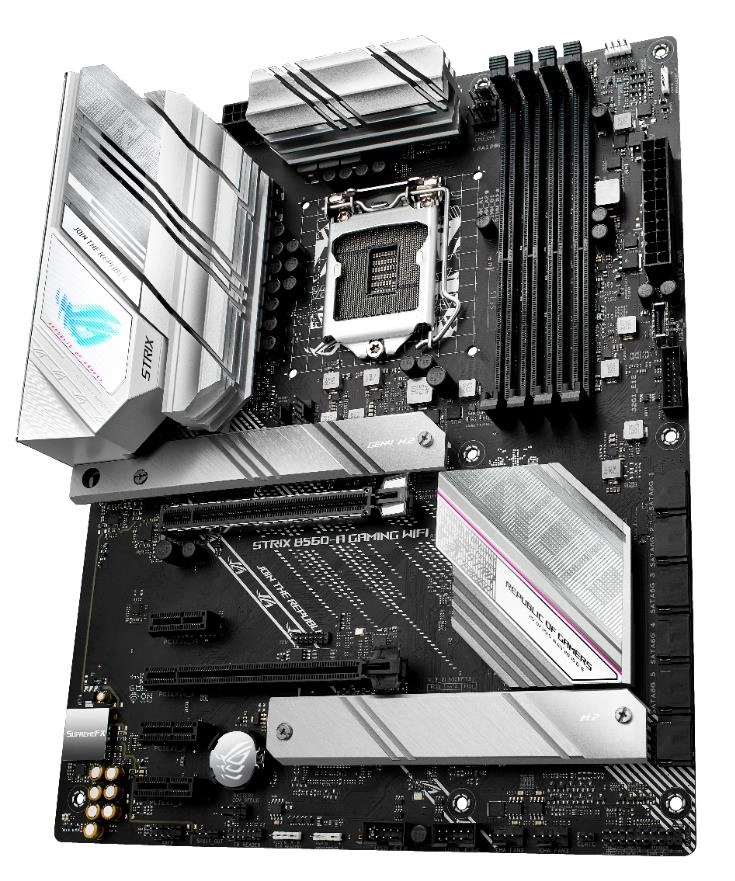

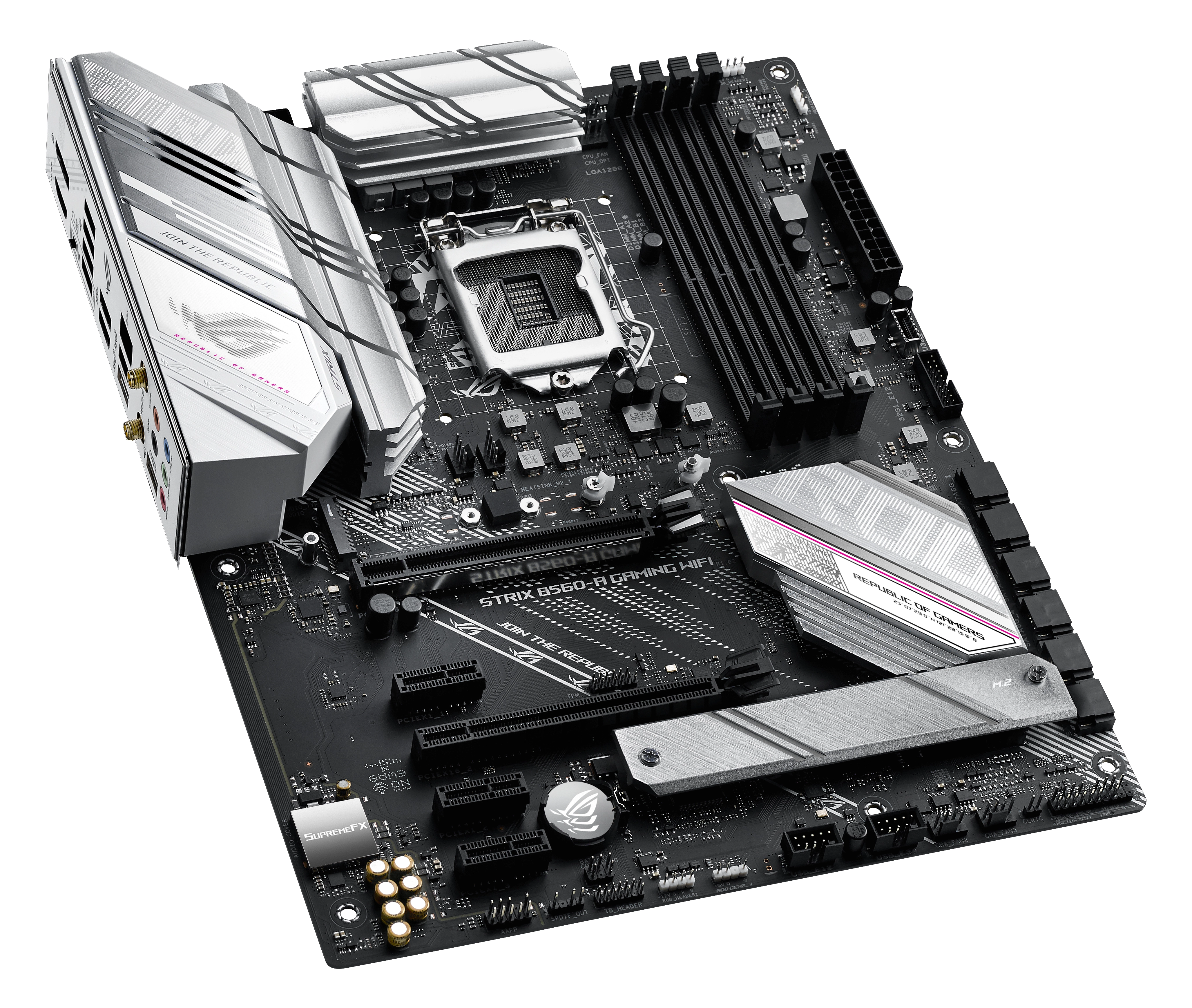

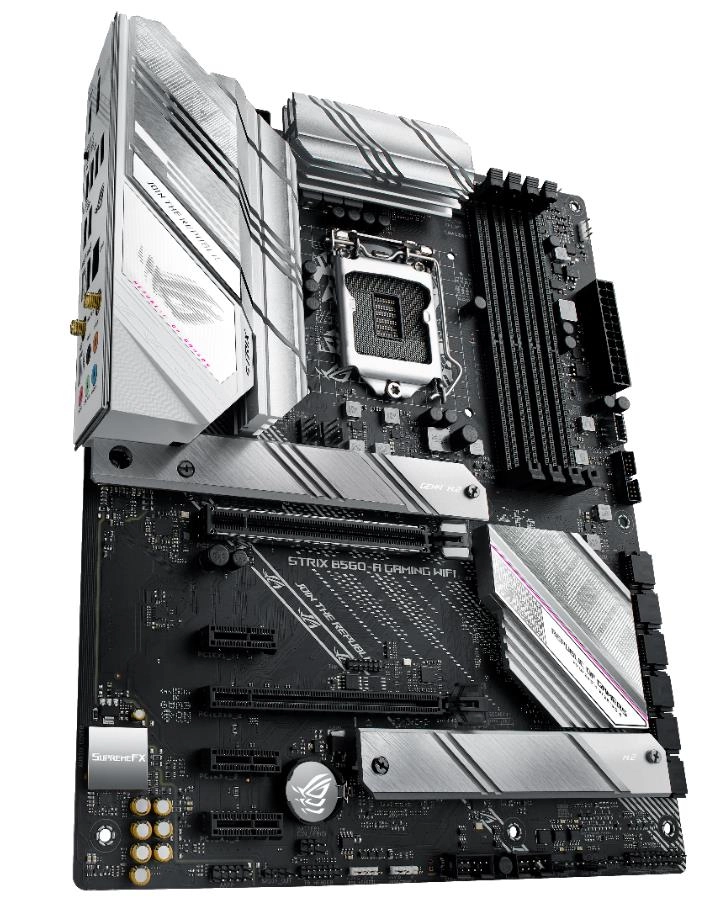

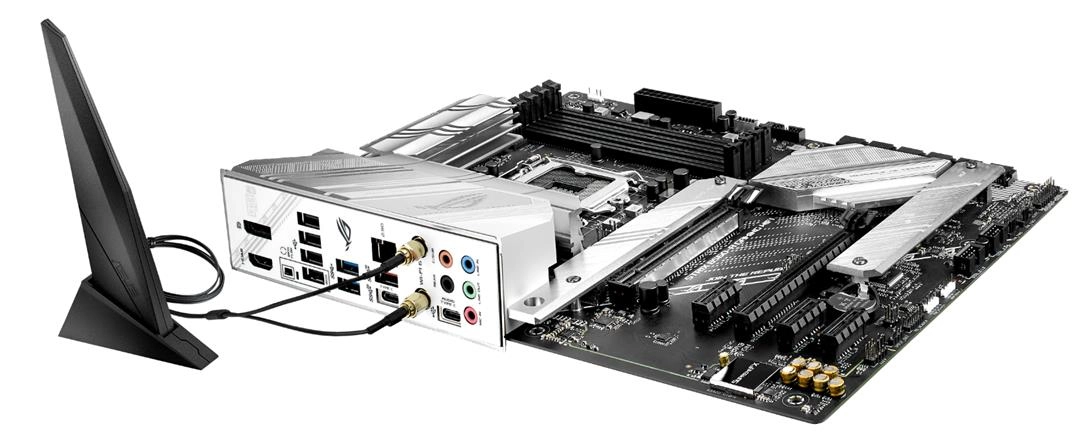

Intel® B560 LGA 1200 ATX motherboard with PCIe 4.0, 8+2 teamed power stages, Two-Way AI Noise Cancelation, WiFi 6 (802.11ax), Realtek 2.5 Gb Ethernet, two M.2 slots with heatsinks, USB 3.2 Gen 2x2 USB Type-C®, SATA and Aura Sync RGB lighting

Specification

Product
Product id	711197
Brand	AsusTek
Partnr	90MB16V0-M0EAY0
EAN/UPC code	4711081128373
Warranty (months)	36 months
Processor
Processor manufacturer	Intel
Processor socket	LGA 1200
Compatible processor series	Intel Celeron, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium
Maximum number of SMP processors	1
Memory
Supported memory types	DDR4-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Maximum internal memory	128 GB
Storage controllers
Supported storage drive interfaces	M.2, SATA
Number of storage drives supported	8
Internal I/O
Number of SATA connectors	6

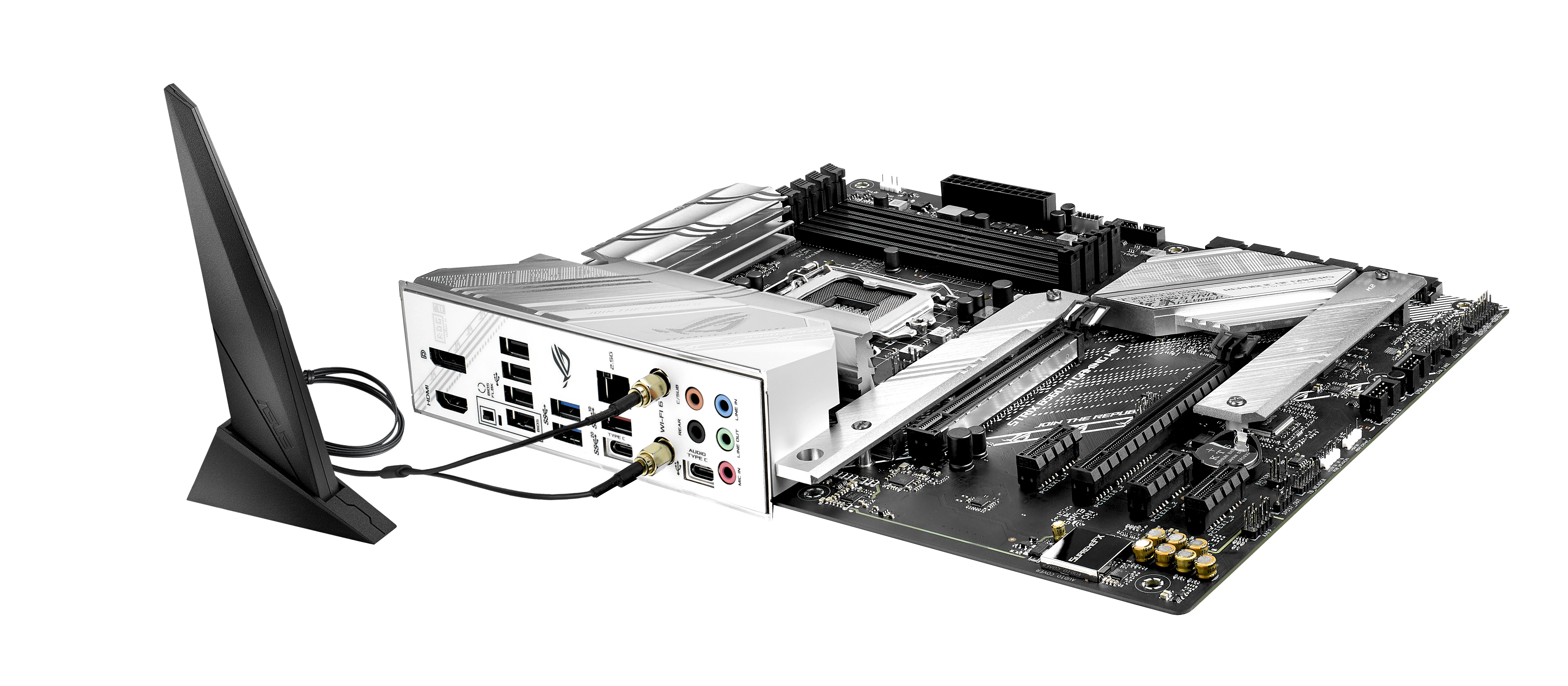

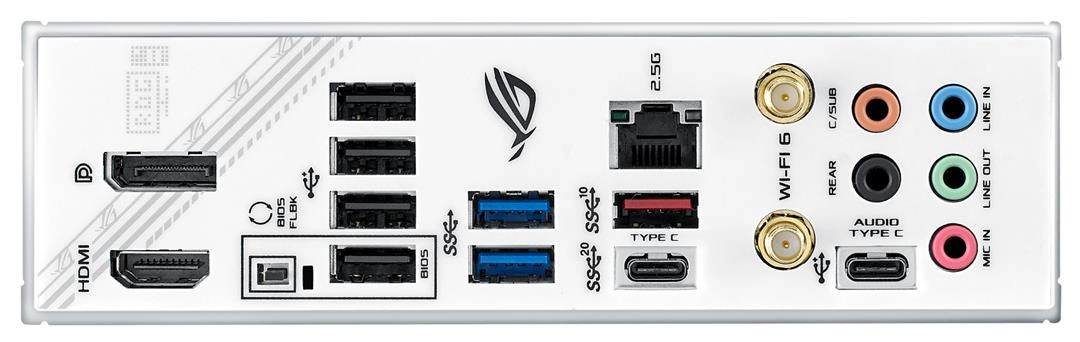

Rear panel I/O ports
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.0
DisplayPorts quantity	1
DisplayPort version	1.4
Microphone in	Y
WiFi-AP antenna jack	2
USB connector type	USB Type-A, USB Type-C
Network
Ethernet LAN	Y
Ethernet interface type	2.5 Gigabit Ethernet
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth	Y
Bluetooth version	5.0
Features
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	Intel
Motherboard chipset	Intel B560
Audio chip	SupremeFX S1220A
Audio output channels	7.1 kanalen
Power source type	ATX
Number of mounting holes	8
Windows operating systems supported	Windows 10 x64
Expansion slots
PCI Express x16 (Gen 3. x) slots	1
PCI Express x16 (Gen 4. x) slots	1
Number of M.2 (M) slots	2
BIOS
BIOS type	UEFI AMI
Weight & dimensions
Width	305 mm
Depth	244 mm

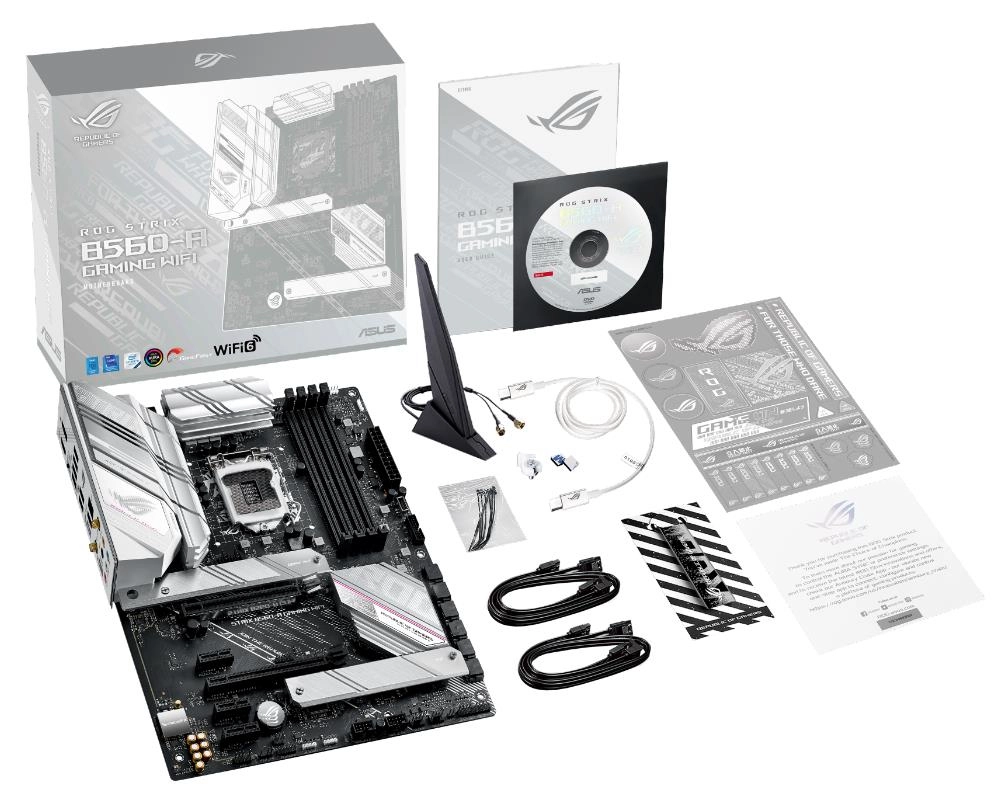

Packaging content
Cables included	SATA
Drivers included	Y
