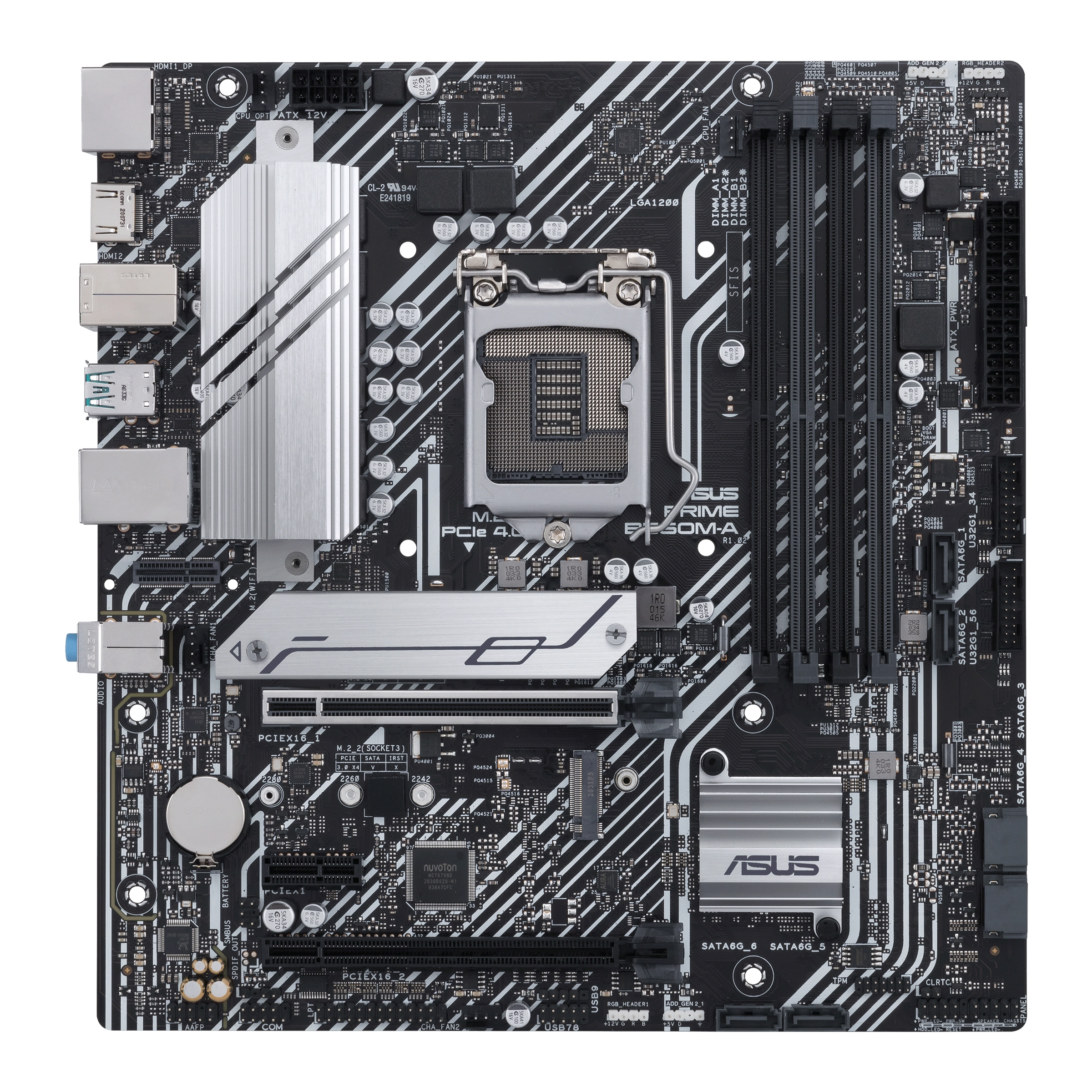

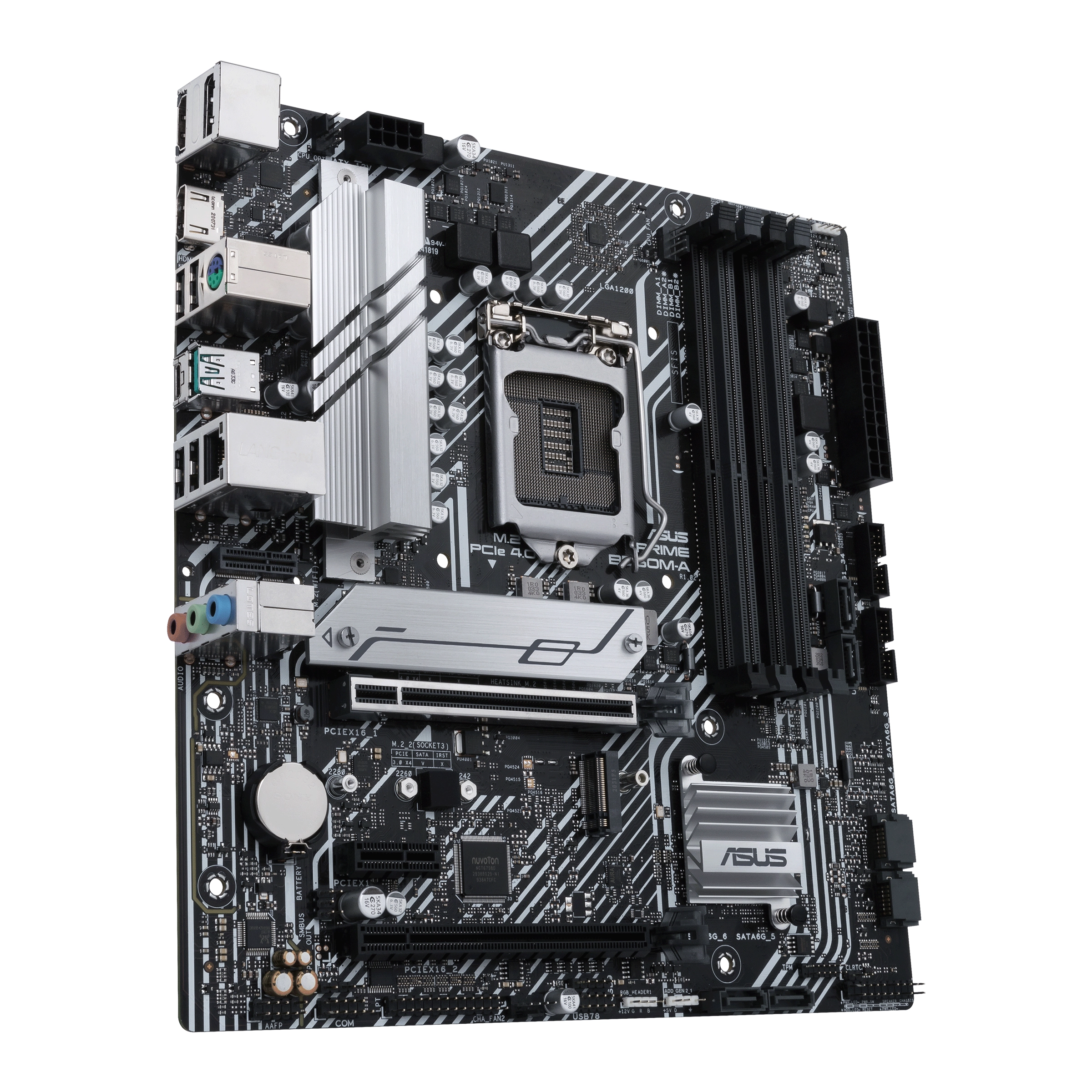

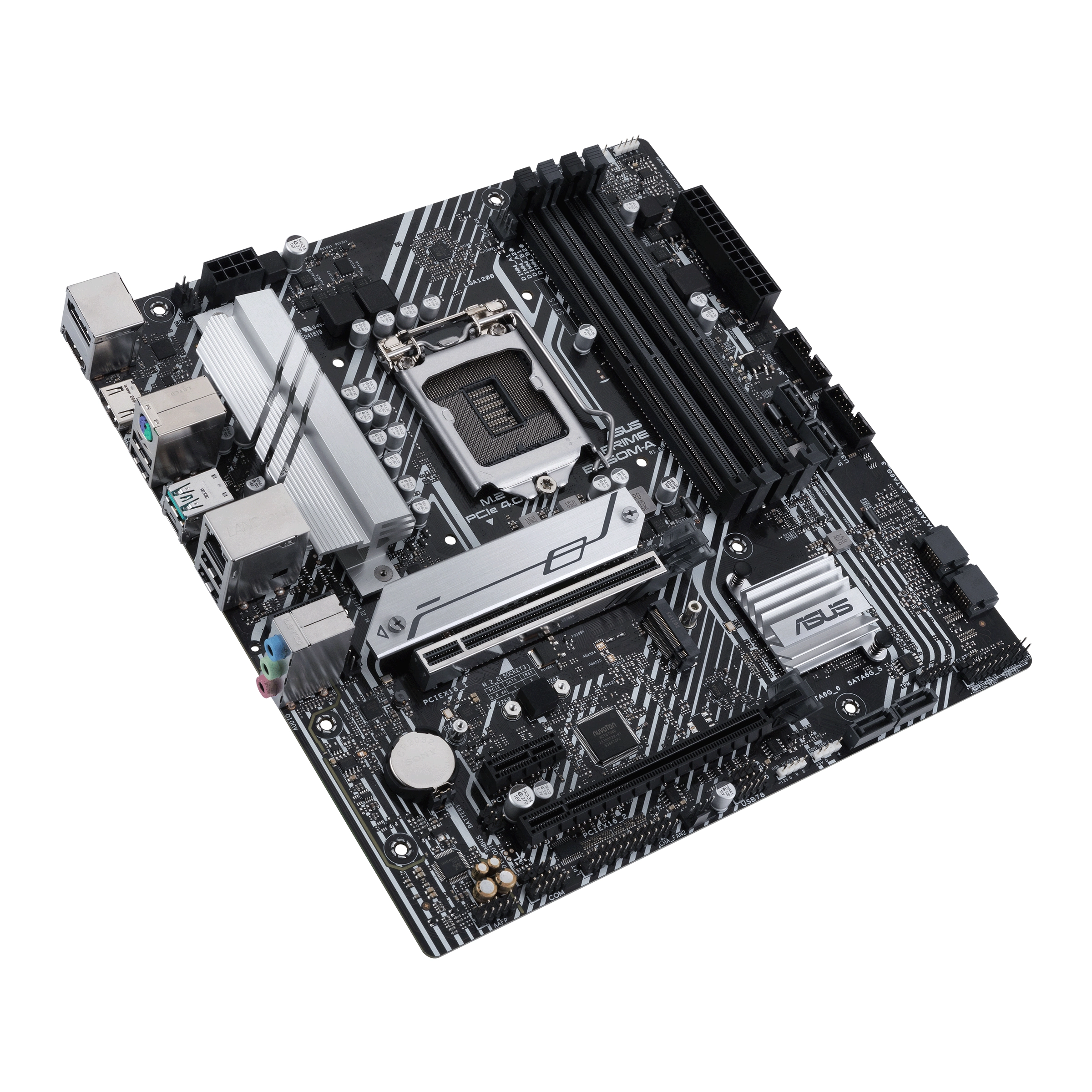

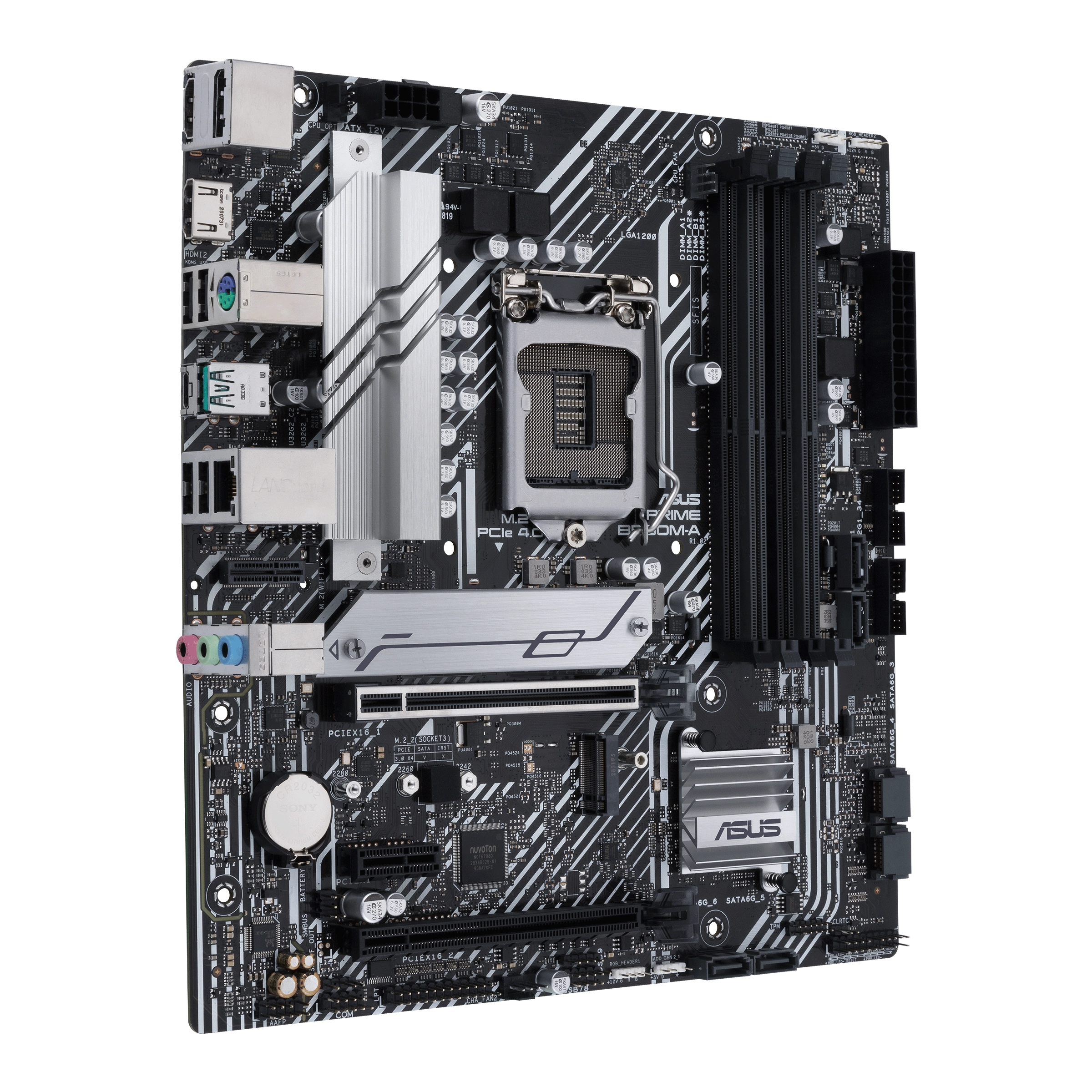

ASUS PRIME B560M-A. Processor manufacturer: Intel, Processor socket: LGA 1200, Compatible processor series: Intel Core i5, Intel Core i7, Intel Core i9. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA, Supported storage drive types: HDD & SSD. Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A, USB Type-C

Specification

Product
Product id	711210
Brand	AsusTek
Partnr	90MB17A0-M0EAY0
EAN/UPC code	4711081130376
Warranty (months)	36 months
Processor
Processor manufacturer	Intel
Processor socket	LGA 1200
Compatible processor series	Intel Core i5, Intel Core i7, Intel Core i9
Maximum number of SMP processors	1
Memory
Supported memory types	DDR4-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
Non-ECC	Y
Supported memory clock speeds	2133, 2400, 2666, 2800, 2933, 3200, 3333, 3466, 3600, 3733, 4000, 4266, 4400, 4600, 4800, 5000 MHz
Maximum internal memory	128 GB
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	SATA
Number of storage drives supported	8
Graphics
Maximum resolution	4096 x 2304 Pixels
Number of displays supported	2
Internal I/O
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Number of SATA III connectors	6
S/PDIF out connector	Y
Front panel audio connector	Y
ATX Power connector (24-pin)	Y
CPU fan connector	Y
Number of chassis fan connectors	2
Chassis intrusion connector	Y
Peripheral (Molex) power connectors (4-pin)	4
EPS power connector (8-pin)	Y
TPM connector	Y
12V power connector	Y
Number of COM connectors	1
RGB LED pin header	Y

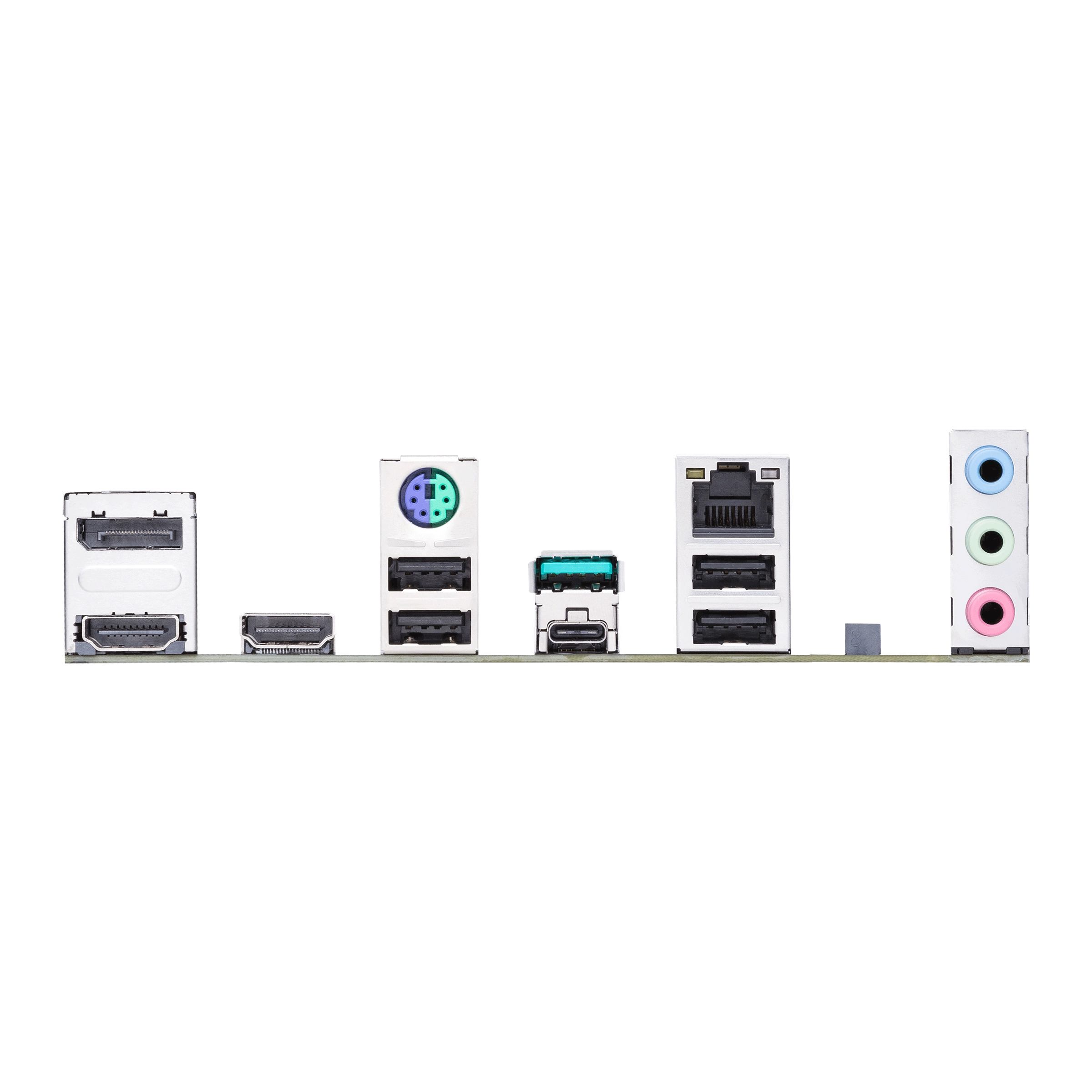

Rear panel I/O ports
USB 2.0 ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
PS/2 ports quantity	1
HDMI ports quantity	2
HDMI version	2.0
DisplayPorts quantity	1
DisplayPort version	1.4
Headphone outputs	1
Microphone in	Y
USB connector type	USB Type-A, USB Type-C
Network
Ethernet LAN	Y
Ethernet interface type	Gigabit Ethernet
LAN controller	Intel I219-V
Wi-Fi	N
Features
Component for	PC
Motherboard form factor	Micro ATX
Motherboard chipset family	Intel
Motherboard chipset	Intel B560
Audio output channels	7.1 kanalen
Power source type	ATX
Number of mounting holes	6
Windows operating systems supported	Windows 10 x64
Expansion slots
PCI Express x16 (Gen 3. x) slots	1
PCI Express x16 (Gen 4. x) slots	1
Number of M.2 (M) slots	2
BIOS
BIOS type	UEFI AMI
BIOS memory size	128 Mbit
Weight & dimensions
Width	244 mm
Depth	234 mm
