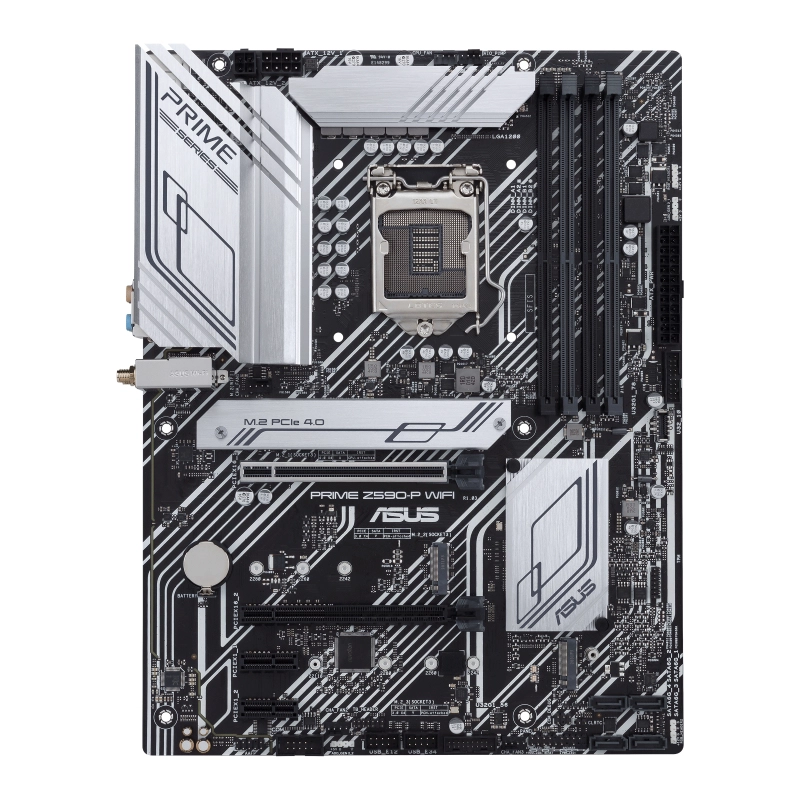

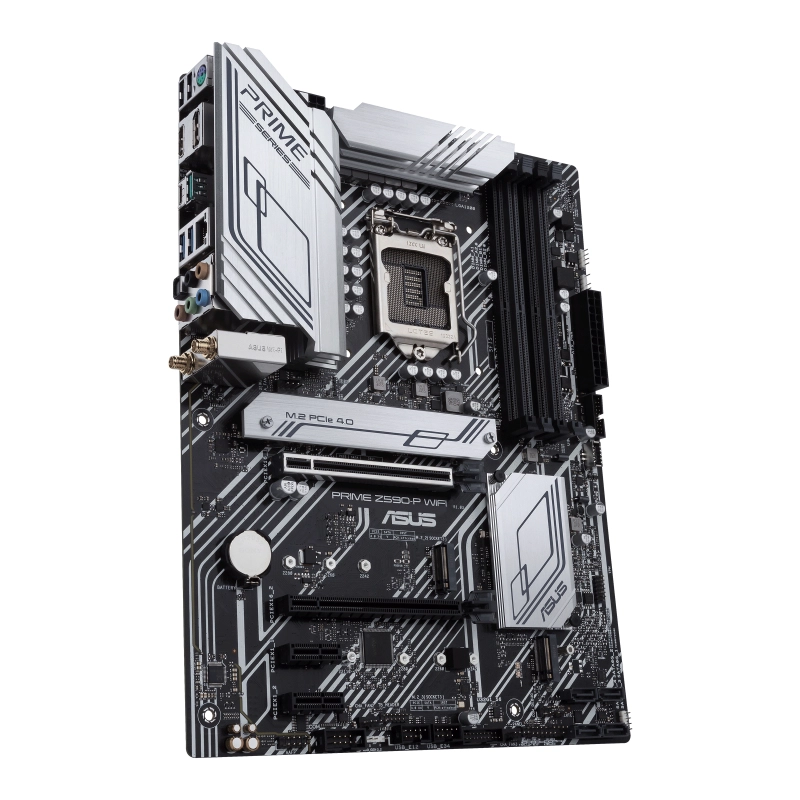

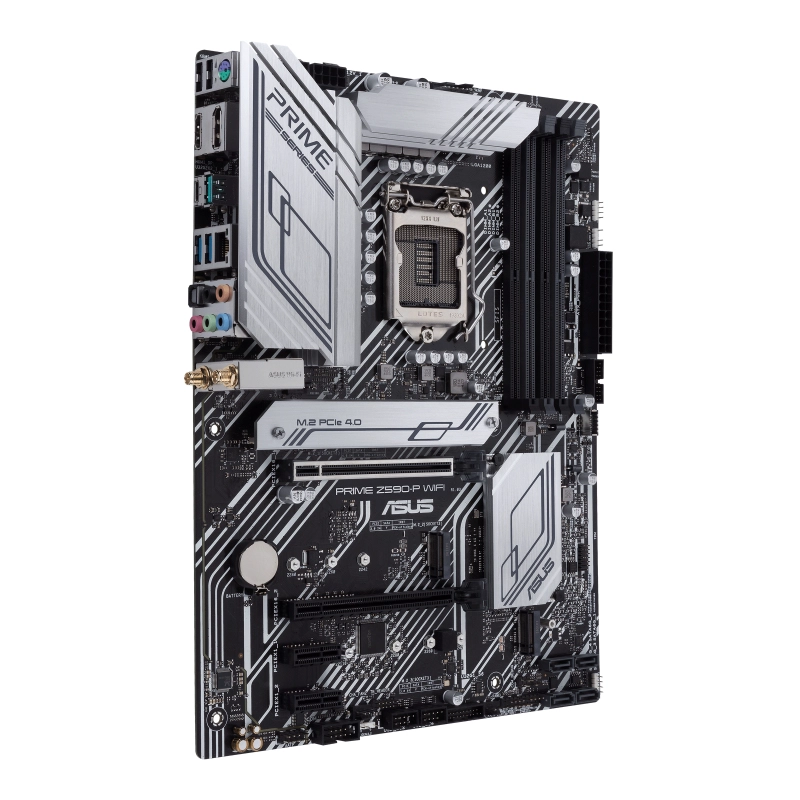

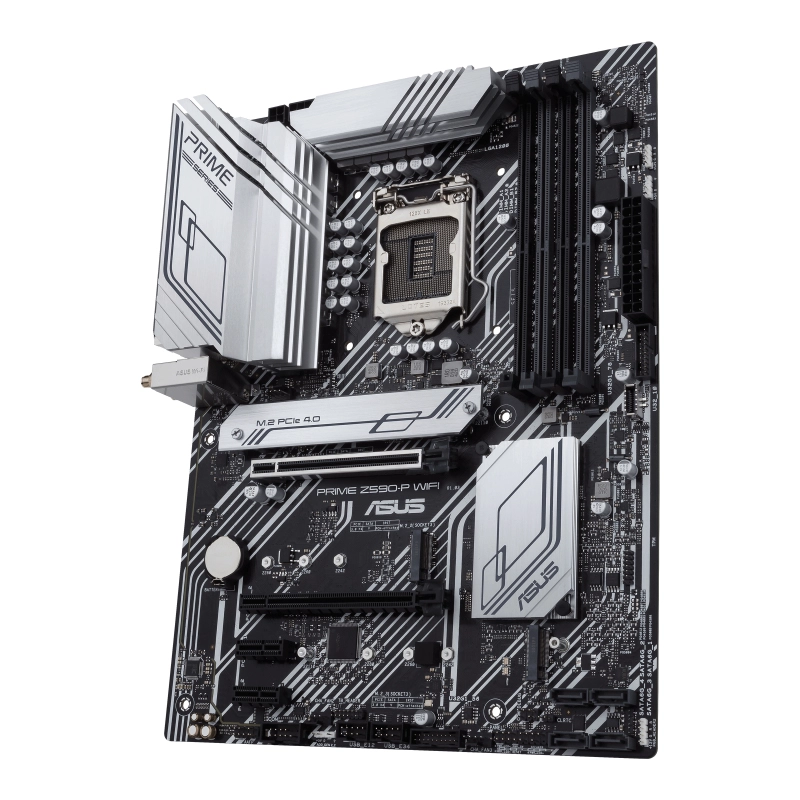

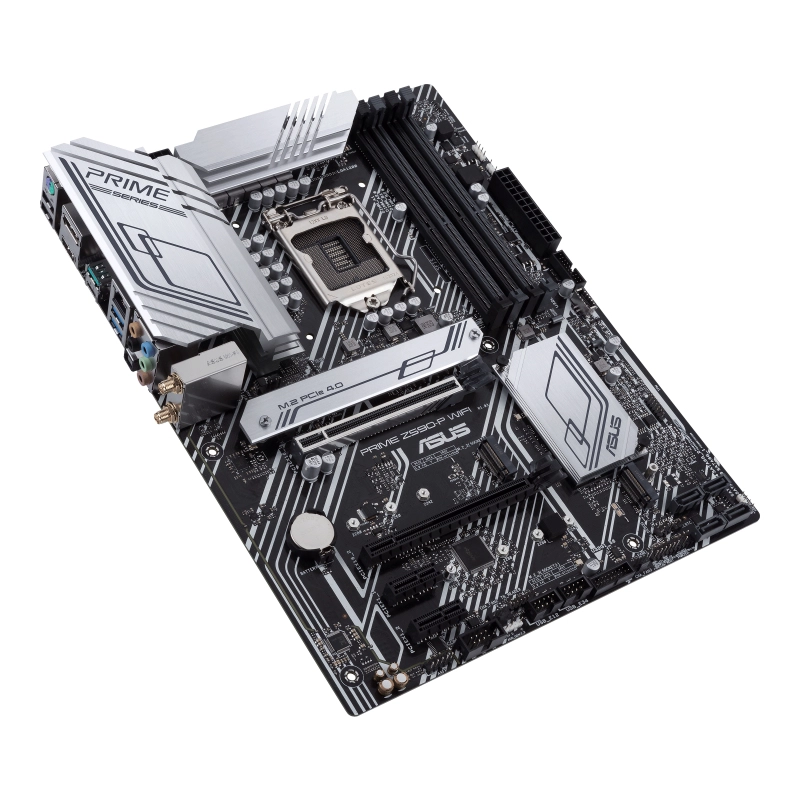

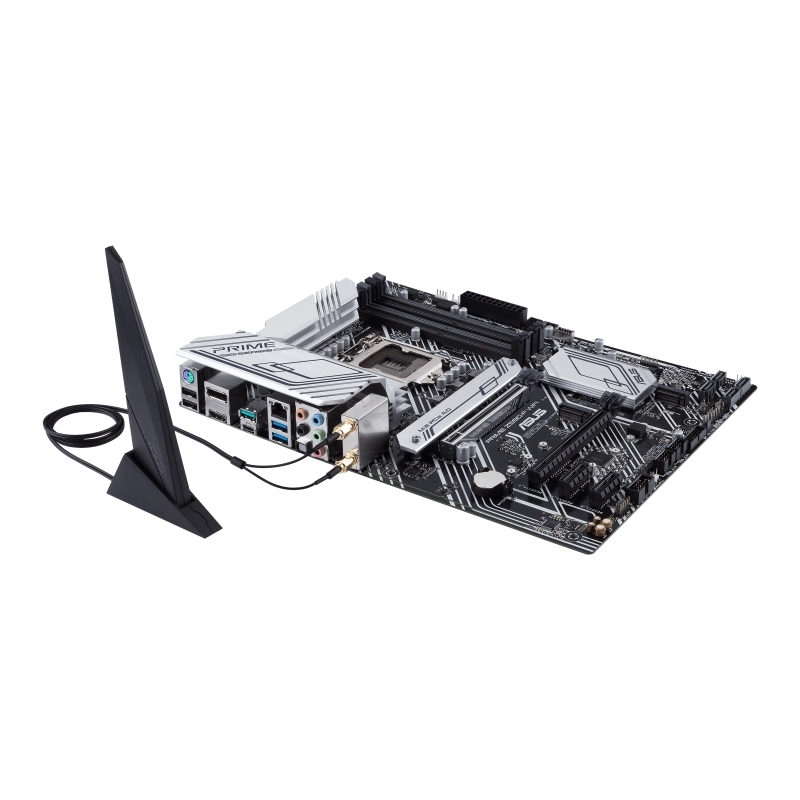

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 10th and 11th Generation Intel® Core™ processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z590-P WIFI provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.

Tune It Your Way
Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z590 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity.

UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

Advanced Tuning for Serious Tweakers
An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

Search Function
Quickly and easily find the option or setting you need.

ASUS User Profile
Port configuration settings between different BIOS versions or share them with friends.

Quick and Simple Setup
EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.

Intuitive Graphical Fan Control
Fine-tune individual fan settings simply by dragging a curve with the mouse.

EZ XMP
Improve DRAM performance with one click.

Aura On/Off Mode (Stealth)
Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch.

Cool to the Core
Prime Z590 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

M.2 Heatsink
An M.2 heatsink takes care of the two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws and can be moved to other M.2 slot.

VRM Heatsinks and High-quality Thermal Pads
Two massive VRM heatsinks and high-quality thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.

Stack Cool 3+
2-ounce copper layers draw heat away from critical components to keep them at their optimal operating temperatures.

Cooler by Design
Prime Z590 series features comprehensive cooling controls that are configurable via Fan Xpert 4 software or via the UEFI BIOS.

Build on a Solid Foundation
Prime Z590 series is built to handle the additional cores and increased bandwidth of 11th Generation Intel® Core™ processors. ASUS Z590 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.

Robust Power Design
Stable power is essential to extract every last bit of performance out of 11th Generation Intel® Core™ processors. Prime Z590-P WIFI is geared to cater to the demands of these high-core count CPUs.

ProCool Connector
Proprietary connector augment the motherboard's link to the PSU with 8-pin connector that pass 12 volts of power directly to the processors. 8-pin connector features solid pins that can handle more current than hollow-pin connector.

10+1 60A DrMOS Power Stages
A VRM with 10+1 60A DrMOS power stages delivers the power and efficiency that the latest Intel processors demand.

ASUS OptiMem II
Revisions to the motherboard’s trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk.

Benefits of ASUS OptiMem II:
- Improved memory stability and compatibility
- Allows lower memory latencies at equivalent voltages
- Improved memory frequency margin

Three M.2 slots (up to 64 Gbps)
Prime Z590-P WIFI offers a total of three M.2 slots, with one slot supporting data-transfer speeds of up to 64 Gbps via PCI Express® 4.0, enabling quicker boot-up and app load times with OS or application drives.

PCIe® 4.0 Slot
ASUS Z590 motherboards are designed specifically for 11th Generation Intel® Core™ CPUs and offer PCIe® 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.

USB 3.2 Gen 2x2 Type-C®
Numerous USB ports support high-end rigs loaded with peripherals, including one rear USB Type-C® connector with fast USB 3.2 Gen 2x2 for transmission speeds of up to 20 Gbps.

Thunderbolt™ 4 header Support
Prime Z590-P WIFI features Thunderbolt™ 4 support via an on-board header. With the latest Intel-certified ASUS TunderboltEX 4 add-on card, it can enable bi-directional speeds of up to 40 Gbps on a single cable. Additionally, this card has a daisy-chain function for multi-screen connection and supports up to an 8K resolution display. It can also provide up to 100 watts of power to fast-charge devices.

Intel® WiFi 6
The Intel® WiFi 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.

Realtek 2.5 Gb Ethernet
Realtek 2.5 Gb Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfer.

Small Details Make a Big Difference
Prime Z590 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.

Outstanding Audio
Combined onboard features deliver elevated audio
Intelligent design and premium hardware create audio quality unlike anything you’ve ever experienced.

Audio Shielding
Separates analog/digital signal domains, significantly reducing multi-lateral interference.

Separate Layer for Left and Right Tracks
Ensures minimal crosstalk between audio paths.

Premium Japanese Capacitors
Premium parts provide an immersive sound signature, with exceptional fidelity.

Aura Sync
Outshine the Competition
A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the strips connected to the onboard RGB headers — and it can all be synced with an ever-growing portfolio of Aura-capable hardware.

Addressable Gen 2 RGB Header
Two addressable Gen 2 RGB headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.

Armoury Crate
Armoury Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate allows you to easily customize RGB lighting and effects for every compatible device in your arsenal. The software also provides control of settings for an ever-growing number of ASUS products, including keyboard and mouse preferences. Armoury Crate even features dedicated product registration and news to help you stay in touch with the ASUS community.

SafeSlot Core+
SafeSlot Core+ is the ASUS-exclusive PCIe slot fortified with a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards.

LANGuard
Pumped-up throughput 2.5X higher surge tolerance
ASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology and premium anti-EMI surface-mounted capacitors to improve throughput and ensure a more reliable connection.

Overvoltage Protection
World-class circuit-protecting power design
An exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies.

DRAM Overcurrent Protection
Short-circuit damage prevention
Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.

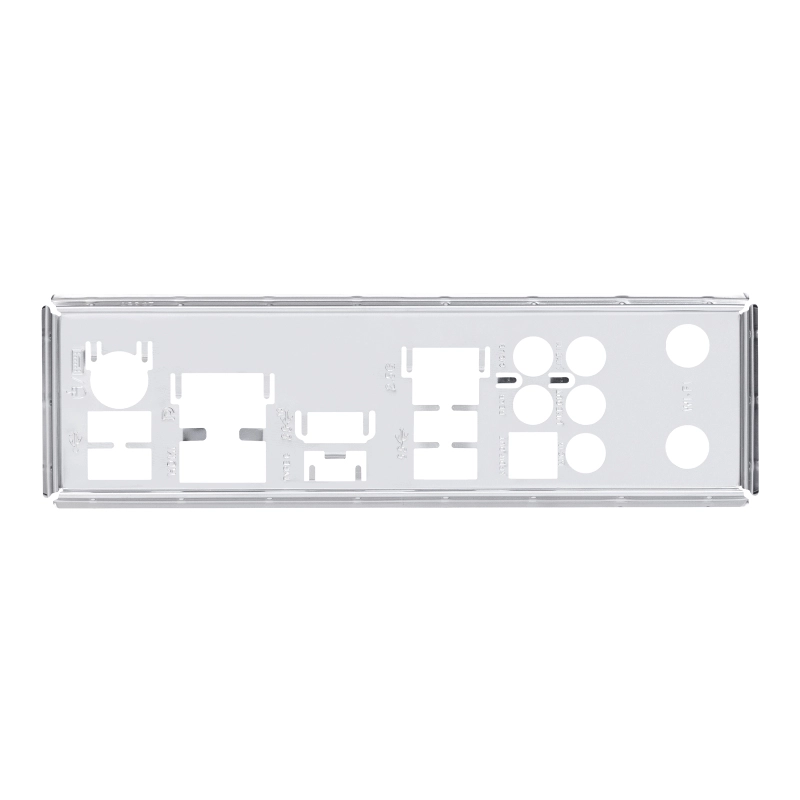

Stainless-Steel Back I/O
3X corrosion-resistance for greater durability
Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.

1000+
Compatible devices and components
The Prime Z590 series provides superior compatibility with thousands of components and our Qualified Vendor List (QVL) identifies memory compatibility, giving you more choices for worry-free PC-building experiences.

8000+
Validation hours
Every ASUS motherboard is subjected to more than 8, 000 hours of stringent tests, including burn-in, environmental, compatibility, software and safety tests to confirm their durability. ASUS reliability surpasses industry standards, ensuring that every component is designed to function flawlessly in any environment.

Temperature and humidity tests
Ensures components withstand extreme conditions.

Thermal measurement tests
Ensures that the system remains cool and stable under the heaviest loads.

Insertion tests
Every port and connector is put through repeated installation cycles.

Aging tests
Up to 48-hour aging test ensures reliability.

Power-consumption tests
Checked for world-class energy efficiency.

Temperature and DC margin tests
Ensures that the motherboard is capable of coping with voltages fluctuations caused by varying temperatures.

Thermal-shock tests
Ensures ability to survive temperature changes during transportation.

Non-operation shock tests
Built to withstand jolts that may occur during shipping.

Burn-in tests
Every component is checked to ensure flawless operation.

Installation tests
Connector placement is double-checked to ensure hassle-free installation.

Drop tests
Drop tests from various heights ensure durability.

Salt and spray tests
Tested for I/O reliability, prolonged lifespan and rust-resistance.

Specification

Product
Product id	731682
Brand	AsusTek
Partnr	90MB1810-M0EAY1
EAN/UPC code	4711081171973
Warranty (months)	24 months
Processor
Processor manufacturer	Intel
Processor socket	LGA 1200
Compatible processor series	Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium G
Supported processor sockets	LGA 1200 (Socket H5)
Memory
Supported memory types	DDR4-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
Non-ECC	Y
Supported memory clock speeds	2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4500, 4600, 4700, 4800, 5000, 5133 MHz
Maximum internal memory	128 GB
Unbuffered memory	Y
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, PCI Express 3.0, SATA III
Number of storage drives supported	7
Graphics
Parallel processing technology support	Not supported
Maximum resolution	4096 x 2304 Pixels
Internal I/O
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	3
Number of SATA III connectors	4
Front panel audio connector	Y
ATX Power connector (24-pin)	Y
CPU fan connector	Y
Number of chassis fan connectors	3
EPS power connector (8-pin)	Y
Thunderbolt headers	1
TPM connector	Y
12V power connector	Y
Number of COM connectors	1
RGB LED pin header	Y

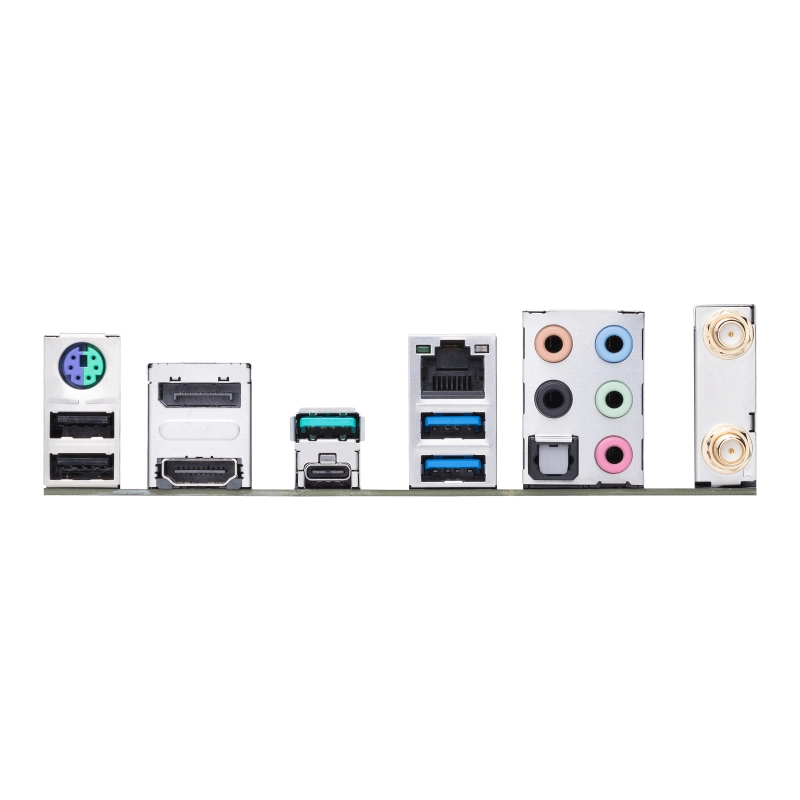

Rear panel I/O ports
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
PS/2 ports quantity	1
HDMI ports quantity	1
HDMI version	1.4
DisplayPorts quantity	1
DisplayPort version	1.4
Headphone outputs	5
Microphone in	Y
S/PDIF out port	Y
WiFi-AP antenna jack	1
USB connector type	USB Type-A, USB Type-C
Network
Ethernet LAN	Y
Ethernet interface type	2.5 Gigabit Ethernet
Wake-on-LAN ready	Y
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth	Y
Bluetooth version	5.0
Features
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	Intel
Motherboard chipset	Intel Z590
Audio chip	Realtek ALC897
Audio output channels	7.1 kanalen
Windows operating systems supported	Windows 10 x64
Expansion slots
PCI Express x1 (Gen 3. x) slots	2
PCI Express x16 (Gen 3. x) slots	1
PCI Express x16 (Gen 4. x) slots	1
Number of M.2 (M) slots	3
BIOS
BIOS type	UEFI AMI
BIOS memory size	192 Mbit
Clear CMOS jumper	Y
Weight & dimensions
Width	305 mm
Depth	234 mm

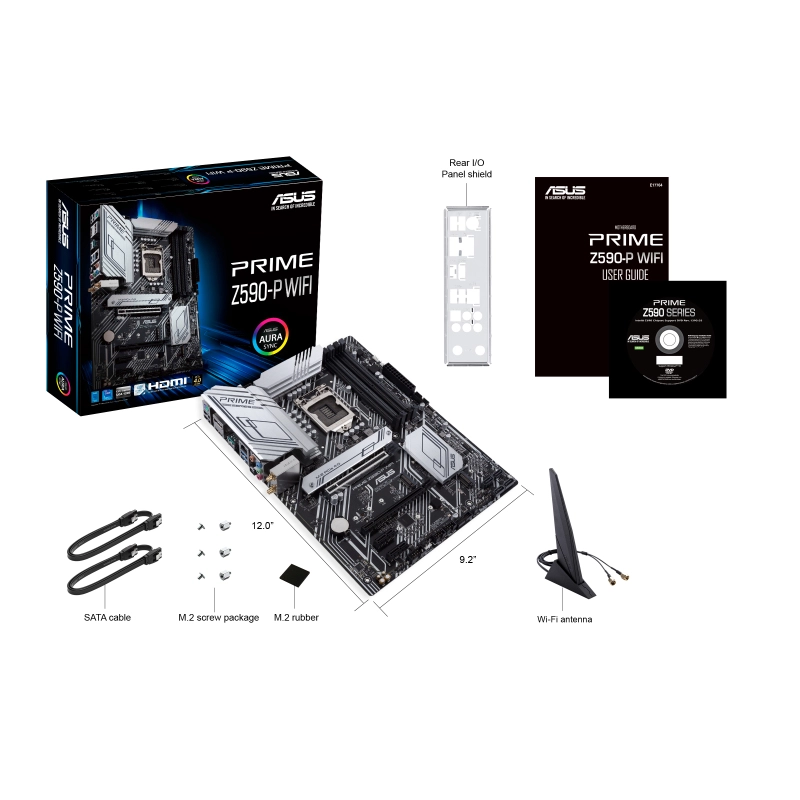

Packaging content
Cables included	SATA
Drivers included	Y
