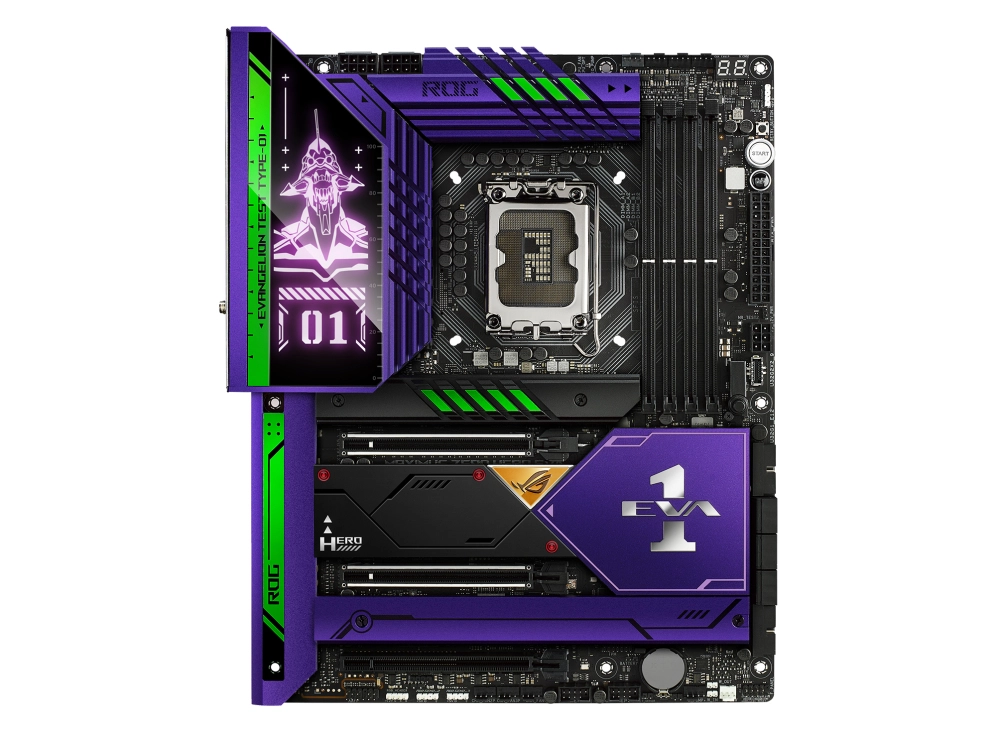

It’s 2022. The Republic of Gamers is launching new equipment for the EVANGELION project. The ROG Maximus Z690 Hero EVA Edition is covered in the classic purple and green of the EVA-01 and is similarly well-equipped. Robust cooling and power delivery are poised to push the latest 12th Gen Intel® Core ™ processors to the max. An A. T. Field design around the CPU socket and polymo-lighting on the I/O cover that switches between EVA-01 normal and berserk modes is a further aesthetic treat.


INTELLIGENT MOTHERBOARD
Intelligent software solutions help ensure that your system performs at its best. The latest ASUS AI-powered enhancements span four pillars of performance, including overclocking, cooling, networking and onboard audio, making advanced tweaks and optimization accessible to new recruits and savvy PC DIY veterans alike.

Personalization
In addition to elite performance, ROG Maximus Z690 Hero introduces the new Polymo Lighting display, gracing the I/O cover with an eye-catching microstructural array of light and color. This intricate design features two RGB patterns, empowering builders to show off a luminous RGB style that they won’t see anywhere else.

Specification

Product
Product id	880439
Brand	AsusTek
Partnr	90MB1BX0-M0EAY0
EAN/UPC code	4711081762454
Warranty (months)	36 months
Processor
Processor manufacturer	Intel
Processor socket	LGA 1700
Compatible processor series	Intel Celeron
Memory
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
Supported memory clock speeds	4800, 5000, 5400, 5600, 5800, 6000, 6200 MHz
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, PCI Express 5.0, SATA
Internal I/O
USB 2.0 connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	7
ATX Power connector (24-pin)	Y
Power fan connector	Y
CPU fan connector	Y
Number of chassis fan connectors	3
Thunderbolt headers	2
Rear panel I/O ports
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
Ethernet LAN (RJ-45) ports	2
HDMI ports quantity	1
Thunderbolt ports quantity	2
Network
Ethernet LAN	Y
Ethernet interface type	2.5 Gigabit Ethernet, Gigabit Ethernet
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth	Y
Bluetooth version	5.2
Features
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	Intel
Motherboard chipset	Intel Z690
Windows operating systems supported	Windows 10, Windows 11 x64
Harmonized System (HS) code	84733020
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Weight & dimensions
Width	305 mm
Depth	244 mm
Height	108 mm
Other features
Weight	1595 g
