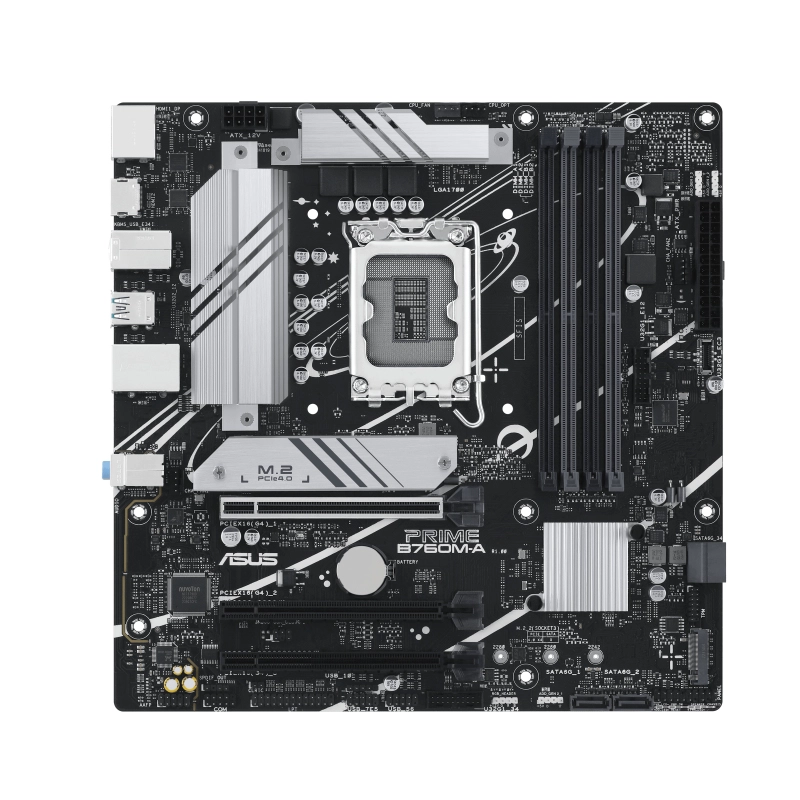

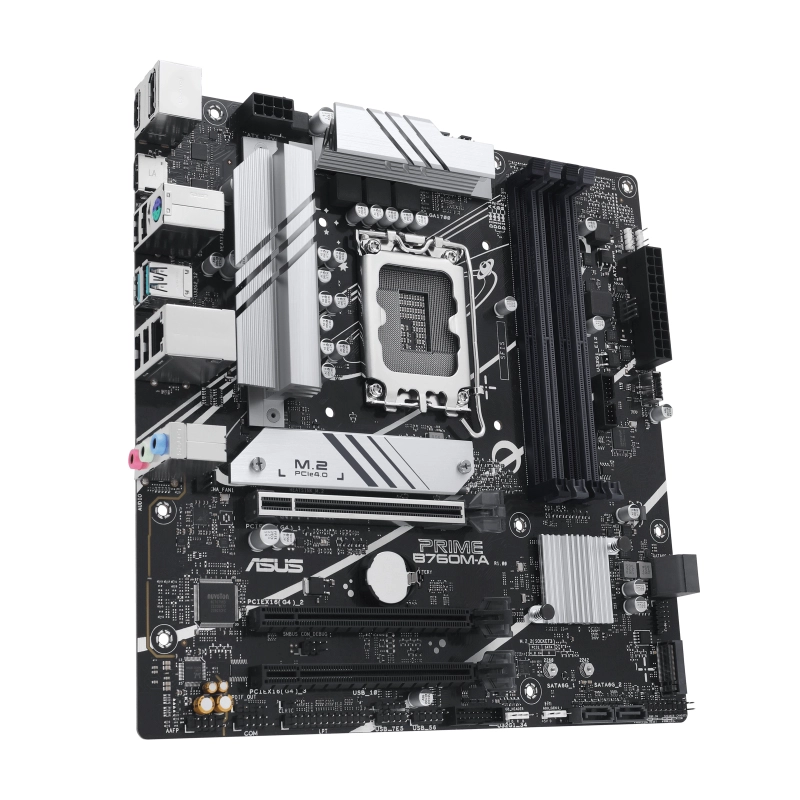

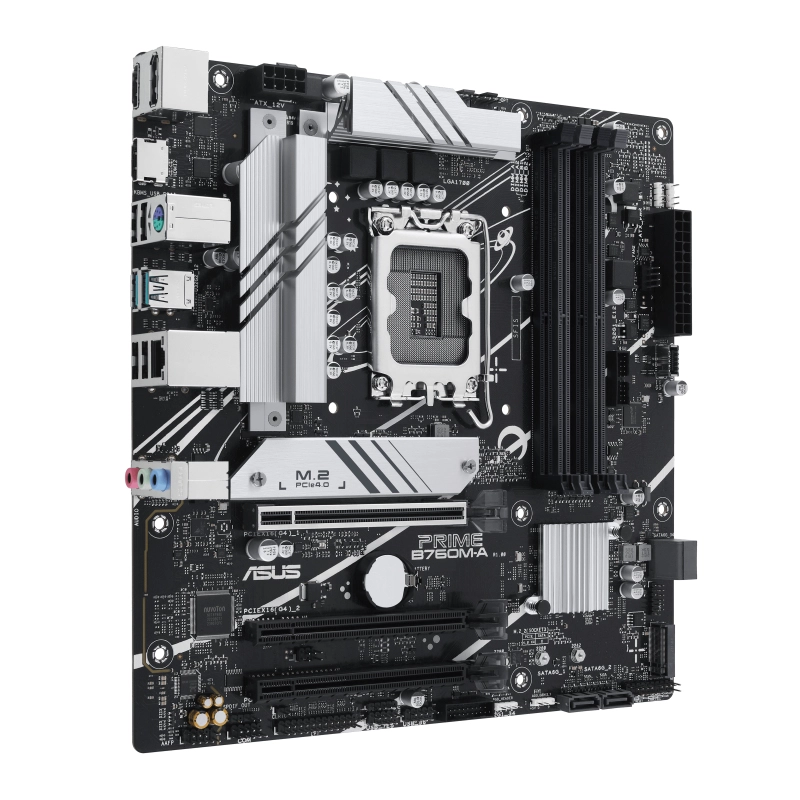

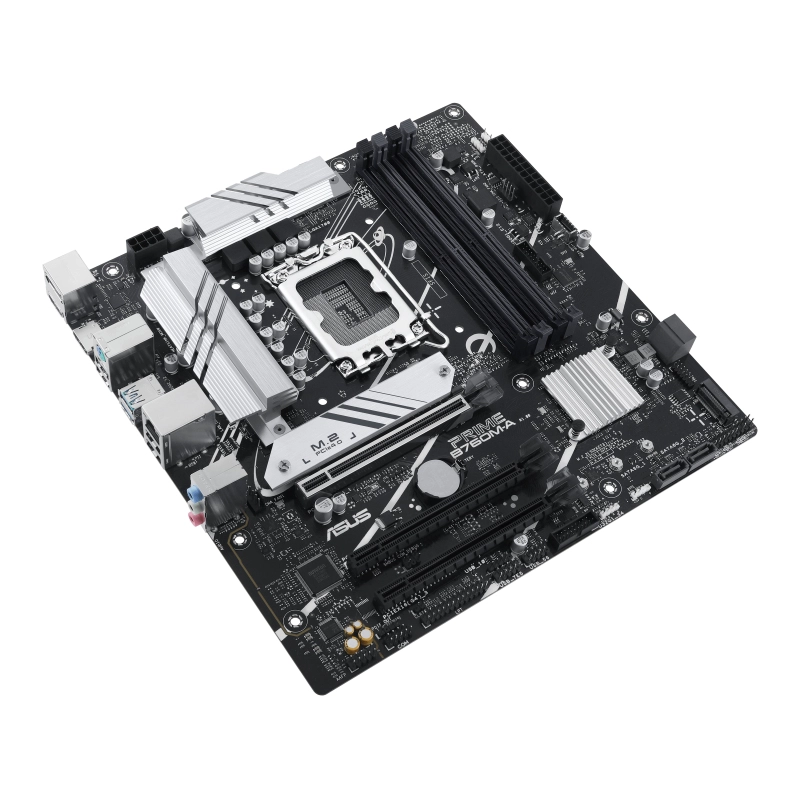

B760M-A-CSM
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-A-CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.
* Lifecycle support, program offering and supply status may vary by region. Please consult your local sales representative for more information.

ASUS Control Center Express
ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.

Specification

Product
Product id	894826
Brand	AsusTek
Partnr	90MB1EK0-M0EAYC
EAN/UPC code	4711387140710
Warranty (months)	36 months
Processor
Processor manufacturer	Intel
Processor socket	LGA 1700
Compatible processor series	Intel Celeron, Intel Pentium Gold, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9
Supported processor sockets	LGA 1700
Memory
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
Non-ECC	Y
Supported memory clock speeds	7200, 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
Maximum internal memory	128 GB
Supported memory clock speed (max)	7200 MHz
Unbuffered memory	Y
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of HDDs supported	4
Number of storage drives supported	6
Graphics
Parallel processing technology support	Not supported
Internal I/O
USB 2.0 connectors	3
USB 3.2 Gen 1 (3.1 Gen 1) connectors	3
Number of SATA III connectors	4
S/PDIF out connector	Y
Front panel audio connector	Y
Front panel connector	Y
ATX Power connector (24-pin)	Y
CPU fan connector	Y
Number of chassis fan connectors	2
EPS power connector (8-pin)	Y
TPM connector	Y
12V power connector	Y
Number of COM connectors	1
RGB LED pin header	Y
Rear panel I/O ports
USB 2.0 ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
PS/2 ports quantity	1
HDMI ports quantity	2
DisplayPorts quantity	1
Headphone outputs	1
Microphone in	Y
Line-in	Y
WiFi-AP antenna jack	1
Network
Ethernet LAN	Y
Ethernet interface type	2.5 Gigabit Ethernet
Wi-Fi	Y
Features
Component for	PC
Motherboard form factor	Micro ATX
Motherboard chipset family	Intel
Motherboard chipset	Intel B760
Audio output channels	7.1 kanalen
Windows operating systems supported	Windows 10 x64, Windows 11
Expansion slots
PCI Express x16 (Gen 4. x) slots	3
Number of M.2 (M) slots	2
BIOS
BIOS type	UEFI AMI
BIOS memory size	128 Mbit
Clear CMOS button	Y
Packaging data
Package width	270 mm
Package depth	263 mm
Package height	52 mm
Weight & dimensions
Width	244 mm
Depth	244 mm
Height	40 mm
Packaging content
Cables included	SATA
Other features
Package weight	1140 g
