ASUS AI INTELLIGENCE
ai OVERCLOCKING
ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.

ai cOOLING II
Balance the thermals and acoustics of any build with a single click.

AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.

Performance
OVERCLOCKING
Dynamic OC Switcher
Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.

Specification

Product
Product id	972807
Brand	AsusTek
Partnr	90MB1IF0-M0EAY0
EAN/UPC code	4711387737859
Warranty (months)	36 months
Processor
Processor manufacturer	AMD
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
Memory
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
ECC	Y
Non-ECC	Y
Maximum internal memory	192 GB
Unbuffered memory	Y
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of HDDs supported	2
Number of storage drives supported	6
RAID levels	0, 1, 10, 5
RAID support	Y
Graphics
Parallel processing technology support	Not supported
On-board graphics adapter	N
Internal I/O
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2x2 connectors	1
Number of SATA III connectors	2
Front panel audio connector	Y
ATX Power connector (24-pin)	Y
CPU fan connector	Y
Number of chassis fan connectors	5
Chassis intrusion connector	Y
12V power connector	Y

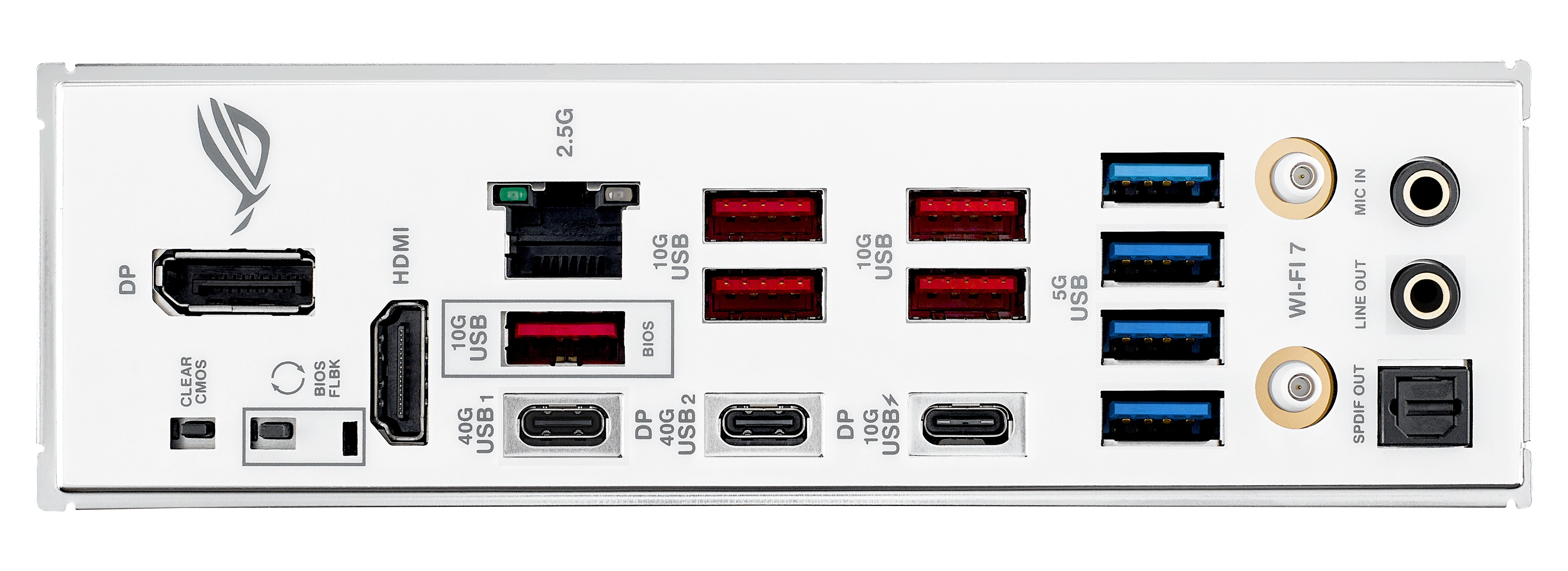

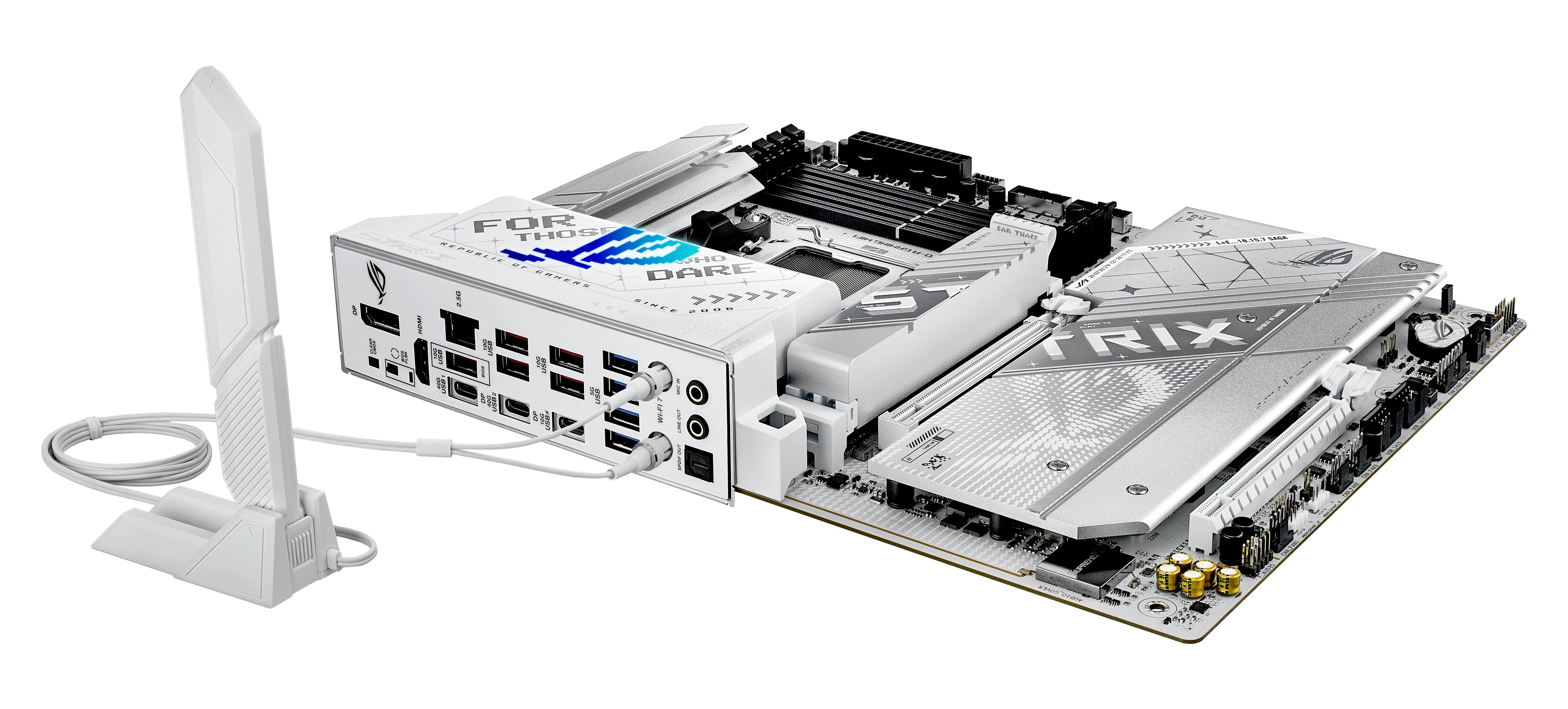

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
USB4 Gen 2x2 ports quantity	2
HDMI ports quantity	1
DisplayPorts quantity	1
Headphone outputs	1
Microphone in	Y
S/PDIF out port	Y
WiFi-AP antenna jack	1
Network
Ethernet LAN	Y
Ethernet interface type	2.5 Gigabit Ethernet
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
Bluetooth	Y
Bluetooth version	5.4
Features
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	AMD
Motherboard chipset	AMD X870
Audio chip	Realtek ALC4080
Audio output channels	7.1 kanalen
Product colour	Aluminium
Windows operating systems supported	Windows 11
Expansion slots
PCI Express x16 (Gen 4. x) slots	2
PCI Express x16 (Gen 5. x) slots	1
Number of M.2 (M) slots	4
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS button	Y
Packaging data
Package width	353 mm
Package depth	273 mm
Package height	68 mm
Weight & dimensions
Width	305 mm
Depth	244 mm
Height	50 mm
Packaging content
Cables included	SATA
Other features
Weight	1836 g
Package weight	2316 g
