ASUS PROART X870E-CREATOR WIFI AM5 DDR5 ATX MB



AsusTek
In stock
€ 446,38
€ 540,11 incl 21% VAT
The ProArt X870E-Creator WiFi empowers creators of all levels by maximizing the performance of the latest AMD Ryzen™ 9000, 8000 and 7000 Series processors with 16+2+2 team power stages, DDR5 slots, PCIe® 5.0 and lightning-fast connectivity including dual USB4®, 10G and 2.5G Ethernet, and WiFi 7. ​

This motherboard manifests a professional, elegant and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A translucent I/O cover also gives users a stylish peek at the premium connectors within. ​

All You Need for Maximum Productivity
Dual USB4® Connectivity
Get immersed in your creations with two USB4 ports for connecting to all your content-creation gadgets, enjoying up to 40 Gbps bi-directional data transfers. To further push your creative work with one 8K or two 4K color-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort™ In port on the rear I/O panel and direct the video output via the USB4 port. ​

Specification

Product
Product id 972812
Brand AsusTek
Partnr 90MB1IG0-M0EAY0
EAN/UPC code 4711387730775
Warranty (months) 36 months
Processor
Processor manufacturer AMD
Processor socket Socket AM5
Supported processor sockets Socket AM5
Memory
Supported memory types DDR5-SDRAM
Number of memory slots 4
Memory slots type DIMM
Memory channels Dual-channel
ECC Y
Non-ECC Y
Maximum internal memory 192 GB
Unbuffered memory Y
Storage controllers
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2, SATA III
Number of HDDs supported 4
Number of storage drives supported 8
RAID levels 0, 1, 10, 5
RAID support Y
Graphics
Parallel processing technology support Not supported
Internal I/O
USB 2.0 connectors 3
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 3.2 Gen 2x2 connectors 1
Number of SATA III connectors 4
Front panel audio connector Y
ATX Power connector (24-pin) Y
CPU fan connector Y
Number of chassis fan connectors 5
Chassis intrusion connector Y
12V power connector Y
Number of COM connectors 1

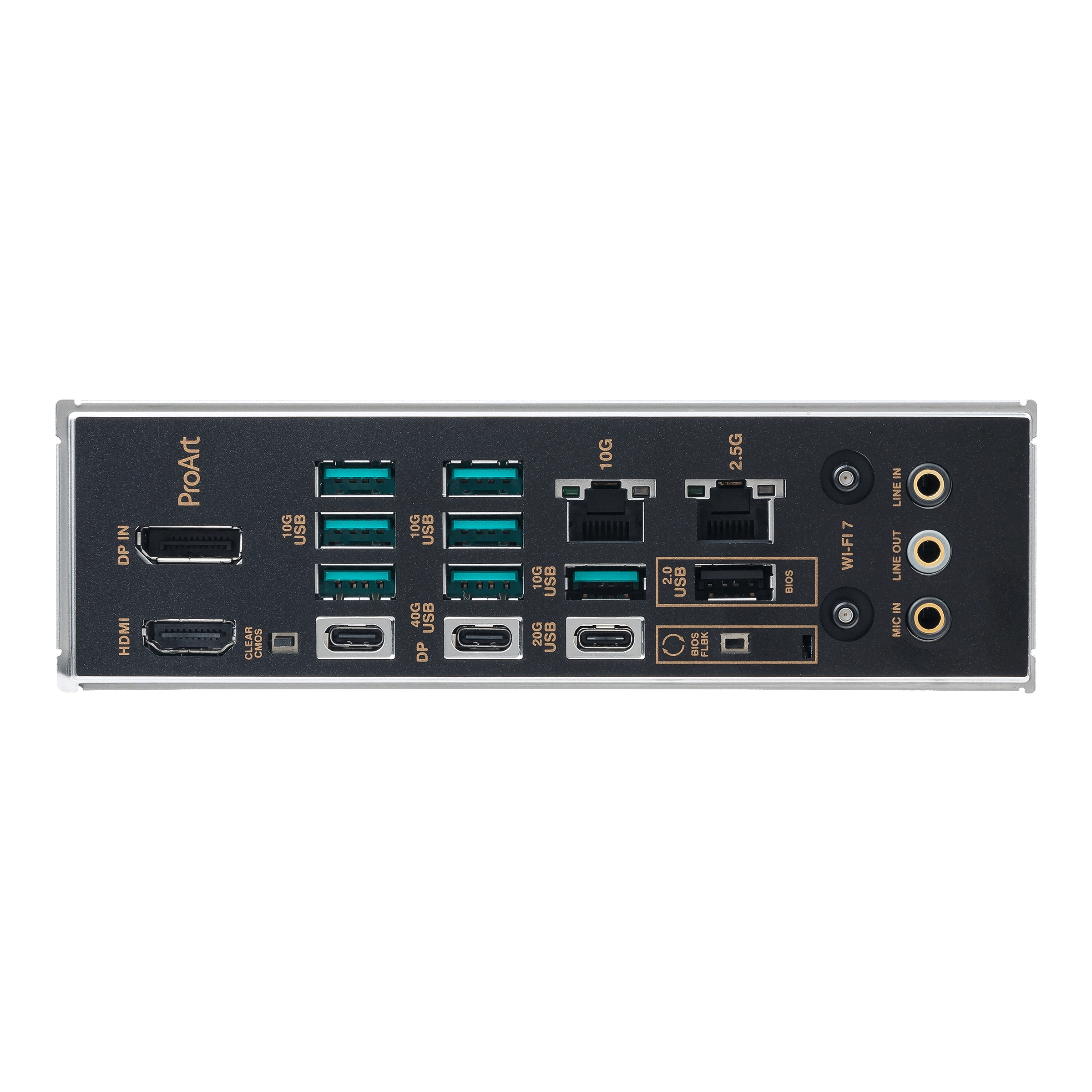

Rear panel I/O ports
USB 2.0 ports quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 7
Ethernet LAN (RJ-45) ports 2
USB 3.2 Gen 2x2 Type-C ports quantity 1
USB4 Gen 2x2 ports quantity 2
HDMI ports quantity 1
DisplayPorts quantity 1
Microphone in Y
WiFi-AP antenna jack 1
Network
Ethernet LAN Y
Ethernet interface type 2.5 Gigabit Ethernet, 10 Gigabit Ethernet
Wi-Fi Y
Top Wi-Fi standard Wi-Fi 7 (802.11be)
Wi-Fi standards Wi-Fi 7 (802.11be)
Bluetooth Y
Bluetooth version 5.4
Features
Component for PC
Motherboard form factor ATX
Motherboard chipset family AMD
Motherboard chipset AMD X870E
Audio chip Realtek S1220A
Audio output channels 7.1 kanalen
Windows operating systems supported Windows 11
Expansion slots
PCI Express x16 (Gen 4. x) slots 1
PCI Express x16 (Gen 5. x) slots 2
Number of M.2 (M) slots 4
BIOS
BIOS type UEFI AMI
BIOS memory size 256 Mbit
Clear CMOS button Y
Weight & dimensions
Width 305 mm
Depth 244 mm
Packaging content
Cables included DisplayPort, SATA
