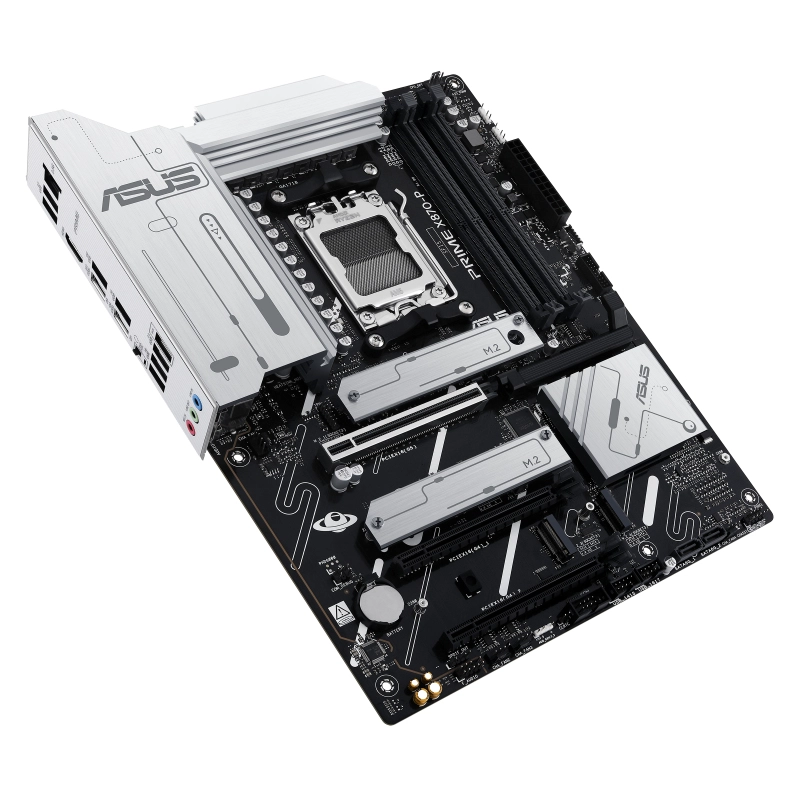

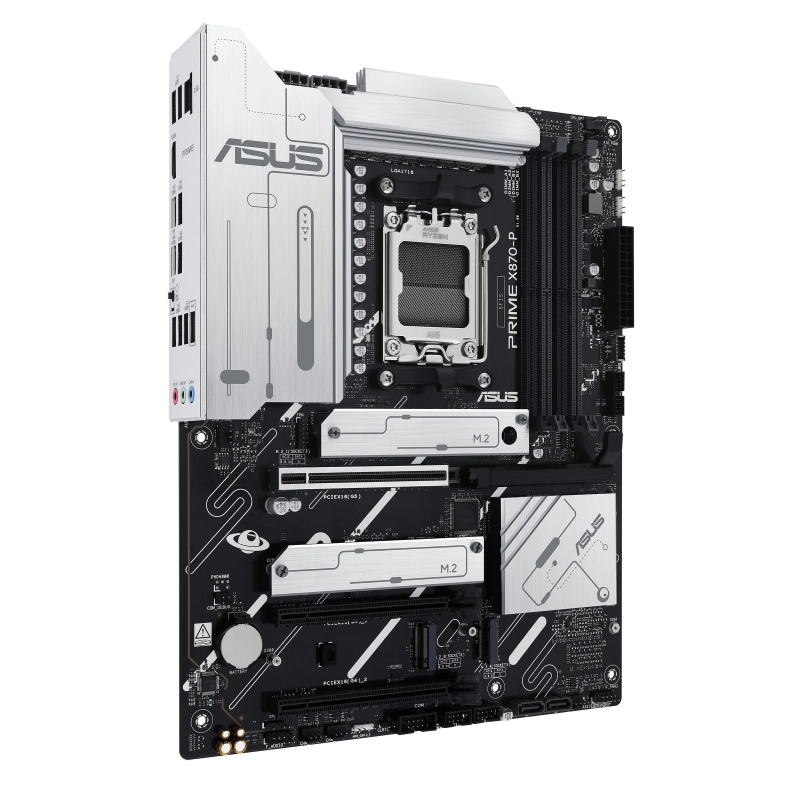

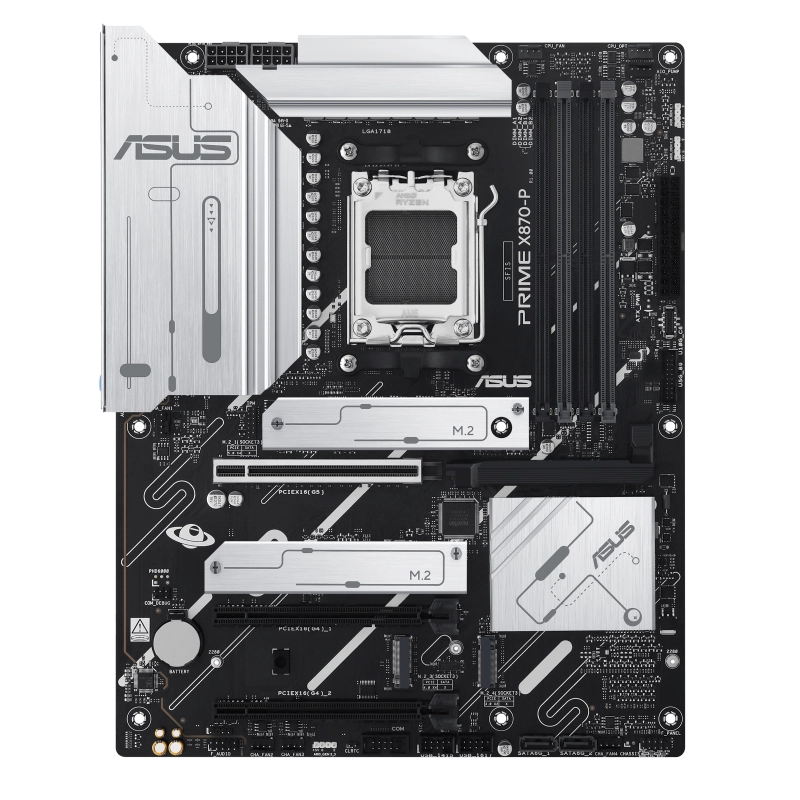

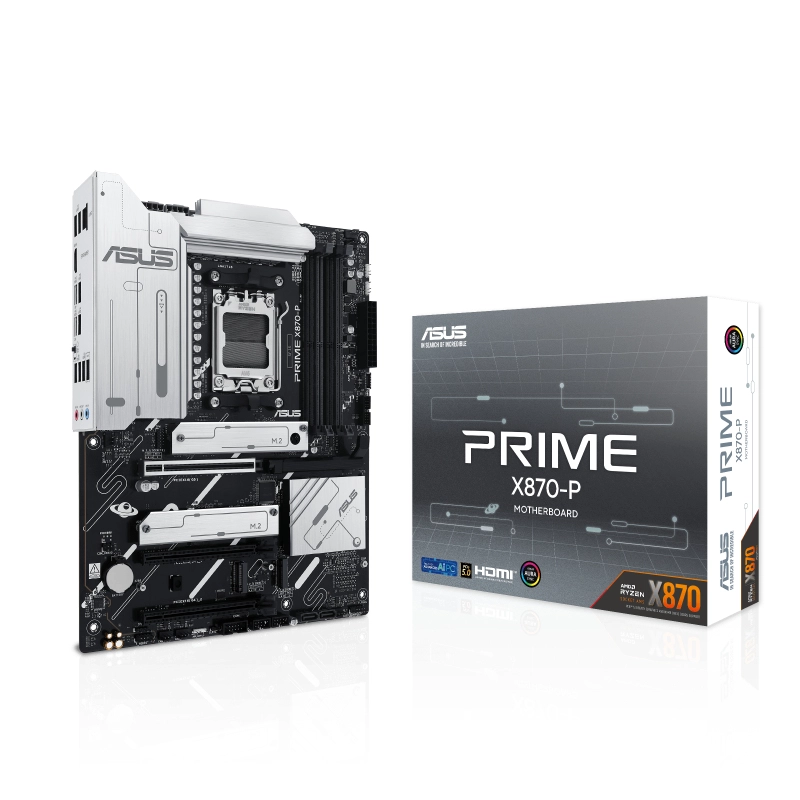

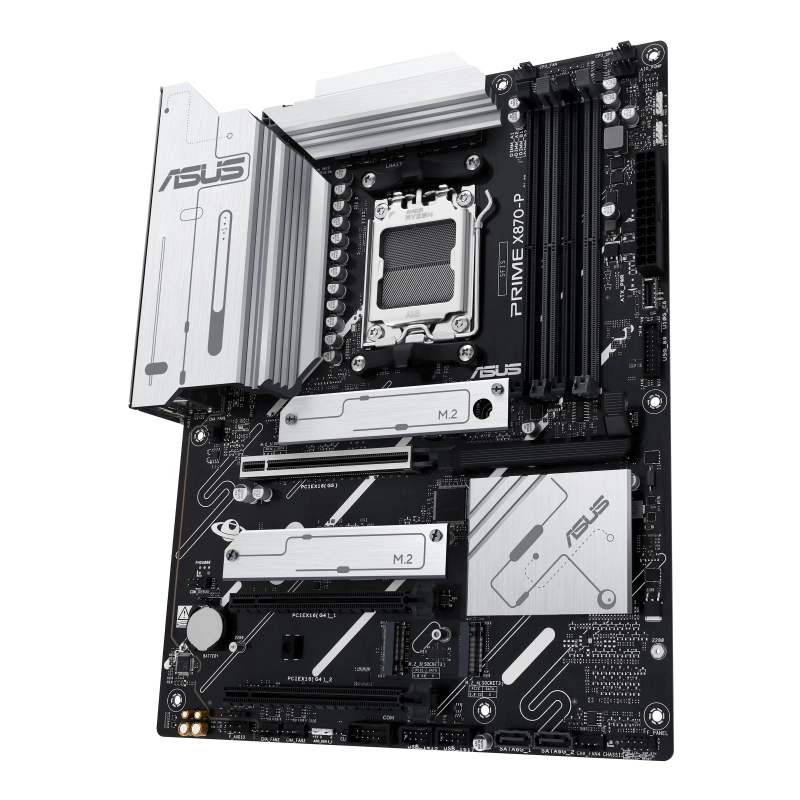

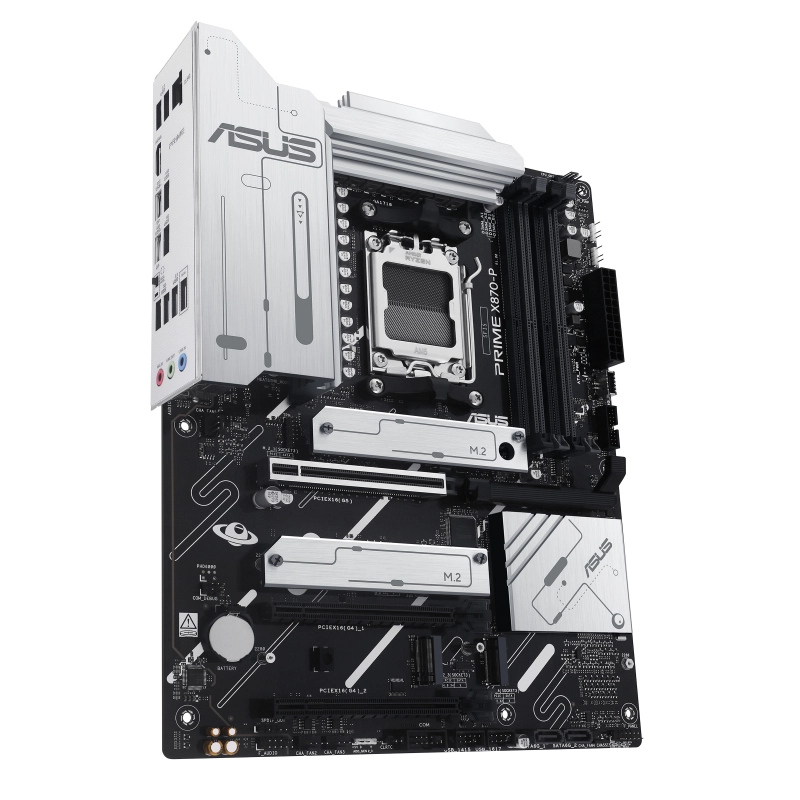

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME X870-P motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It's designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Performance
Robust power design
Stable power is crucial for maximizing the performance of AMD processors. The PRIME X870-P is designed to meet the needs of high-core-count CPUs. It features 14(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amperes each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.

Enhanced Memory & Storage Performance
Enhanced DDR5 performance
Comprehensive memory tuning options are the cornerstone of PRIME motherboards. The PRIME X870-P maximizes the potential of your DDR5 modules, from entry-level to extreme-speed kits1.
For entry-level modules without EXPO™ support, ASUS Enhanced Memory Profile (AEMP) automatically detects memory chips and provides optimized profiles for enhanced performance.
For those looking to surpass stock DDR5 speeds, the PRIME X870-P offers extensive AMD Extended Profiles for Overclocking (EXPO™) support and a wide array of UEFI settings for further performance tweaks2.

Four M.2 slots (up to 128 Gbps)
PRIME X870-P offers a total of four M.2 slots, including one that supports data-transfer speeds of up to 128 Gbps via PCIe 5.0, two that support 64 Gbps via PCIe 4.0, and one that supports PCIe 3.0. This enables quicker boot-up and app load times with OS or application drives3.

Cooling
Cooler by design
The PRIME X870-P motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.

Smart Cooling precision

ASUS Fan Xpert 4
ASUS Fan Xpert 4 software offers comprehensive control over fans and AIO coolers. Auto-Tuning mode configures settings with one click, while Extreme Quiet mode reduces fan speeds for silent operation during light tasks. Controls are also available via the UEFI BIOS.

AI Cooling II
Optimized thermals and reduced noise via dynamic adjustment of fan speeds, based on CPU temperatures.

Cooler compatibility
ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new motherboards, empowering you to build your dream gaming rig.

Flexibility
Empowering connections
The PRIME X870-P motherboard offers a versatile range of connectivity, including support for PCIe 5.0, Realtek 2.5Gb Ethernet, and an array of USB ports.

USB 40Gbps Type-C® ports
Each port delivers up to 40Gbps of bi-directional bandwidth for the latest super-speed devices and drives. Both ports can be employed for up to two external 4K displays.

PCIe 5.0 slot
The latest processors introduce PCIe 5.0 support, doubling data transfer speeds compared to PCIe 4.0, enhancing signal integrity, and providing backward-compatible CEM connectors and support for previous PCIe versions.

Customization
Personalization
The PRIME X870-P enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.

UEFI BIOS
The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.

ASUS GlideX
Enable seamless screen sharing and control across PCs, tablets, and smartphones via wired or wireless connections, supporting multiple platforms.

ASUS DriverHub
Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.

Armoury Crate
Customize Aura Sync RGB and control ASUS devices. Includes product registration and updates.

Aura Sync
Complete RGB lighting control for enthusiast systems, ensuring seamless synchronization with compatible hardware.

Addressable Gen 2 RGB headers
Three addressable Gen 2 headers detect LED counts on compatible RGB devices, automatically adjusting lighting effects accordingly.

Customization
DIY friendly
The PRIME X870-P motherboard features EZ PC DIY innovations that simplify and speed up the PC building process, making DIY easy and convenient.

PCIe Slot Q-Release
A physical lever unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new graphics card or other compatible device.

M.2 Q-Latch
The innovative ASUS Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools or screws. This design employs a simple locking mechanism to secure the drive and neatly detach it with one tap.

Q-LED Core
The Q-LED Core display produces color-coded lights during the Power-On Self-Test (POST) that can help you troubleshoot potential issues.

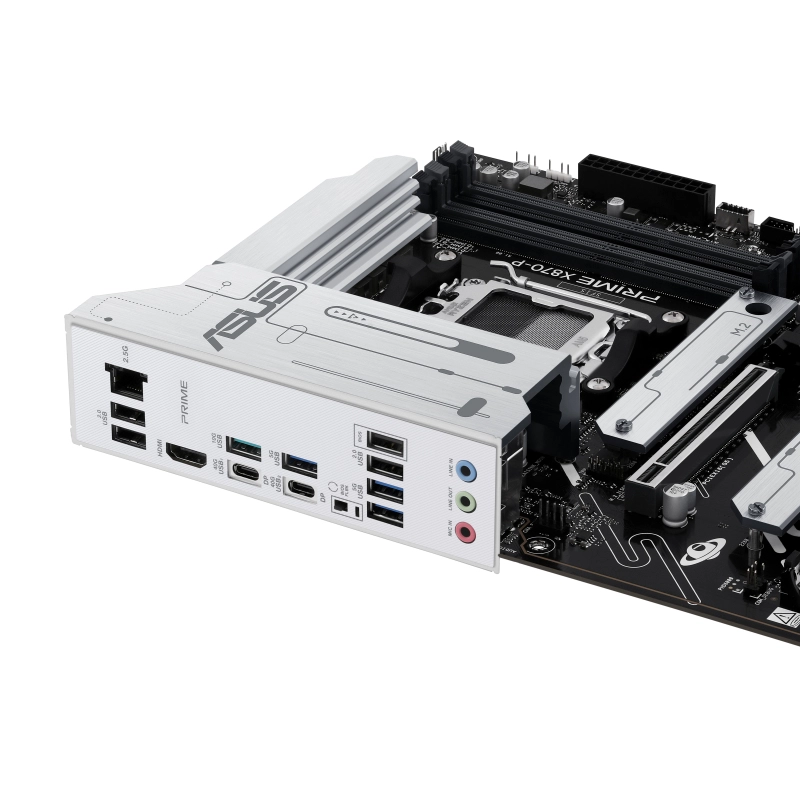

Pre-Mounted I/O Shield
Our pre-installed I/O shield safeguards ports, simplifies the build process, increases functionality and enhances aesthetics for PC DIY enthusiasts.

BIOS FlashBack™
BIOS FlashBack™ simplifies BIOS updates. Just load the BIOS file onto a FAT32 USB stick, insert it into the BIOS FlashBack™ port, and press a button—no CPU or memory needed.

SafeSlot
PCIe 5.0 is twice as fast as PCIe 4.0. ASUS has adapted our SMT manufacturing for the faster SafeSlot, a reinforced metal sheath that ensures secure card installation and faster data speeds.

Build for the most advanced pc for gaming and creating
When only the fastest will do, ASUS X870E/X870 motherboards deliver. With USB 4.0 onboard along with robust overclocking4 capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an ASUS X870E/X870 motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.

Specification

Product
Product id	972811
Brand	AsusTek
Partnr	90MB1IT0-M0EAY0
EAN/UPC code	4711387723036
Warranty (months)	36 months
Processor
Processor manufacturer	AMD
Processor socket	Socket AM5
Compatible processor series	AMD Ryzen 3, AMD Ryzen 5, AMD Ryzen 7, AMD Ryzen 9 7th Gen, AMD Ryzen 9 8th Gen, AMD Ryzen 9 9th Gen
Supported processor sockets	Socket AM5
Memory
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
ECC	Y
Non-ECC	Y
Maximum internal memory	192 GB
Supported memory clock speed (max)	8000 MHz
Unbuffered memory	Y
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of HDDs supported	2
Number of storage drives supported	6
RAID levels	0, 1, 5, 10
RAID support	Y
Graphics
Parallel processing technology support	Not supported
On-board graphics adapter	N
Internal I/O
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Number of SATA III connectors	2
Front panel audio connector	Y
ATX Power connector (24-pin)	Y
CPU fan connector	Y
Number of chassis fan connectors	4
EPS power connector (8-pin)	Y
TPM connector	Y
12V power connector	Y
Number of COM connectors	1
RGB LED pin header	Y

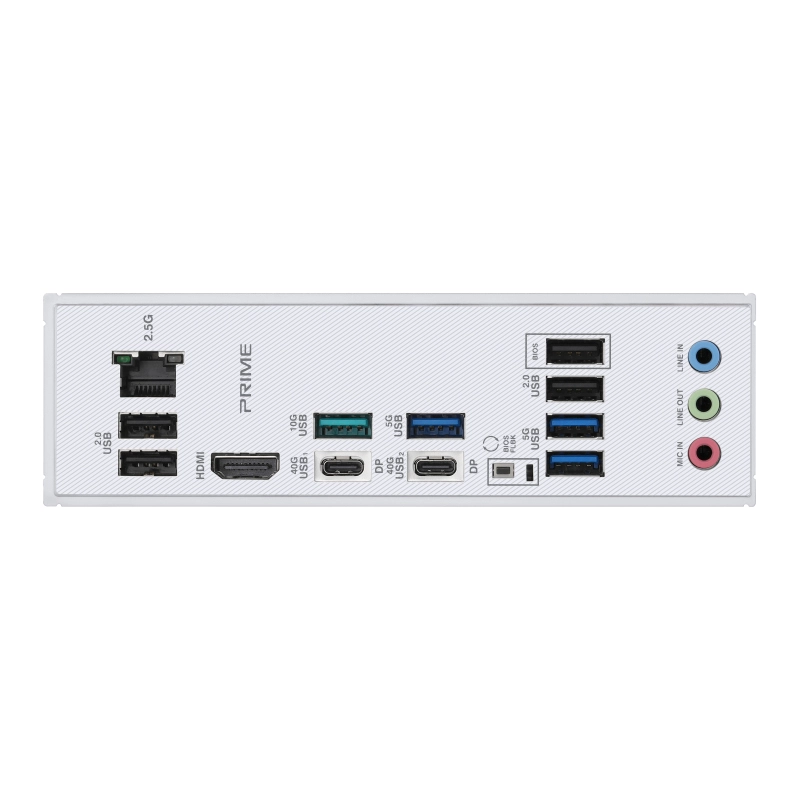

Rear panel I/O ports
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
Ethernet LAN (RJ-45) ports	1
USB4 Gen 2x2 ports quantity	2
HDMI ports quantity	1
HDMI version	2.1
DisplayPort version	1.4a
Microphone in	Y
Line-in	Y
Network
Ethernet LAN	Y
Ethernet interface type	2.5 Gigabit Ethernet
Wi-Fi	N
Features
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	AMD
Motherboard chipset	AMD X870
Audio output channels	7.1 kanalen
Product colour	Black
Power source type	ATX
Cooling type	Passive
Windows operating systems supported	Windows 10, Windows 11
Expansion slots
PCI Express x16 (Gen 4. x) slots	2
PCI Express x16 (Gen 5. x) slots	1
Number of M.2 (M) slots	4
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Packaging data
Package width	353 mm
Package depth	273 mm
Package height	68 mm
Weight & dimensions
Width	305 mm
Depth	244 mm
Height	48 mm

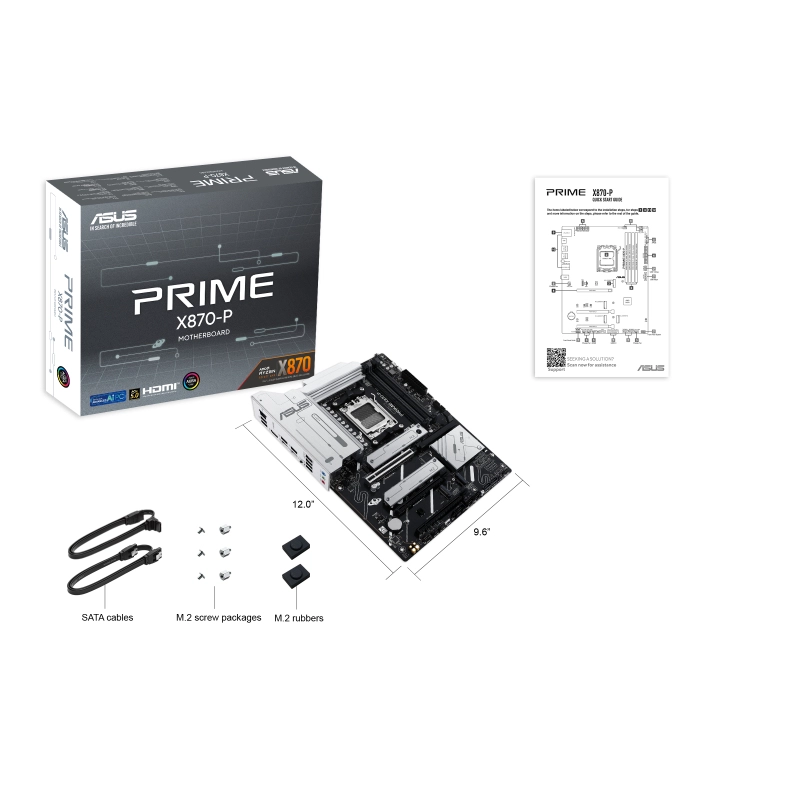

Packaging content
Cables included	SATA
Other features
Weight	1440 g
Back-to-BIOS button	Y
Package weight	1500 g
