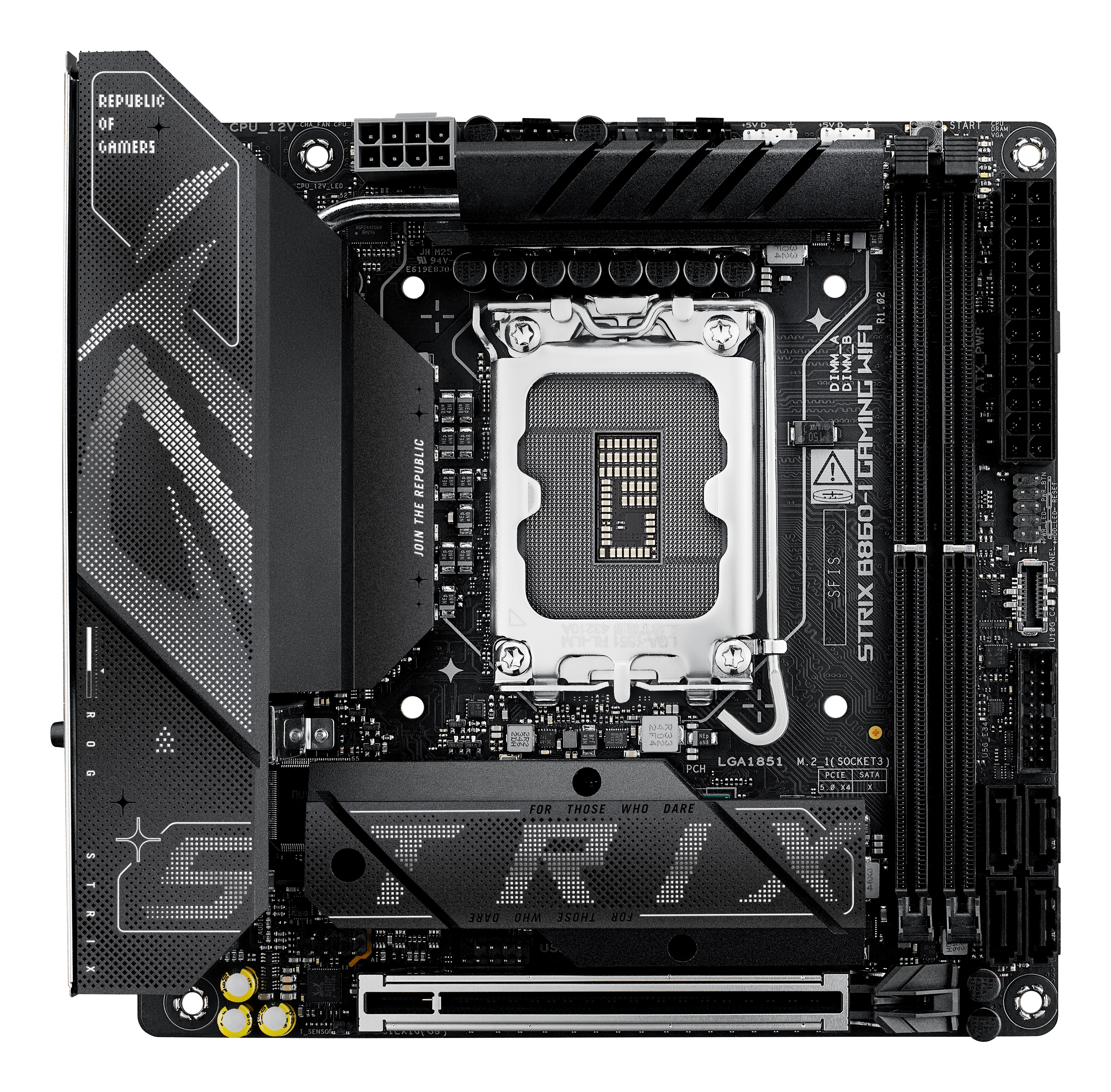

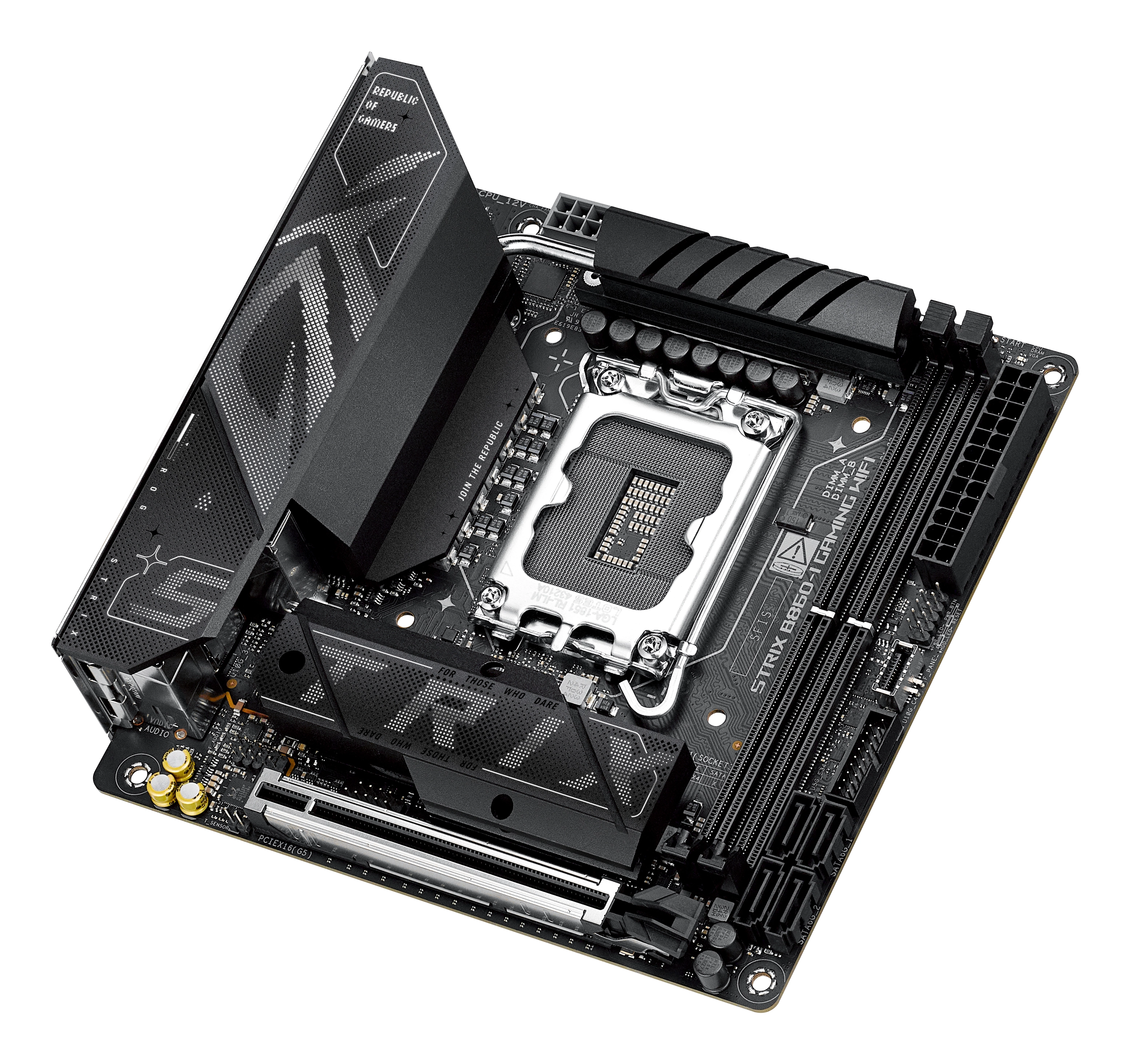

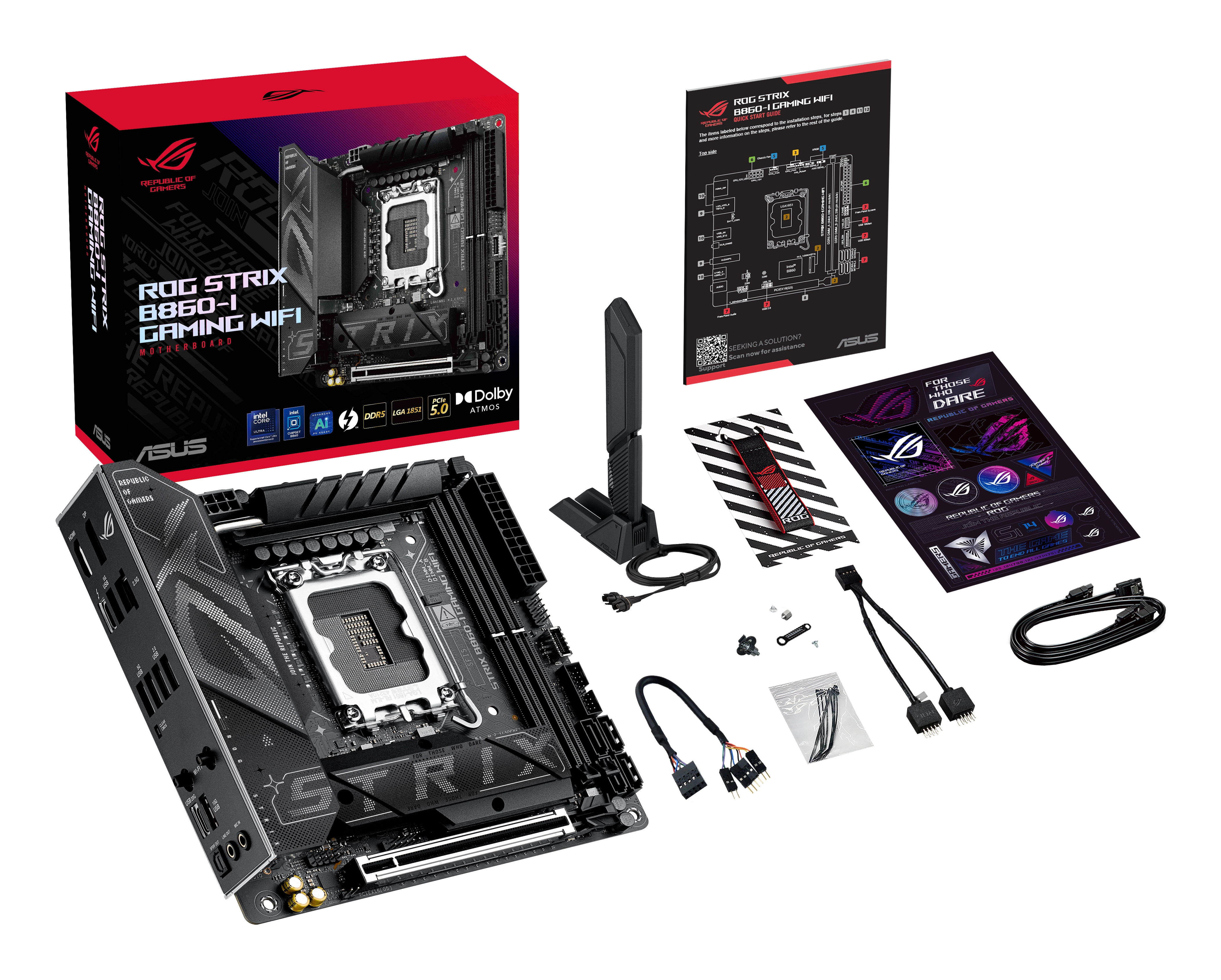

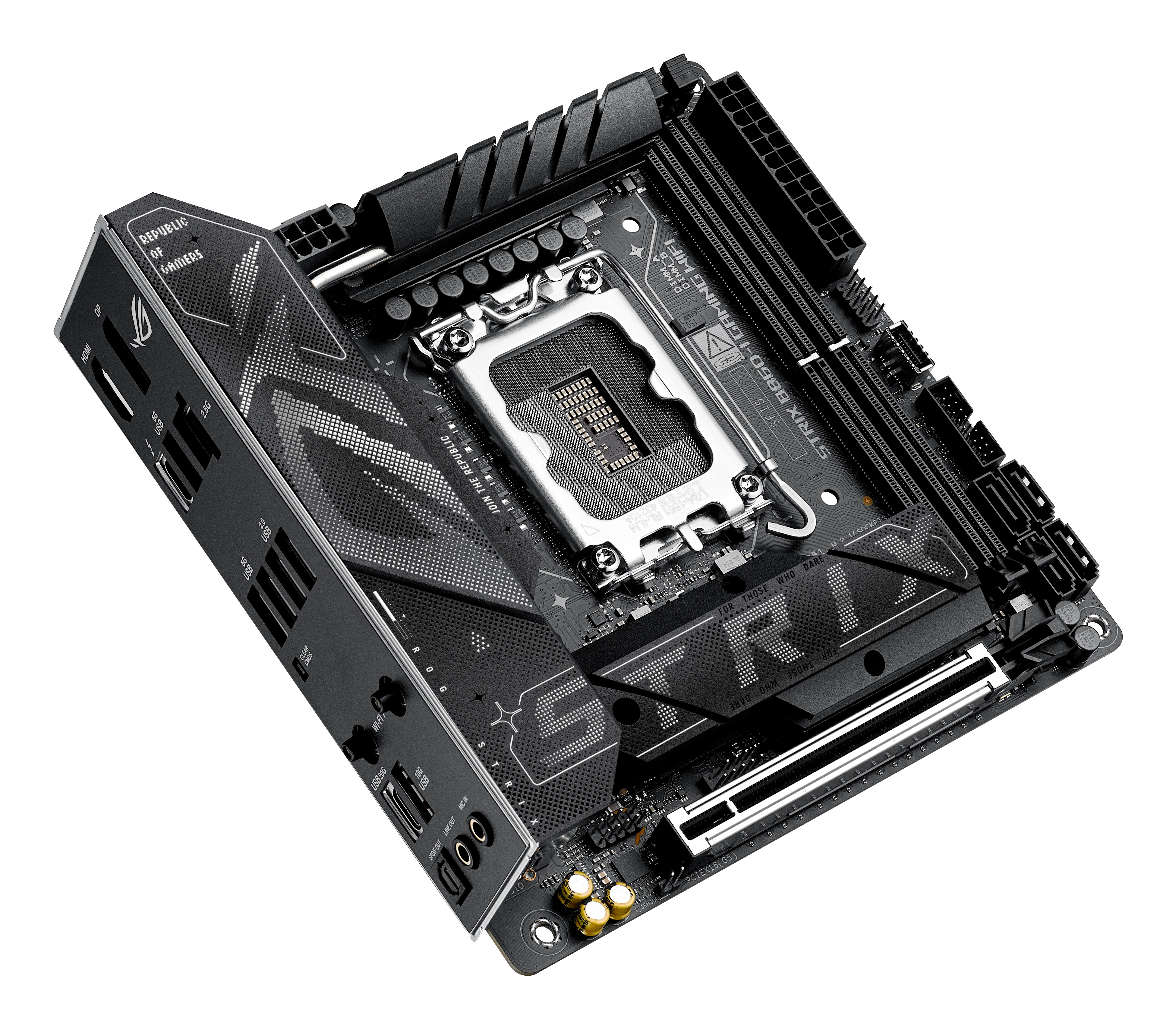

ROG STRIX B860-I gaming wifi
The ROG Strix B860-I Gaming WiFi is designed to dominate with Intel® Core™ Ultra Processors(Series 2). Its advanced power design and AI solutions drive top-tier performance, while Thunderbolt™ 4, WiFi 7 and high-speed DDR5 slots offer cutting-edge connectivity. This motherboard delivers the power and speed needed for elite gaming and demanding AI applications.

Specification

Product
Product id	994086
Brand	AsusTek
Partnr	90MB1JB0-M0EAY0
EAN/UPC code	4711387815991
Warranty (months)	36 months
Processor
Processor manufacturer	Intel
Processor socket	LGA 1851 (Socket V1)
Compatible processor series	Intel Core Ultra (Series 2)
Memory
Supported memory types	DDR5-SDRAM
Number of memory slots	2
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	non-ECC
Maximum internal memory	128 GB
Supported memory clock speed (max)	9066 MHz
Unbuffered memory	Y
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of HDDs supported	4
Number of storage drives supported	6
RAID levels	0, 1, 5, 10
RAID support	Y
Graphics
Parallel processing technology support	Not supported
On-board graphics adapter	N
Internal I/O
USB 2.0 connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Number of SATA III connectors	4
Front panel audio connector	Y
ATX Power connector (24-pin)	Y
CPU fan connector	Y
Number of chassis fan connectors	1
Number of CPU fan connectors	1
EPS power connector (8-pin)	Y
12V power connector	Y

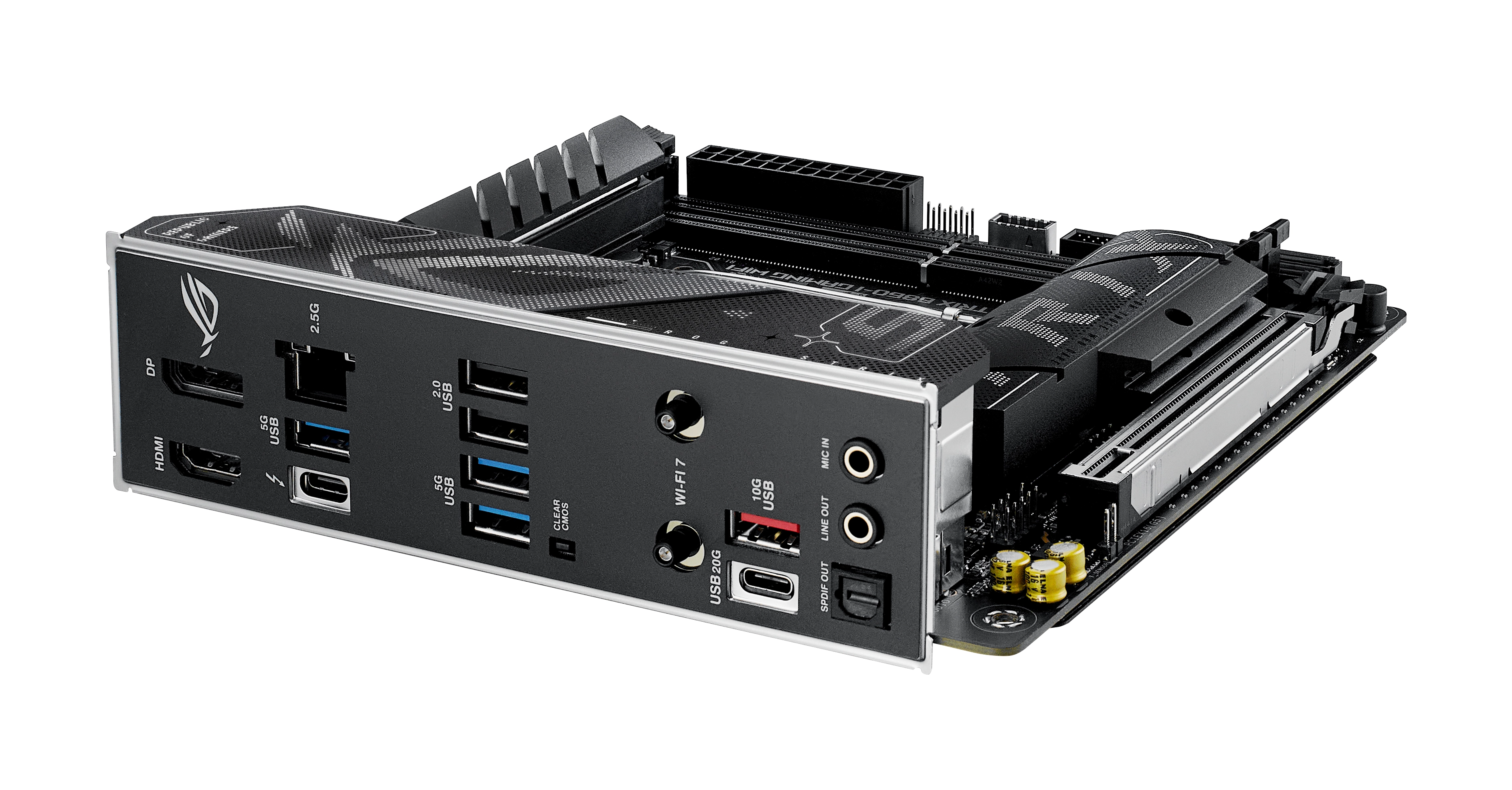

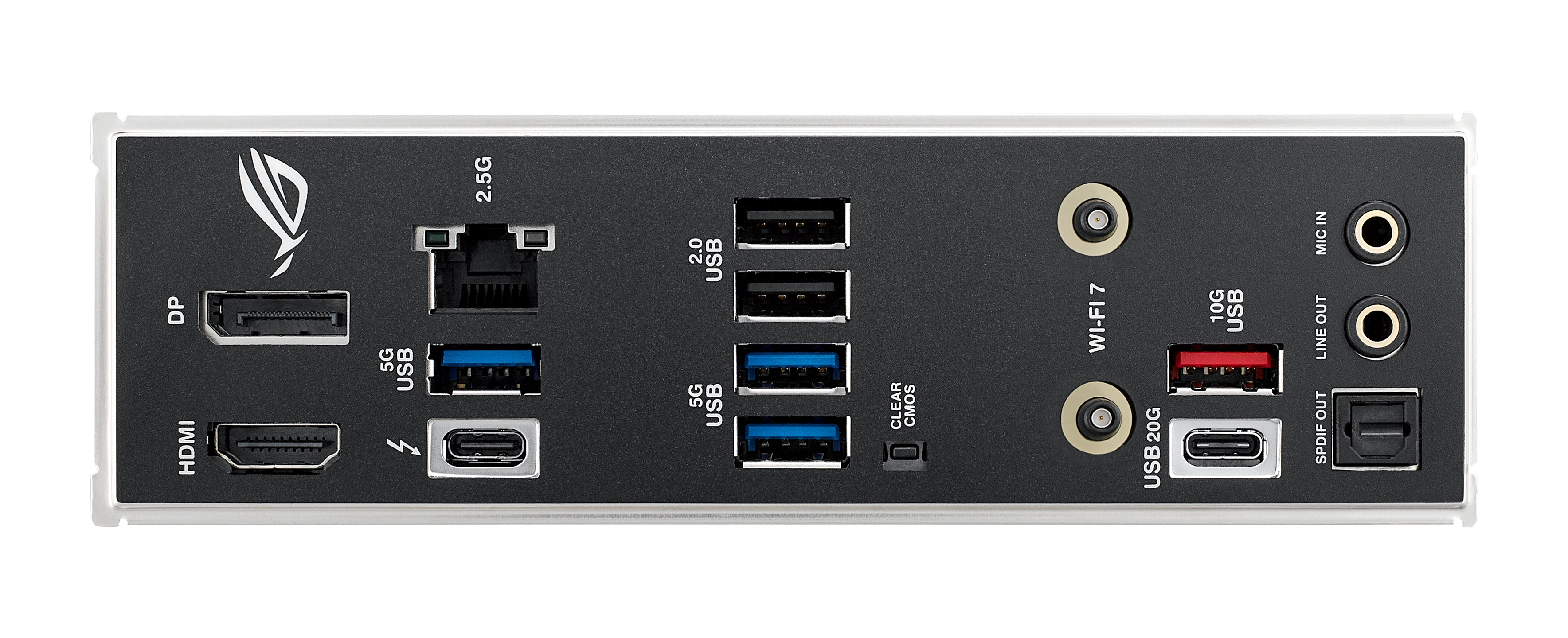

Rear panel I/O ports
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 2x2 Type-C ports quantity	1
HDMI ports quantity	1
DisplayPorts quantity	1
Microphone in	Y
S/PDIF out port	Y
Thunderbolt ports quantity	1
Network
Ethernet LAN	Y
Ethernet interface type	2.5 Gigabit Ethernet

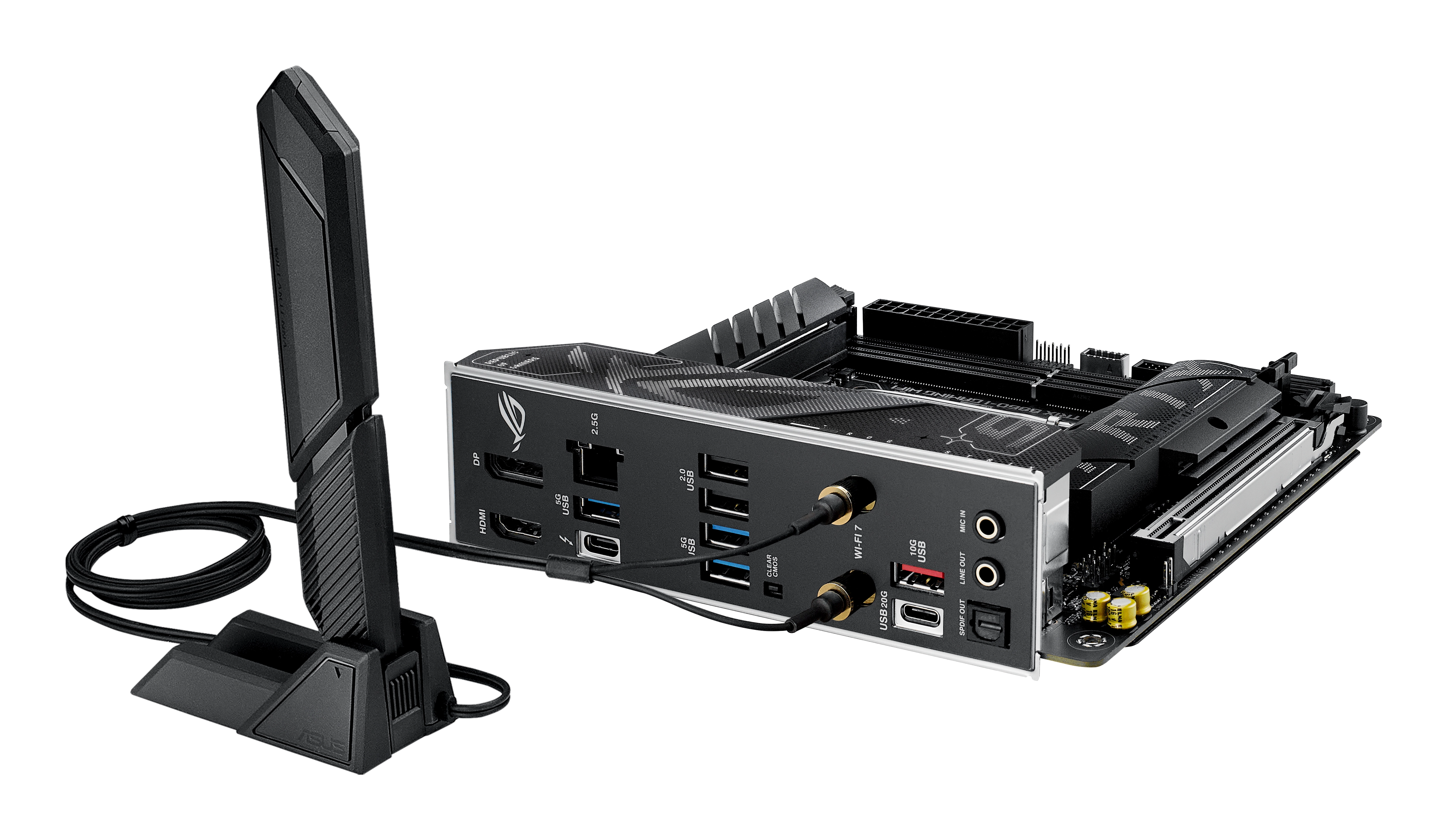

Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Bluetooth	Y
Bluetooth version	5.4
Features
Component for	PC
Motherboard form factor	Mini ITX
Motherboard chipset family	Intel
Motherboard chipset	Intel B860
Audio chip	Realtek ALC1220P
Audio output channels	7.1 kanalen
Product colour	Multicolour
Windows operating systems supported	Windows 11
Expansion slots
PCI Express x16 (Gen 5. x) slots	1
Number of M.2 (M) slots	2
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS button	Y
Packaging data
Package width	228 mm
Package depth	187 mm
Package height	96 mm
Weight & dimensions
Width	170 mm
Depth	170 mm
Other features
Weight	812.6 g
Package weight	1471.3 g
