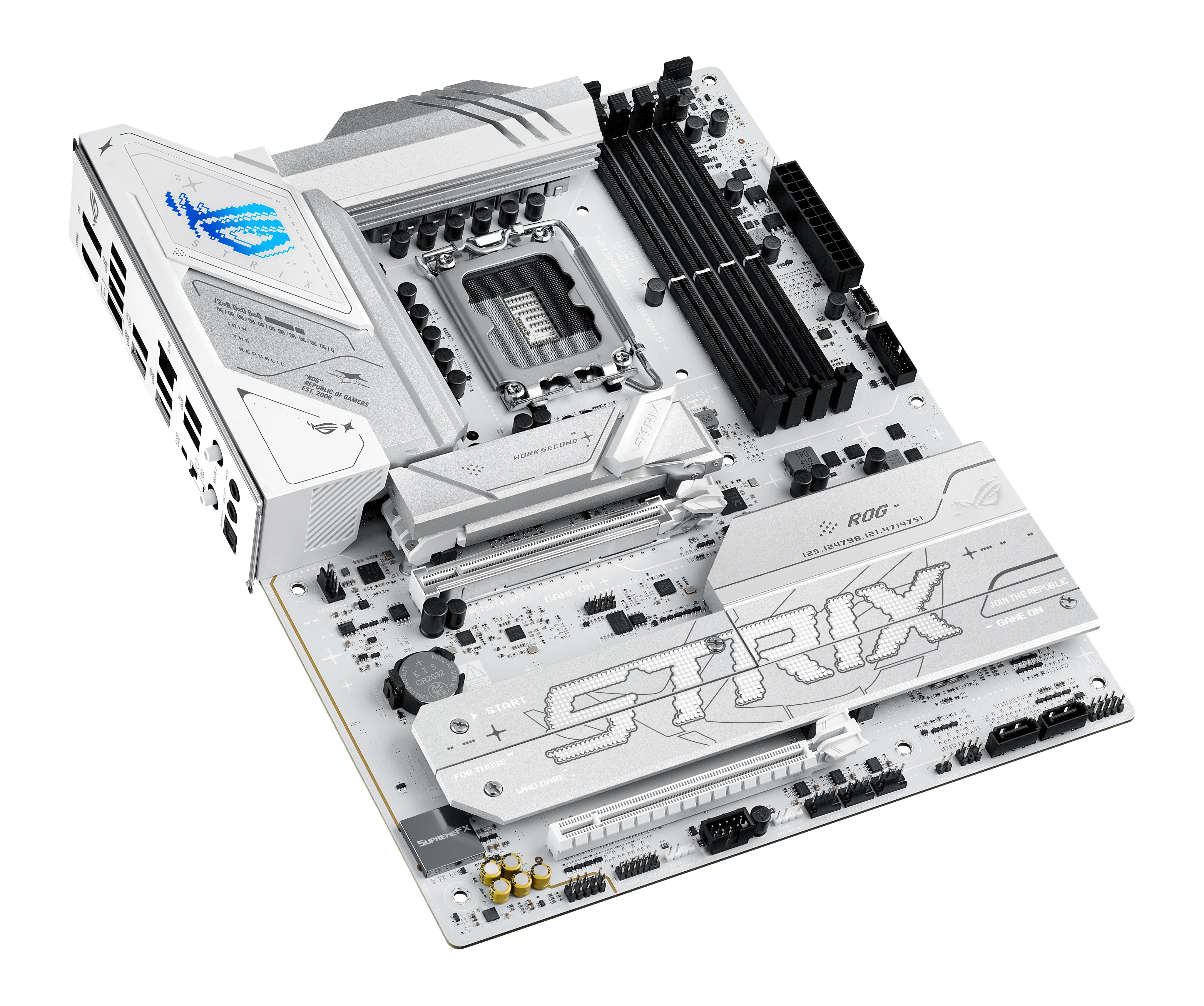

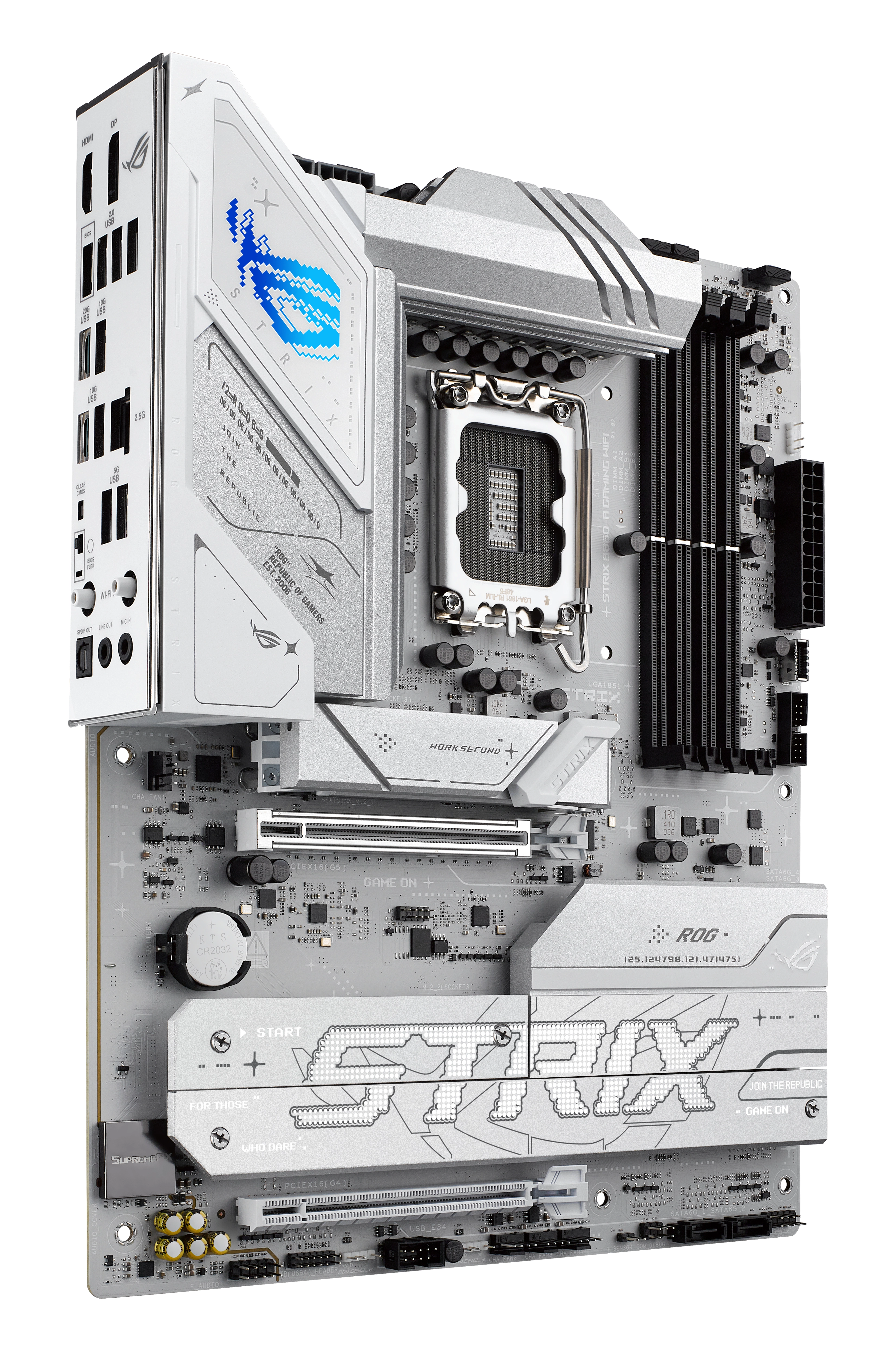

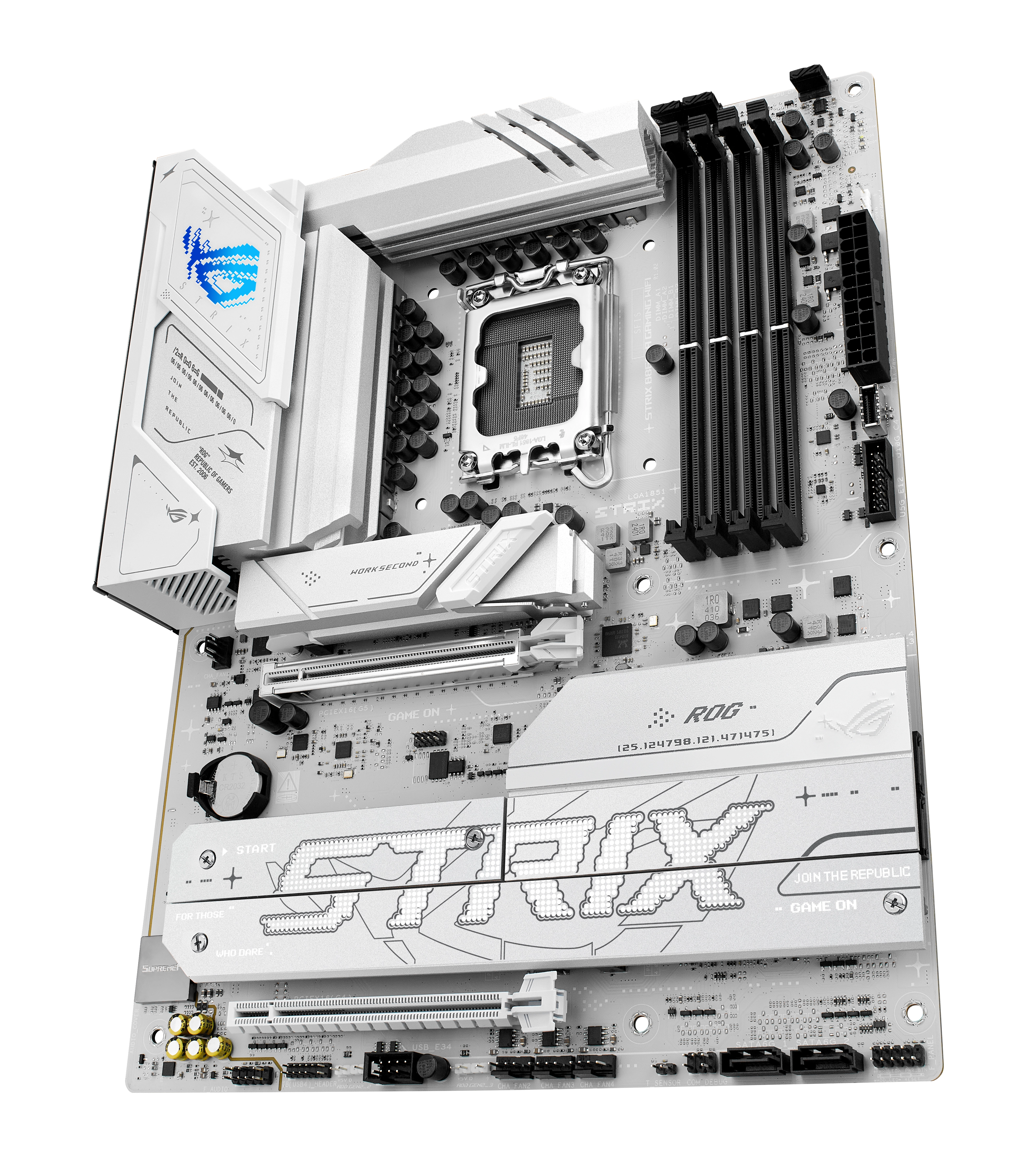

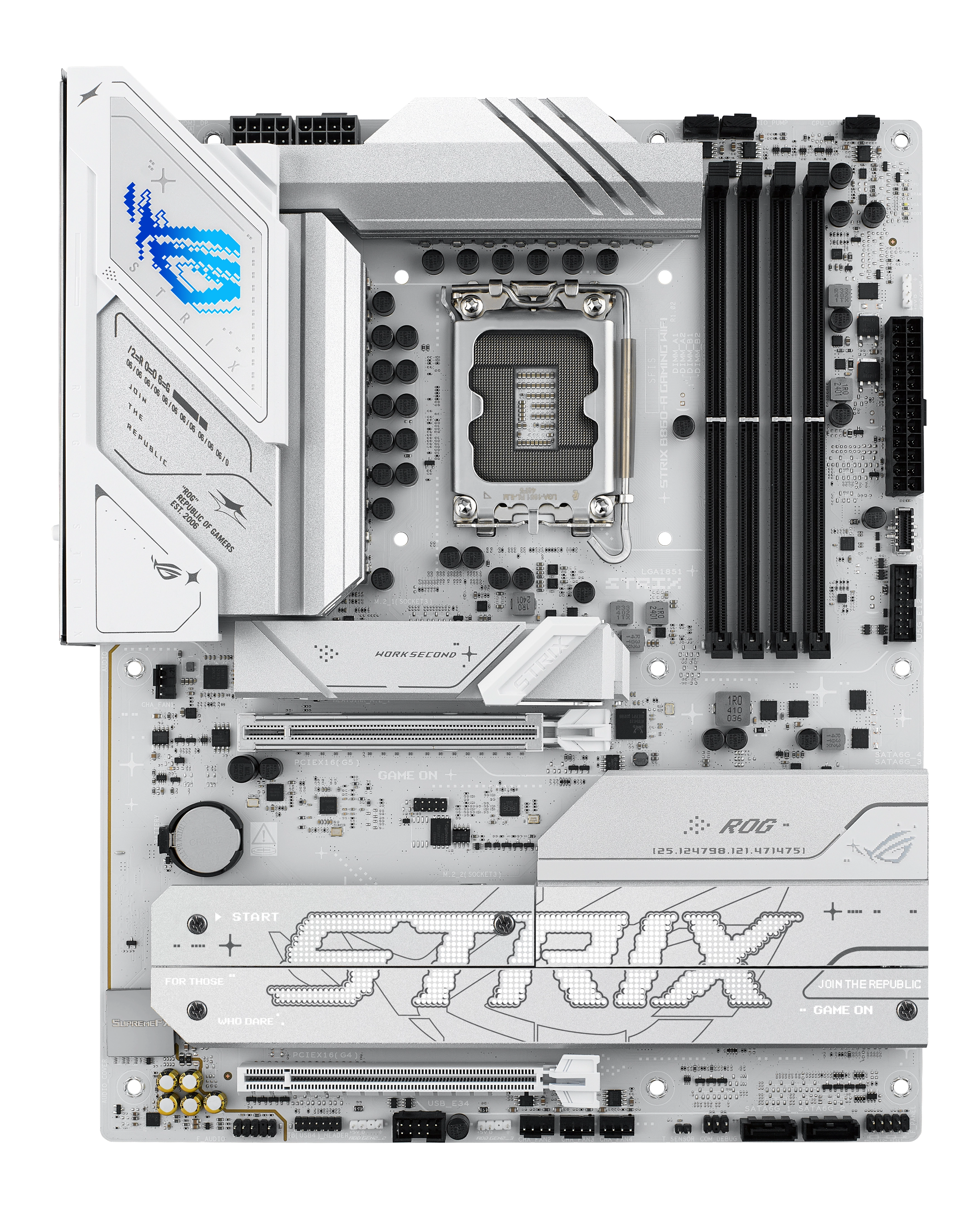

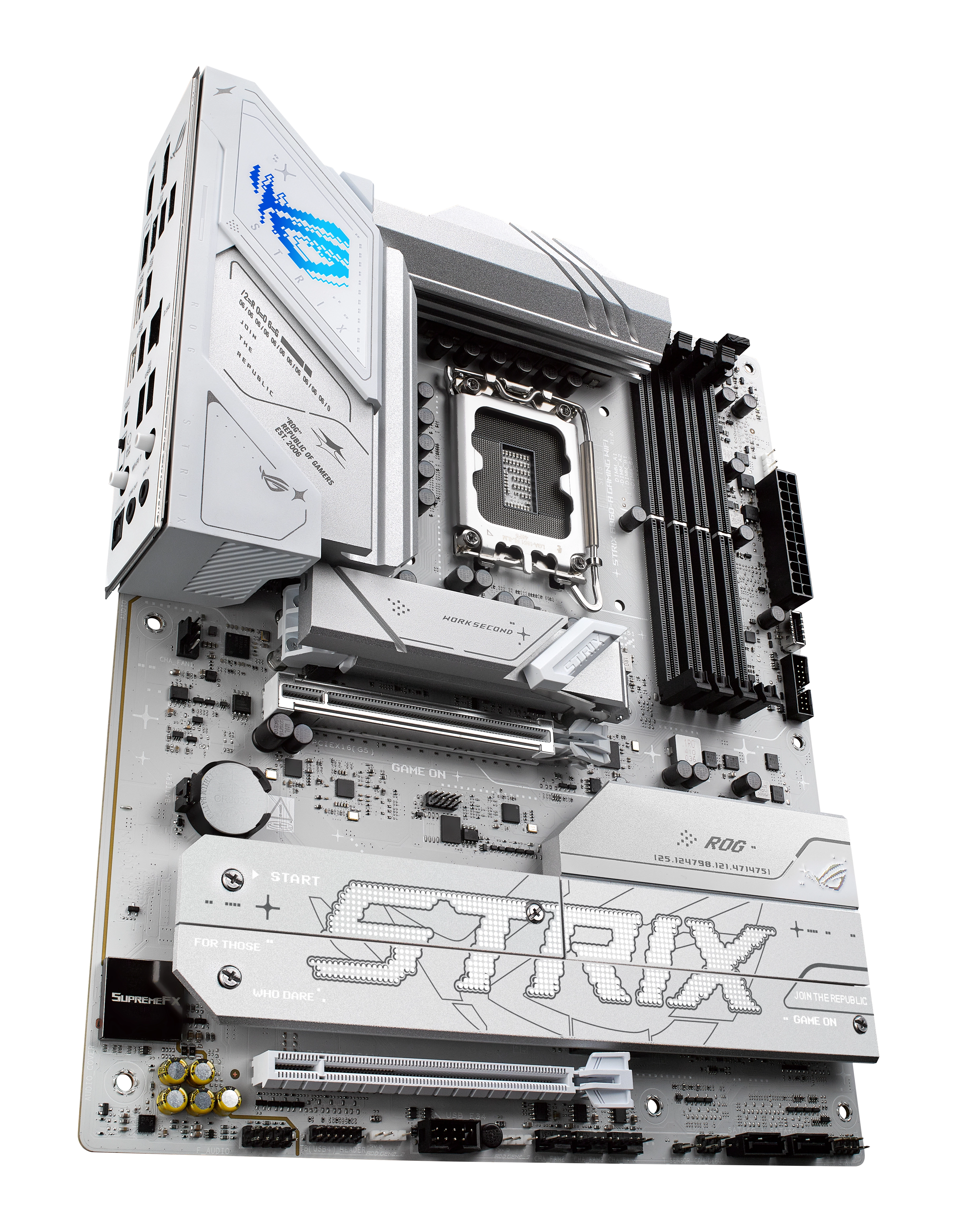

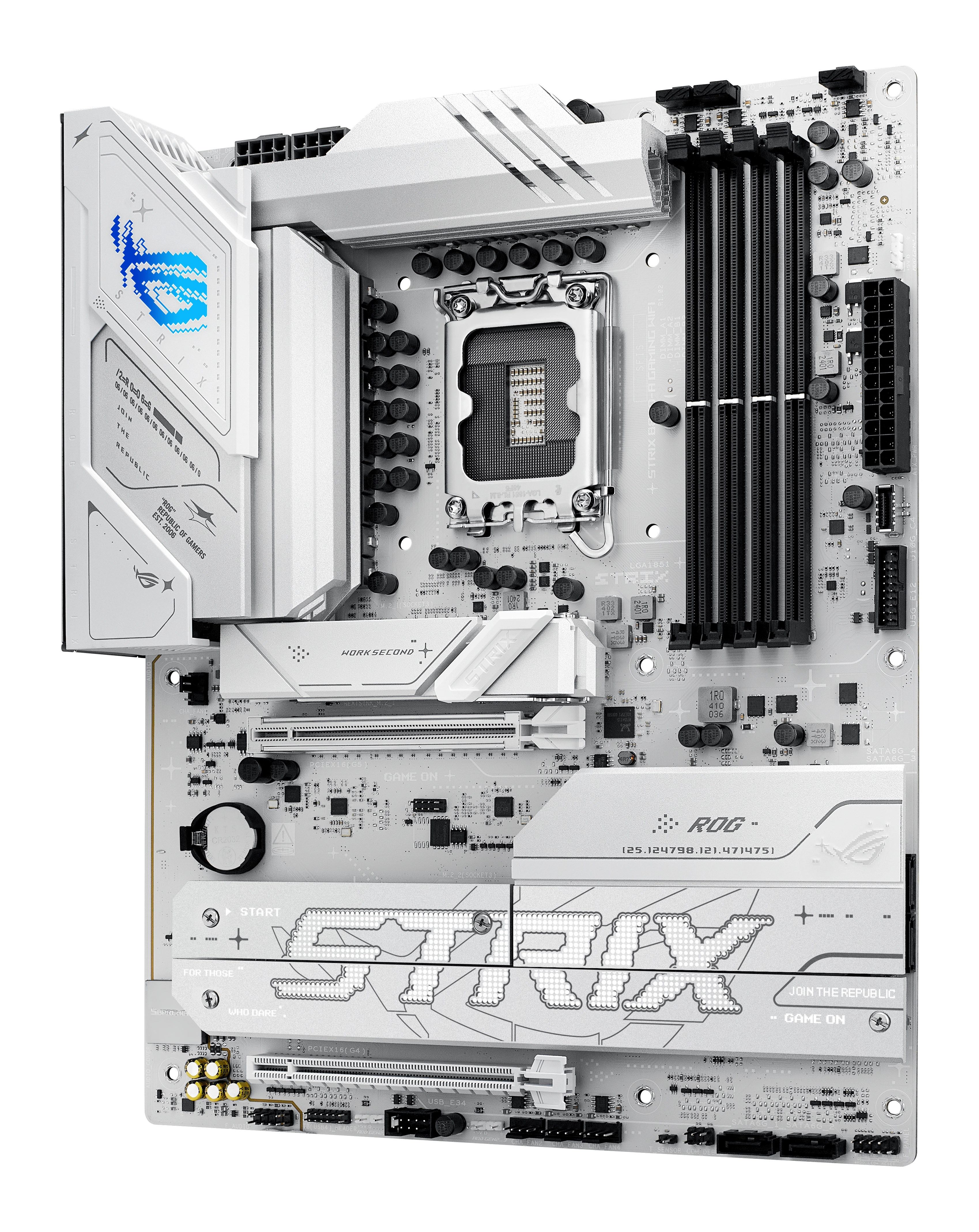

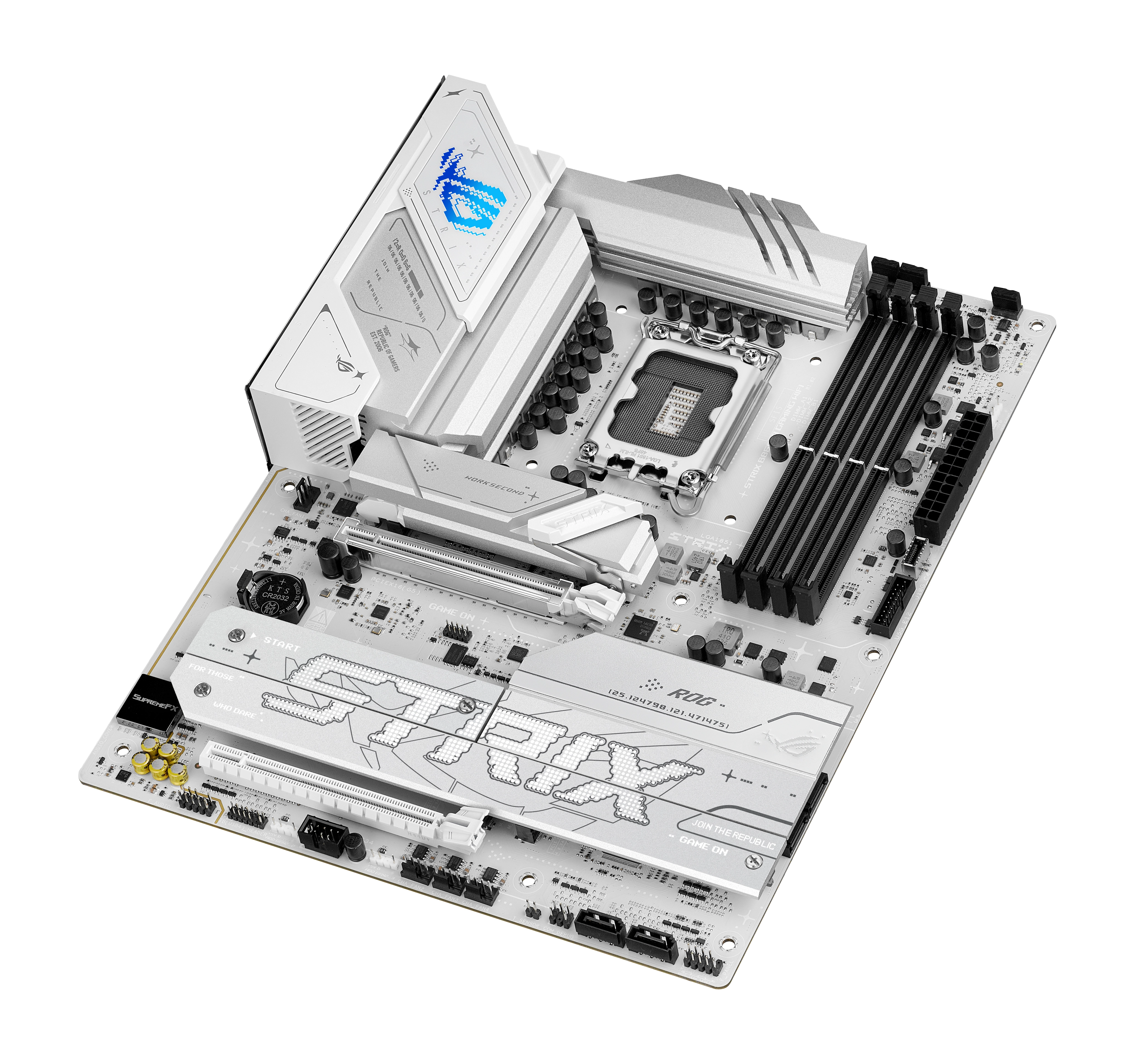

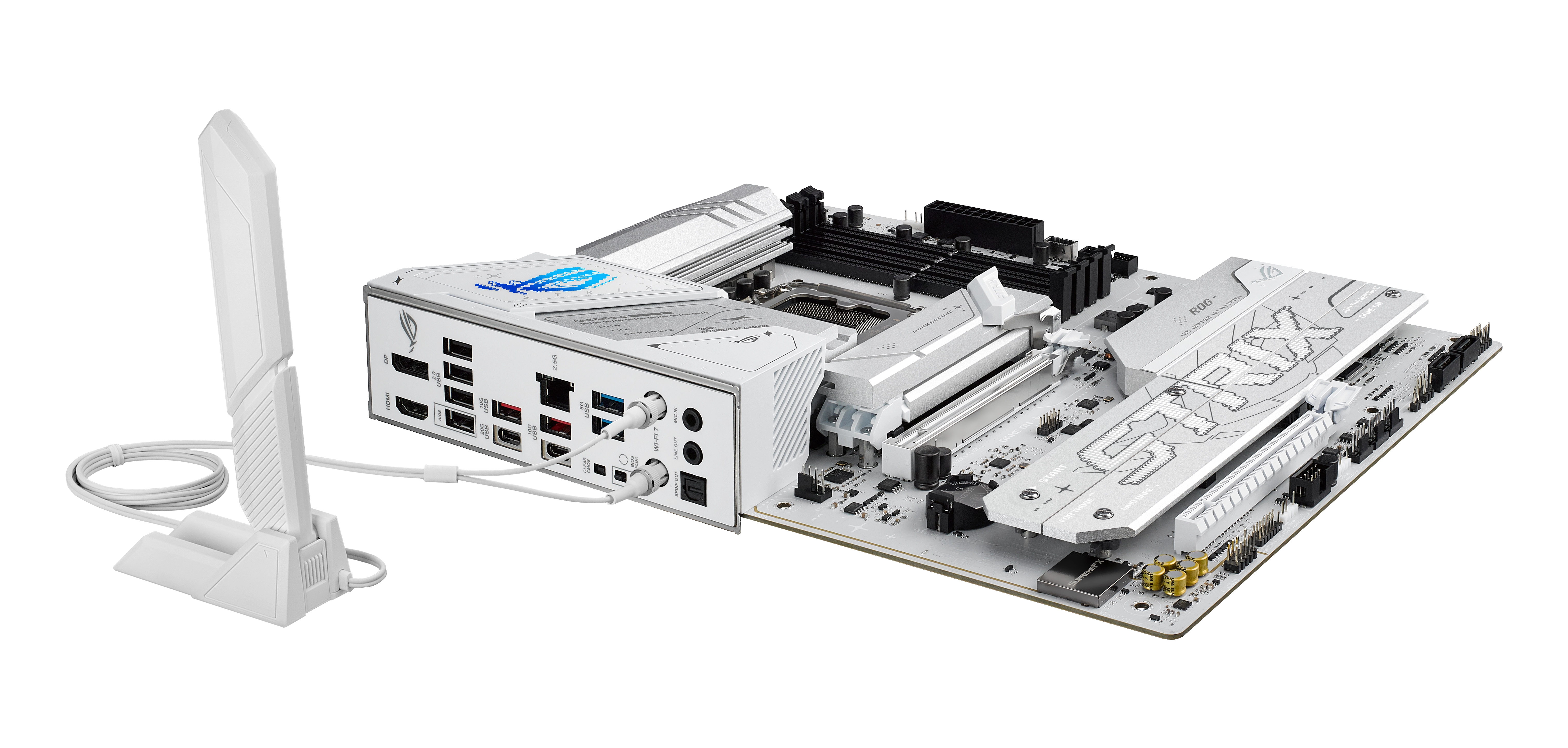

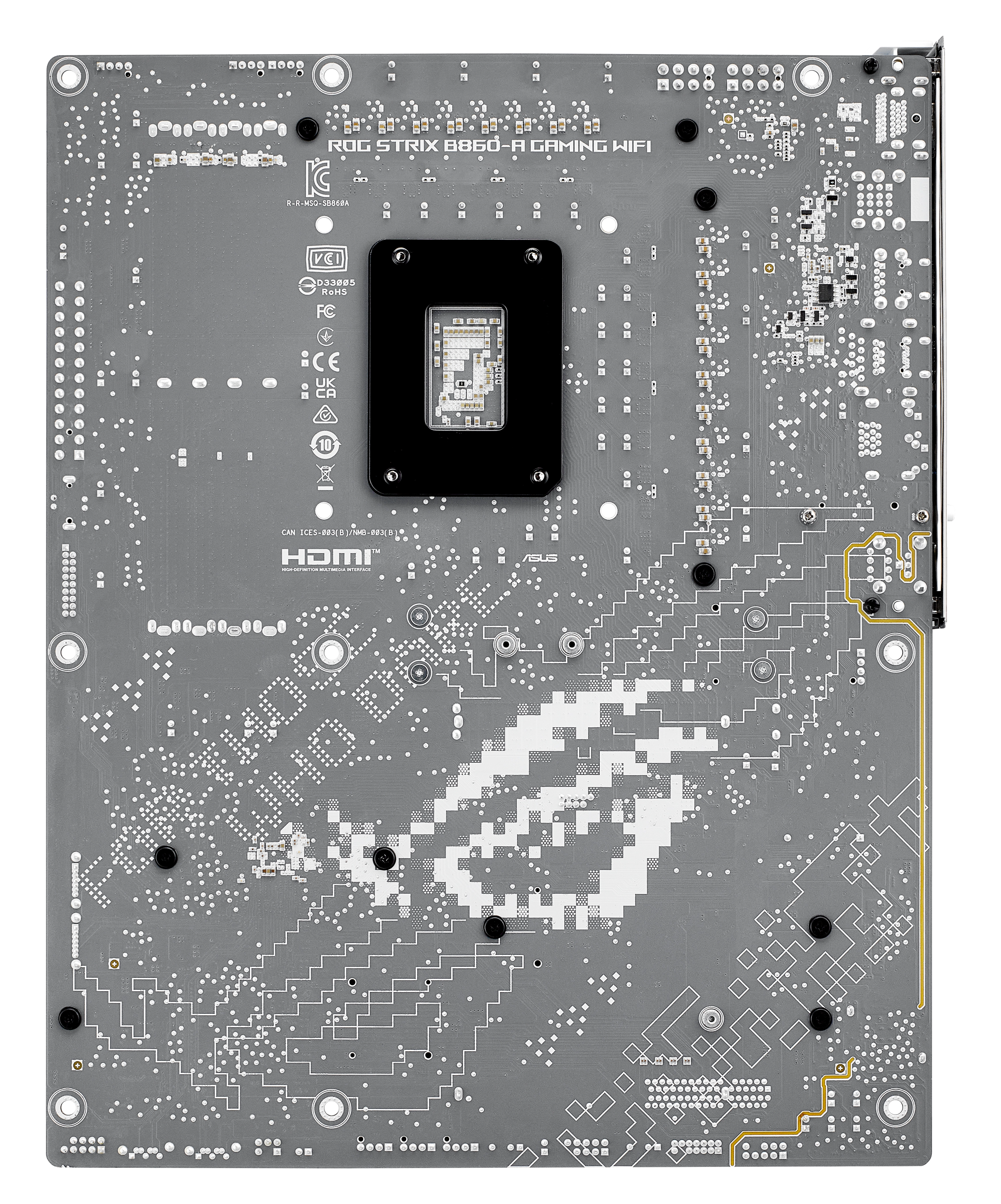

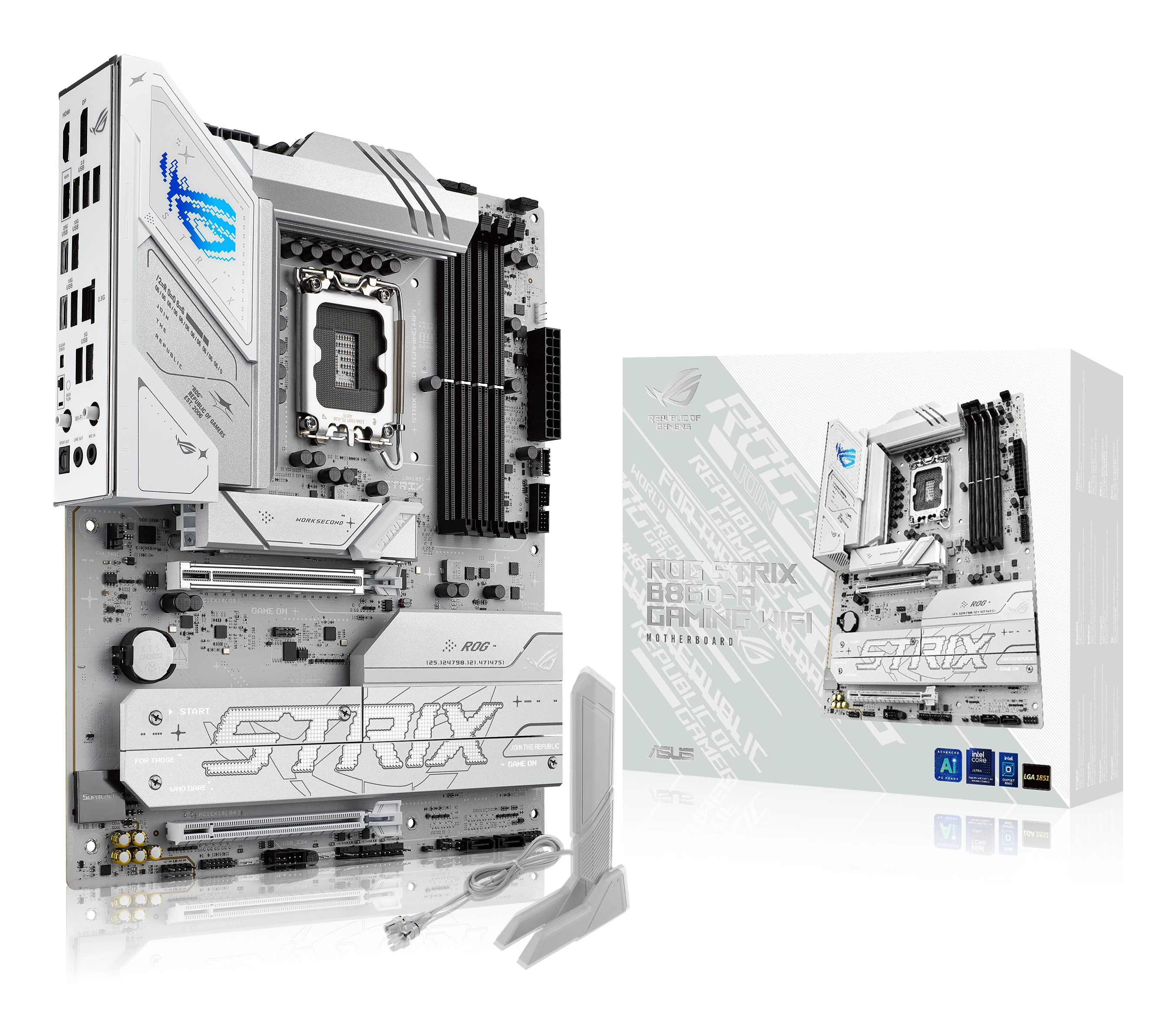

ROG STRIX B860-A gaming wifi
With NPU support and AI-enhanced solutions, the ROG STRIX B860-A Gaming WiFi is ready for advanced AI PC applications. Featuring a USB4® (20Gbps) port, PCIe® 5.0, and Aura Sync RGB lighting, it offers fast data transfers, versatile connectivity, and a customizable aesthetic to match your style.

Specification

Product
Product id	994084
Brand	AsusTek
Partnr	90MB1JI0-M0EAY0
EAN/UPC code	4711387788424
Warranty (months)	36 months
Processor
Processor manufacturer	Intel
Processor socket	LGA 1851 (Socket V1)
Compatible processor series	Intel Core Ultra (Series 2)
Memory
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Memory slots type	DIMM
ECC сompatibility	non-ECC
Maximum internal memory	256 GB
Supported memory clock speed (max)	8600 MHz
Unbuffered memory	Y
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of HDDs supported	4
Number of storage drives supported	8
RAID levels	0, 1, 5, 10
RAID support	Y
Graphics
Parallel processing technology support	Not supported
Internal I/O
USB 2.0 connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Number of SATA III connectors	4
Front panel audio connector	Y
ATX Power connector (24-pin)	Y
CPU fan connector	Y
Number of chassis fan connectors	4
Number of CPU fan connectors	1
EPS power connector (8-pin)	Y
Thunderbolt headers	1
12V power connector	Y

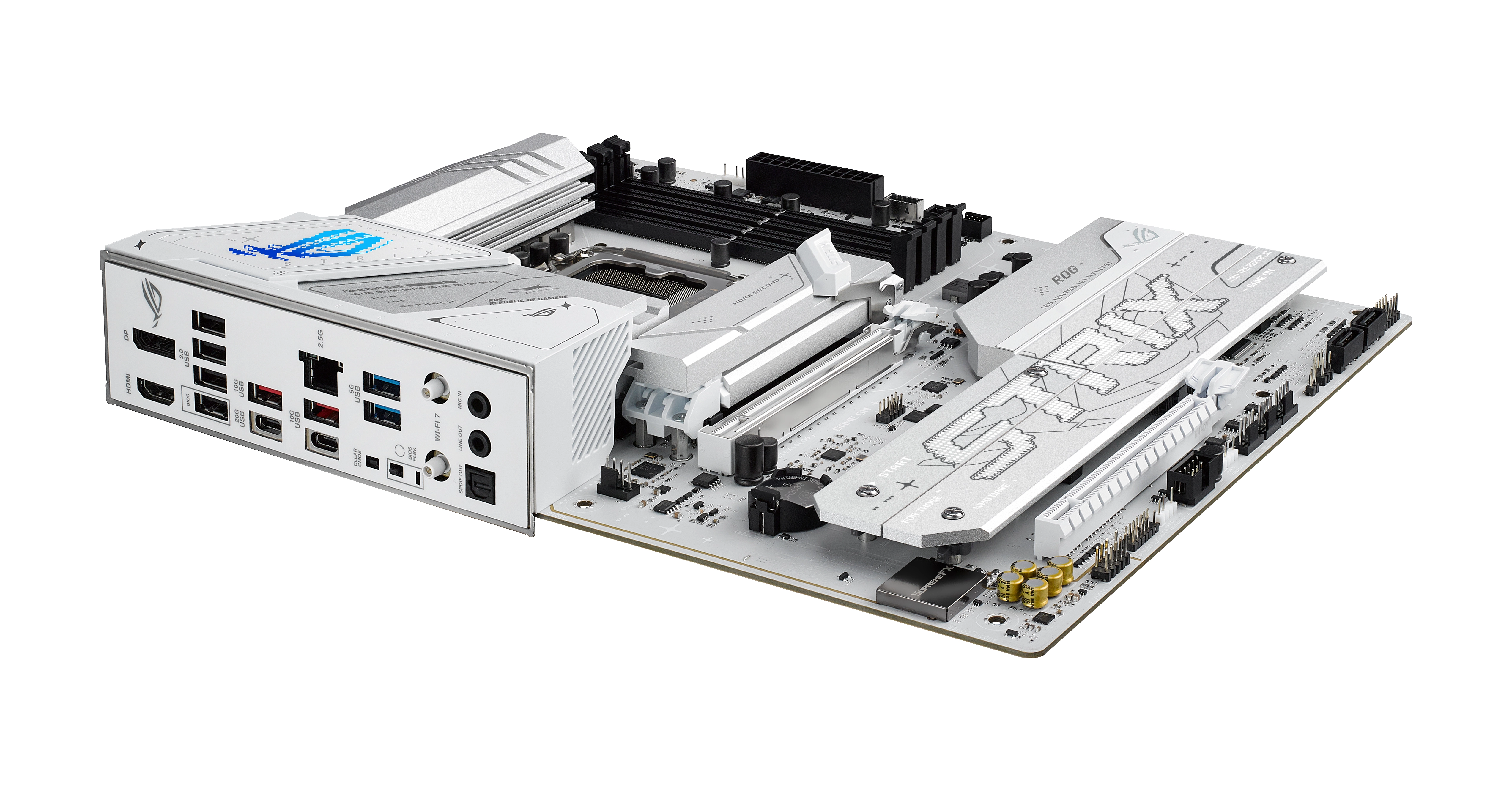

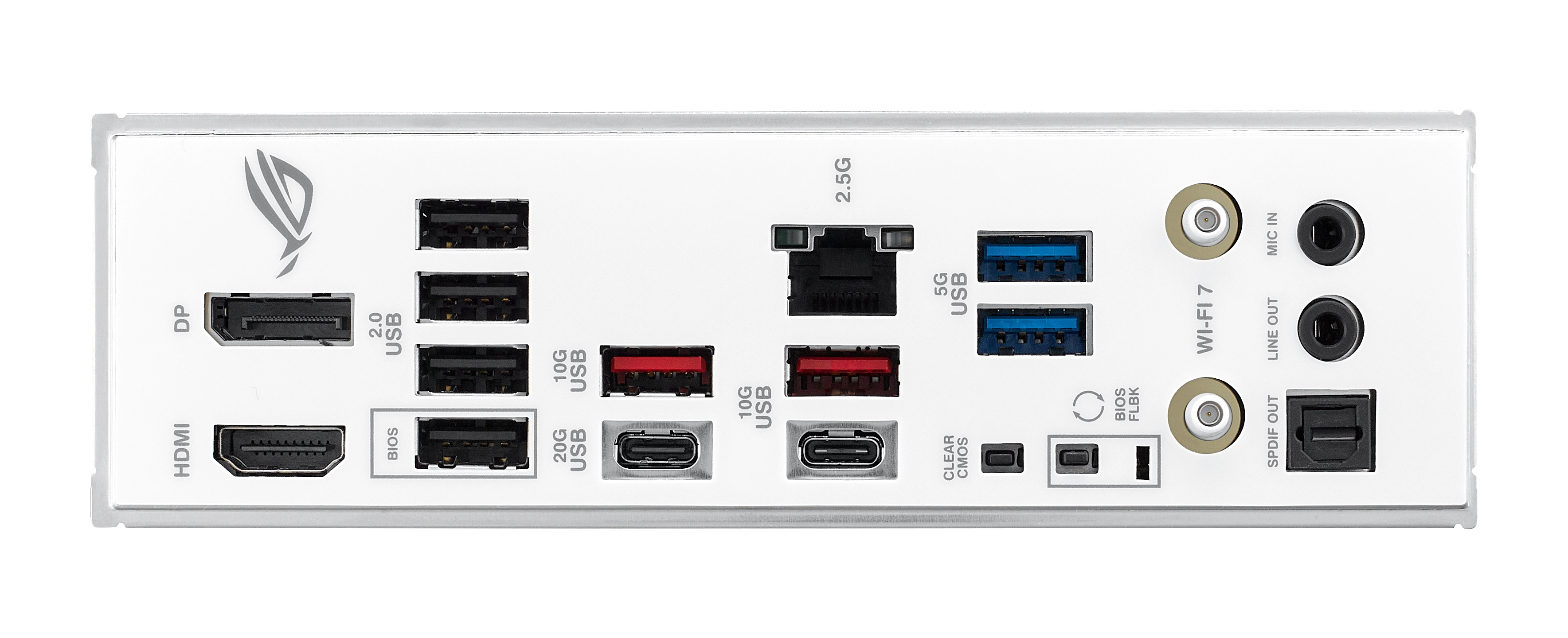

Rear panel I/O ports
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
USB4 Gen 2x2 ports quantity	1
HDMI ports quantity	1
DisplayPorts quantity	1
Microphone in	Y
S/PDIF out port	Y
Network
Ethernet LAN	Y
Ethernet interface type	2.5 Gigabit Ethernet
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Bluetooth	Y
Bluetooth version	5.4
Features
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	Intel
Motherboard chipset	Intel B860
Audio chip	Realtek ALC1220P
Audio output channels	7.1 kanalen
Product colour	White
Windows operating systems supported	Windows 11
Expansion slots
PCI Express x16 (Gen 4. x) slots	1
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS button	Y

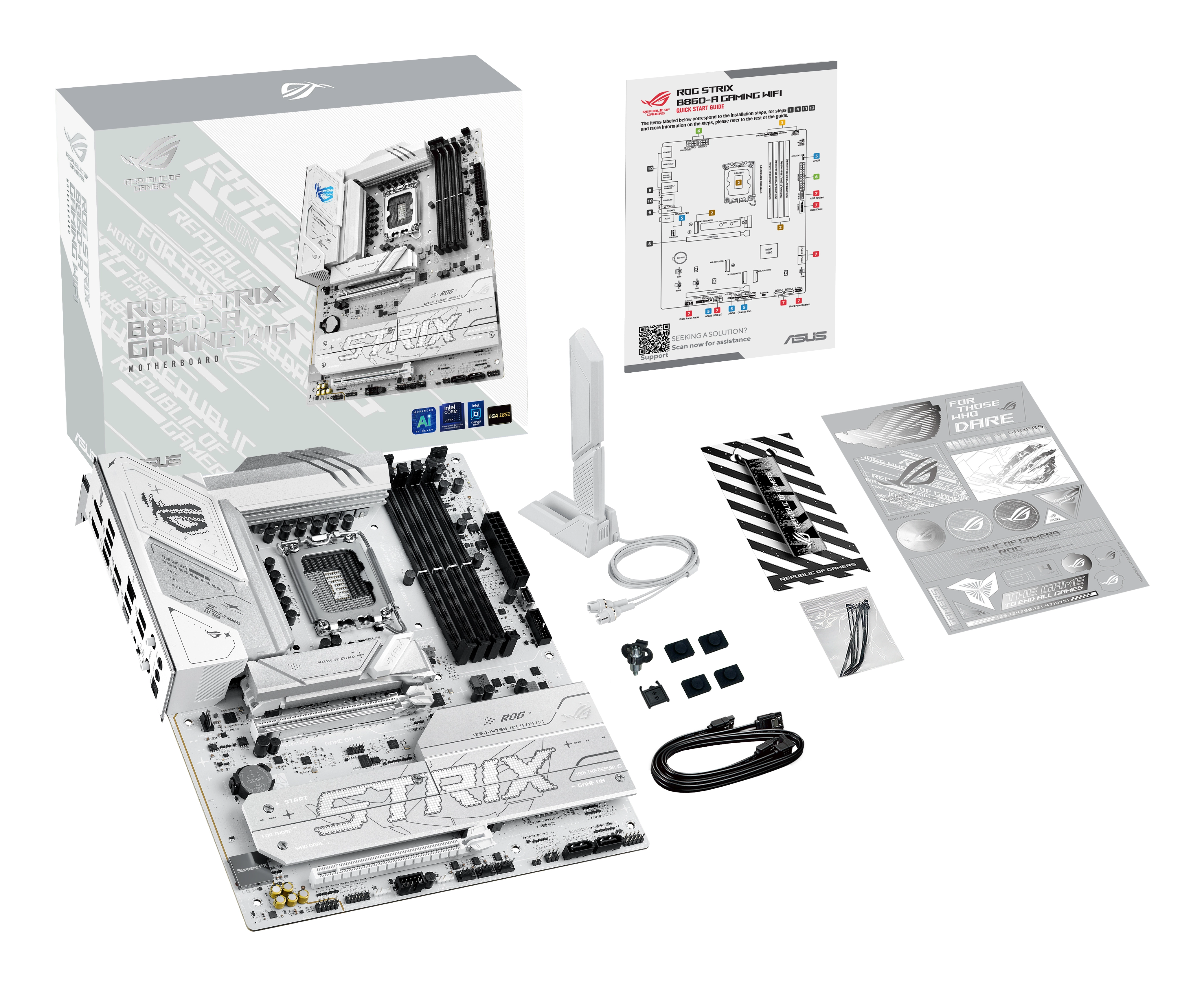

Packaging data
Package width	355 mm
Package depth	273 mm
Package height	70 mm
Weight & dimensions
Width	305 mm
Depth	244 mm
Height	50 mm
Other features
Weight	1401 g
Package weight	1683 g
