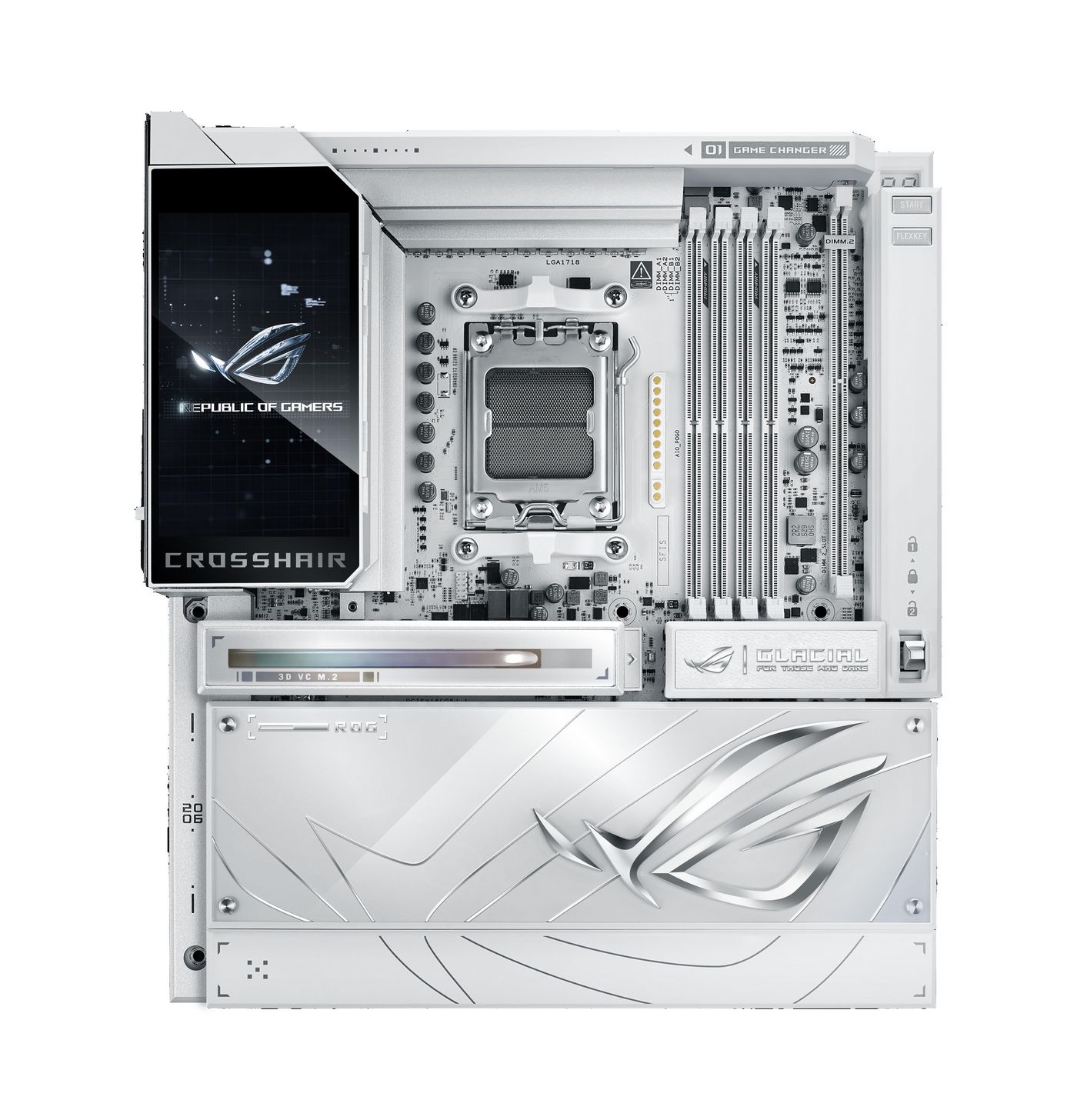

The ROG X870E Glacial is a flagship motherboard engineered for uncompromising performance and sophisticated AI. It boasts a robust 24+2+2 power stage design, Dynamic OC Switcher, and Core Flex for next-generation overclocking control. Meanwhile, advanced memory tuning is unlocked through server-grade DRAM enhancement and NitroPath DRAM technology, and storage scales with support for up to seven M.2 drives. Top-tier connectivity includes two 10G Ethernet ports, two USB4® ports, and two USB 20Gbps Type-C® front-panel connectors. This motherboard also features a 3D VC M.2 heatsink and a 5-inch LCD display, along with AI Cache Boost and AI Advisor for smarter, more intuitive system tuning.

Specification

Product
Product id	1013006
Brand	AsusTek
Partnr	90MB1NQ0-M0EAY0
EAN/UPC code	4711636392044
Warranty (months)	36 months
Processor
Processor manufacturer	AMD
Processor socket	Socket AM5
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets	Socket AM5
Memory
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	ECC & non-ECC
Maximum internal memory	256 GB
Unbuffered memory	Y
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of HDDs supported	4
Number of storage drives supported	11
RAID levels	0, 1, 5, 10
RAID support	Y
Graphics
Parallel processing technology support	Not supported
Internal I/O
USB 2.0 connectors	3
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2x2 connectors	2
Number of SATA III connectors	4
Front panel audio connector	Y
Front panel connector	Y
ATX Power connector (24-pin)	Y
CPU fan connector	Y
Number of chassis fan connectors	2
EPS power connector (8-pin)	Y
12V power connector	Y
RGB LED pin header	Y
Number of temperature sensor headers	1
Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	8
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	4
Ethernet LAN (RJ-45) ports	2
USB4 Gen 3x2 ports quantity	2
Microphone in	Y
S/PDIF out port	Y
WiFi-AP antenna jack	1
Network
Ethernet LAN	Y
Ethernet interface type	10 Gigabit Ethernet
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
WLAN controller model	MediaTek MT7927
Bluetooth	Y
Bluetooth version	5.4
Features
Component for	PC
Motherboard form factor	Extended ATX
Motherboard chipset family	AMD
Motherboard chipset	AMD X870E
Audio chip	Realtek ALC4082
Audio output channels	7.1 kanalen
Product colour	White
Windows operating systems supported	Windows 11
Expansion slots
PCI Express x16 (Gen 4. x) slots	2
PCI Express x16 (Gen 5. x) slots	2
Number of M.2 (M) slots	7
1st M.2 largest key size	22110
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	2280
2nd M.2 highest PCI Express generation	5.0
3rd M.2 largest key size	2280
3rd M.2 highest PCI Express generation	4.0
BIOS
BIOS type	UEFI AMI
BIOS memory size	1024 Mbit
Packaging data
Package width	380 mm
Package depth	320 mm
Package height	125 mm
Weight & dimensions
Width	305 mm
Depth	277 mm
Packaging content
Cables included	SATA
Antenna included	Y
Other features
Package weight	6656 g
