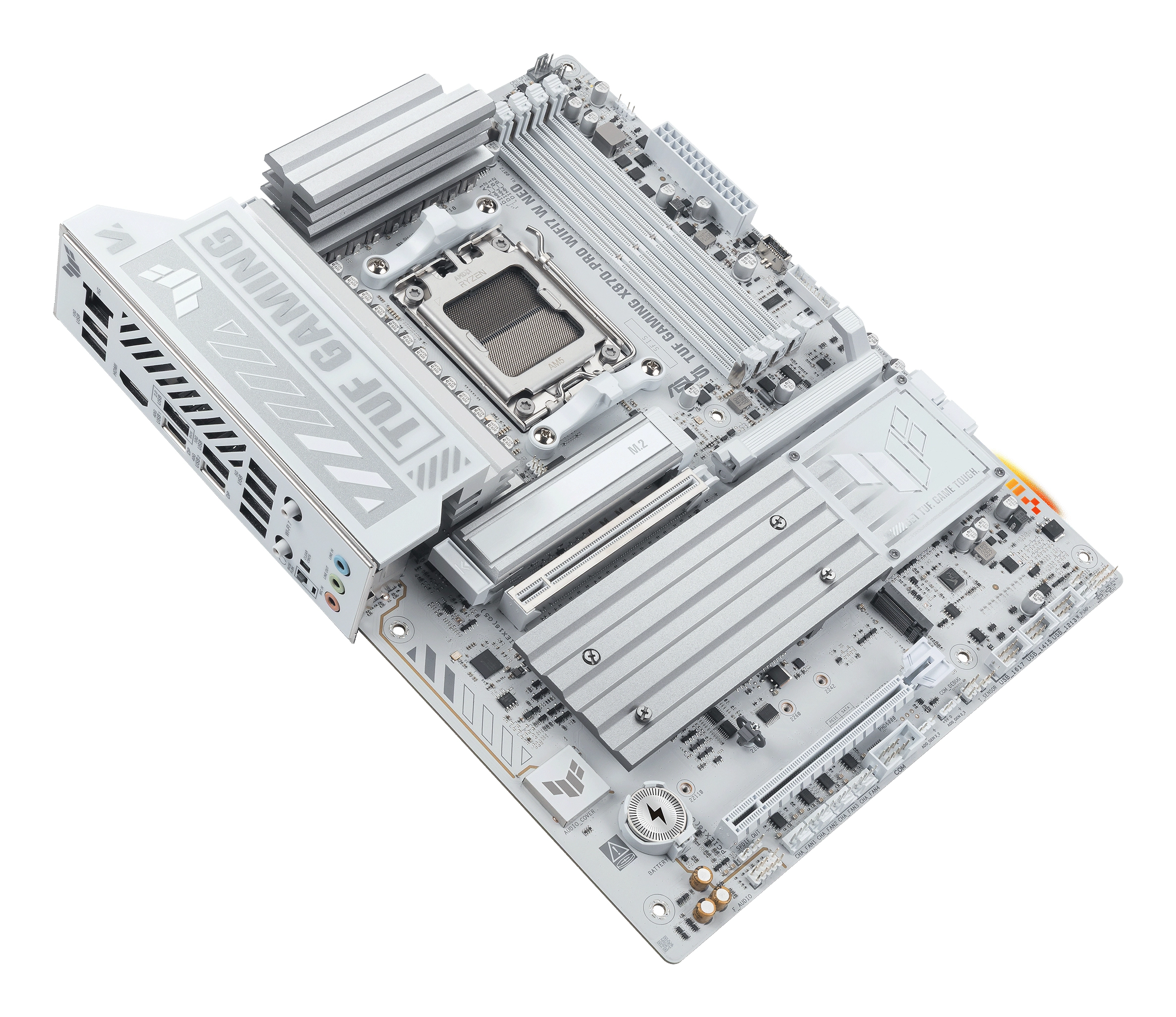

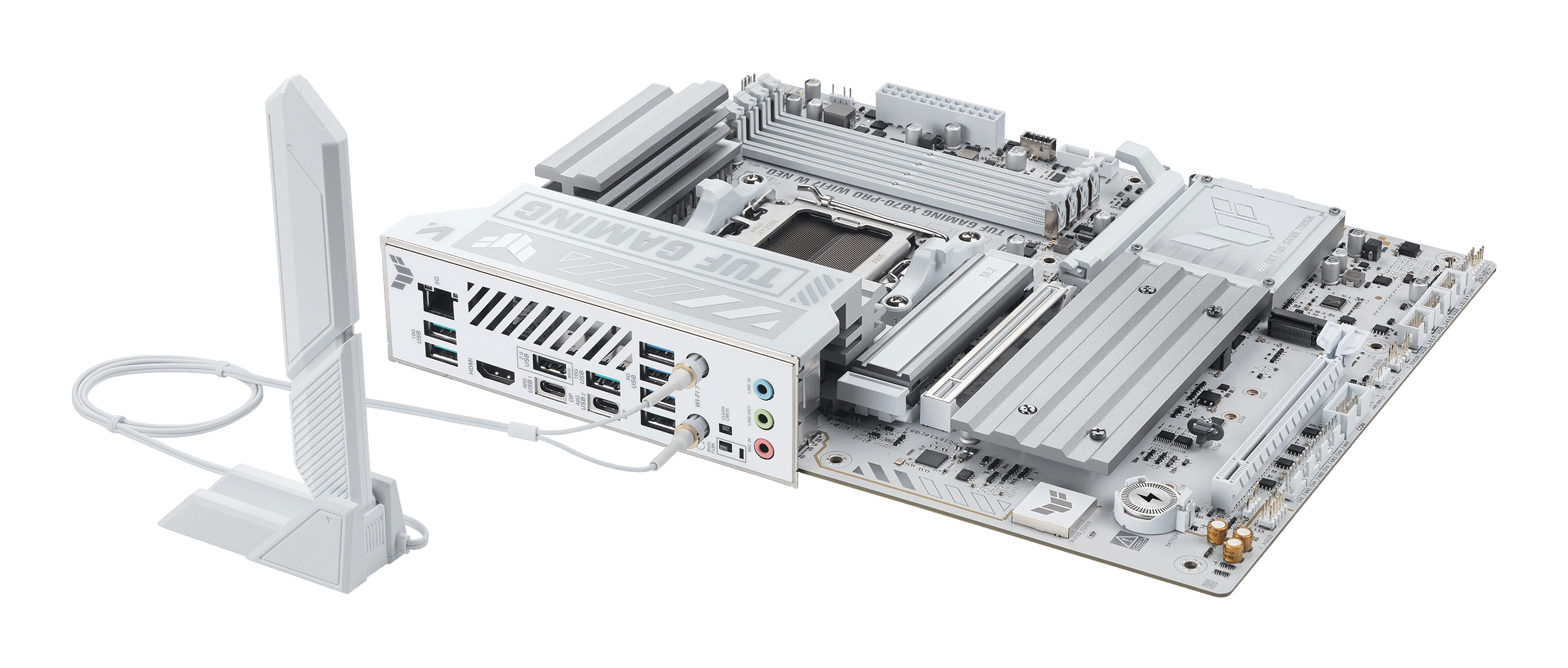

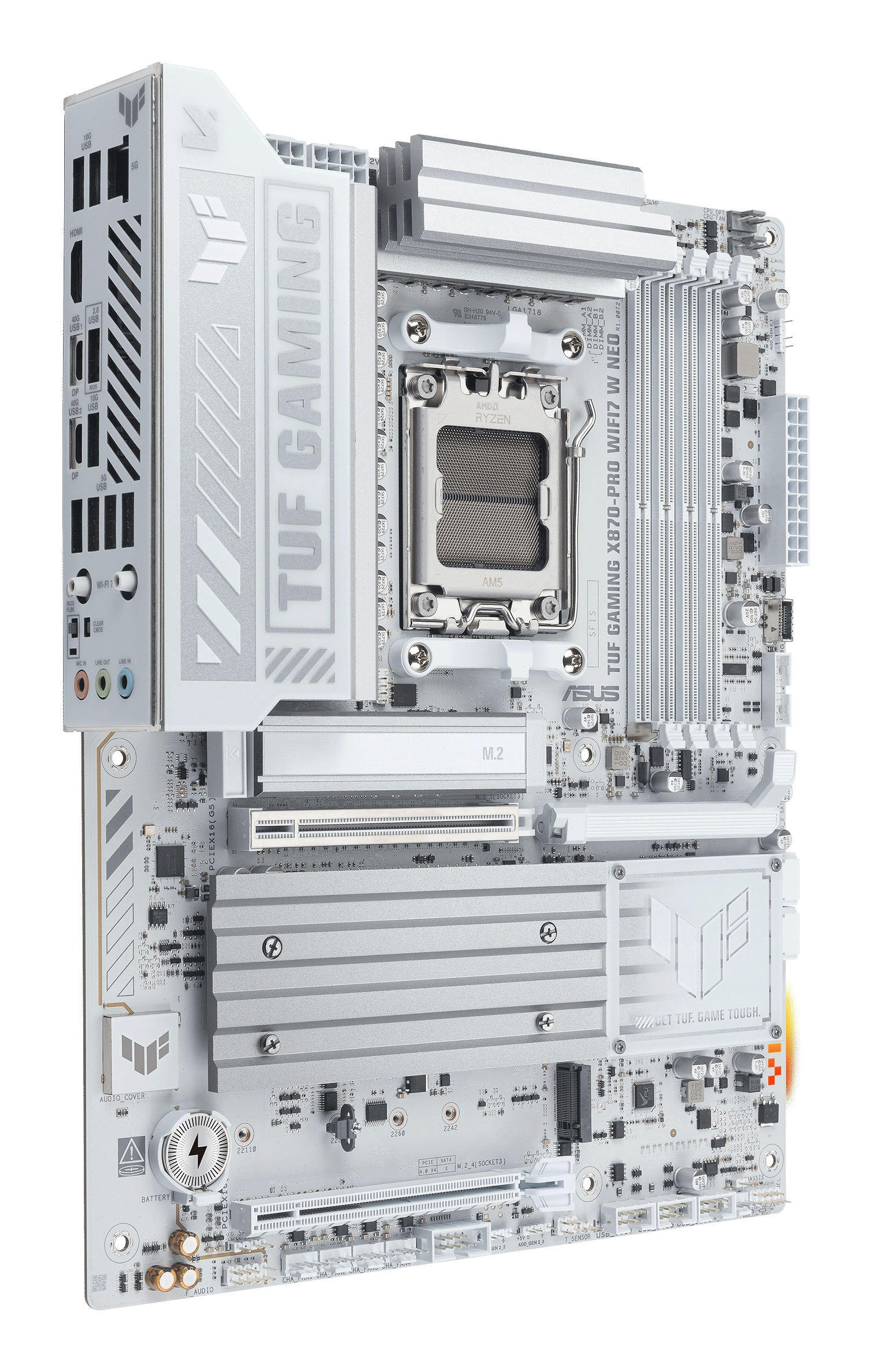

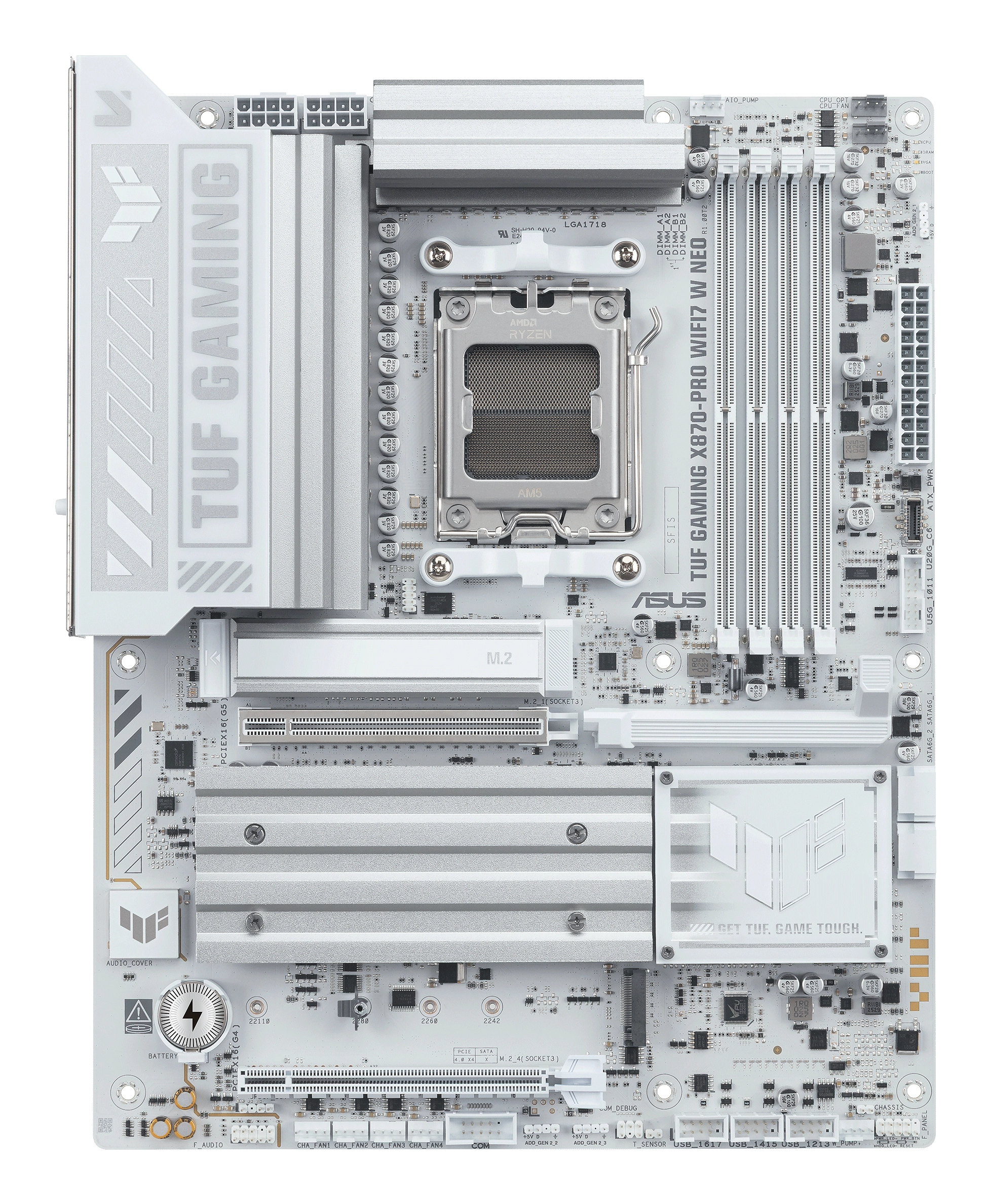

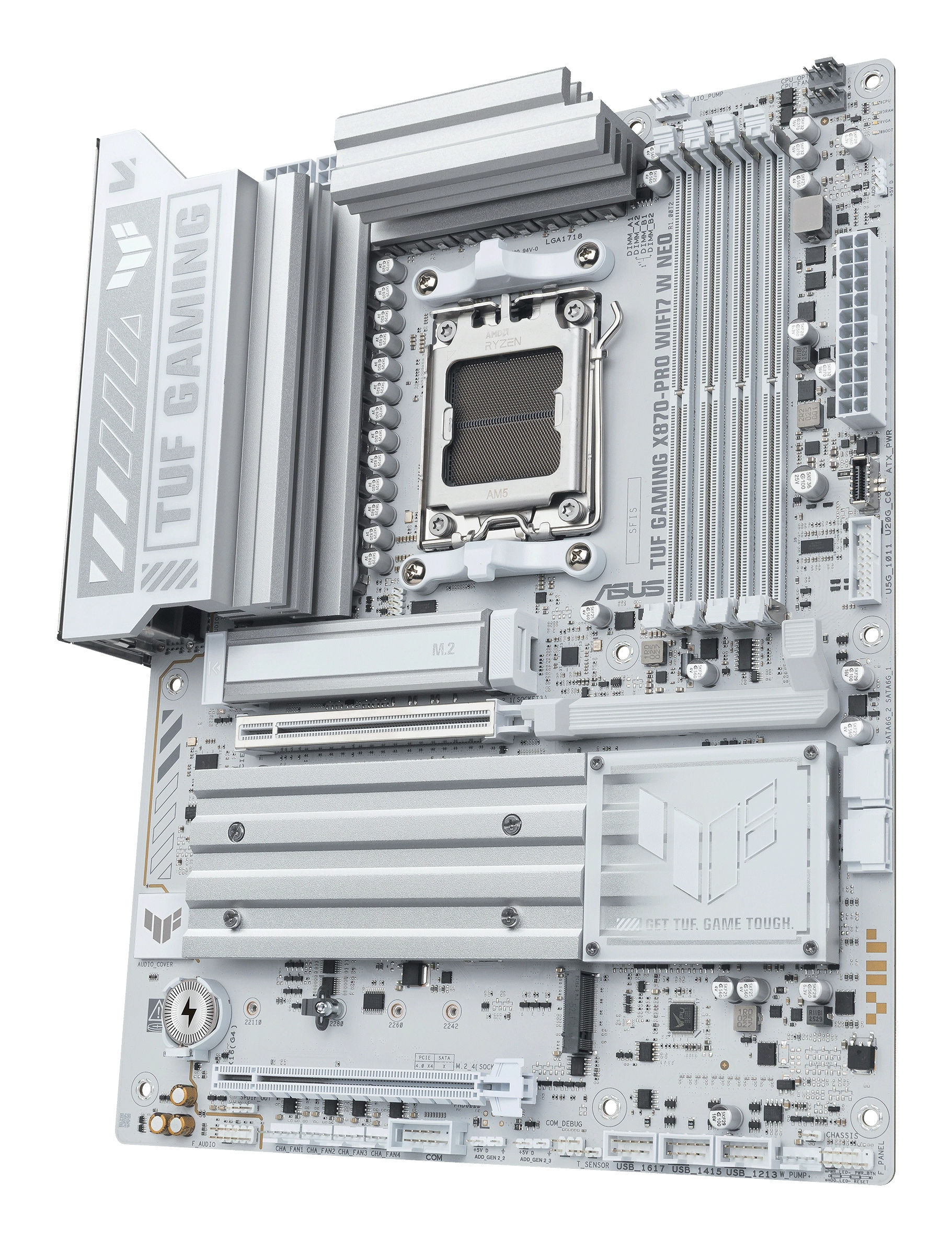

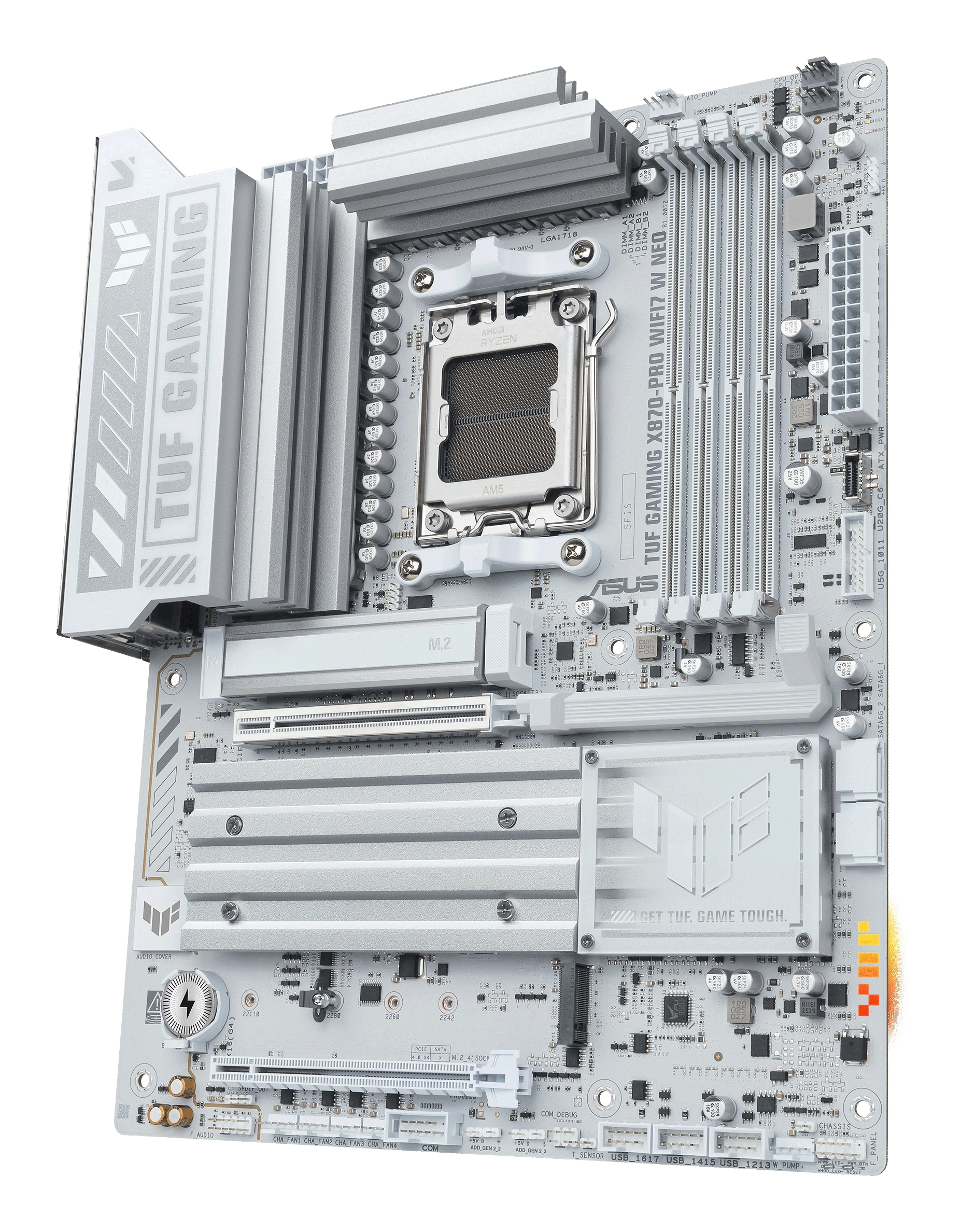

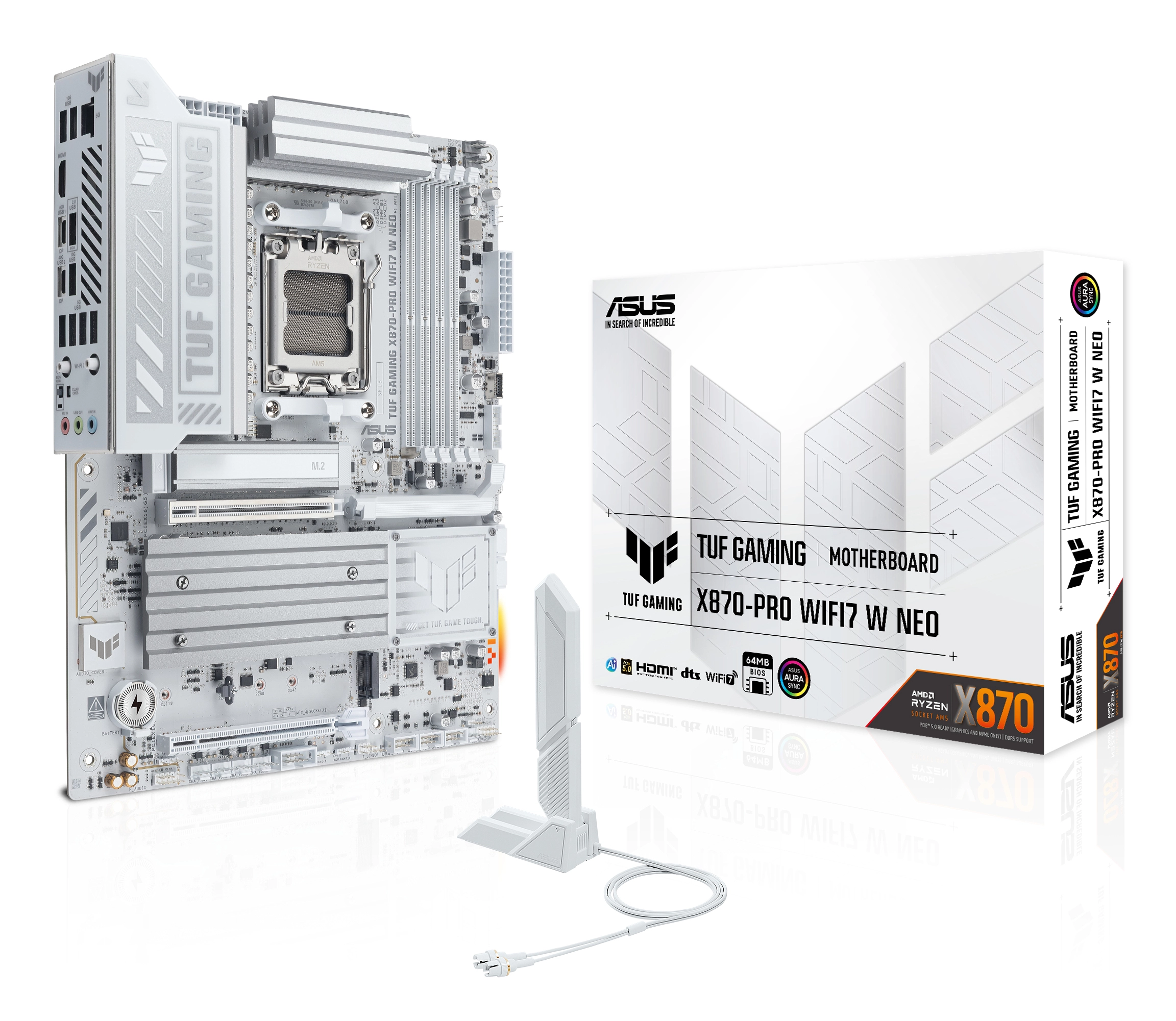

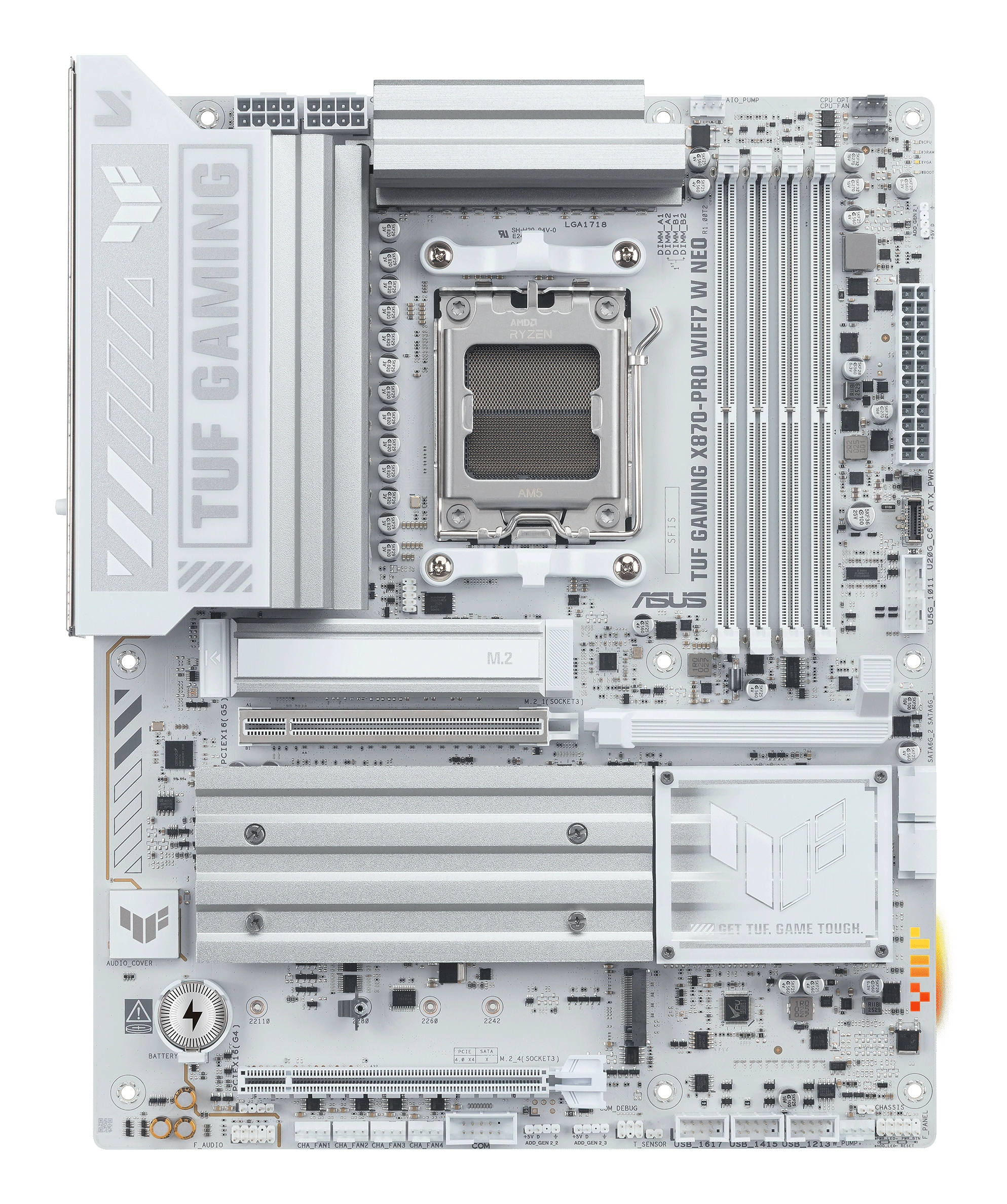

TUF GAMING X870-PRO WIFI7 W NEO
ASUS TUF GAMING X870-PRO WIFI7 W NEO takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

Specification

Product
Product id	1013014
Brand	AsusTek
Partnr	90MB1NY0-M0EAY0
EAN/UPC code	4711636425247
Warranty (months)	36 months
Processor
Processor manufacturer	AMD
Processor socket	Socket AM5
Compatible processor series	AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series
Memory
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	ECC & non-ECC
Maximum internal memory	256 GB
Supported memory clock speed (max)	9600 MHz
Unbuffered memory	Y
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of HDDs supported	2
Number of storage drives supported	6
RAID levels	0, 1, 5, 10
RAID support	Y
Graphics
Parallel processing technology support	Not supported
Internal I/O
USB 2.0 connectors	3
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2x2 connectors	1
Number of SATA III connectors	2
Front panel audio connector	Y
ATX Power connector (24-pin)	Y
CPU fan connector	Y
Number of chassis fan connectors	4
Chassis intrusion connector	Y
Number of CPU fan connectors	1
EPS power connector (8-pin)	Y
12V power connector	Y
Number of water pump connectors	1
Number of COM connectors	1

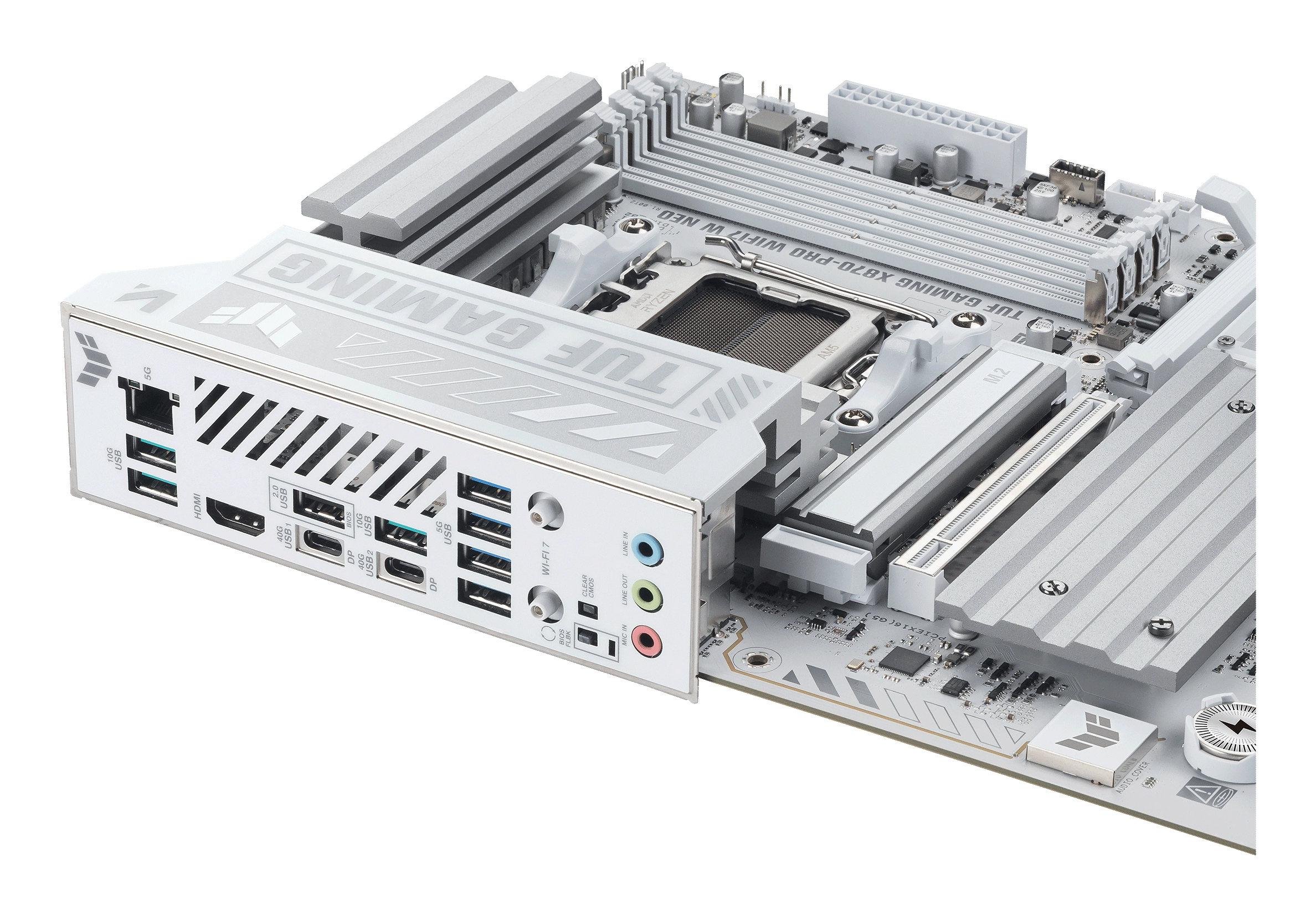

Rear panel I/O ports
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
Ethernet LAN (RJ-45) ports	1
USB4 Gen 3x2 ports quantity	2
HDMI ports quantity	1
Network
Ethernet LAN	Y
Ethernet interface type	5 Gigabit Ethernet
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
WLAN controller model	Realtek RTL8922AE
Bluetooth	Y
Bluetooth version	5.4
Features
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	AMD
Motherboard chipset	AMD X870
Audio chip	Realtek ALC1220P
Audio output channels	7.1 kanalen
Product colour	White
Windows operating systems supported	Windows 11
Expansion slots
PCI Express x16 (Gen 4. x) slots	1
Number of M.2 (M) slots	4
1st M.2 largest key size	2280
BIOS
BIOS type	UEFI AMI
BIOS memory size	512 Mbit
Clear CMOS button	Y
Packaging data
Package width	353 mm
Package depth	273 mm
Package height	68 mm
Weight & dimensions
Width	305 mm
Depth	244 mm
Height	50 mm
Other features
Weight	1560 g
Package weight	2140 g
